EDITORIAL

Sweating The Small Stuff At Crankworx 2019: Part 2

Words Andrew Major
Photos Andrew Major
Date Aug 21, 2019

Micro Spline This.

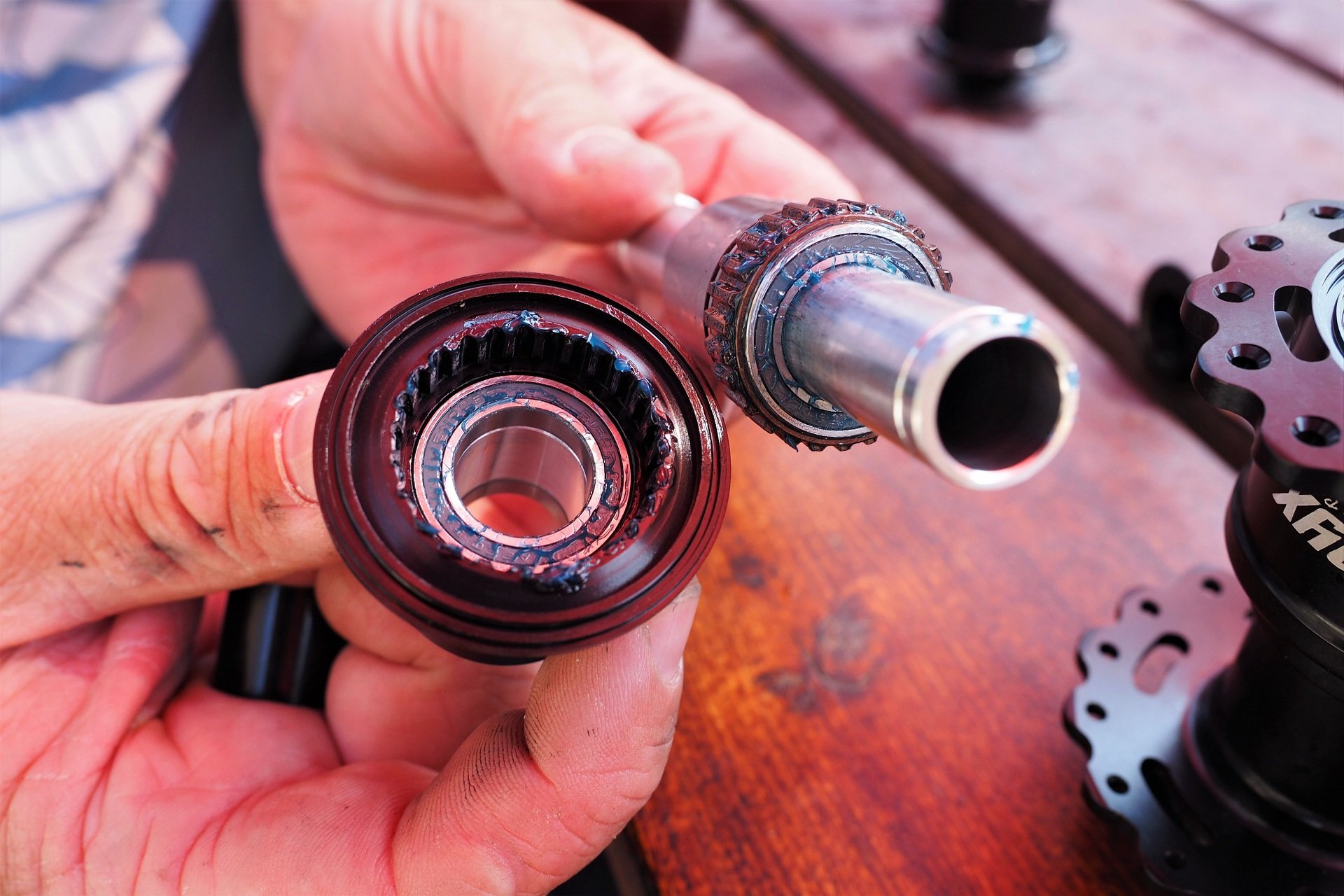

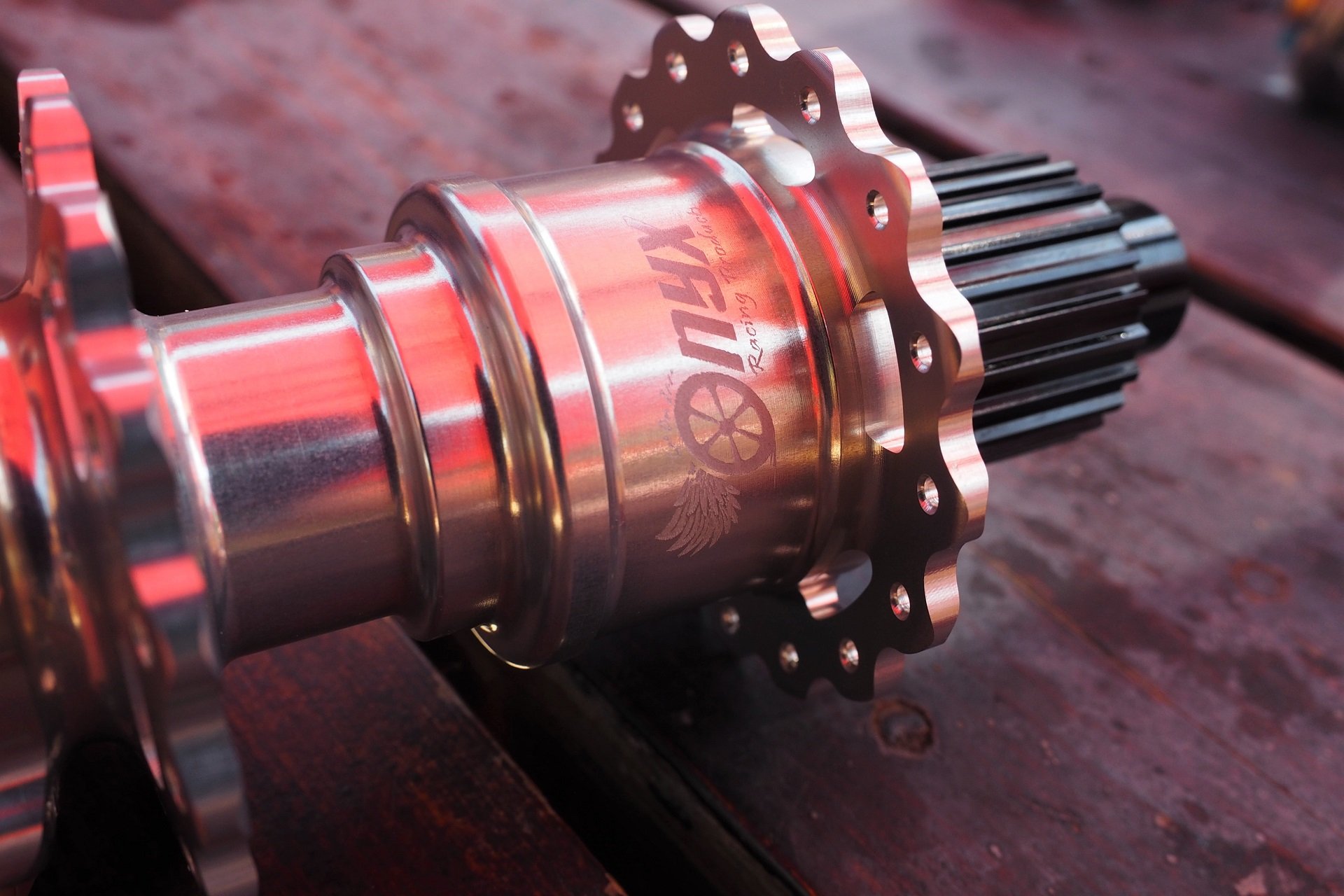

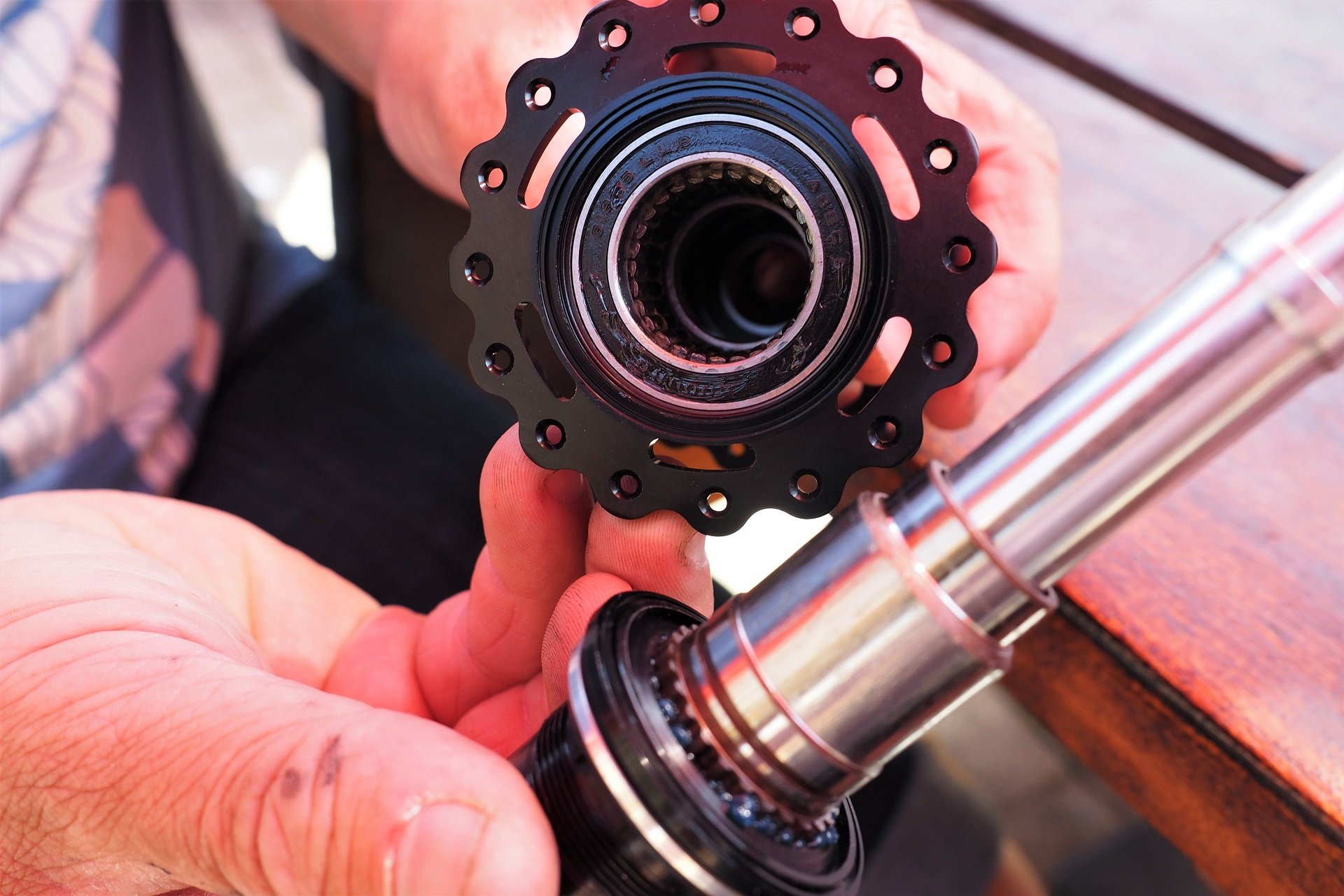

This is unapologetically deep-nerd, but the beautiful people behind Onyx instant clutch hubs made my Crankworx by updating their hubs to hack the massive worldwide small parts support, and Micro Spline license, of top OE wheel provisioner DT Swiss. There's been a lot said about Shimano's 10t & e~bike friendly re-imagining of one of the oldest commonly used bicycle standards and, disregarding whether it is even necessary, the biggest cloud over the system has been the slow roll-out of manufacturing licenses.

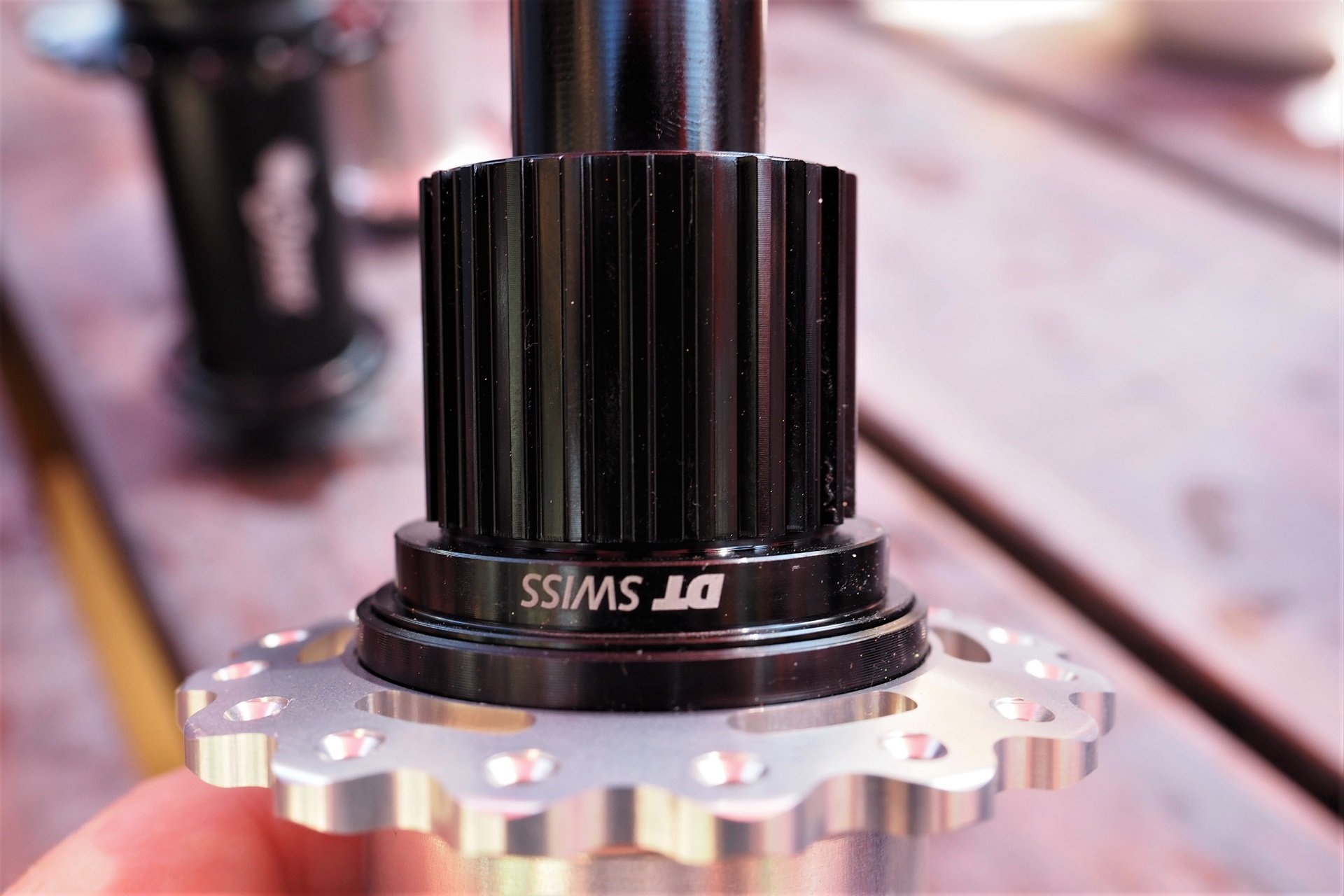

That's not all that's new in the land of Micro Spline. There's a few wheels rolling around Crankworx running Shimano 12spd drivetrains from companies that don't currently list a Micro Spline option for their wheels.

Crankworx 2019 NSMB AndrewM (30).JPG

All you have to do is count to twelve...

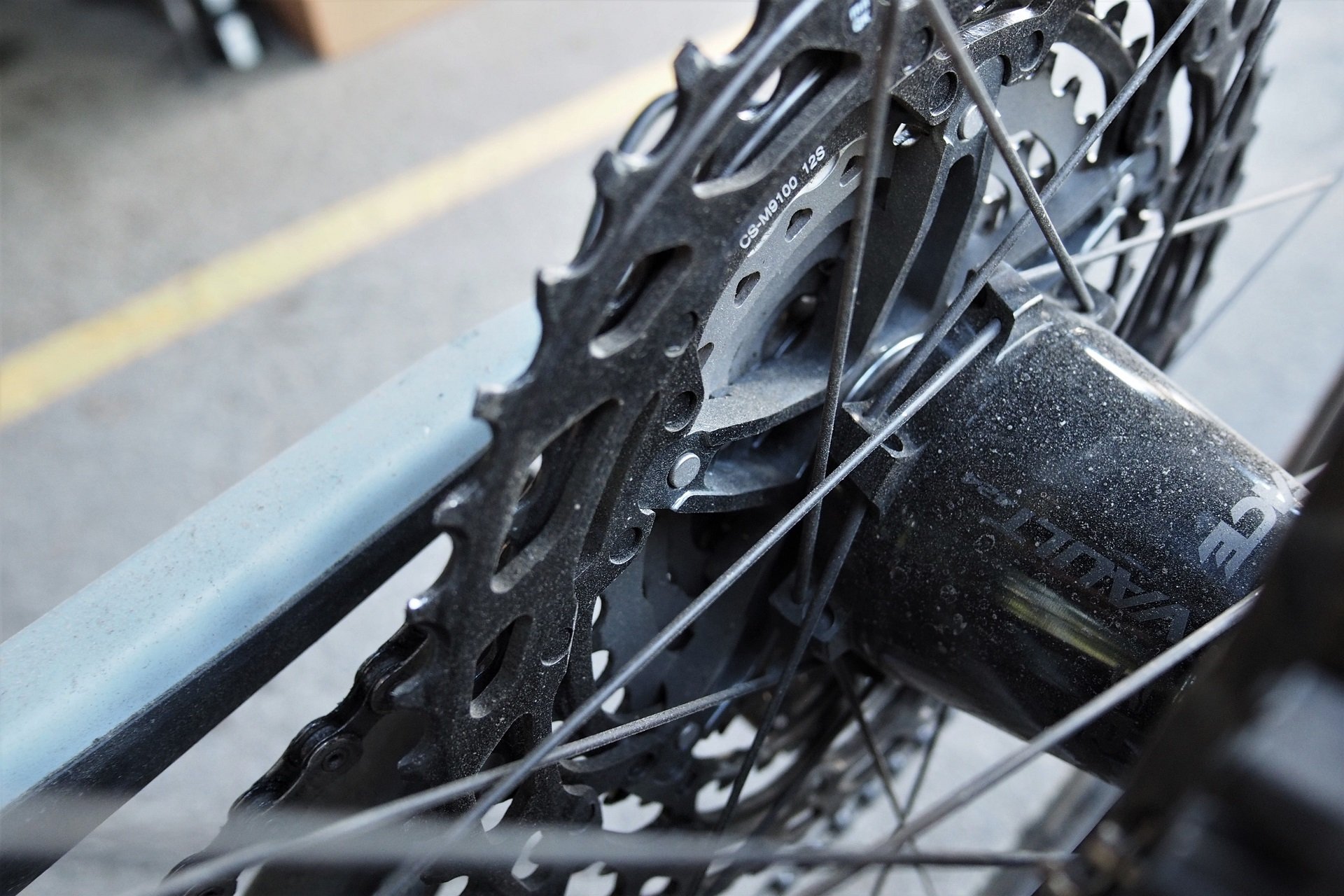

Crankworx 2019 NSMB AndrewM (29).JPG

...or, you know, read, to know at least one more Micro Spline licence is coming.

Speaking of Shimano 12-speed, as has been true for decades, any time Shimano launches a new standard, there's a scramble for the aftermarket to jump onboard with spare parts. Sometimes it's a case of simply supporting aftermarket replacement and other times it's ensuring compatibility with existing aftermarket parts. At Crankworx, Race Face joined Wolf Tooth in manufacturing 12-speed chainrings that are compatible with Shimano's new 12-speed chains so you can run your preferred Race Face cranks and get all the advantages of Shimano's new shifting system.

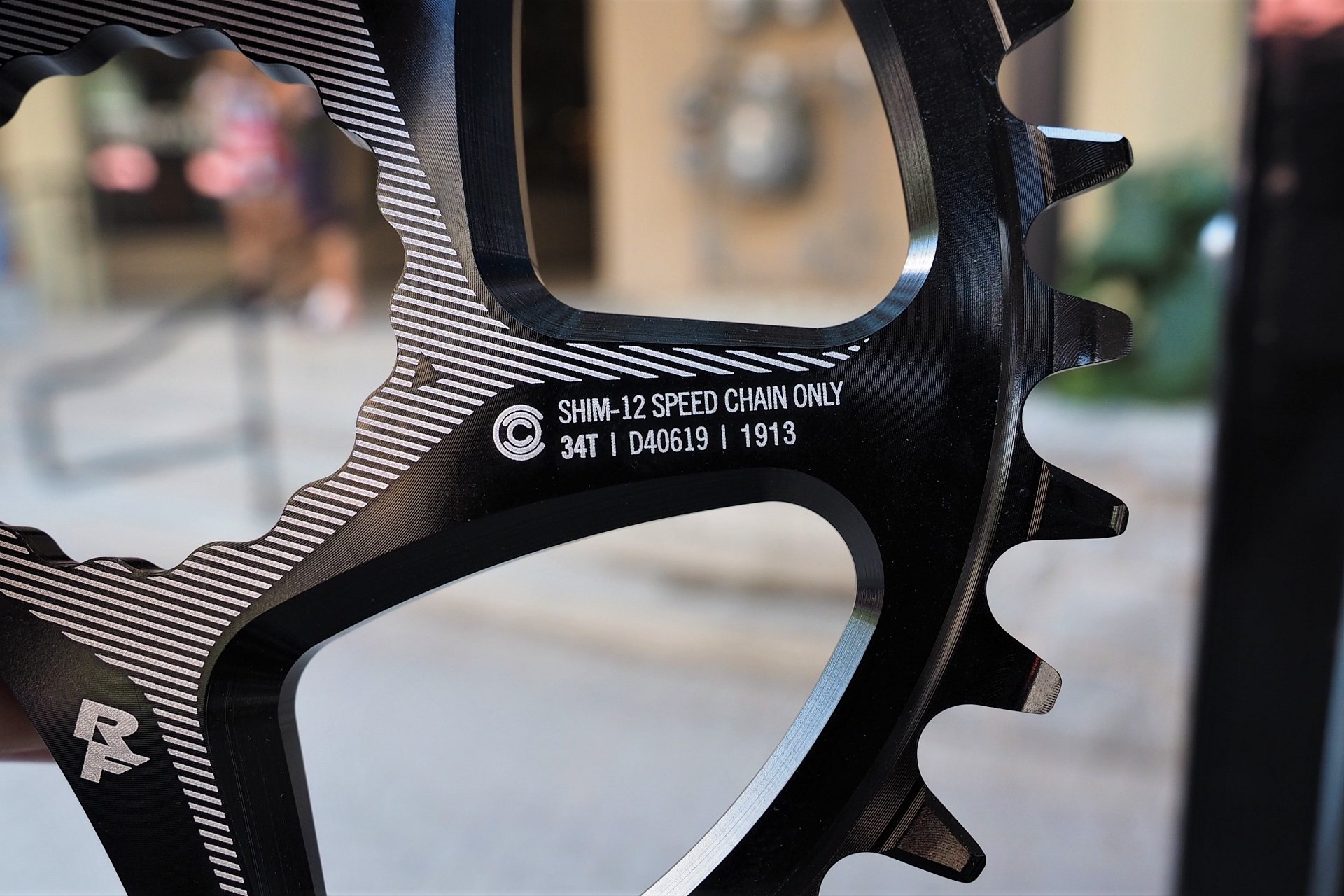

Crankworx 2019 NSMB AndrewM (32).JPG

Compatible only with Shimano's new 12-speed chains. Other 12-speed setups can use the existing Cinch rings.

Crankworx 2019 NSMB AndrewM (31).JPG

The rings are available in 30t, 32t, and 34t configurations. With the plethora of big travel 29'ers popping up don't be surprised to see them add a 28t.

Giant Tools

Paul from Giant Canada was on hand at the, actually, quite giant booth showcasing the brands new tool-storage solutions. This collection of tools is not Giant-specific and riders with any brand of bike could benefit from the magic of magnets.

Crankworx 2019 NSMB AndrewM (34).JPG

If you're going to put your friendly local Irishman out in the sun for days on end to talk about bike tools you'd better give him a Yuge Hat!

Crankworx 2019 NSMB AndrewM (35).JPG

Giant is taking advantage of all the un-used orifices to stash tools on bikes. We'll test the various pieces over the winter and report back.

Crankworx 2019 NSMB AndrewM (33).JPG

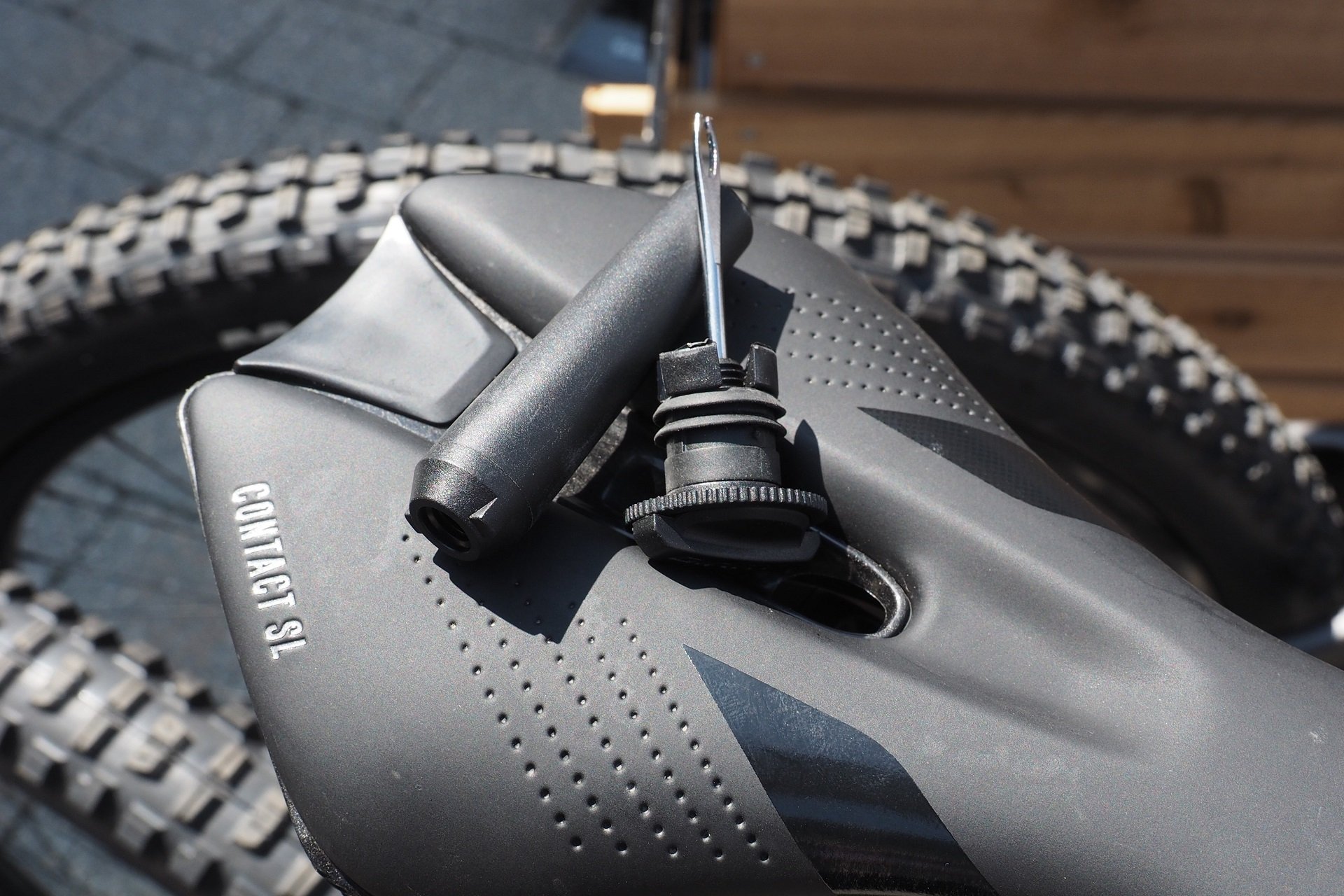

The prong goes in one barend cap and the bacon-plugs go in the other. Both caps also have a small container for first-aid supplies.

Crankworx 2019 NSMB AndrewM (39).JPG

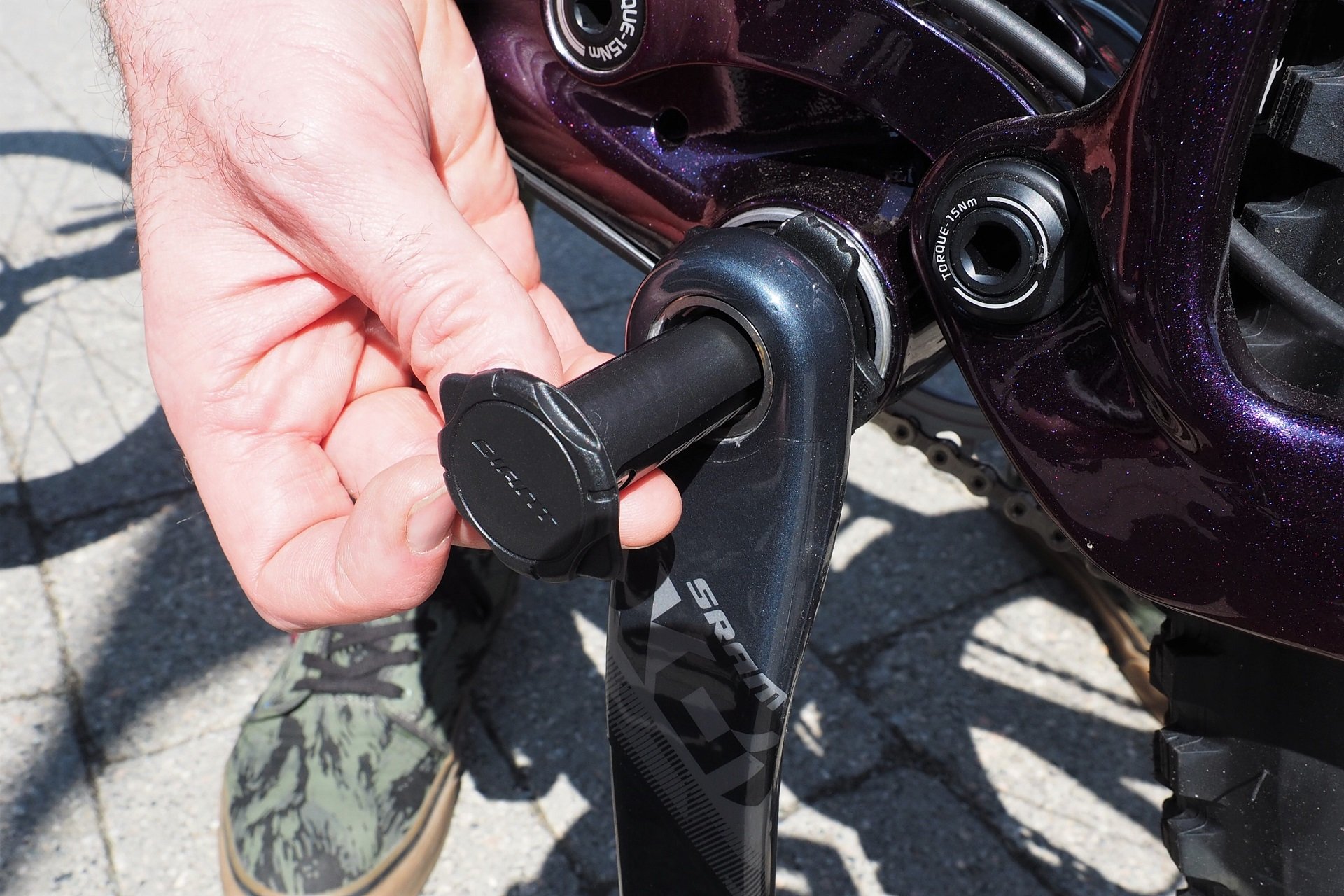

A combination multi-tool and chain breaker inside the crankarm spindle by a magnetic insert.

Crankworx 2019 NSMB AndrewM (40).JPG

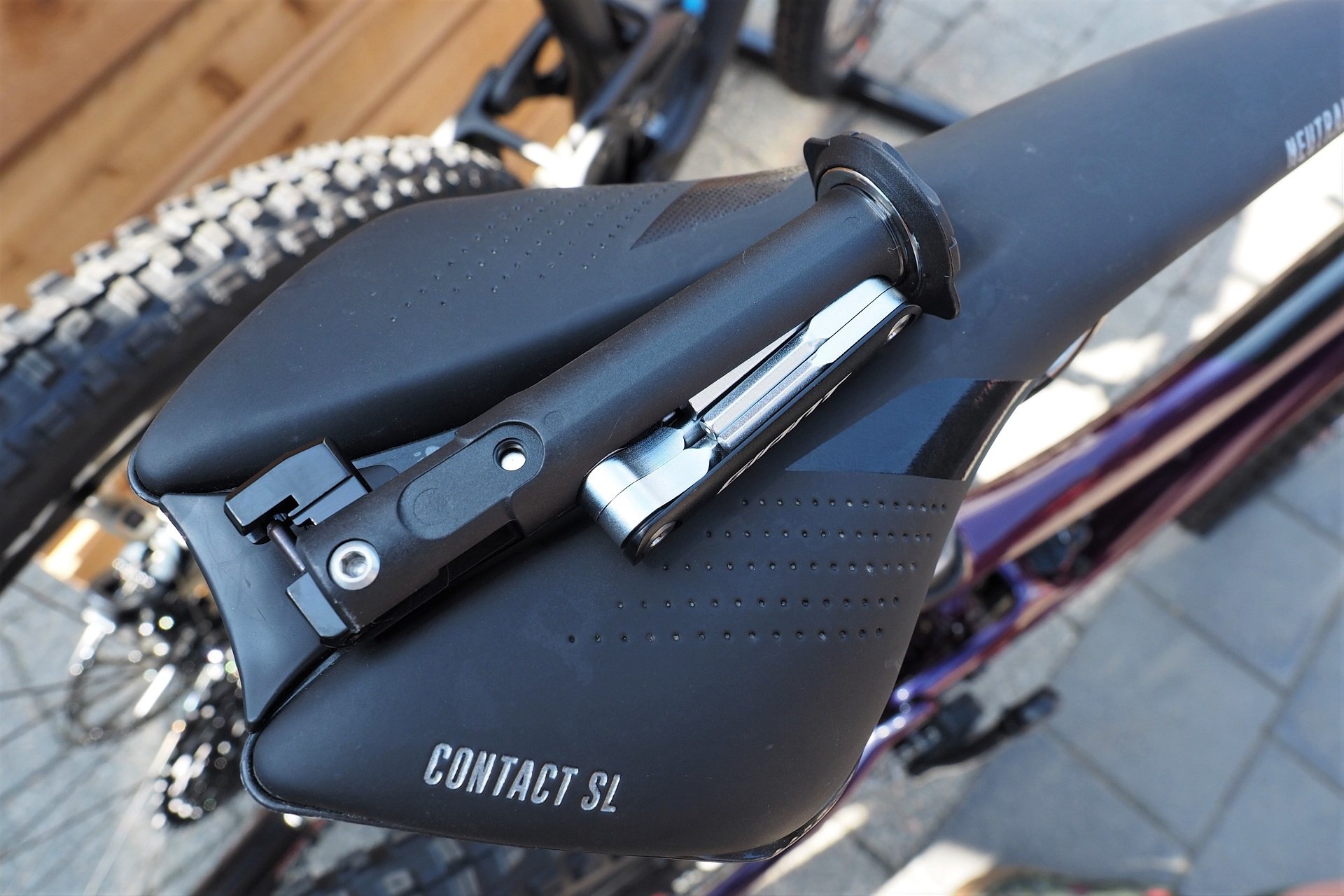

Despite the dictated dimensions, the tools and chainbreaker all look to be good quality and very usable.

Crankworx 2019 NSMB AndrewM (37).JPG

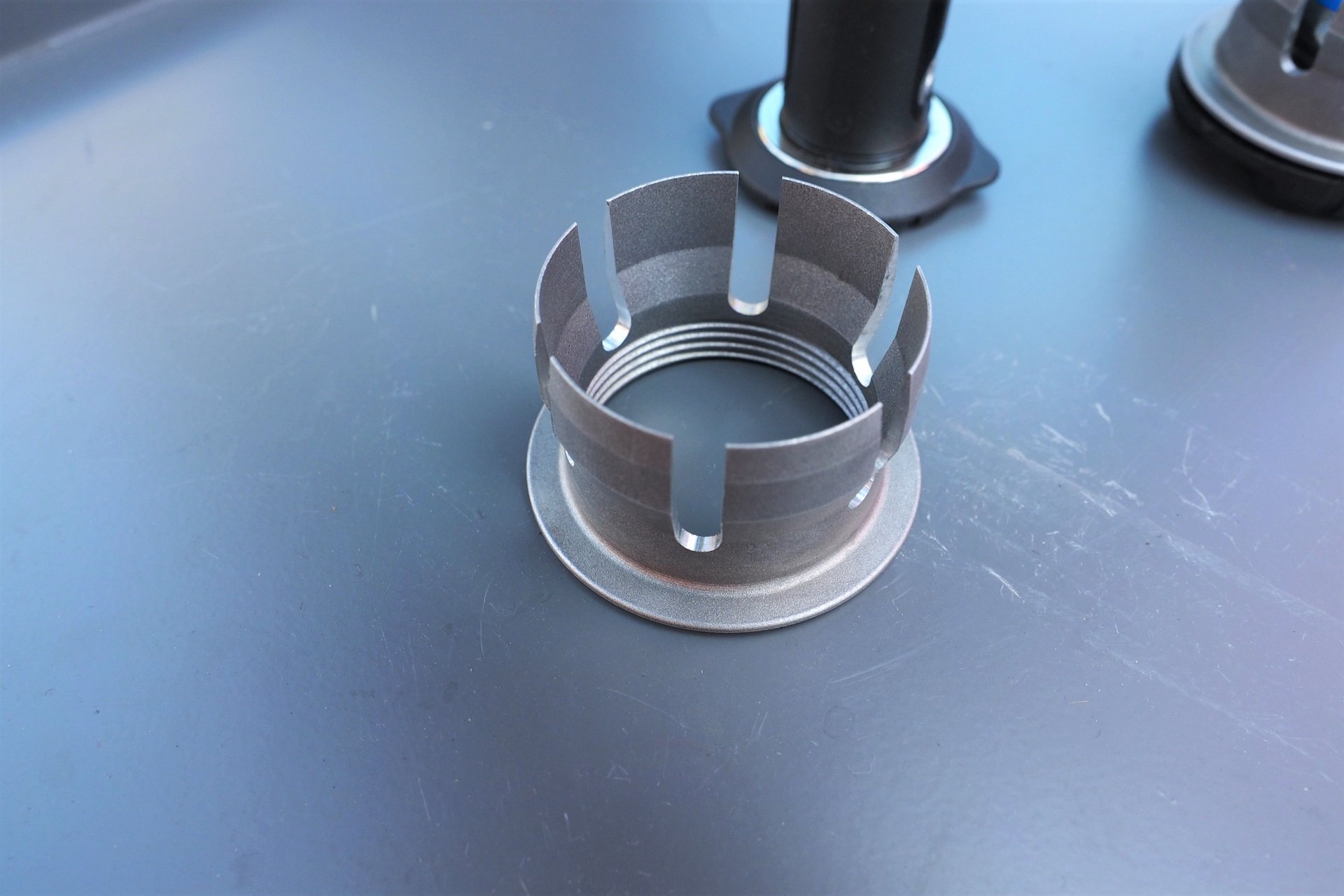

No fork modifications required. This little doodad pops into the 1.5" bottom of a steerer tube and then holds the CO2 kit in place via magnets.

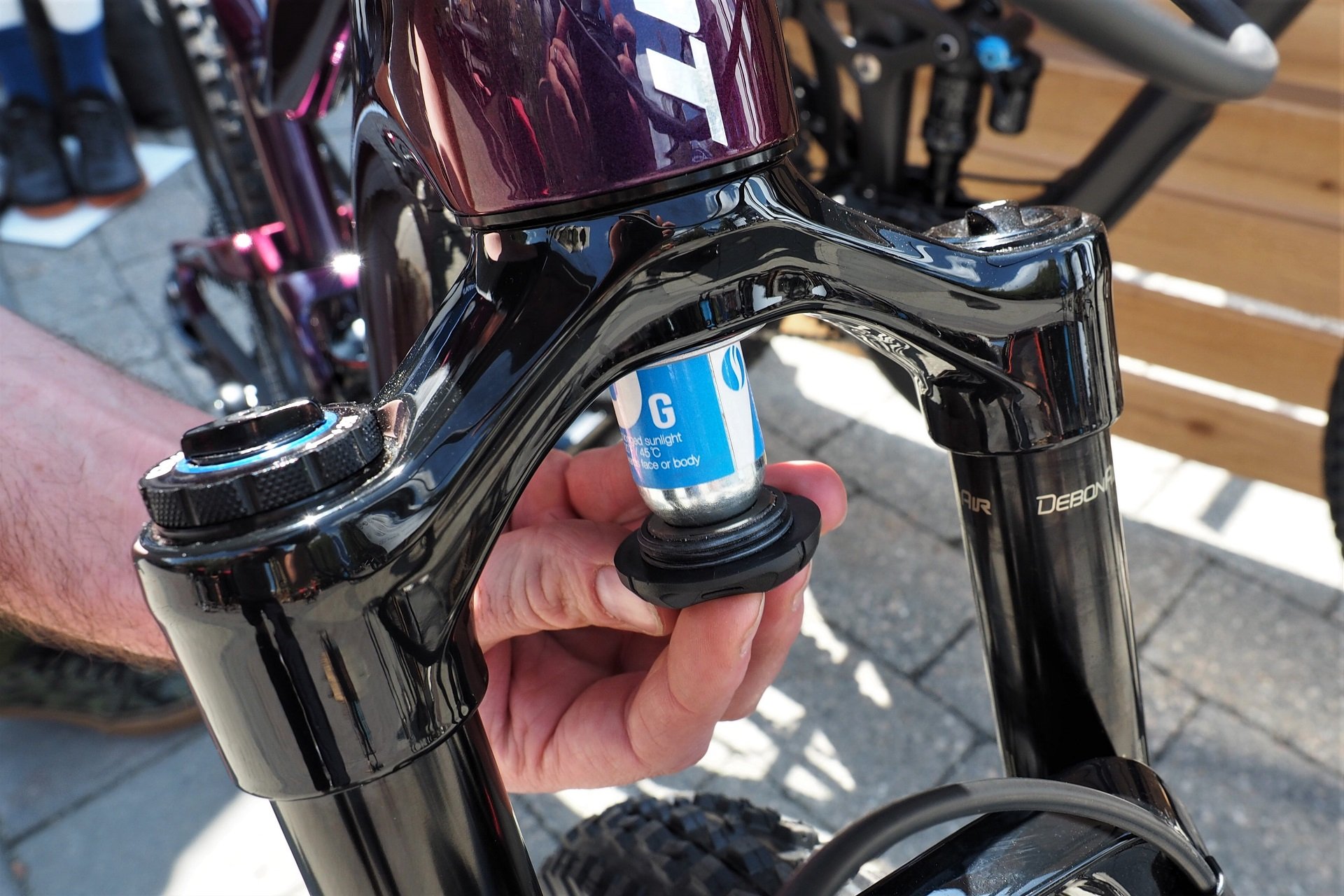

Crankworx 2019 NSMB AndrewM (38).JPG

Easy to remove when needed but guaranteed not to rattle free when pounding down aggressive DH trails.

Crankworx 2019 NSMB AndrewM (36).JPG

Versions are available with 25g and 16g CO2 cartridges. If in doubt then be sure to grab the 25g version.

Stashed tools will continue to be a growing market segment as most new bikes are able to carry at least one water bottle in an intelligent position and riders choose to just take along a small hip bag or go pack-less.

Game of Fenders

Scott Bikes has been doing some nifty bolt-on fenders for Fox single crown forks for a while now, and they've added a full length version for the Fox 40 as well. It's one of the clean pieces that makes me wonder A) why Fox doesn't sell their own fenders that screw into the fender holes on their lowers, and B) why every fork company doesn't have an equally clean looking fender. Kudos to SR Suntour for being an exception here and Manitou has recently joined on with a great looking full-fender for the Dorado. I've confirm that it is not structural and that no amount of begging will score a regular joey like myself an anodized blue upside down fork.

Crankworx 2019 NSMB AndrewM (41).JPG

This fender is for anyone who owns a Fox 40 and wants to keep mud out of their face.

Crankworx 2019 NSMB AndrewM (42).JPG

Quality looks great and feedback from the shorter single crown version is excellent.

Crankworx 2019 NSMB AndrewM (43).JPG

Manitou's new fork guard and fender combo looks tidy.

Crankworx 2019 NSMB AndrewM (44).JPG

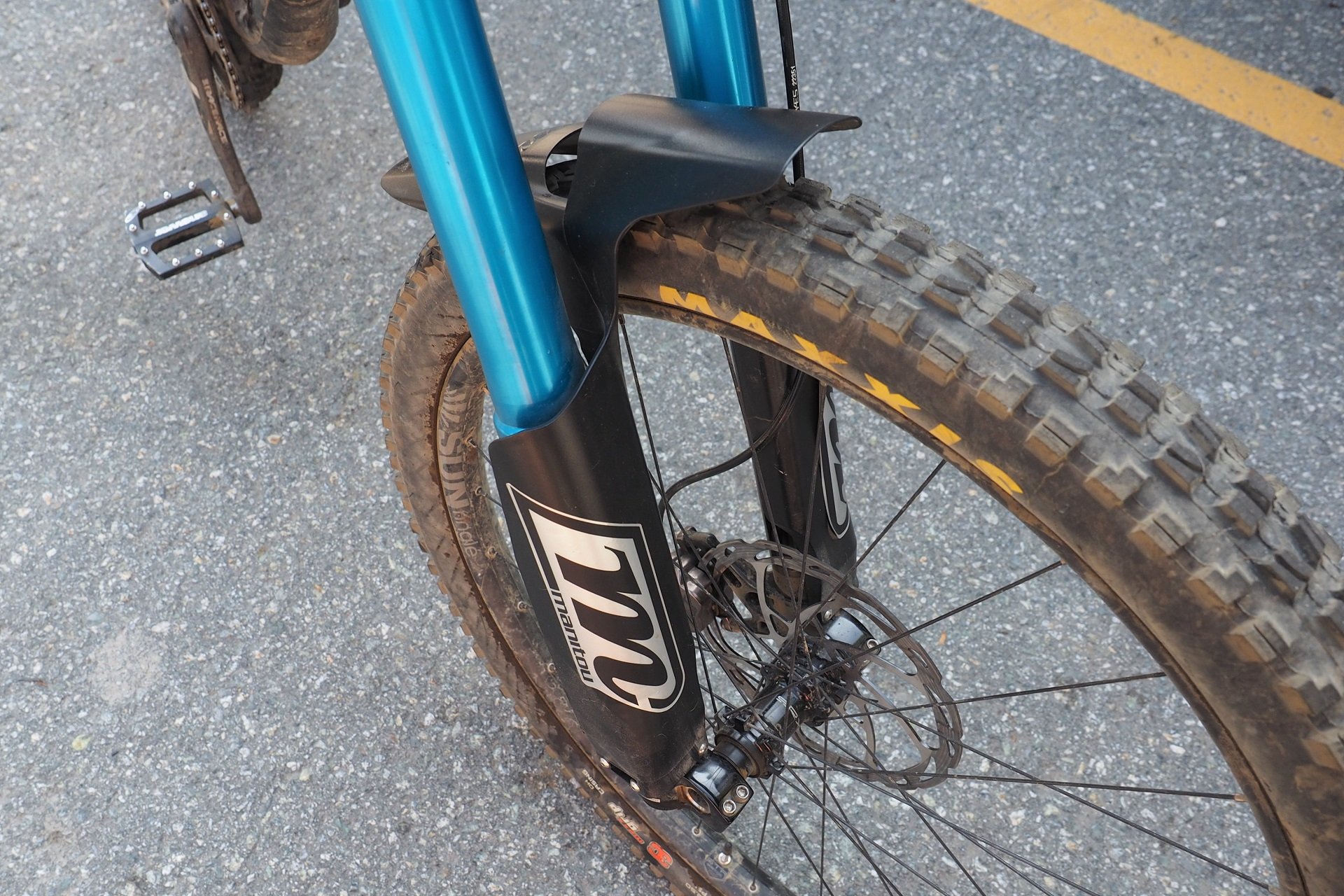

Zac of SmithTech, who does work locally for Manitou/Hayes etc. has been testing the prototype and says it is dead silent. No release date yet.

I may not be able to get my hands on an anodized blue Dorado, but I do have new Mezzer in for testing. Look for a teardown wth Zac soon.

Crankworx 2019 NSMB AndrewM (45).JPG

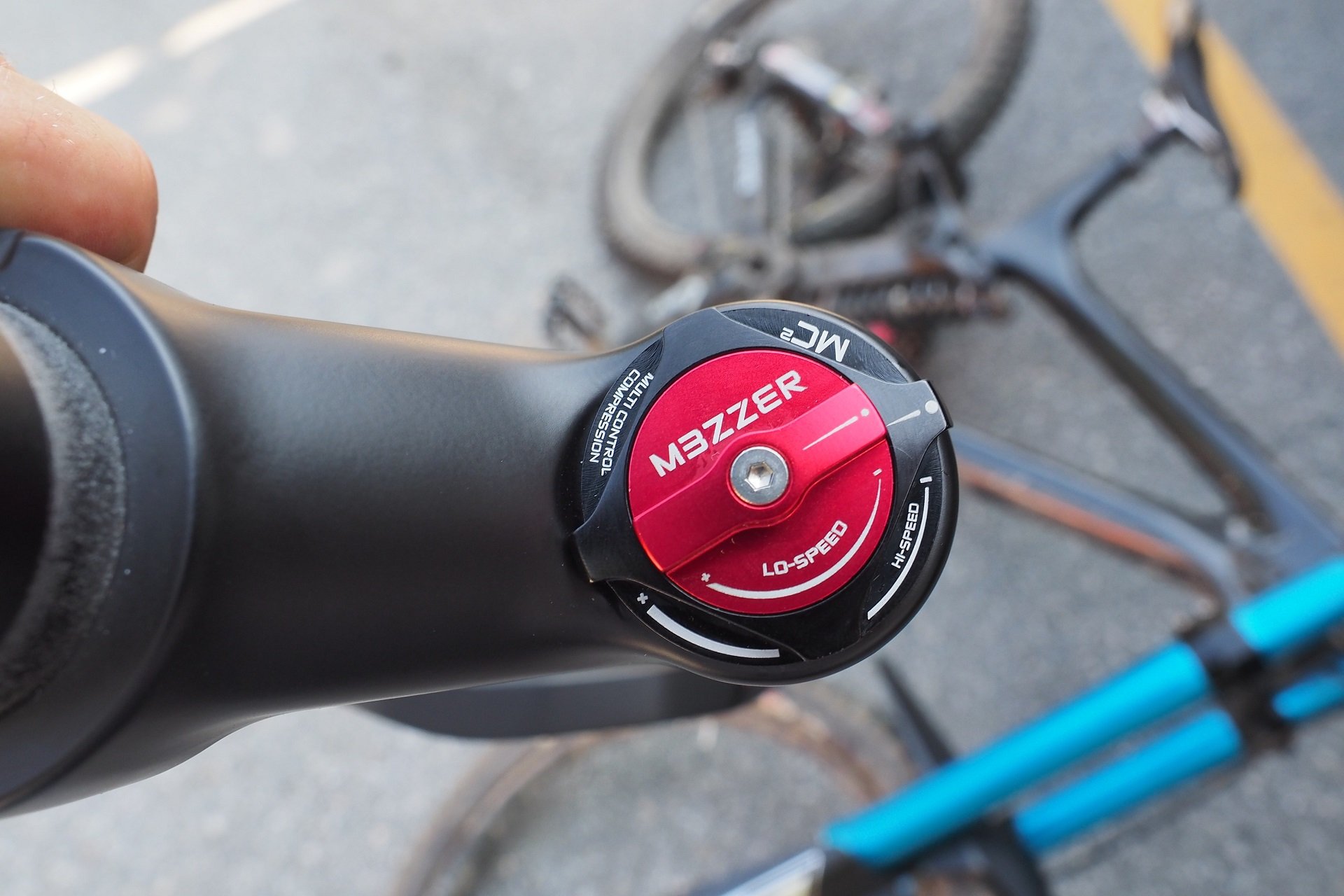

Don't Panic. The new Mezzer fork still has my favourite Manitou feature - the hydraulic bottom out system. It's just set internally now.

Crankworx 2019 NSMB AndrewM (46).JPG

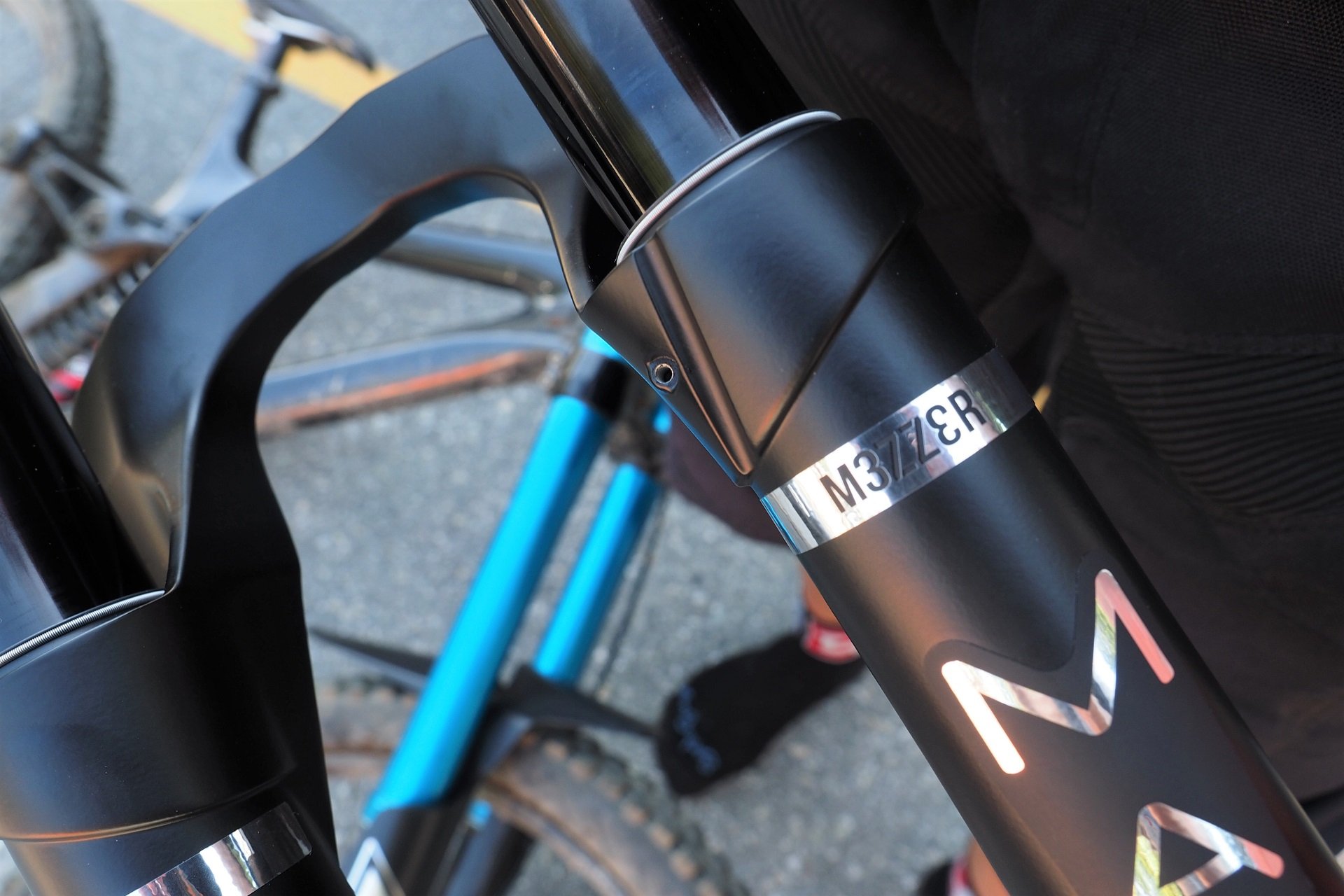

I'll have lots more information soon but for now I'll mention the new cable routing up the front of the fork those who don't want to purchase a new brake line to install the Mezzer.

Crankworx 2019 NSMB AndrewM (47).JPG

The arch routing is still an option for longtime Manitou fans who prefer to run their cables up the back and around.

One more quick hit on the subject of fenders. I'm curious why more companies aren't flairing out their downtube protectors like Commencal. I think it looks good and anything to keep the crud off that expensive rear shock is lovely.

Crankworx 2019 NSMB AndrewM (48).JPG

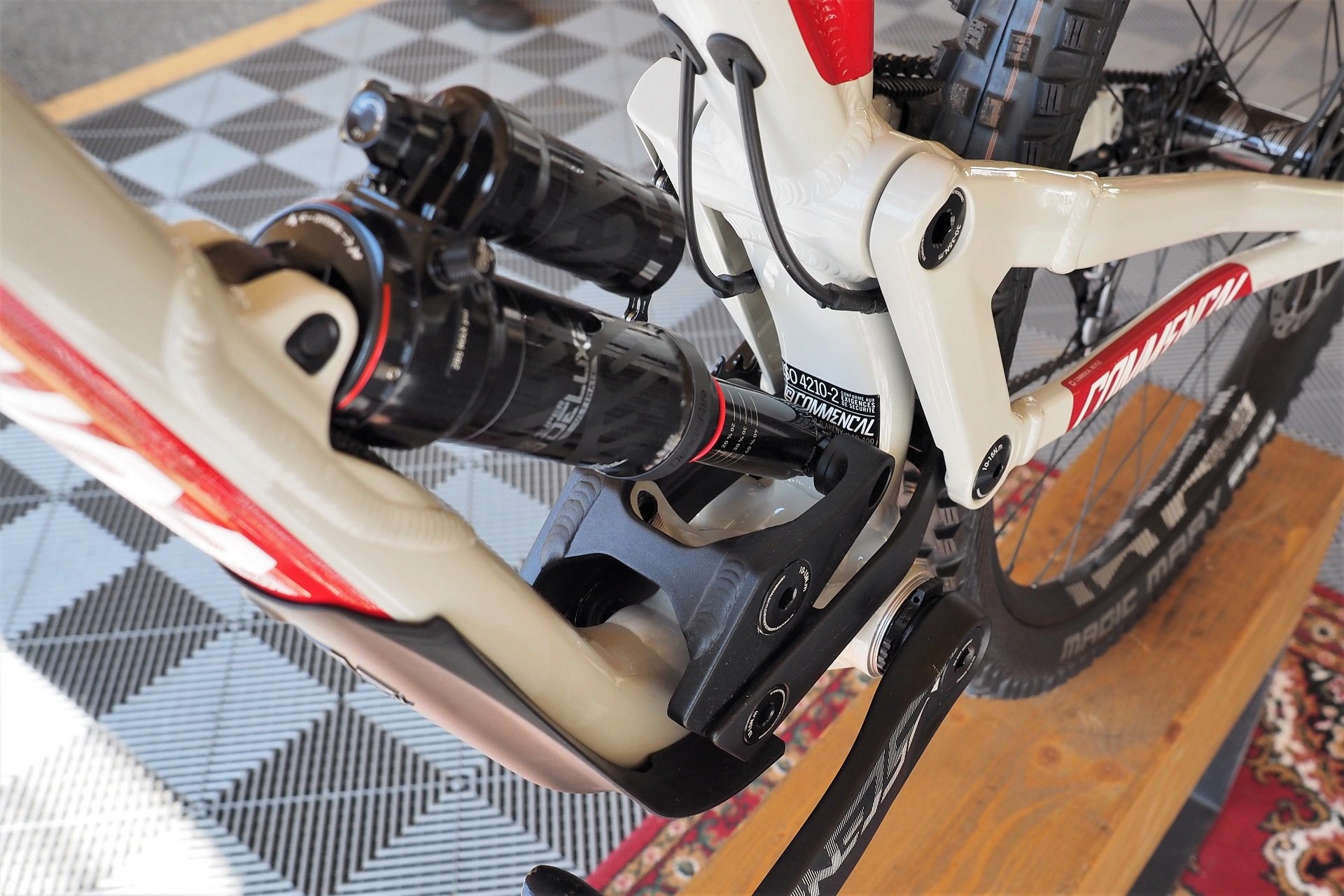

Replaceable down tube guard/linkage fender from Commencal. I haven't seen it in action but I suspect it helps.

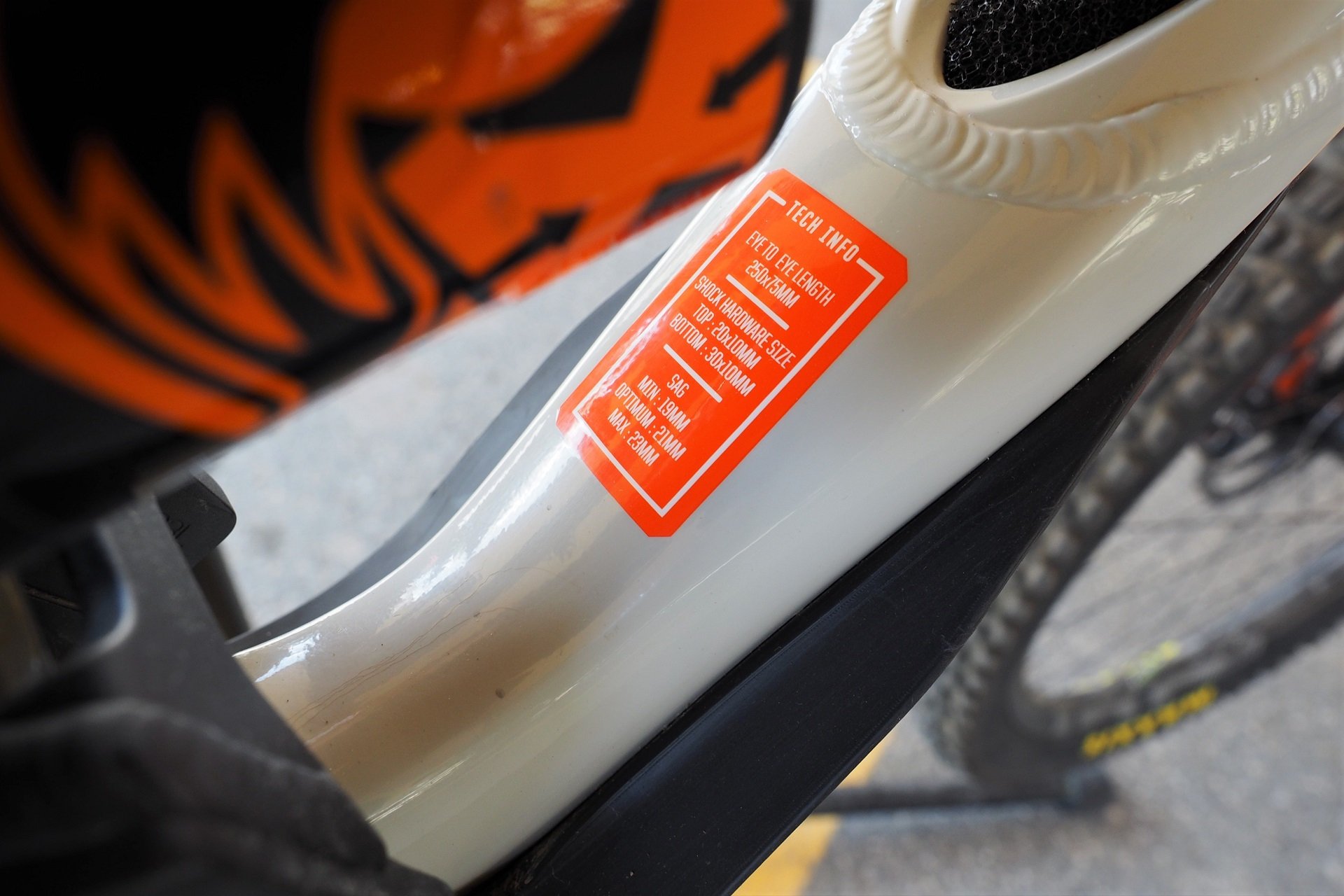

Crankworx 2019 NSMB AndrewM (49).JPG

Fender from another angle. They almost get there with this info chart: bearing sizes too please!

Get Your Bearings

From watching the booth I'd say Scott's one-piece DH bar and stem is the main curiosity this year. They also have a pretty damn clean cable system that comes stock with every bike, and leaning against the wall was a road bike with no external cables. It's strangely attractive for a bike that has multiple gears and a drop bars. But, the real story, throughout the mountain bike lineup, isn't visible with a cursory inspection.

Crankworx 2019 NSMB AndrewM (53).JPG

AXS wireless shifting and fully internal brake lines make for an ultra clean look. Is this where boutique mountain bikes are headed?

Crankworx 2019 NSMB AndrewM (54).JPG

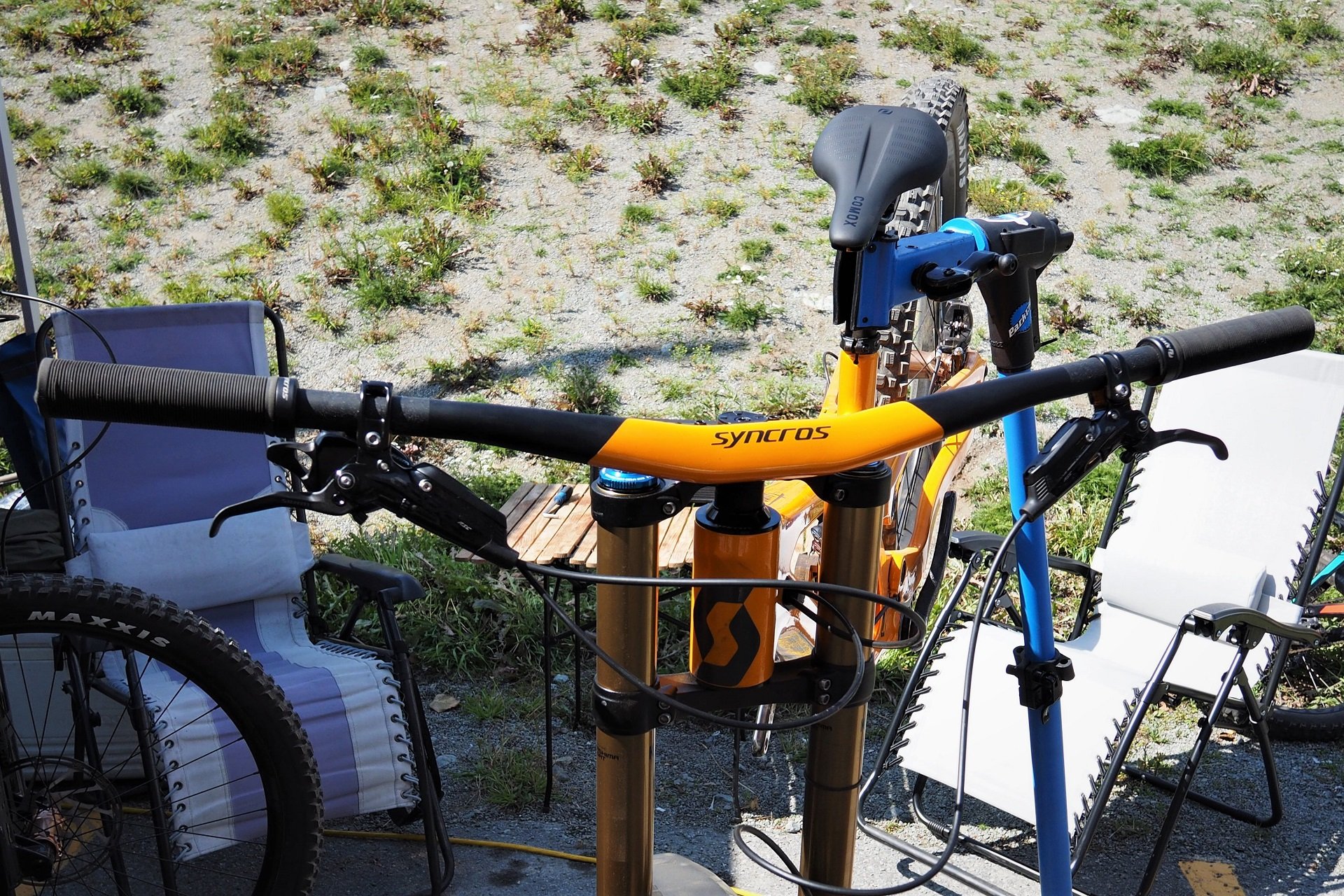

This is the 'what about' bar. What about the ability to roll your bar to your preferred angle? What about replacing it after a crash? It does look nifty however.

The real news at Scott is that all their full suspension bikes are now using cartridge bearings at the pivot points. Just like when Rocky moved from bushings to pivots, this instantly makes the bikes more compelling. Their rigs are consistently among the lightest bikes in any category and the spec vs. tech vs. price is decent value so I suspect we'll be seeing a lot more of these in the years to come.

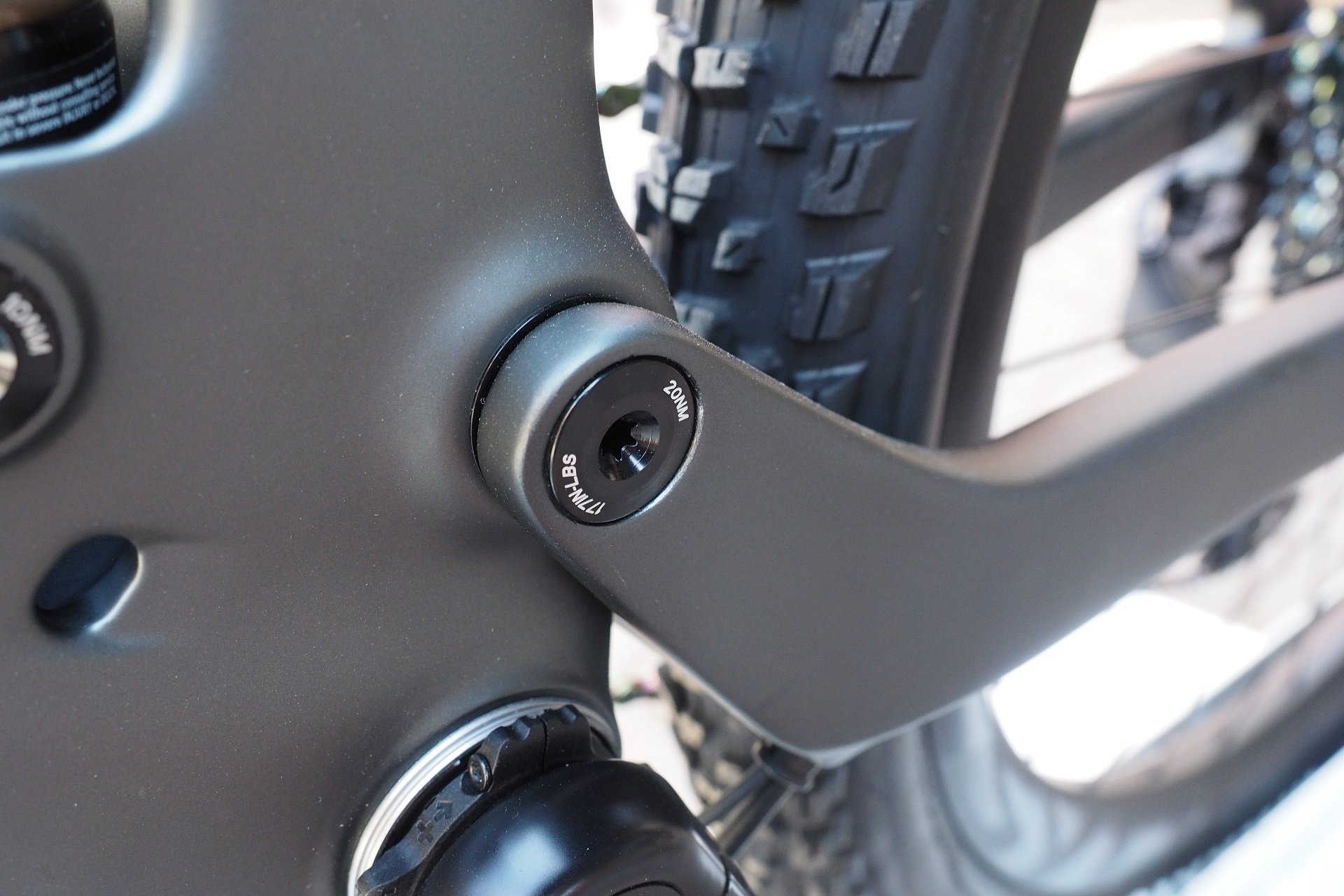

Crankworx 2019 NSMB AndrewM (55).JPG

There are cartridge bearings in there...

Crankworx 2019 NSMB AndrewM (56).JPG

and in there...

Crankworx 2019 NSMB AndrewM (57).JPG

and in there!

Bonus Bits

Here are a few more thoughts before the third installment.

Crankworx 2019 NSMB AndrewM (50).JPG

I love seeing tire spec that reflects the intended use of the bike . Thank you Rocky Mountain.

Crankworx 2019 NSMB AndrewM (51).JPG

Who's having more fun? My tiny human is right at the weight/age limit so I may have to borrow a kid to try one of these.

Crankworx 2019 NSMB AndrewM (52).JPG

It's not the answer to all life's problems but a quick beer is a great excuse to take a load off.

Please don't forget to check out Part 1 live on NSMB.com. Thanks!
