Ritchey WCS Kite Dropper Post AndrewM
Teardown | First Look

Ritchey WCS Kite Dropper Post

Words Andrew Major
Photos Andrew Major
Date Feb 13, 2018

But Weight...

There is an ever-increasing number of aftermarket dropper posts available and many bikes come equipped with one right out of the box. With all the choice available there is a limited number of ways that companies can differentiate themselves: travel, price, function, reliability, appearance, and weight.

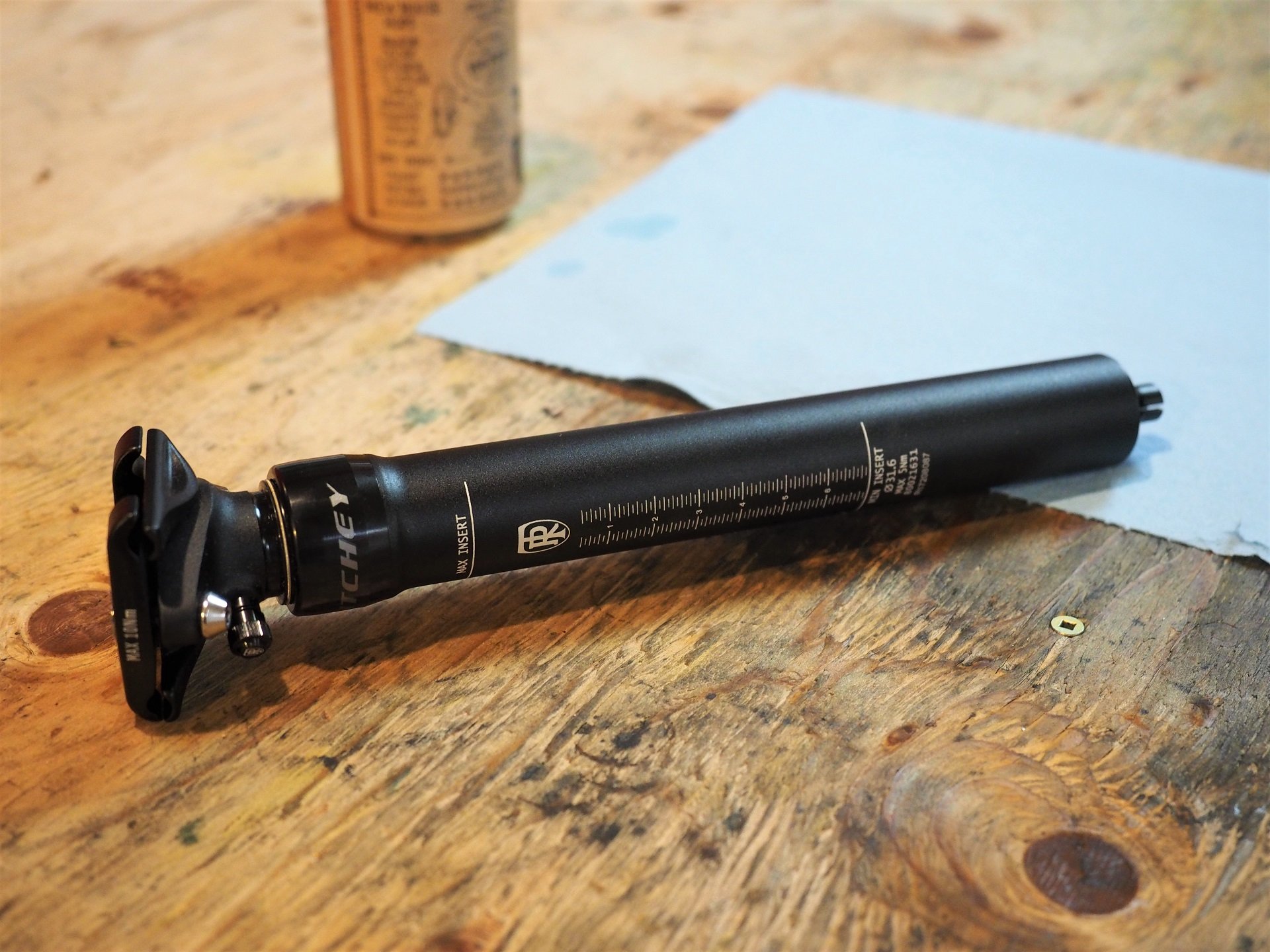

 With the WCS Kite post, Ritchey is elbowing its way into the crowded 125mm dropper category with the cleanest looking post on the market. It hits my scale at a reasonable 473 grams (31.6) for the post itself, locks solidly into place at all three drop settings (0mm, 30mm, and 125mm), and return speed is simple to adjust via a Schraeder valve at the post head. No removal of post or saddle required. Nice.

The post uses a very simple low-pressure air system to return the post to full extension and a ball bearing collet system to hold it in place. To boot, the whole system is easily torn down with a hex key set, a strap wrench, Slickoleum, and a pair of snap ring pliers.

Ritchey WCS Kite Dropper Post AndrewM

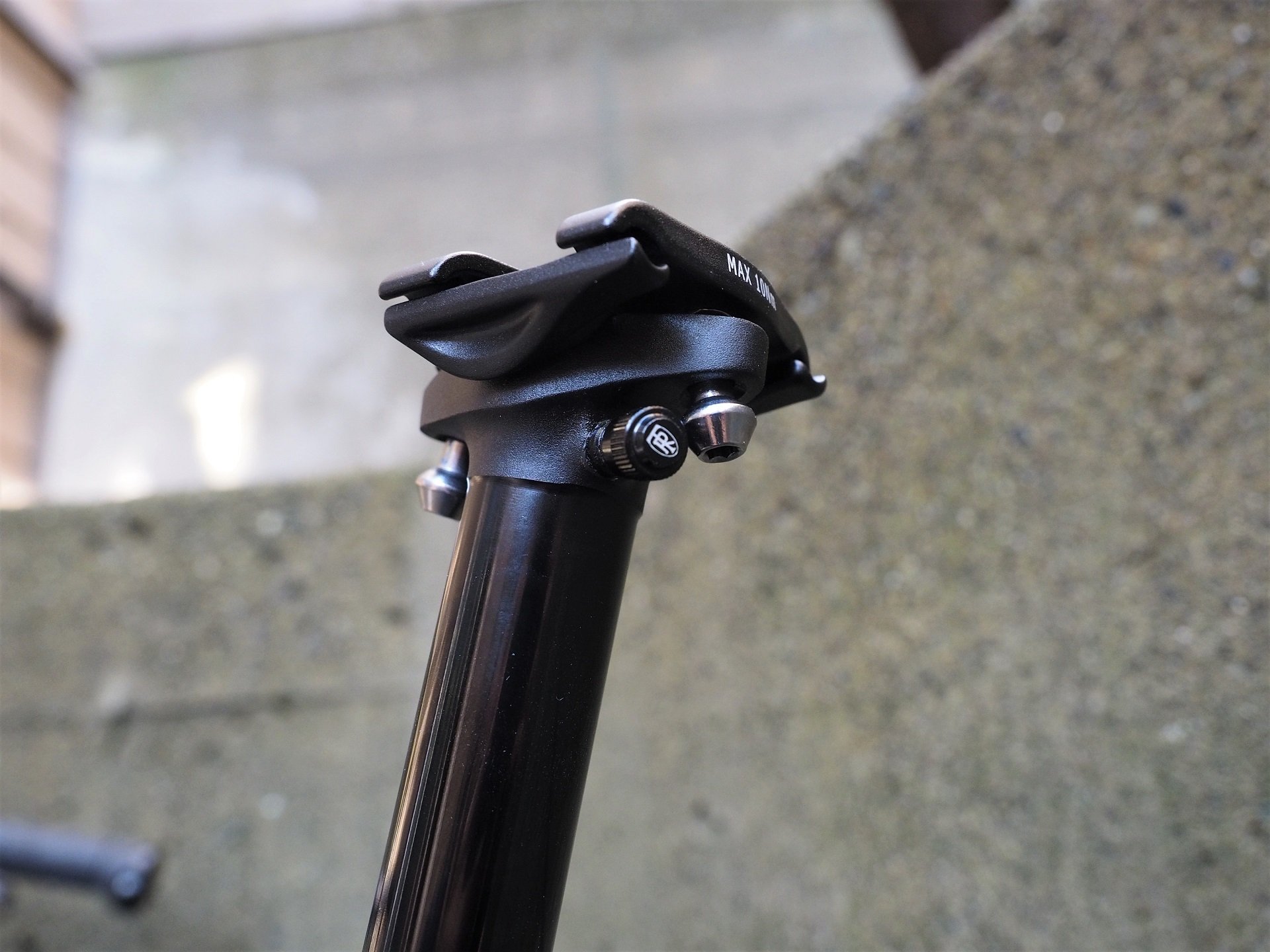

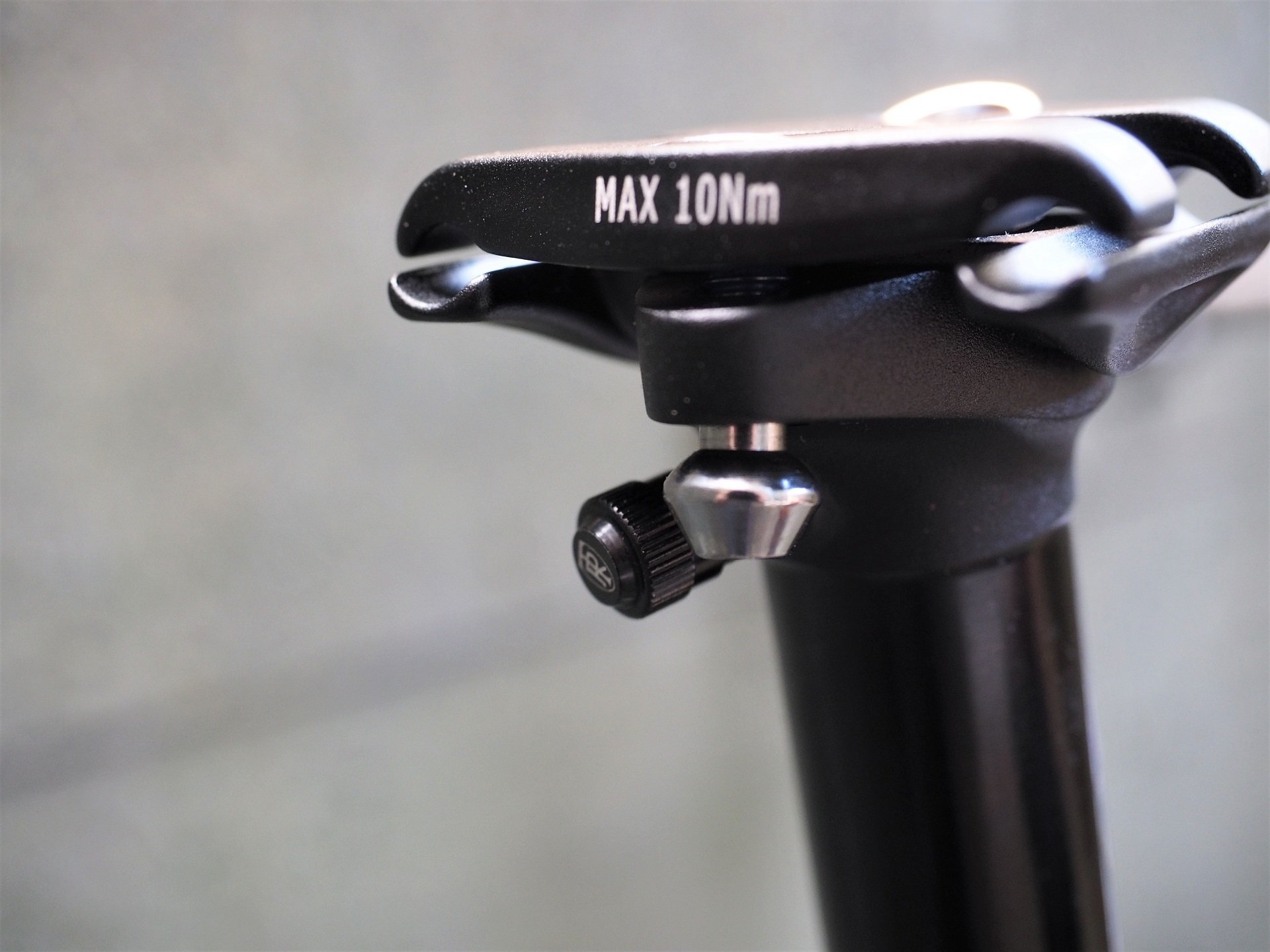

I am in love with the ridiculously clean beveled T-25 post hardware. No big barrel washers required for silky smooth tilt adjustment.

Ritchey WCS Kite Dropper Post AndrewM

The low pressure (max 10 psi) air system is easily accessed to adjust return speed. No post or saddle removal required.

The clean look of the Ritchey Kite is an excellent example of form following function. Making a robust, reliable dropper post that is also lightweight Ritchey has kept the design as simple as possible. This is most apparent when the guts are removed. Really, that's all that's in there!?

Ritchey WCS Kite Dropper Post AndrewM

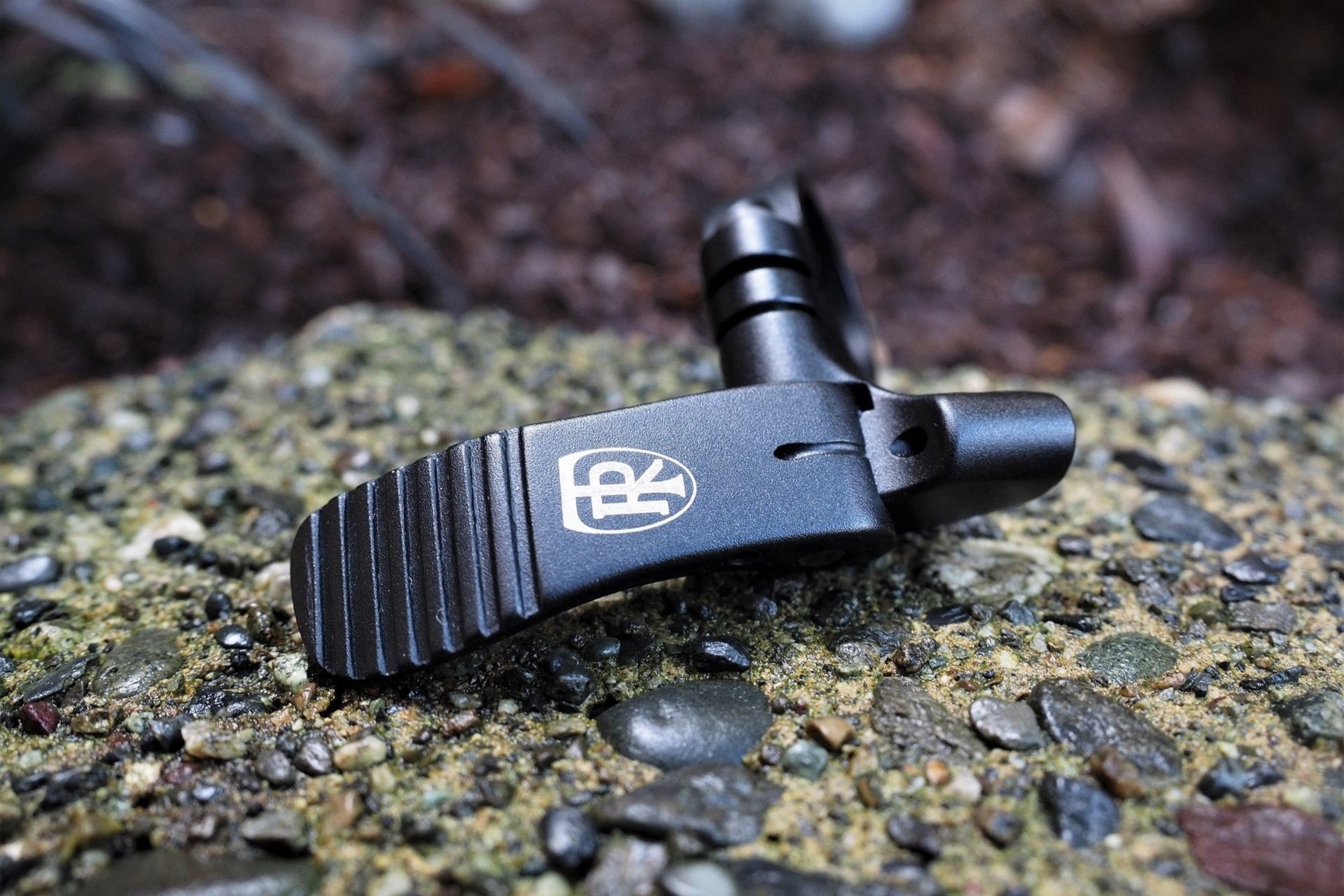

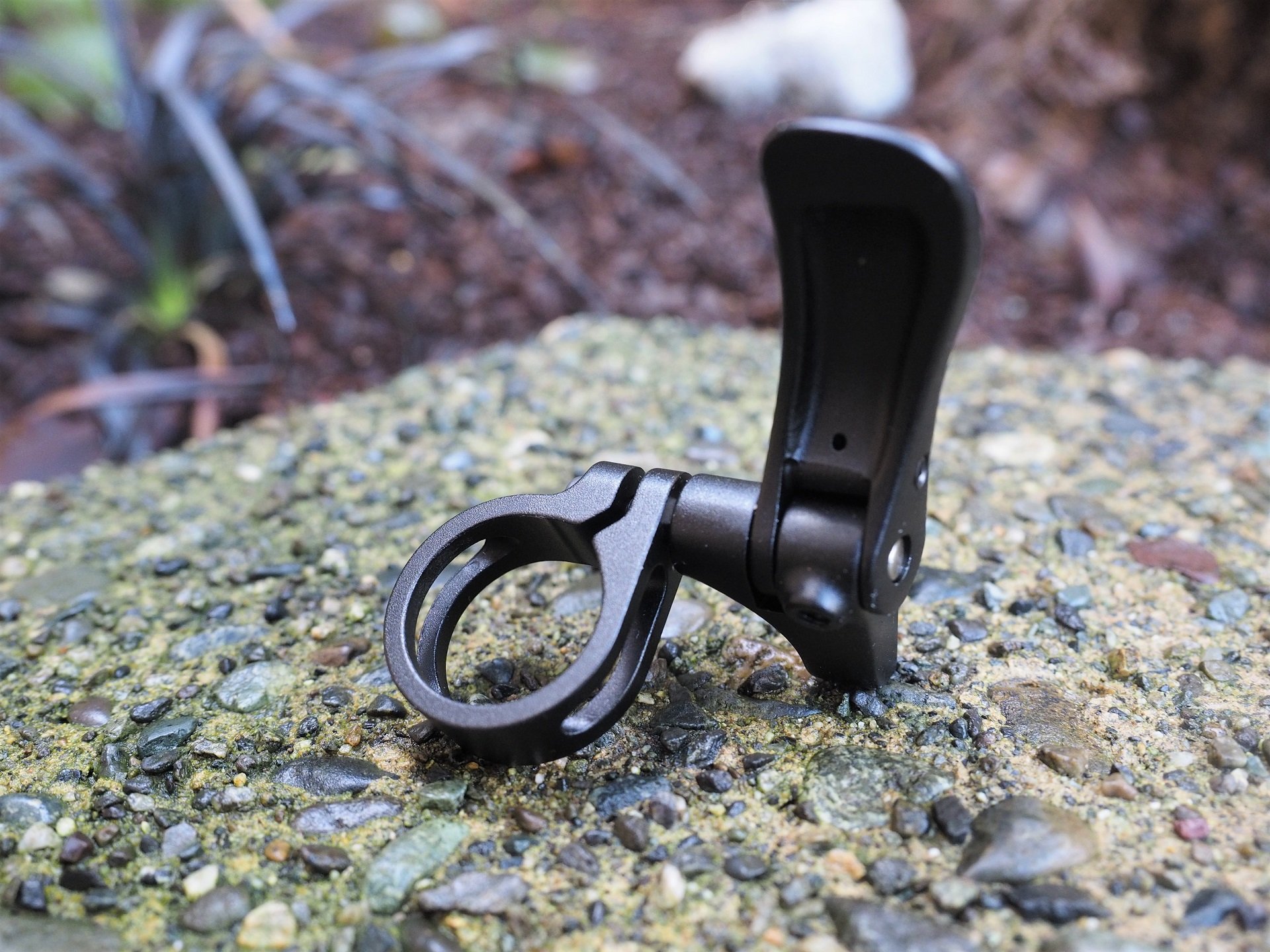

The 27-gram remote is light, light, light. The thumb paddle is large and heavily textured. Mounts are available for I-Spec I & II and MatchMaker in addition to this bar clamp.

K.I.S.S.

Push remote lever. Lever pulls cable. Cable retracts ball bearing collet. Post compressed under body weight and rises via simple air system. On paper, it's the same as my experience with the coil sprung, 150mm travel, e13 TRS+ dropper but the Kite is easier to work on and I like the one piece head/shaft assembly.

Teardown instructions: Let out air pressure and remove valve core. Loosen seal head with a strap wrench. Undo bolt under saddle clamps with a hex key. Unwind base using a hex key or screwdriver inserted through slots. Remove a snap ring. Lube it all up and reverse.

Ritchey WCS Kite Dropper Post AndrewM

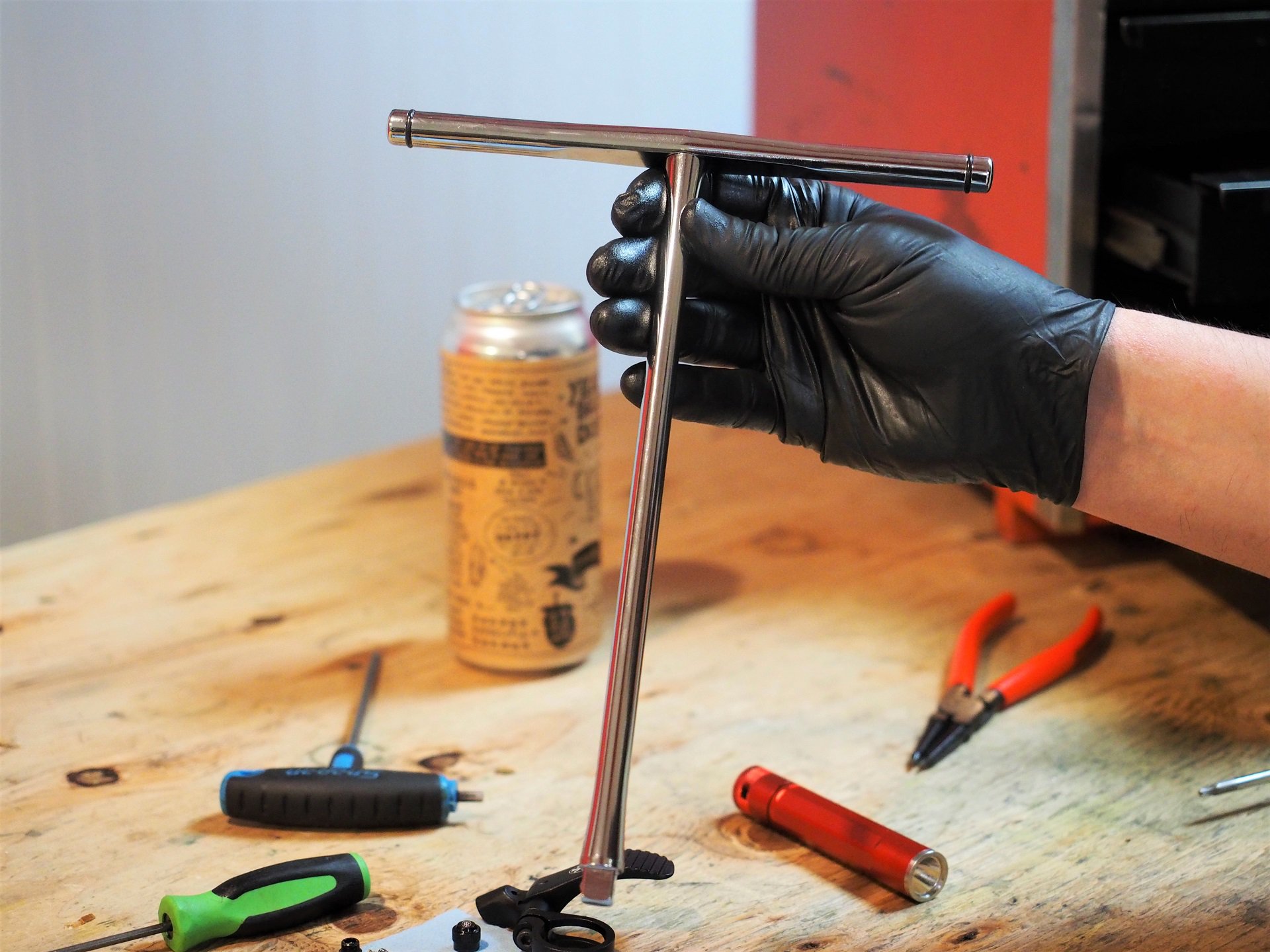

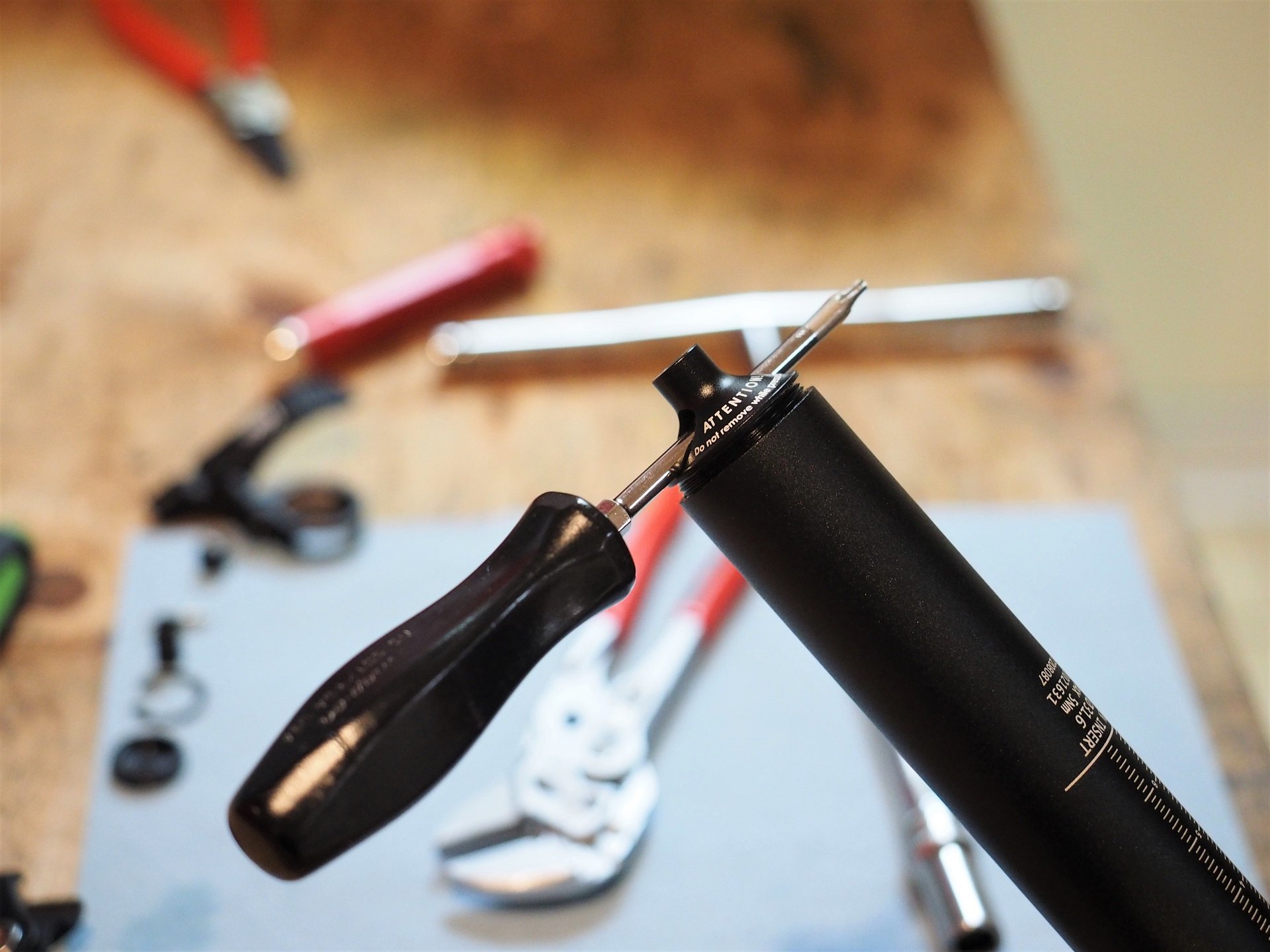

No special tools required. Let out the air, insert a 4mm hex key or similar sized tool, and unwind.

Ritchey WCS Kite Dropper Post AndrewM

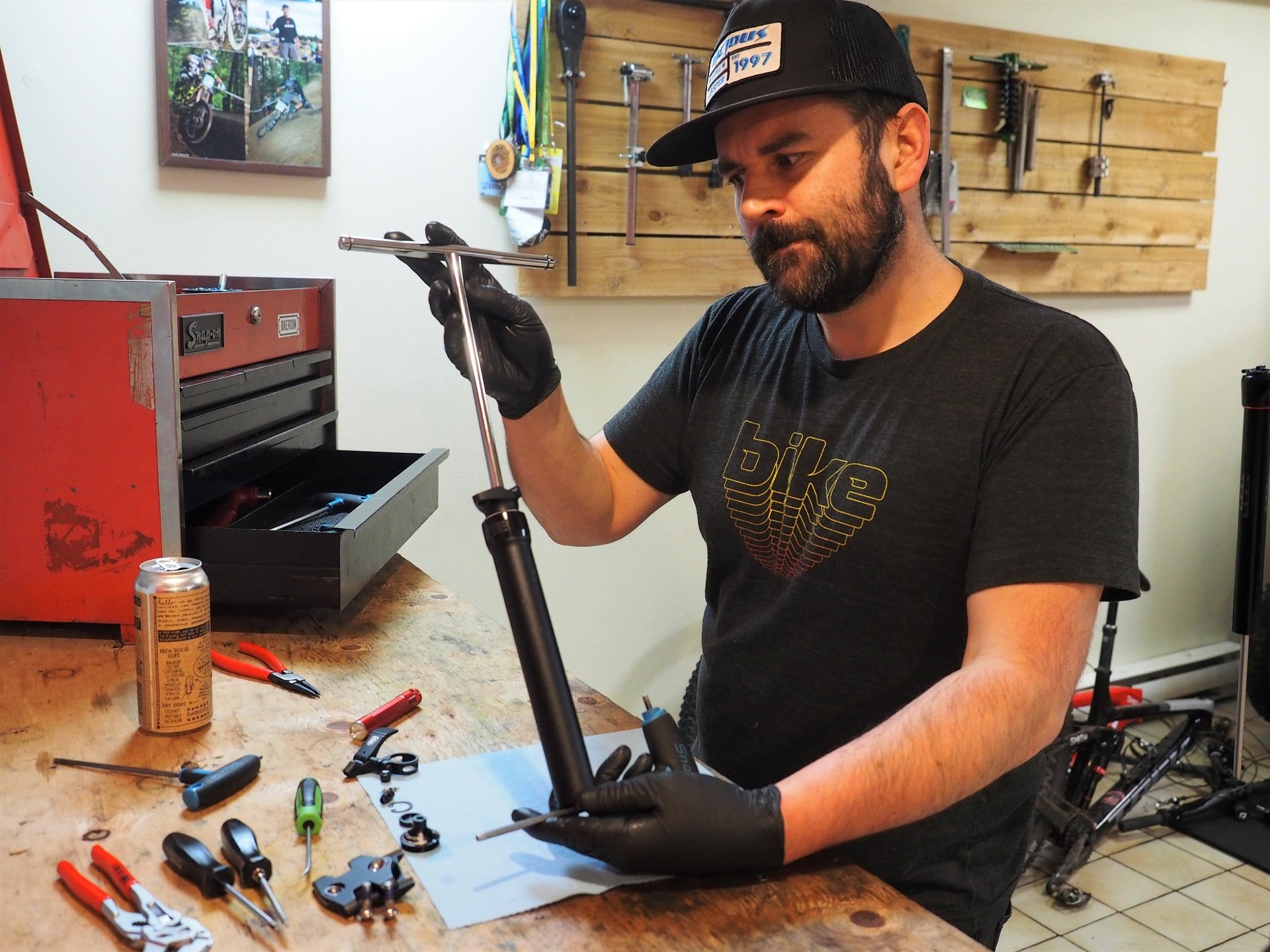

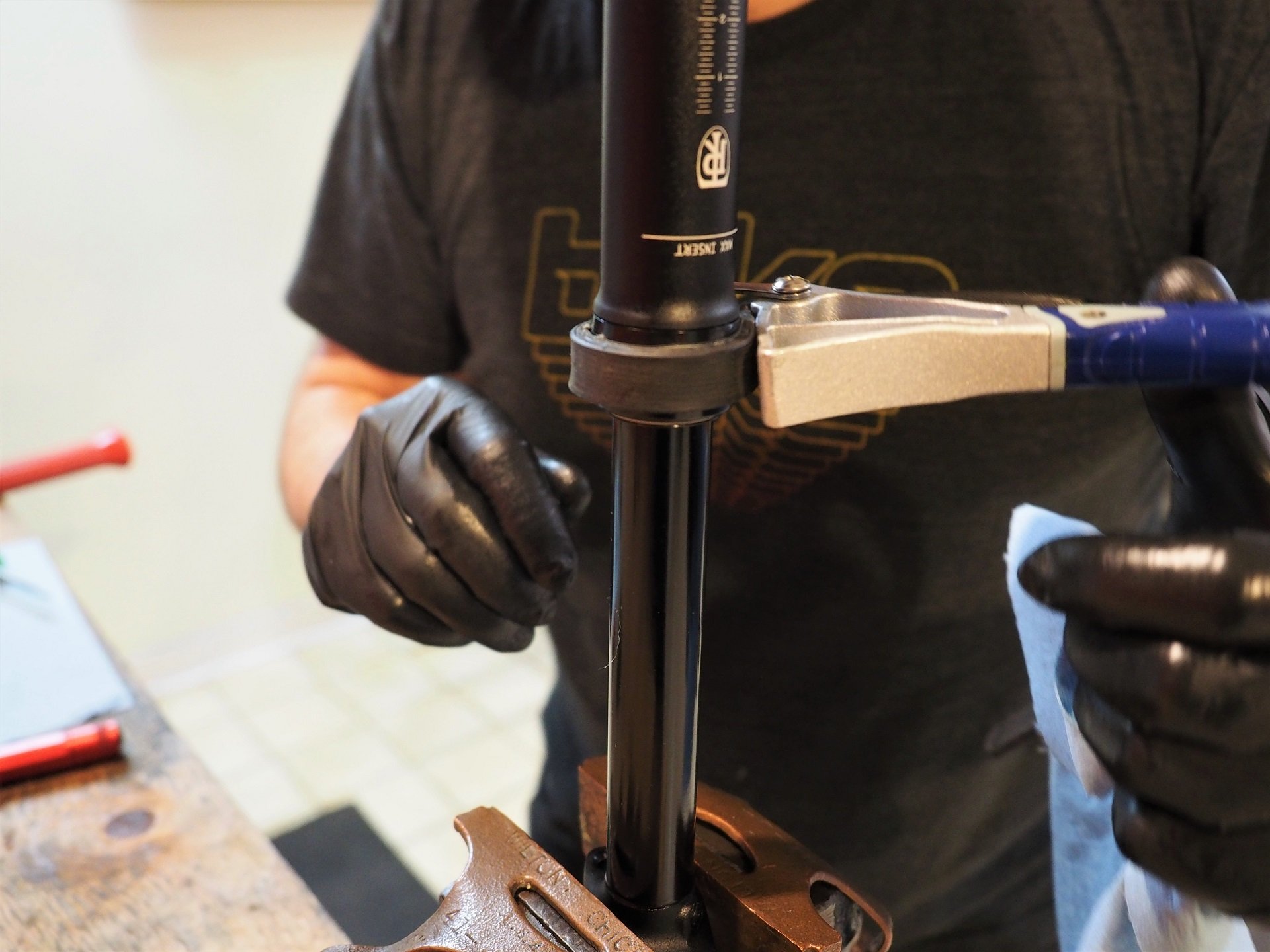

No vice? No problem. Just like unwinding a stuck can on an air shock, mount the post in your frame and then grab the strap wrench.

The head of the remote cable is oriented at the bottom of the post and it hooks quickly into a simple bell. Pull the cable, retract the bearings and the post is ready to go up or down.

Integration is high. The actuator is itself mounted to the bottom the air shaft. There is a limited number of parts but tolerances have to be precise for everything to work properly. The nature of the system is that the piston can become worn/pitted over time but Ritchey is committed to having excellent small parts availability.

Ritchey WCS Kite Dropper Post AndrewM

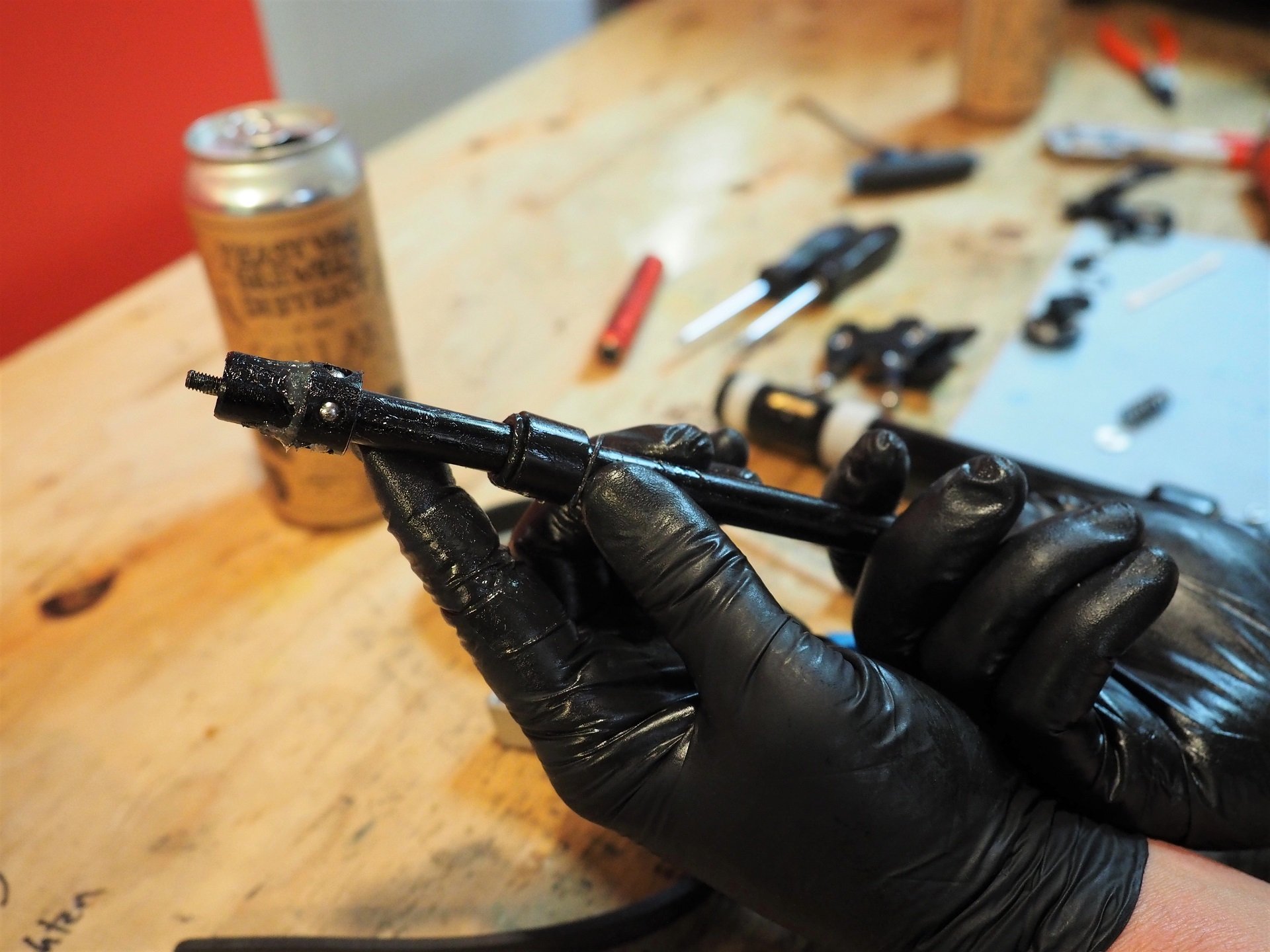

Ball bearing collet at the bottom of the air shaft is retracted by engaging the remote. It's a great system as long as a rider's happy not having infinite saddle positions.

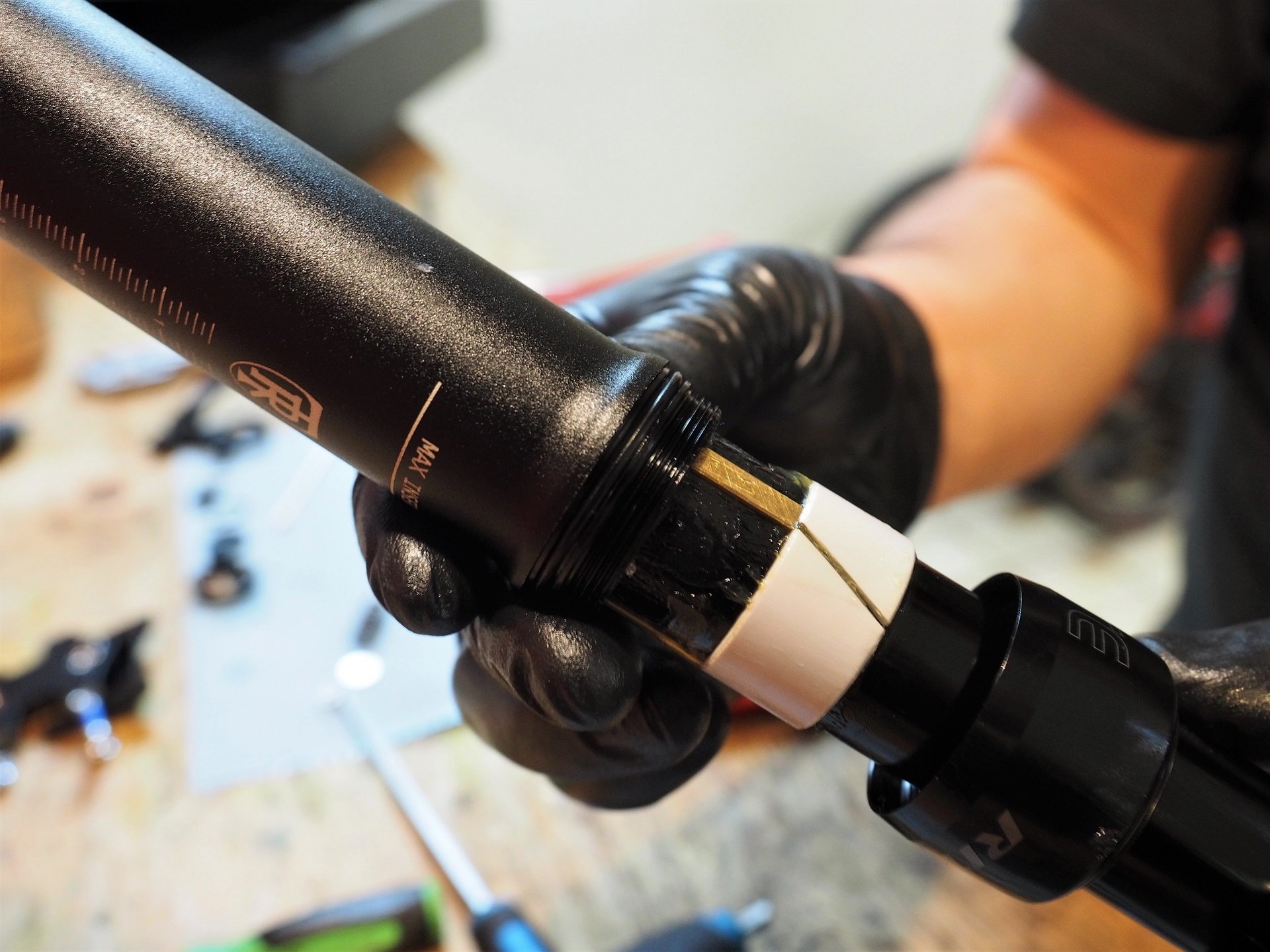

As with most posts, twisting play is handled by brass keyways and fore-aft slop is handled by bushings. Both items are easily replaced as part of a service.

On that note, Ritchey, bizarrely, does not prescribe any type of routine service interval for the Kite. They specifically state not to worry about opening the post unless it feels rough or play develops. In that case, order up a seal kit and have at it. They also encourage owners to service their own posts and provide a written how-to in their owners manual which you can read here

Maybe the nicest thing about the Kite is that it's so simple anyone can attempt to tear it down. As long as you don't attack it with Vice Grips or hard sharp tools your local mechanic should be more than happy to finish the job for you.

Ritchey WCS Kite Dropper Post AndrewM

Wear items include the bushings and keyways. There is also an o-ring, eventually a shaft and perhaps twenty years from now some steel ball bearings.

Ritchey WCS Kite Dropper Post AndrewM

Jeff's been busy lately. In addition to opening his high end service shop, called Wheel Thing, on Valentines Day he's forming a cover band called #JeffroTull.

That Remote Though...

My theory on dropper post remotes is severe and requires a lot of blue language or "bike shop words" as my three-year-old calls them. For the purpose of this review let me just say that I think Ritchey should make like Fox Racing Shox and sell their remote separately from their post.

XC or 'cross racer deciding whether or not to run a dropper post? Ritchey's 27-gram remote is ergonomic, light and has a big paddle that's hard to miss in the heat of battle. The post itself has a large return spring on the actuator to pull the remote back into position and the barrel adjuster is inline for a clean look. But, it still sucks.

Ritchey WCS Kite Dropper Post AndrewM

The big paddle is hard to miss in the heat of battle. The cable is tensioned at the lever and excess is behind the paddle.

Ritchey WCS Kite Dropper Post AndrewM

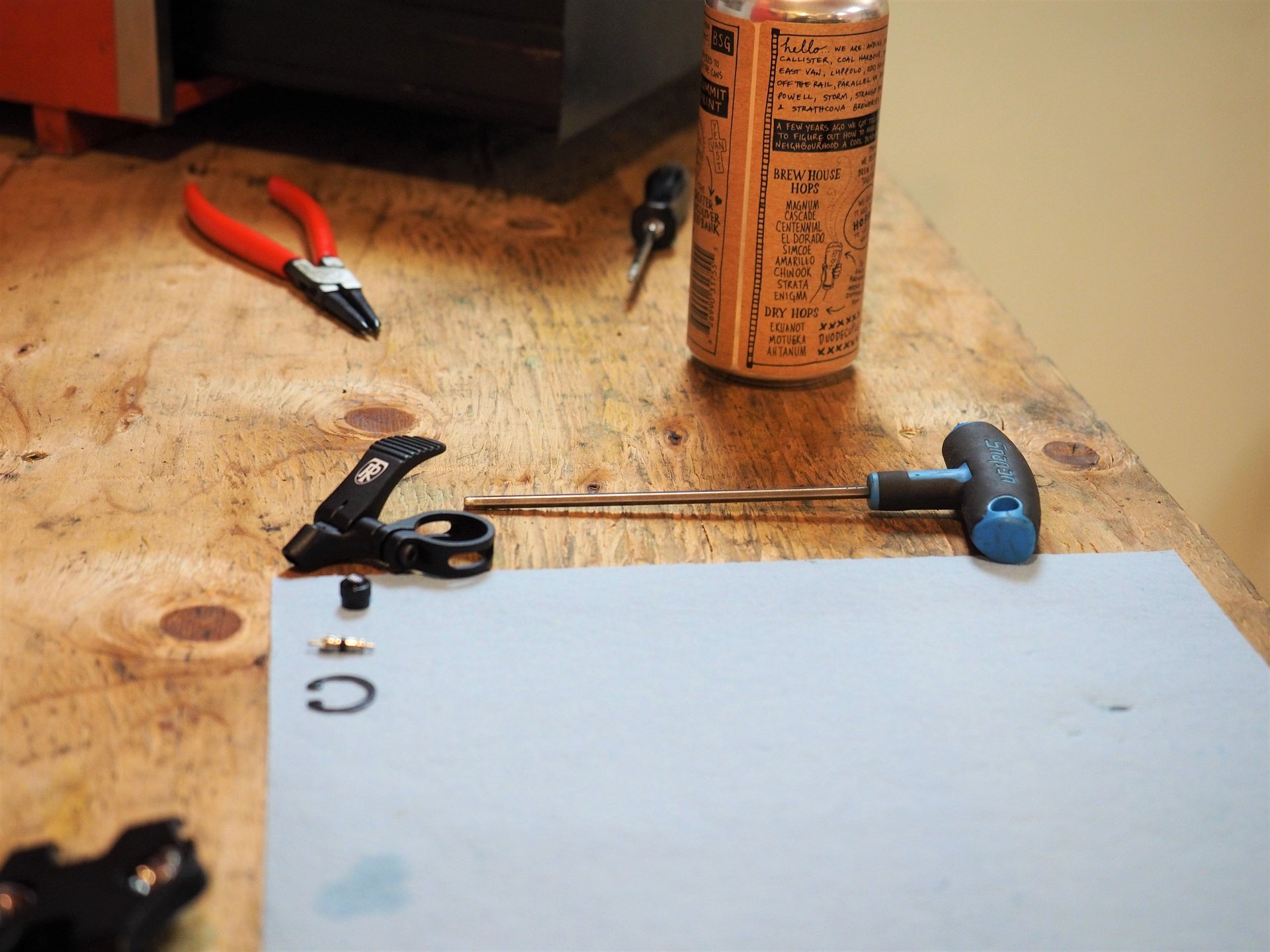

A single bolt tightens the remote's handlebar clamp onto the bar and binds the lever blade to its pivot. Binding is the operative word.

My main issue with the Ritchey remote is that it comes down to 1/93rd of a turn on the bolt to hit the point between no-slipping of the clamp and the introduction a ton of binding friction into the system. Once I hit the sweet spot there's still the fact that the remote isn't great by any metric.

As with the Fox Transfer post, the obvious choice is to buy a Wolftooth ReMote and never look back. Just ask Jesse Melamed. I bought one for my own dropper and I may run it on the Kite for a while just to say I did. In the meantime I'm running a Crankbros Highline remote and it's a huge improvement for 9-grams.

Ritchey WCS Kite Dropper Post AndrewM

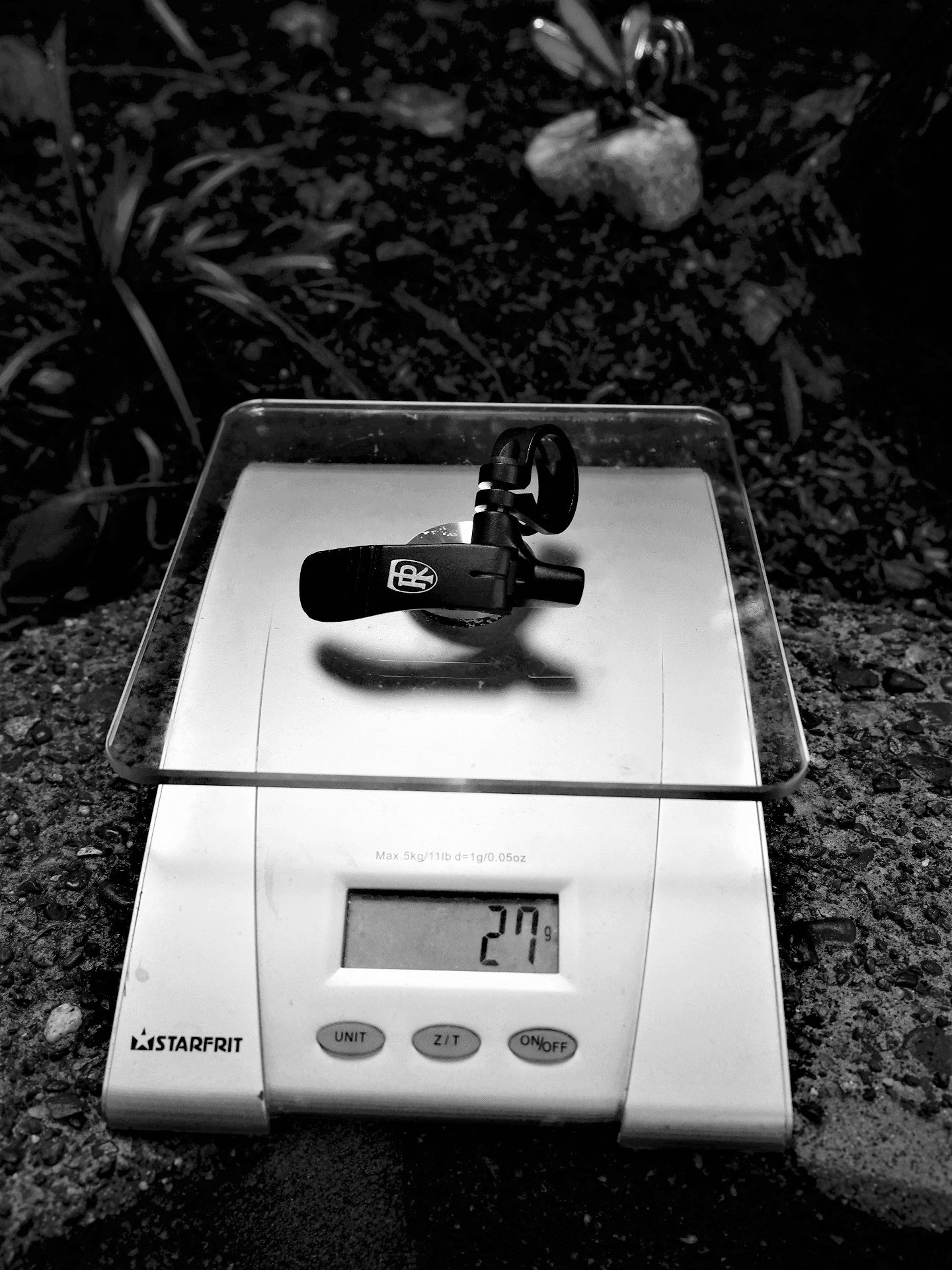

27-grams is light for a dropper post remote. I'm running the Kite with a 36-gram Crankbrothers Highline remote and it's the best 9-gram upgrade I've made.

Wolftooth ReMote AndrewM

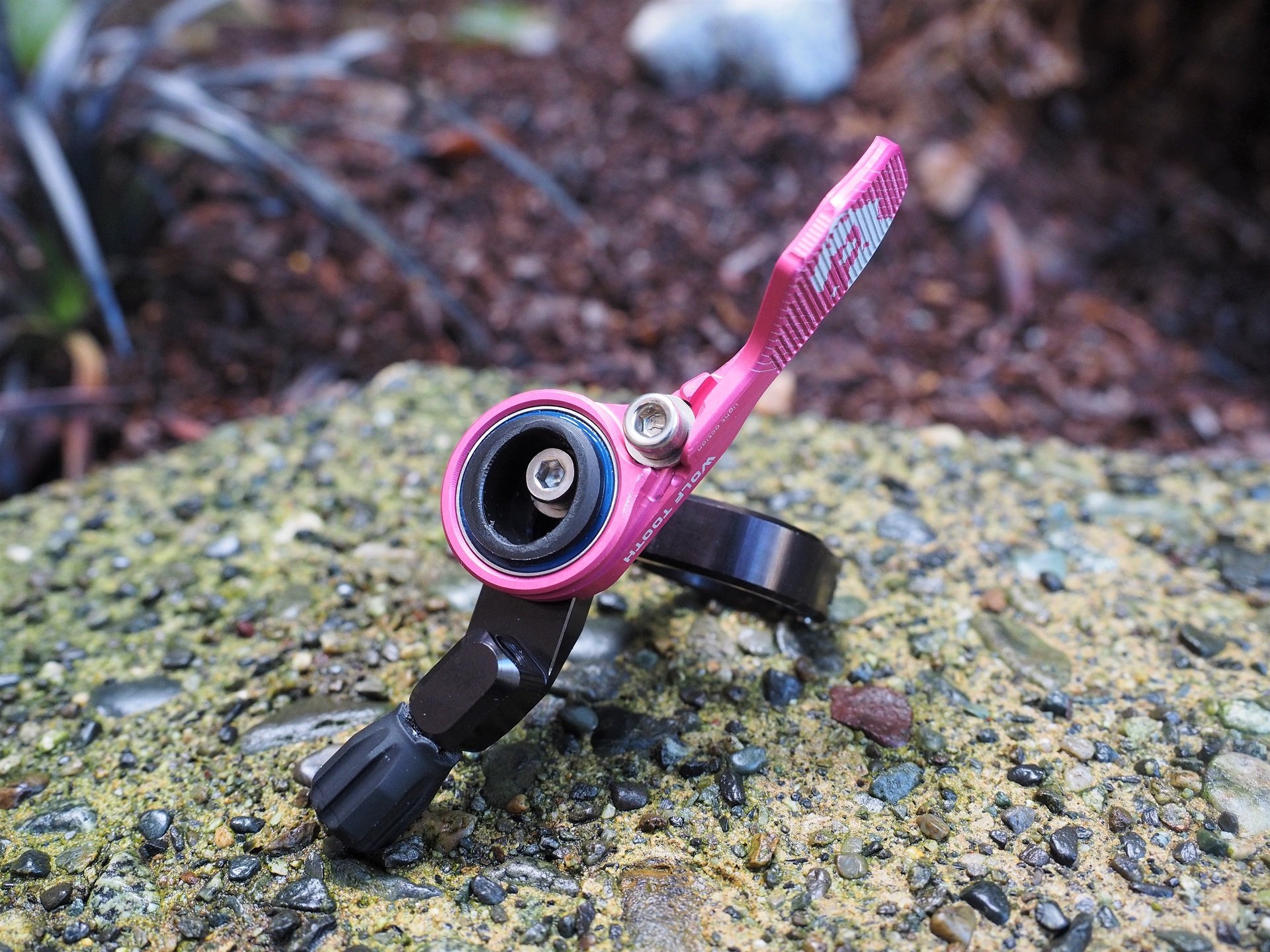

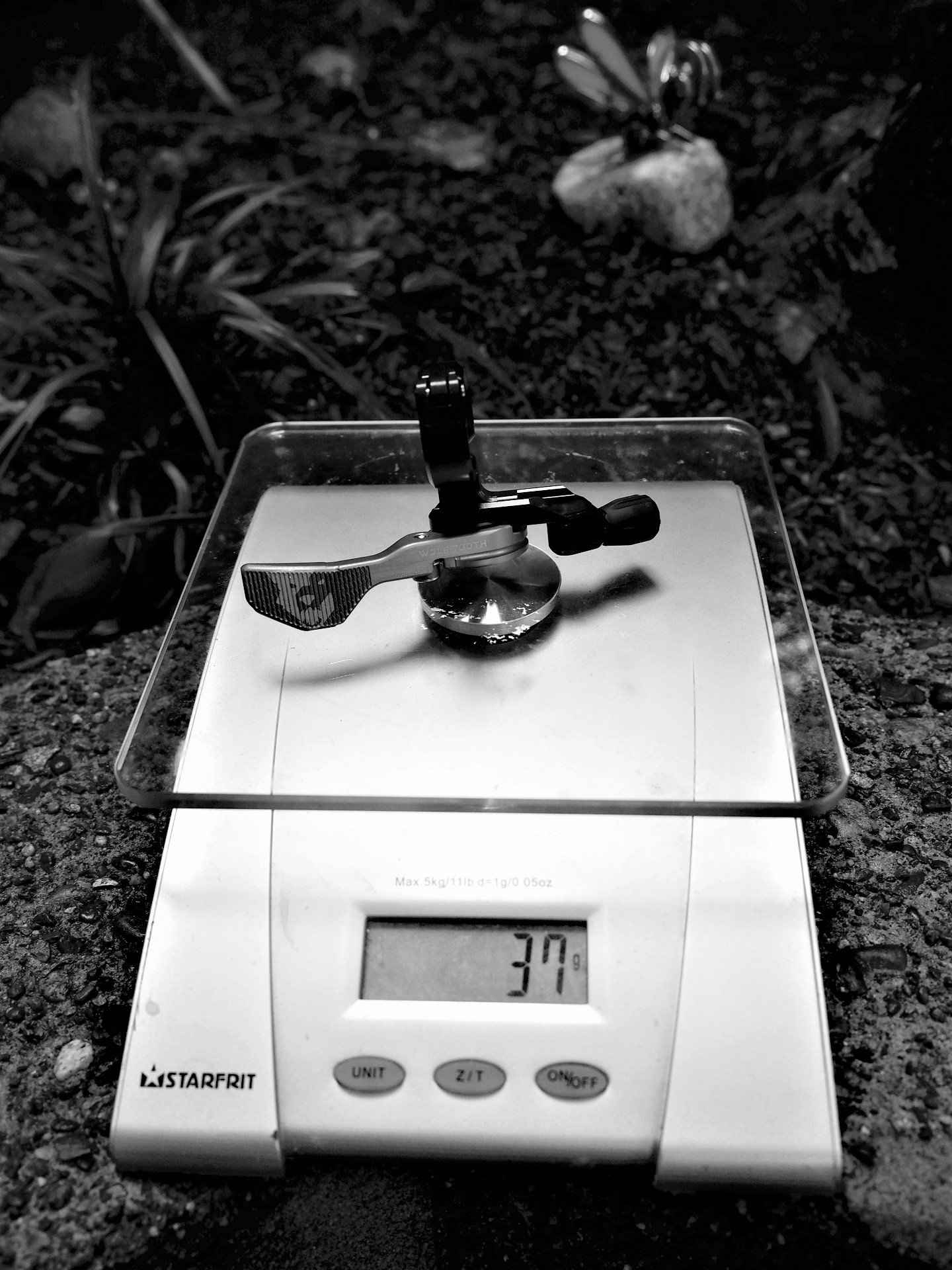

For an extra 10-grams, I could have a meaty bearing pivot, significantly improved cable management, built-in tension adjustment, and a more ergonomic lever blade.

The Kite is 25mm travel short of having the potential to unseat my favorite dropper, the Crankbrothers Highline, so I'm not going to let the remote get me down. It looks great and works great out of the box and I have access to a few different remotes that will be significant improvements including the ReMote, Highline remote, X-Fusion Manic remote, and e13 TRS+ remote.

For the purpose of this review, I'll be considering the value of the post without the remote against the retail price with remote included. Ritchey has the price reduced 35 USD on their site so call it 315 USD sans remote. It's like getting a ReMote for 1/2 price.

Wolftooth ReMote AndrewM

Dropper manufacturer, if your post feels significantly better with a Wolftooth lever either redesign your remote, rebrand a ReMote, or sell the post without one.

Wolftooth ReMote AndrewM

If you are redesigning your remote consider that bearing pivot points are better. It's the defining feature of SRAM brakes and will make your remote better too.

With that bit of ugliness out of the way, the Kite is back together and ready to ride. Cabling up any remote with a cable pinch bolt is a quick and easy affair.

Ritchey WCS Kite Dropper Post AndrewM

We briefly interrupt our scheduled teardown...

Ritchey WCS Kite Dropper Post AndrewM

...so that Jeff can show off...

Ritchey WCS Kite Dropper Post AndrewM

...his new toy. #nepros

Simple

When it comes right down to it dropper posts have a really simple job to do. The out of the box action of the Kite is excellent (with my remote) and it's so simple inside I'm inclined to trust Ritchey's don't-fix-what-ain't-broke take on maintaining their dropper. The finish is second-to-none clean and the slightly textured outer should stay in place admirably in carbon frames.

The three positions work very well for me and they're easy to find in the heat of battle. The head unit is the cleanest on the market. Service is really easy and should be very infrequently required.

Ritchey WCS Kite Dropper Post AndrewM

I'd love to see a 150mm version of WCS Kite. Time will on reliability but as it sits, Ritchey's first dropper ticks all my performance boxes otherwise.

The Highline is an easier post to clean and lube but the cartridge itself is non-serviceable whereas the Kite combines the ultimate mix of being easy to work on and fully user serviceable.

Now to grind out the wet Shore rides and report back about reliability as well as try a few different remotes.

For more information on the Ritchey WCS Kite please check here. Current pricing is 315 USD.
