Project 321 Hub Teardown

Photos Andrew Major

Project 321

Project 321 is best known as an aftermarket Lefty dealer, a premier Lefty service center and for manufacturing steerer tubes to adapt Cannondale Lefty struts to any mountain bike frame. In the mountain bike realm that is.

The company also machines aftermarket parts for Carroll Shelby International along with their own automotive accessories but a recent relocation from Fresno, California to Bend, Oregon suggests bikes are a lifestyle as much as a business. Who doesn't want to ride out their back door to awesome trails?

Project 321 Hub Teardown AndrewM

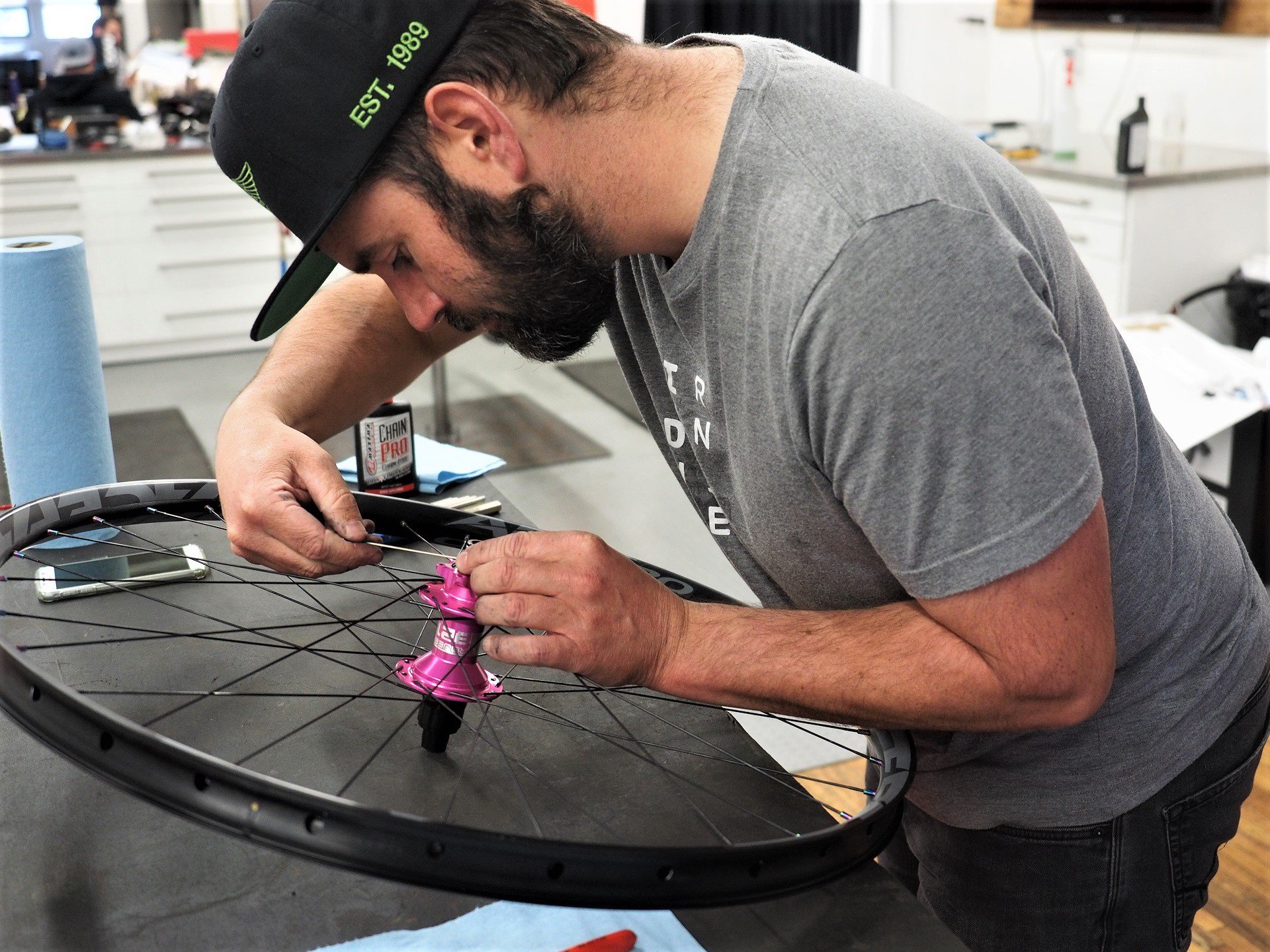

I managed to catch up with Jeff Bryson before he jetted off to the last round of the EWS in support of Remi Gauvin and Jesse Melamed of Rocky Mountain Bicycles.

Project 321 Hub Teardown AndrewM

Beautiful, quiet (or loud), quick engagement, simple to service and thoughtfully designed.

P321 has been selling hubs, including popular Lefty front hubs, for a long time but their brand new release is entirely designed and manufactured in-house, with the exception of the Japanese made EZO cartridge bearings.

The company will also be supplying hubs to select rim manufacturers. Tim Coleman is currently testing a set of We Are One carbon wheels using the hubs shown here. By all accounts, the folks at We Are One are particular and there are a number of Gucci hub options they could have chosen.

Project 321 Hub Teardown AndrewM

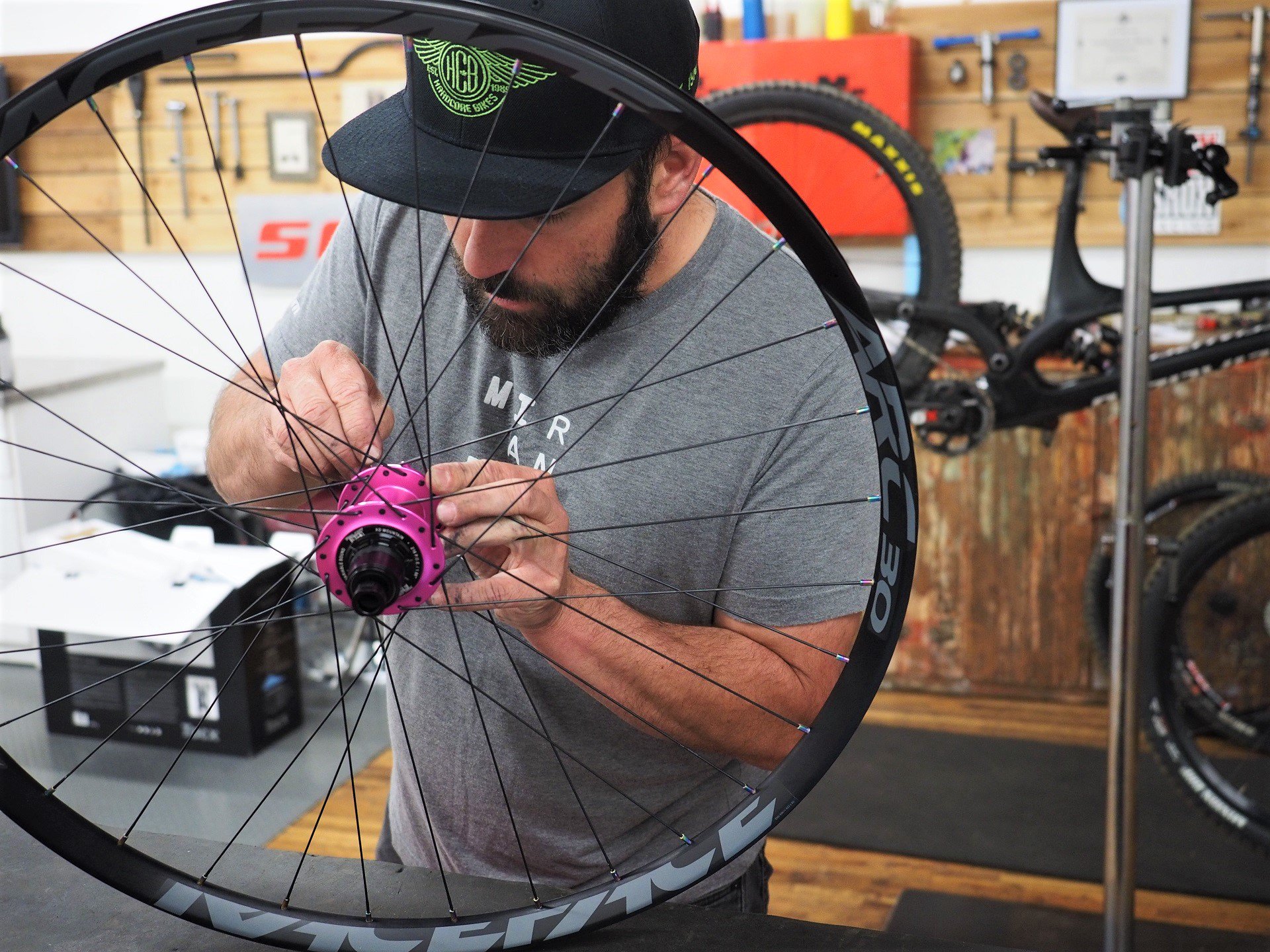

The 1.5mm hex key that adjusts bearing tension for the rear hub is spaced such that it can be accessed without removing a rotor - something that can be a PIA with other designs.

Project 321 Hub Teardown AndrewM

Two sets of very fine threads. The bearing tension adjuster threads one and the 1.5mm set screw contacts in the center. Fine threads mean fine adjustment.

Options

Every perspective of the Project 321 hubs remind me of something that Pete from North Shore Billet said to me once: "Why machine a straight edge when you can machine a curve?".

When it comes to configurations the options from P321 are almost endless. Almost every variable in ten different anodized colours is available for shells and axles: Black, Blue, Gold, Green, Pink, Orange, Purple, Red, Silver, and Turquoise.

Project 321 Hub Teardown AndrewM

Rear axle removal is a quick job involving two wrenches and a 1.5mm hex key. Great news for anyone sharing a hub between 142/135 spacing bikes or, in the near future, 148/141 spacing bikes.

Project 321 Hub Teardown AndrewM

These hubs spin ridiculously easily out of the box without any break in. This is a combination of the very light lube on the driver and in the bearings and the fine bearing tension adjustment.

Driver

P321 hubs can be crank-it-to 11 loud or almost silent by swapping between two different sets of magnetic pawls. The loud option comes with a slight increase in drag, but the louder pawl option produces 51% less drag than the previous generation with spring backed pawls. The quiet pawls make for a 68% reduction.

Project 321 recommends only Dumonde Tech Pro X Freehub Oil for lubrication of the pawls and drive ring.


The magnetic pawls with both the loud and quiet options and the high-quality EZO bearings really sealed the deal for us. - Dustin Adams, We Are One
Project 321 Hub Teardown AndrewM

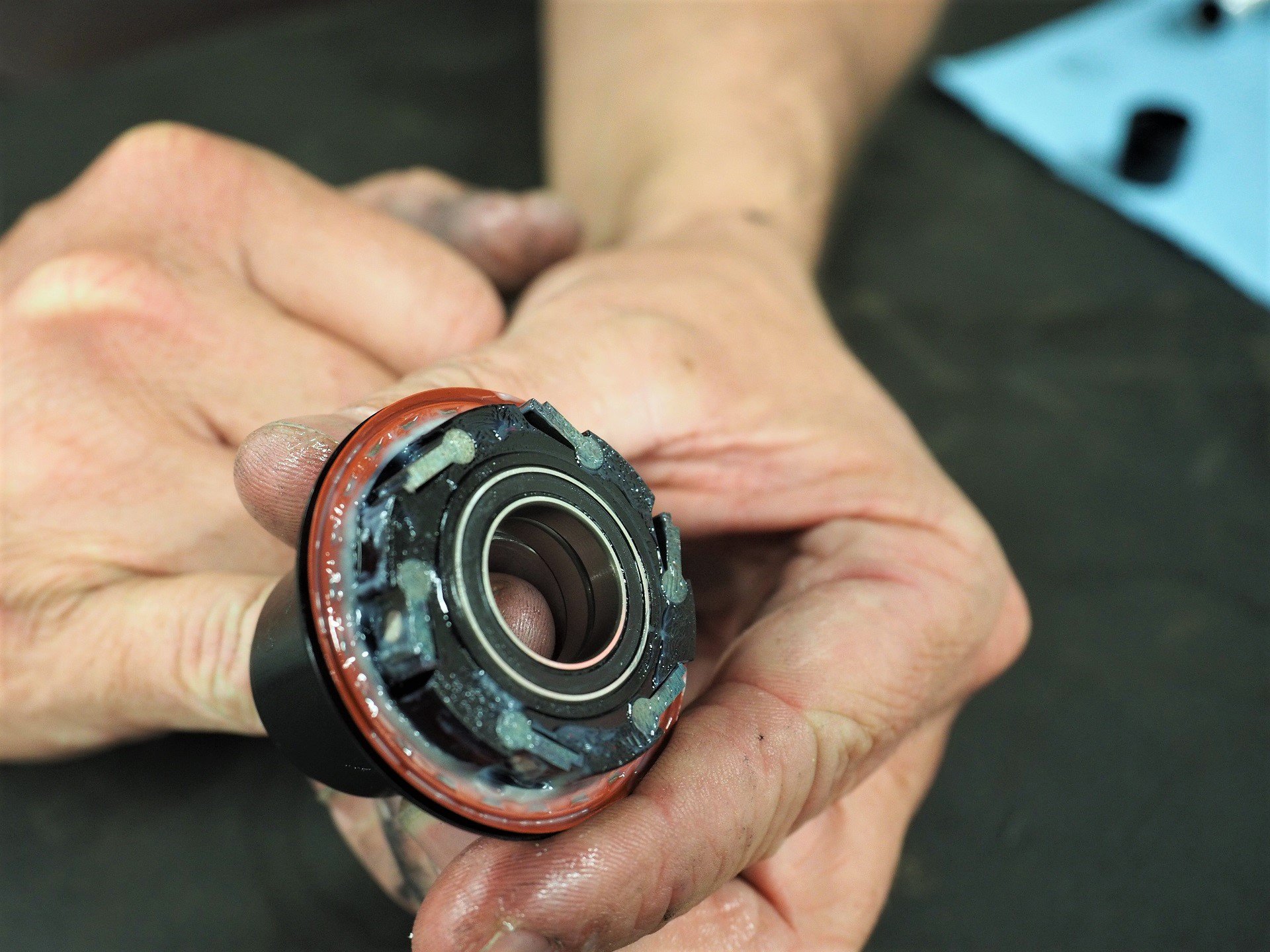

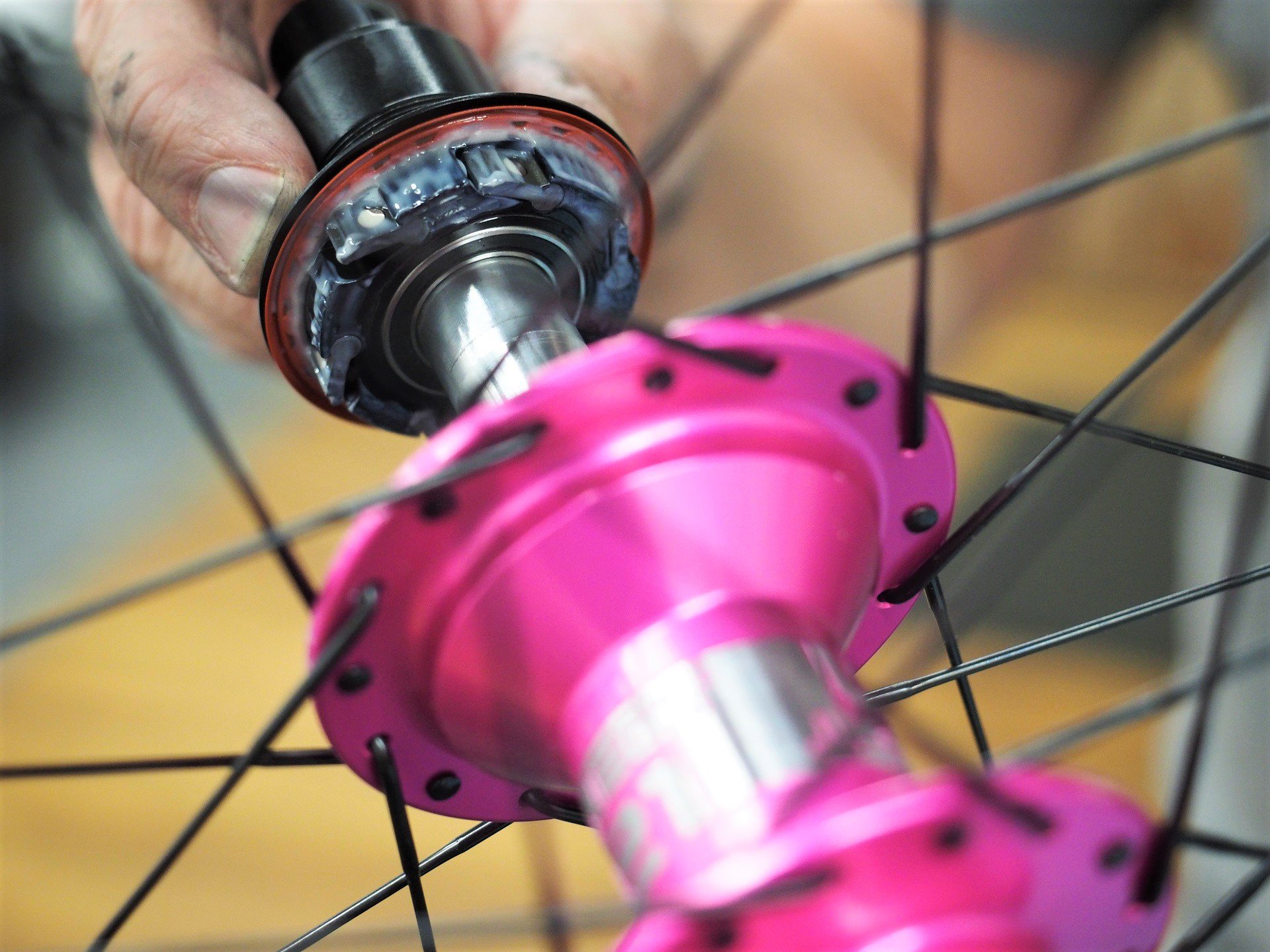

Once the freehub driver is removed it's an effortless job to remove and install pawls from their seats. The loud option is LOUD. The quiet option is like a series of odorless cat farts - you have to want to notice them.

There are actually four freehub driver options. That's XD (SRAM) and HG (Shimano) available in two different pawl setups. Drivers are then available in two different engagement options: 6x2 (6 pawls with 2 pawls engaged at a time) and 6x3 (6 pawls with 3 pawls engaged at a time).

The 6×2 driver yields 1.7° engagement and the 6×3 option yields 2.5°. In theory, the 144 points of engagement from the 6x3 option is robust enough for single speeding Clydesdales.

Project 321 Hub Teardown AndrewM

For reference that's the quiet option on the left and the noisy bastard on the right.

Watcha Spinnin' On?


"A West Coast capable hub" - Dustin Adams, We Are One

Project 321 offers hubs with Enduro ceramic hybrid bearings (+$100 USD) or high precision EZO Japanese made steel bearings. I find it hard to imagine the hubs spinning any nicer than they do with the EZO setup and my limited experiences with ceramic hybrid bearings have been poor. But, to each their own, options abound and etc.

Usually between Jeff and myself a teardown involves loading up any bearings with heavy water proof grease but he's spent all summer rebuilding Remi and Jesse's hub bearings with light oil and no seals so we split the difference and left the hubs as stock.

Project 321 Hub Teardown AndrewM

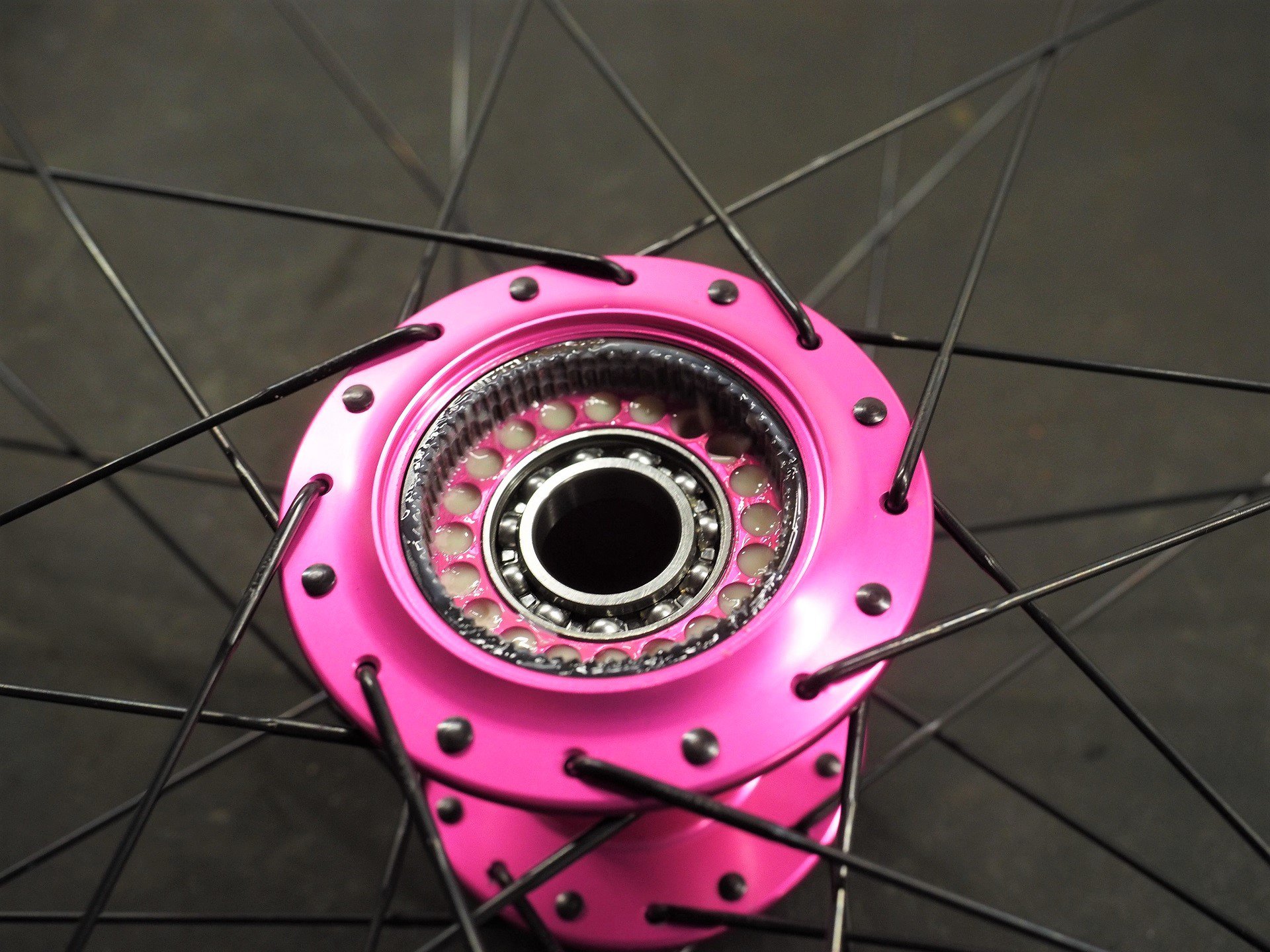

The machined pockets behind the drive ring serve to hold significantly more oil than similar designs. This should cut down on maintenance and help dampen noise.

Project 321 Hub Teardown AndrewM

Rather than stuffing the bearings full of waterproof bearing grease - the usual Wet-Coast MO - the stock, very light, lube was left in place. They just spin so nicely out of the box it didn't seem right to gunk them up. I'll see how long that lasts.

It's a very quick job to pull the axle and pop the seals on the most outboard bearings, the ones that most often have performance issues from water ingress, so I'll keep an eye on them with hopes that the tight tolerances, extra oil in the drive system, and the freehub seal keep the water out.

My experience with what initially seemed to be under-sealed True Precision hubs has taught that machining tolerances can vastly improve bearing life in wet conditions.

Project 321 Hub Teardown AndrewM

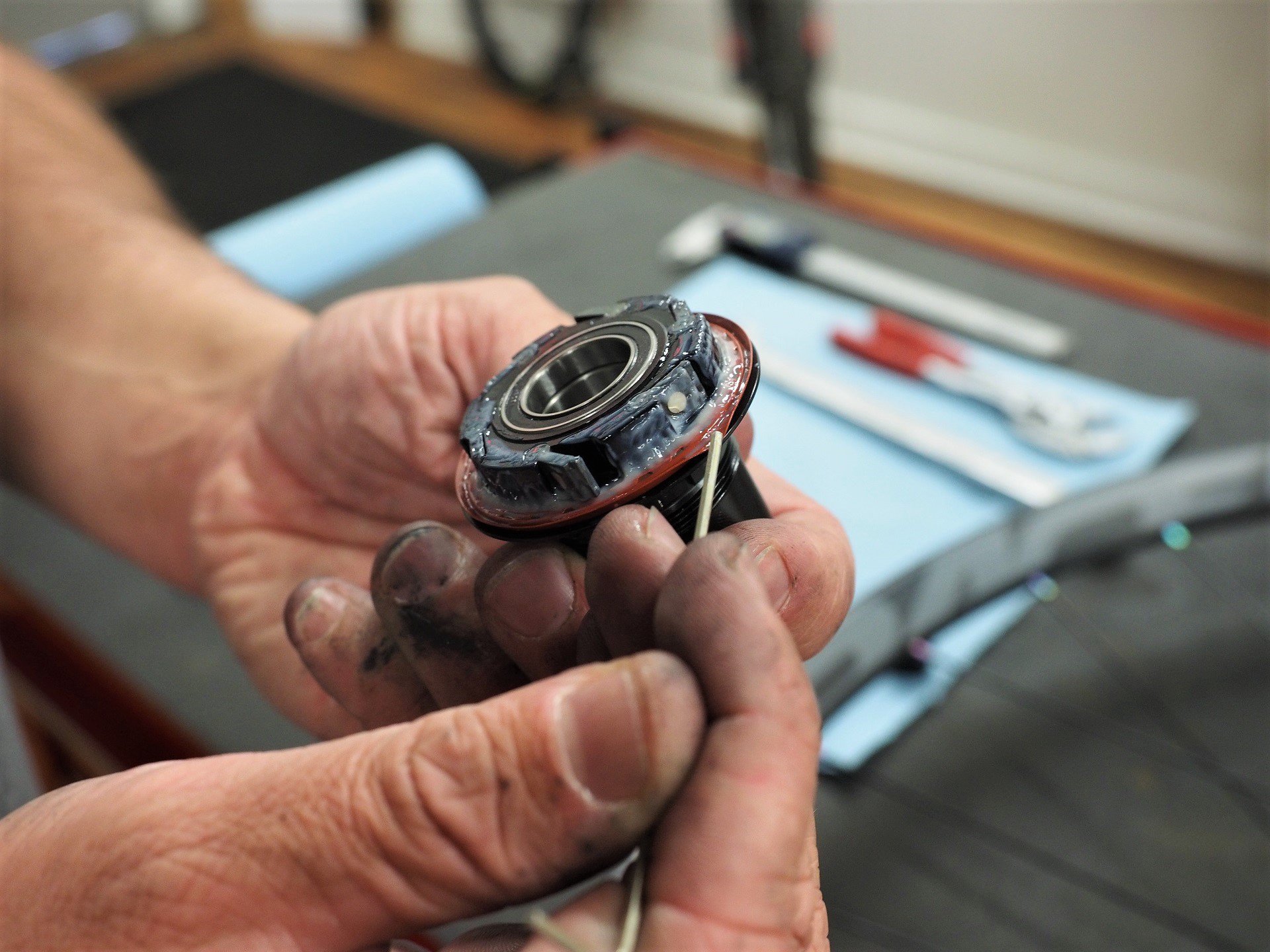

A double row of bearings on the hub driver meet straight up against the driveside hubshell bearing. Add the outboard freehub bearing and the non-driveside hubshell bearing and that's a total of five.

Project 321 Hub Teardown AndrewM

The double seal on the freehub driver keeps oil in and crap out.

Up Front

To some extent a front hub is a front hub. The P321 hub has easy to swap but tight-to-remove end caps sealed by o-rings, and the anodizing perfectly matches the rear.

Project 321 Hub Teardown AndrewM

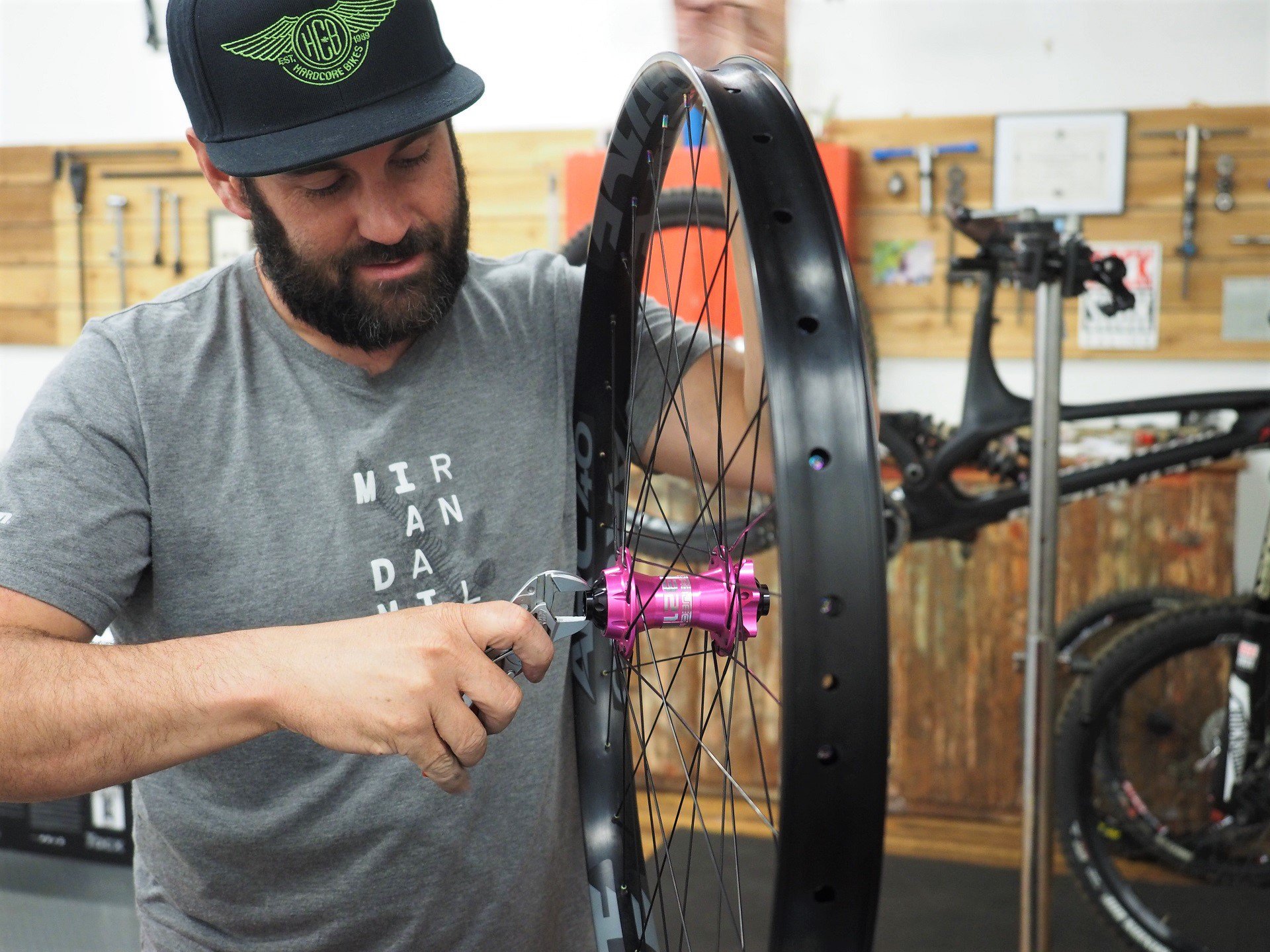

Not just an excuse for Jeff to bust out his Knipex pliers, these end caps are actually a bear to remove.

Project 321 Hub Teardown AndrewM

Speaking of bears. This wheelset was built by my friend Dumpster Bear. The spokes are Sapim Lasers, the rims are Race Face ARC (40 front | 30 rear) and the nipples are TLC anodized brass.

How To

Anyone who has successfully replaced bearings in a hub is fully equipped to tackle a complete teardown on the new Project 321 hubs. All the same the company is currently working on building a repository of How To videos to help guide riders through the ins and outs.

Project 321 Hub Teardown AndrewM

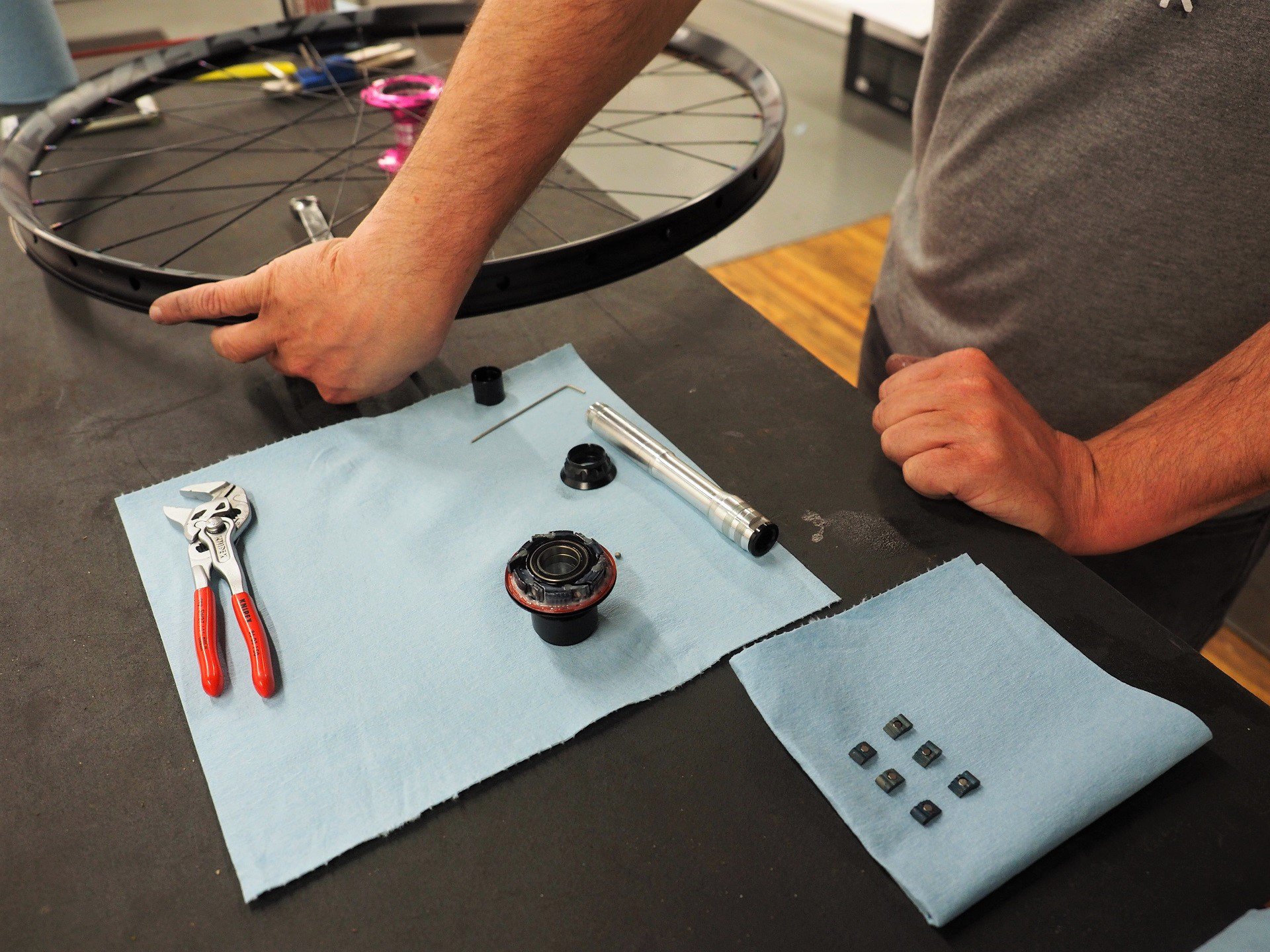

No special tools are required to open the P321 rear hub; a couple of thin wrenches and a hex key are the keys. Bearing removal & install is as per almost every other non-King hub.

Hubs can be ordered through any P321 dealer or directly from the website. The hubs carry a ten-year manufacturer's warranty on the shell and axle and a three-year warranty on the pawls, drive ring and freehub body.

Pricing ranges depending on options and is available here.
