Hubs. What do they do anyway? Without them, wheels couldn't be attached to our conveyances. After primitive peoples invented the wheel, they invented the hub, so they didn't have to keep collecting their wheels when they were spat out behind their load, and carry them to the front again.
Yet, we often overlook their importance. We talk about tires and rims but hubs rarely start conversations. While there are some interesting things happening in the hub space with E13 Sidekick and the WRP Zero Drag internals, there hasn't been a ton of new players aiming to fill the OE and wallet-friendly after-market spaces.
One Up Components has been cleverly solving mountain bike problems since 2013. That's 12 years of making anodized parts that change how we ride our bikes. What started as an extra green gear on a 10-speed Shimano cassette, evolved into a list of products, not only as upgrades to stock but as benchmarks of products that should be spec'ed on new bikes; posts with the most drop for their length, comfortable handlebars, grippy pedals that were the thinnest of their time and now a ratchet drive hub that is lighter and more affordable than the competition.

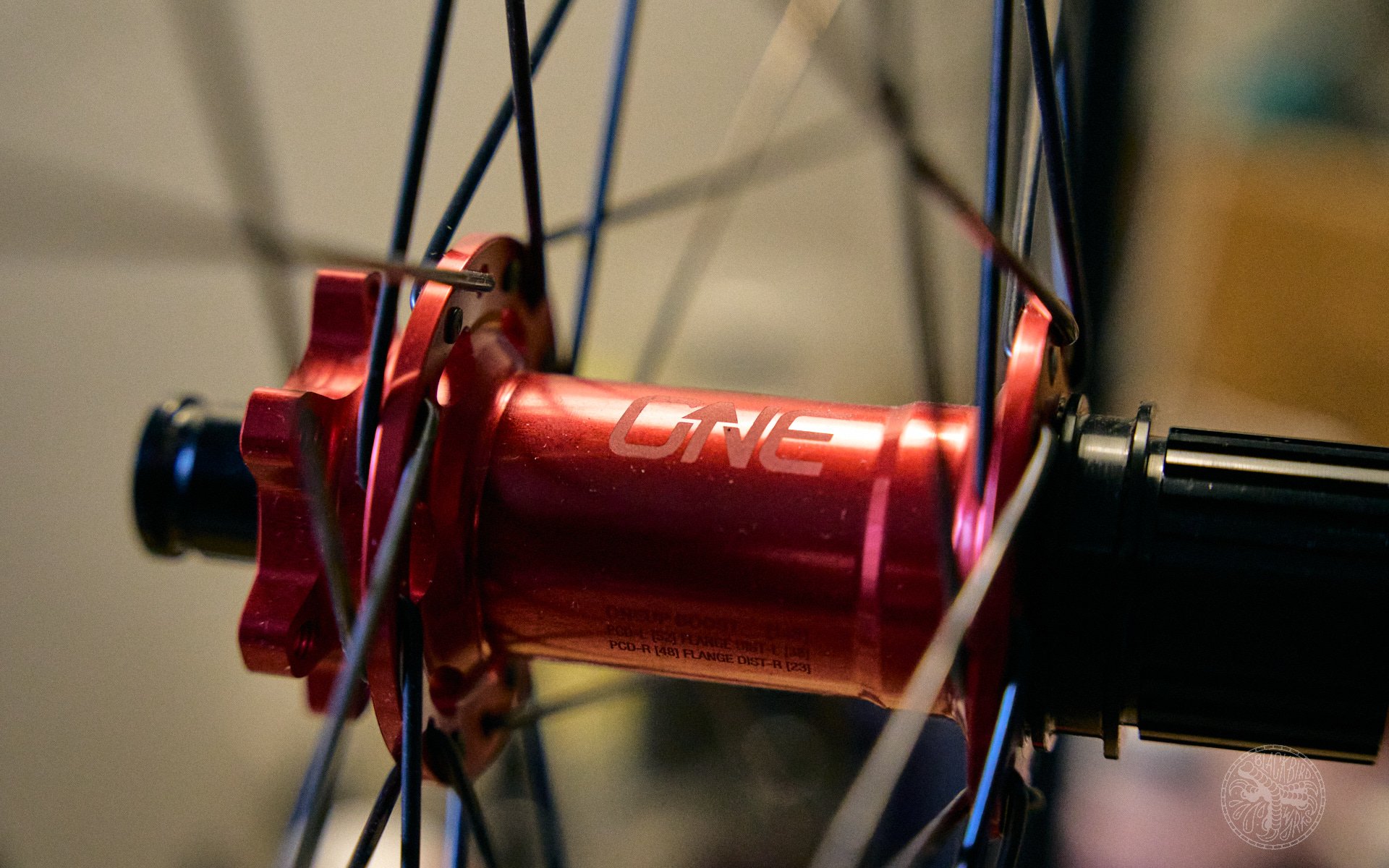

Lightweight, J-Bend spokes and many colours to choose from

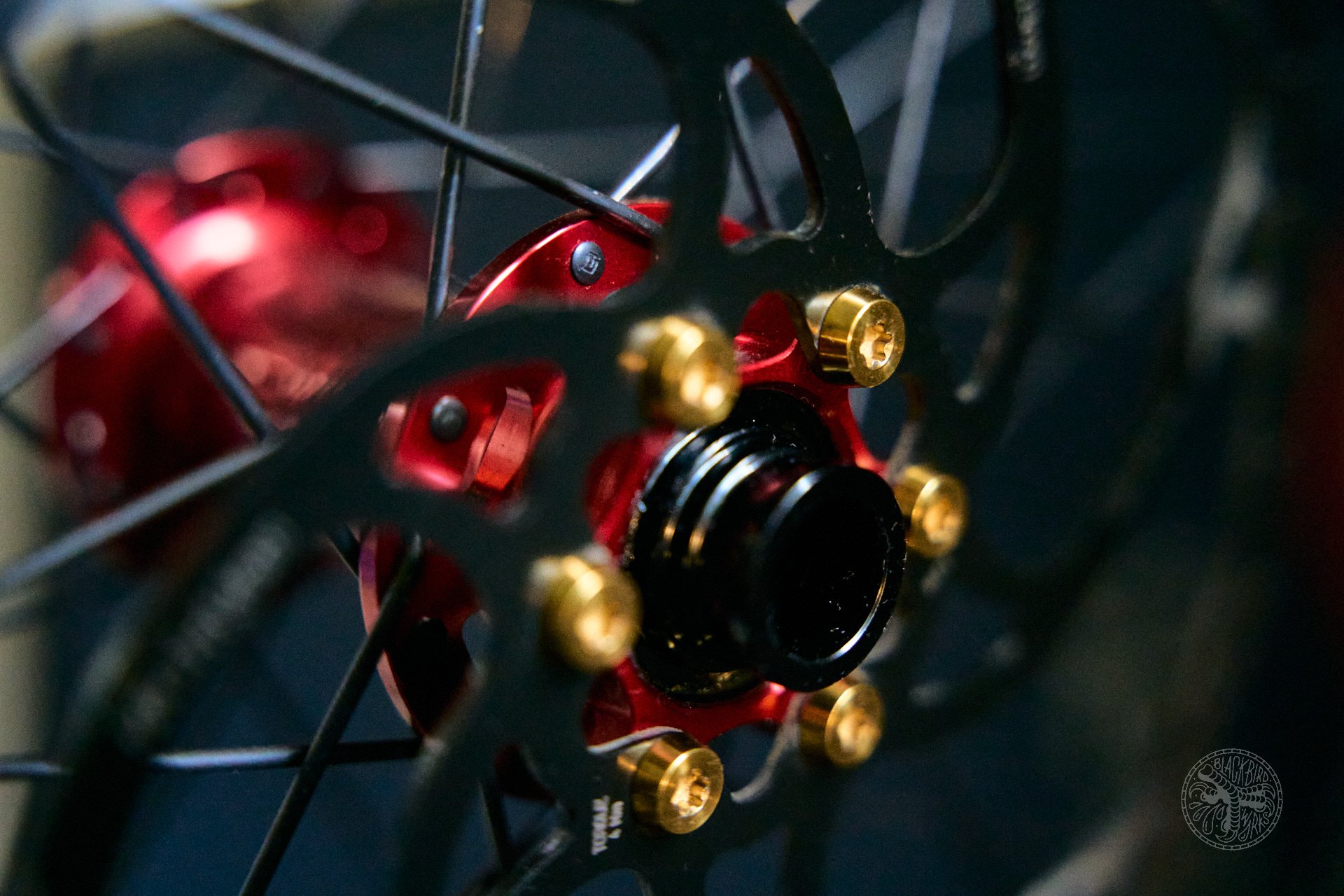

While Red wouldn't be my first choice, I had some gold Tibolts lying around to make the bike a bit more fun.
Hubs
For the high engagement crowd, Industry 9 has been offering both Hydra and the 1/1 hubs for years. Sorting out their issues with bearing lifespans and axle breakage with recent production changes, the high buzzing American-made hubs have been a go-to for many consumers. Hope Pro 4 and 5 hubs have also been popular on both sides of the ocean. With reliable architecture the U.K.-made hubs have adorned many downhill oriented bikes as they often weighed too much for the weight weenies. That left the door wide open for DT Swiss with their generally lower engagement hub options that ar reliable, light and loved by mechanics all over the world.
OneUp had big battle on their hands. They took their time getting into the hub game and with the Ratchet Drive patent expiring, the door was blown wide open for them to show their design and manufacturing skills.
OneUp quietly announced their new hubs last year. In typical OneUp fashion, this new product would address existing issues in the performance/price matrix. Hubs that perform well and are durable and relatively light have become very pricy in recent years. A set of DT Swiss 240 hubs will set you back 1050 CAD at a local shop. That's 670 for the rear and 370 for the front. Industry 9 Hydras come in at 985. Lower-priced hubs often involve compromise and what's worse than blowing out the freehub (with a drive ring that is part of the hub body) on a new set of wheels. You'll be out a wheel build and the cost of a new hub, not to mention however long it takes for the work to get done.

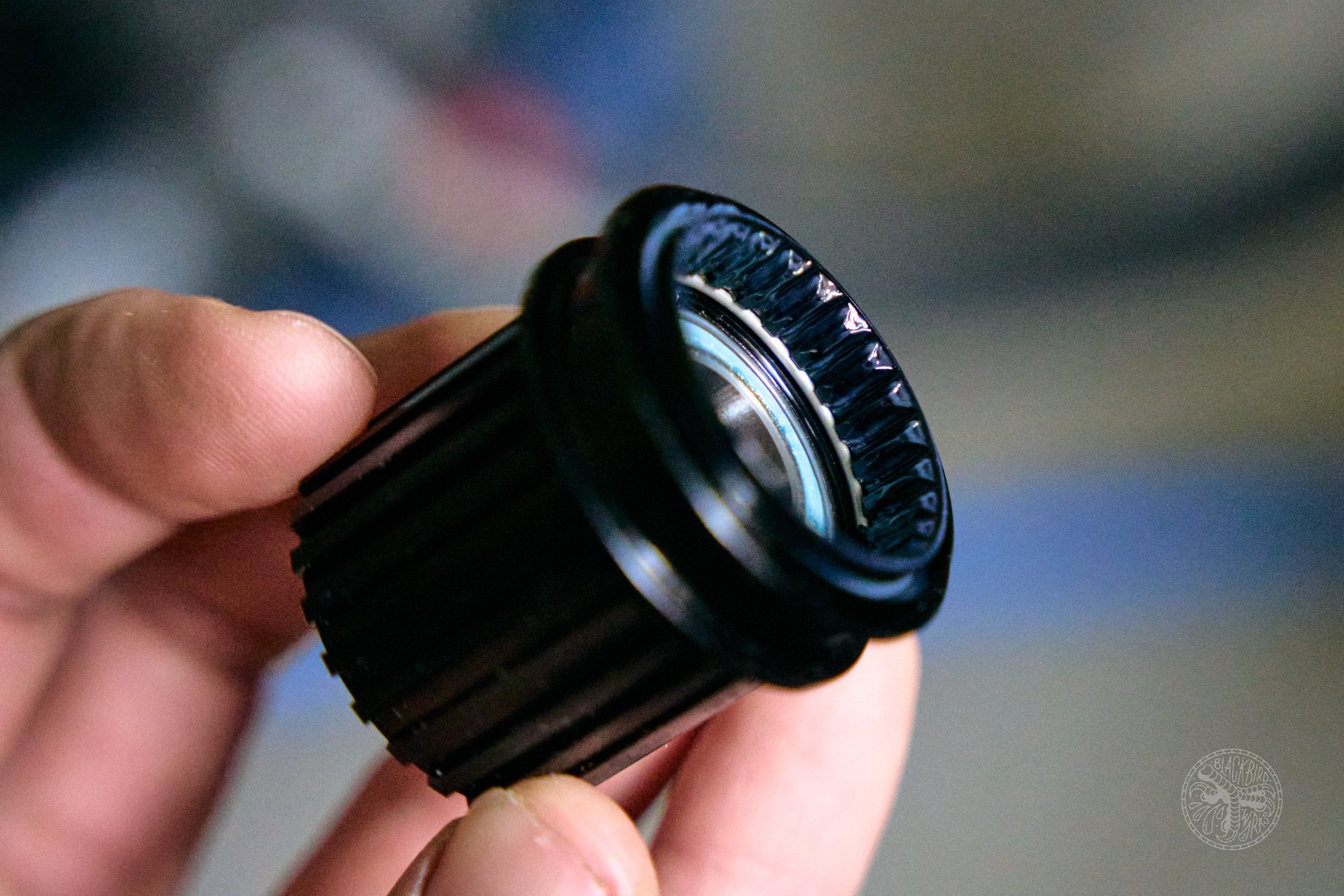

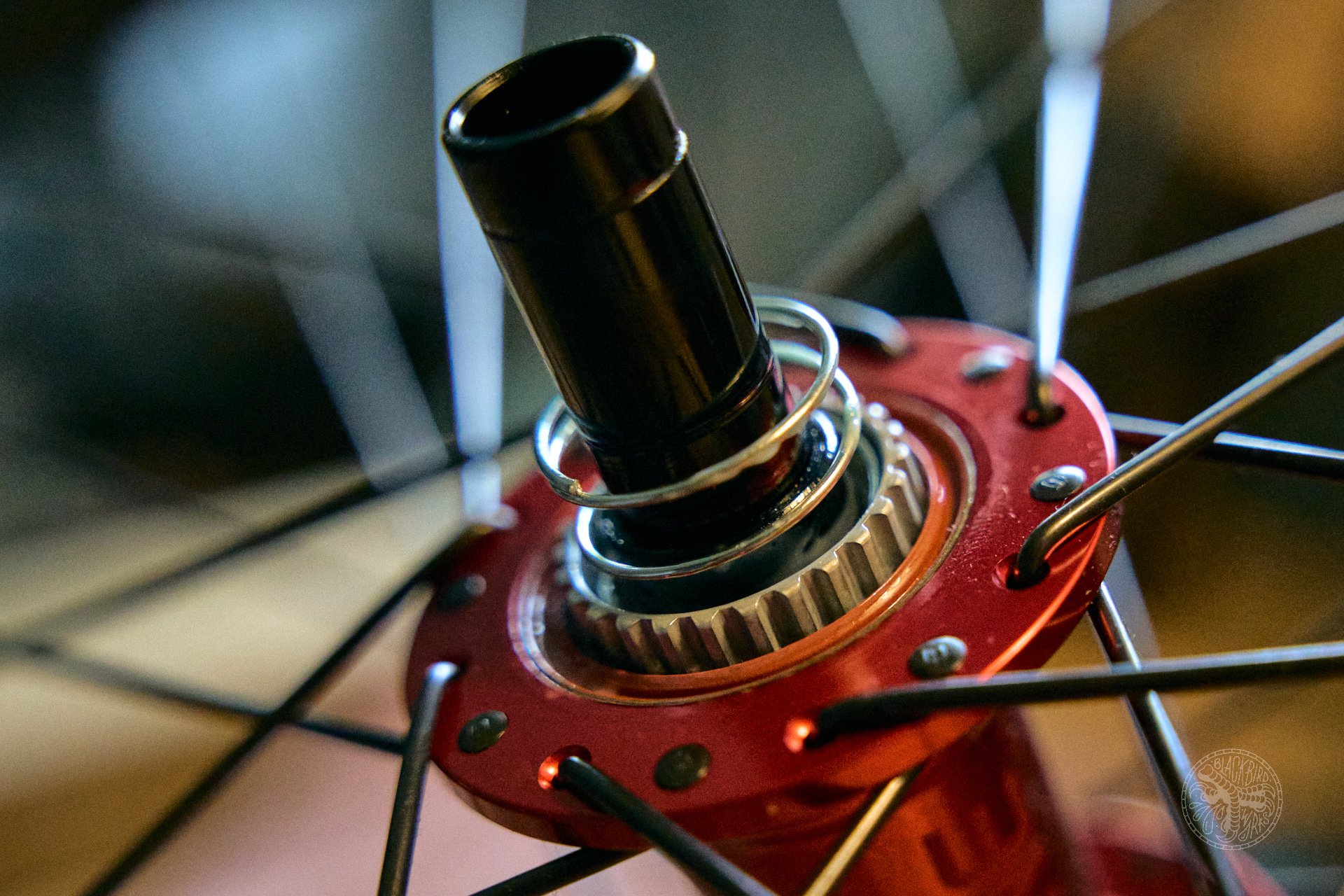

There is a single spring on the Freehub side

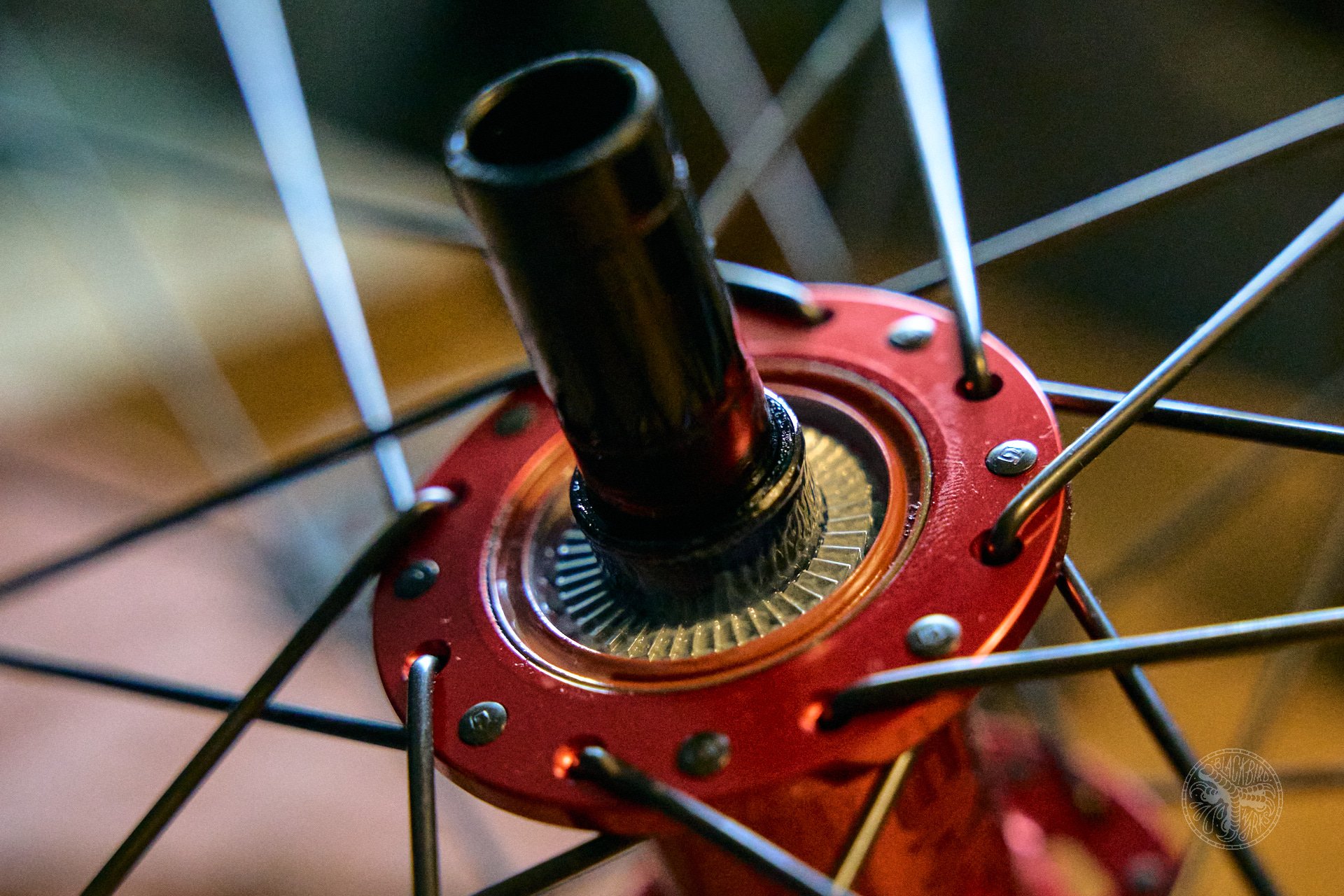

The hub side ratchet drive also seals the bearings from the elements. Pawl-driven designs fail to do this.
There aren't many groundbreaking features here. They don't even have cool name to go with them. Rear hubs are available in Boost 12x148mm spacing only and 15x110 front. This excludes people with 12x157mm frames. With a focus on performance, reliability and price, OneUp managed to make one of the lightest hub sets you can mount on your mountain bike today.
Specs (from OneUp )
- Spacing: Boost front and rear
- Holes: 28 and 32
- Engagement: 44 points, 8.2 degrees
- Weight front: 142g
- Weight rear: 220g (with XDr freehub)
- Colours: Black, red, green, blue, orange, purple and grey
- Material: 7075 T6 Aluminum

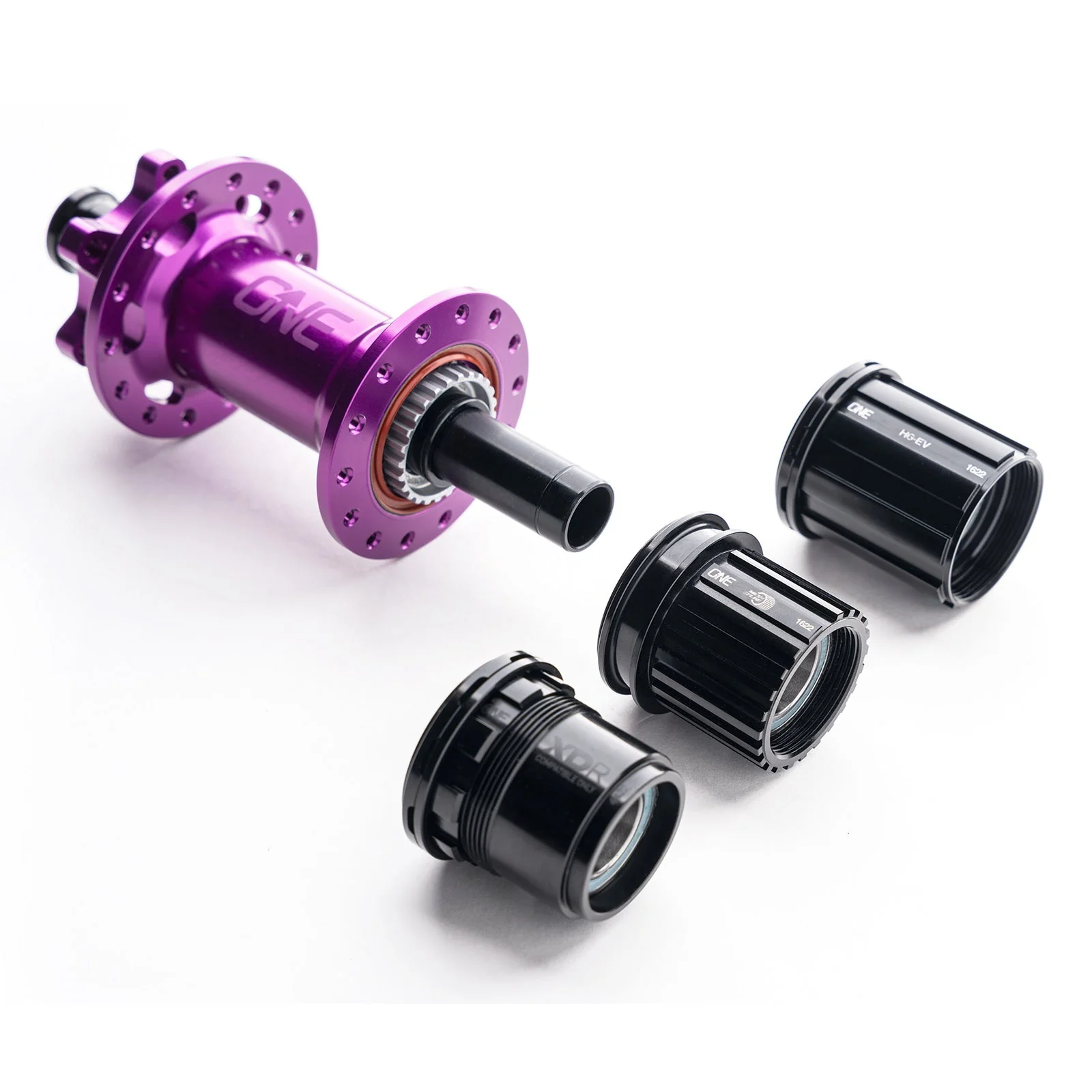

- Freehub options: XDr, Microspline and HG (all with tool free installation)
- Spokes: J-Bend only
- Brake Mount: IS 6 Bolt only
- End Caps: Double sealed (tool free installation)
- Bearings: Enduro Abec 5 (Front - MR17287, Rear 6902, Freehub 6802)
- Freehub Seal: Enduro

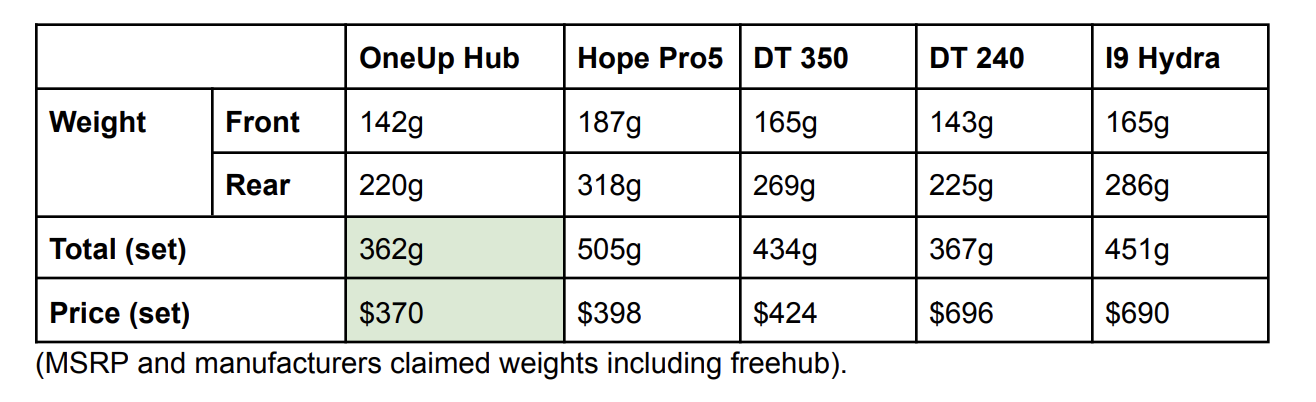

The comparison matrix. I'll let the numbers tell you the story, but my test wheels came with heavier aluminum rims, negating some of the benefits of the lighter hubs.
Test Wheels

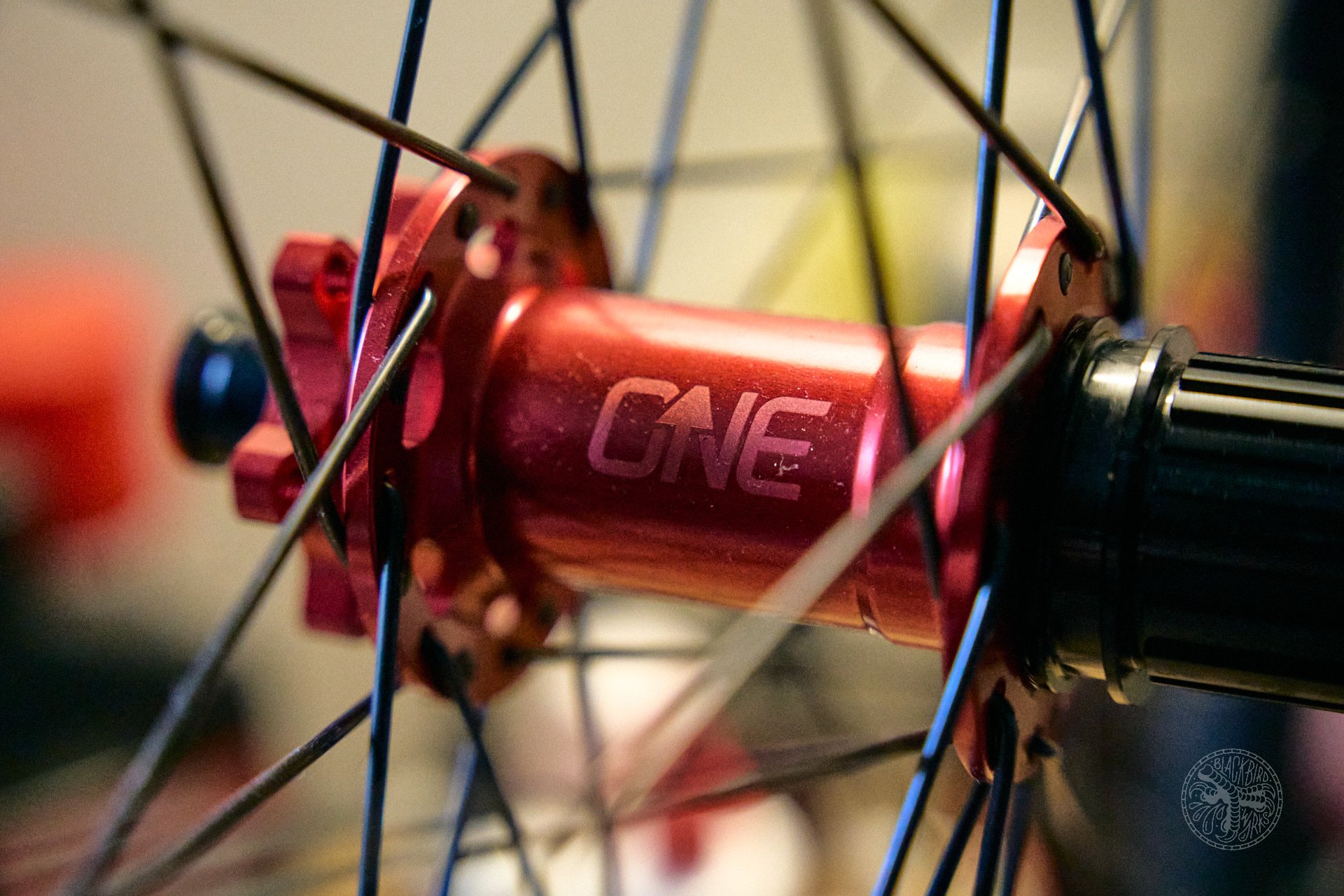

OneUp sent a pair of wheels for testing. The beautifully red anodized hubs with 32h spoke holes showed up laced 3 cross to Reserve 30HD|AL rims. This is a beefy setup. While I am not sure you can purchase these wheels complete, they could show up on bikes as OE spec. On my scale, compared to the 28H , Industry Nine Hydra built, three-year-old, Reserve 30HD wheels, there was an increase in overall weight. OneUp Hubs do not come with Freehubs. You will need to purchase the correct one for your application. This makes inventory management easier for shops.

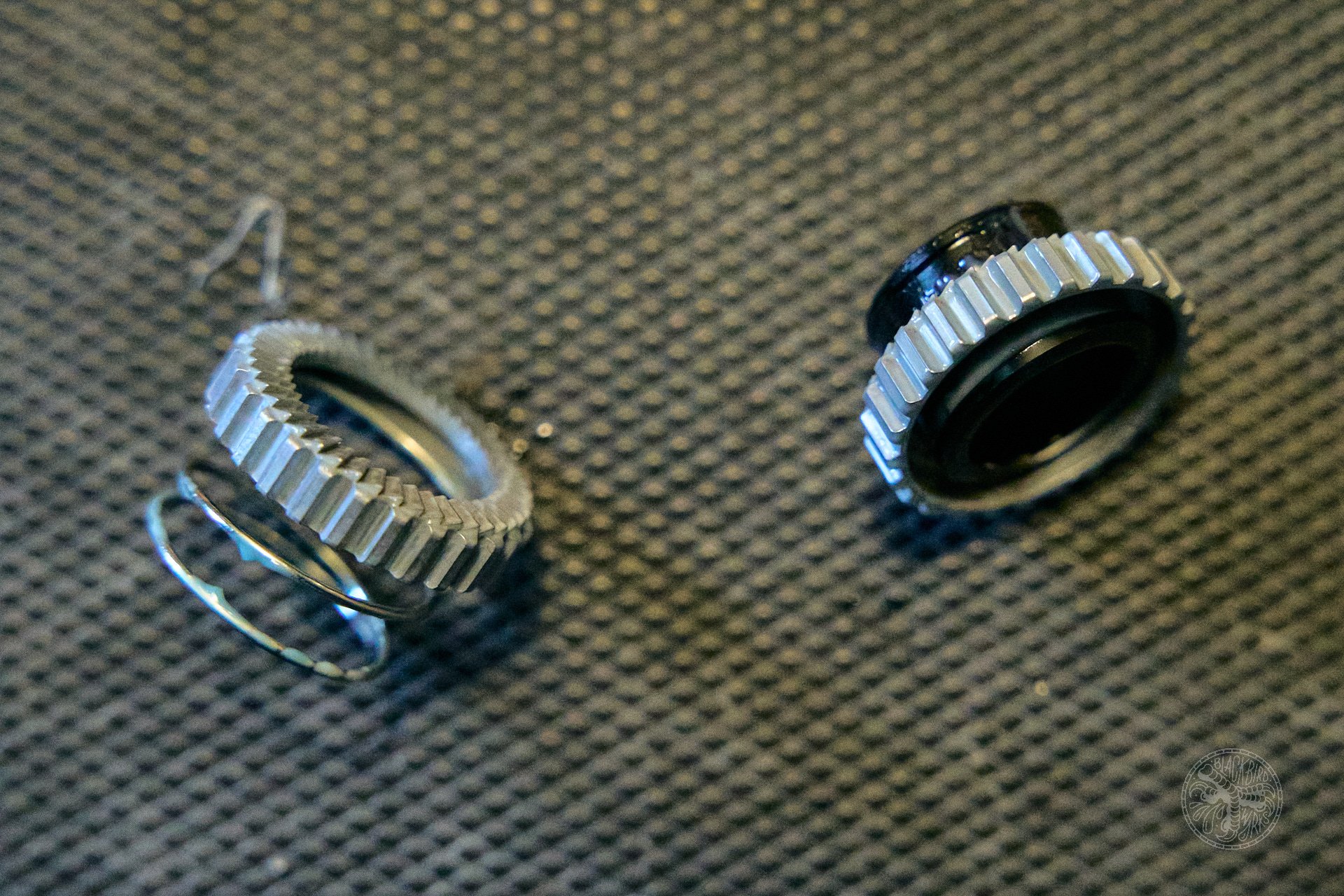

This is all there is to the service parts in the drive mechanism.
Every part of the hub is replacable and is stocked by OneUp
Weight Comparison
| Front | Rear | |
| Reserve 30HD Aluminum ONE UP | 1027g | 1033g |
| Reserve 30HD Carbon Industry Nine | 881g | 923g |

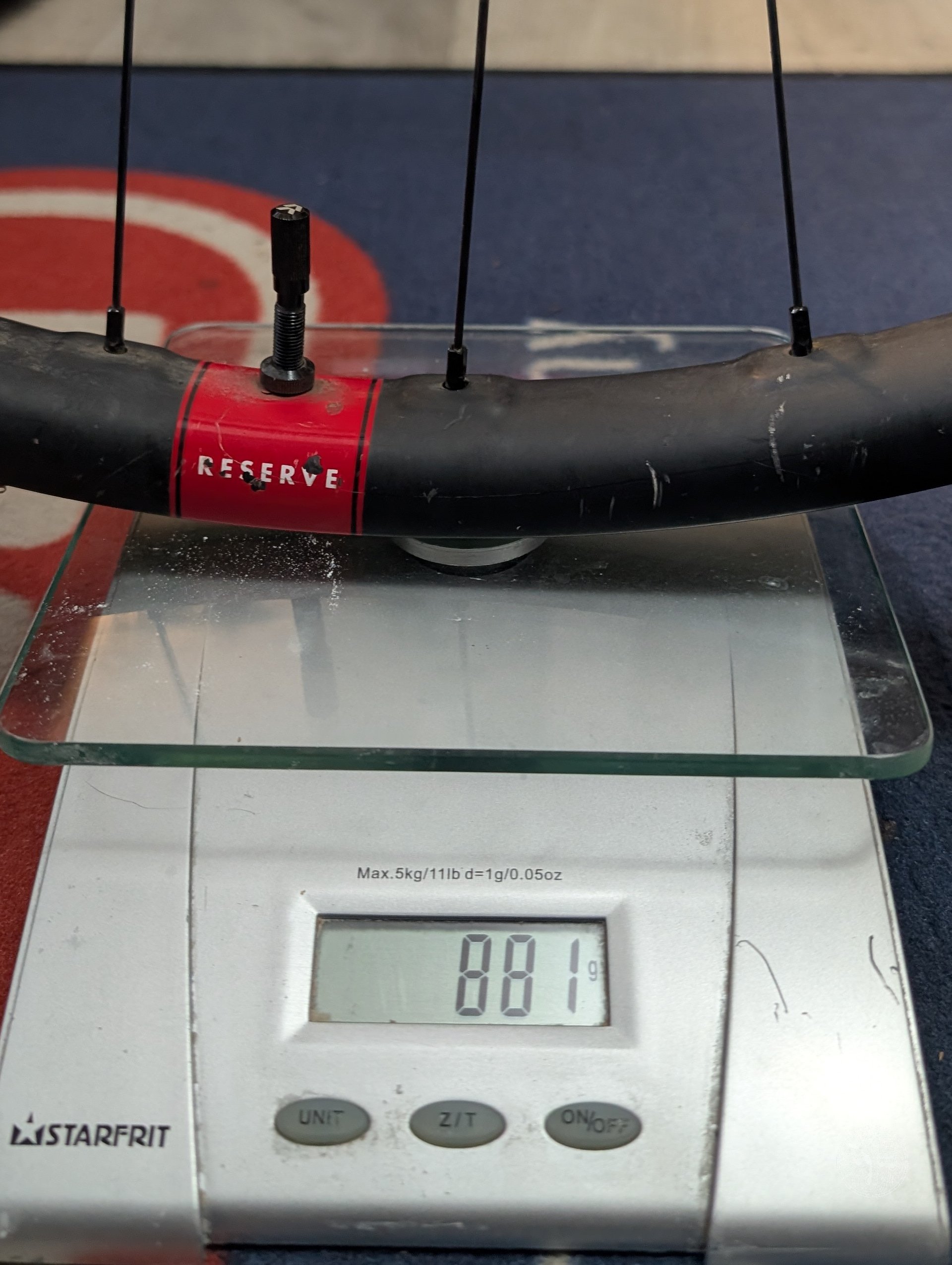

Reserve 30HD Carbon Industry Nine FRONT.

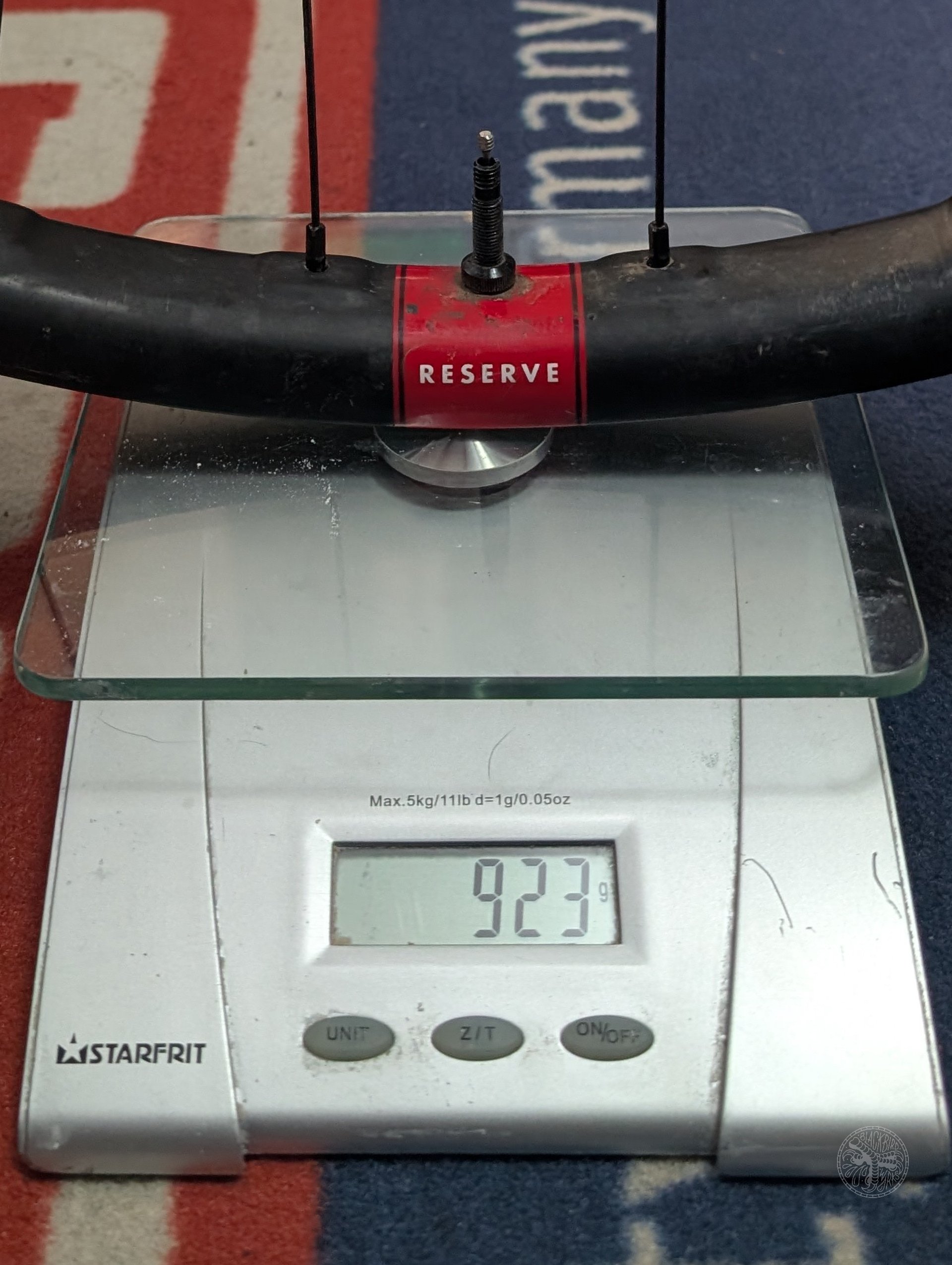

Reserve 30HD Carbon Industry Nine REAR

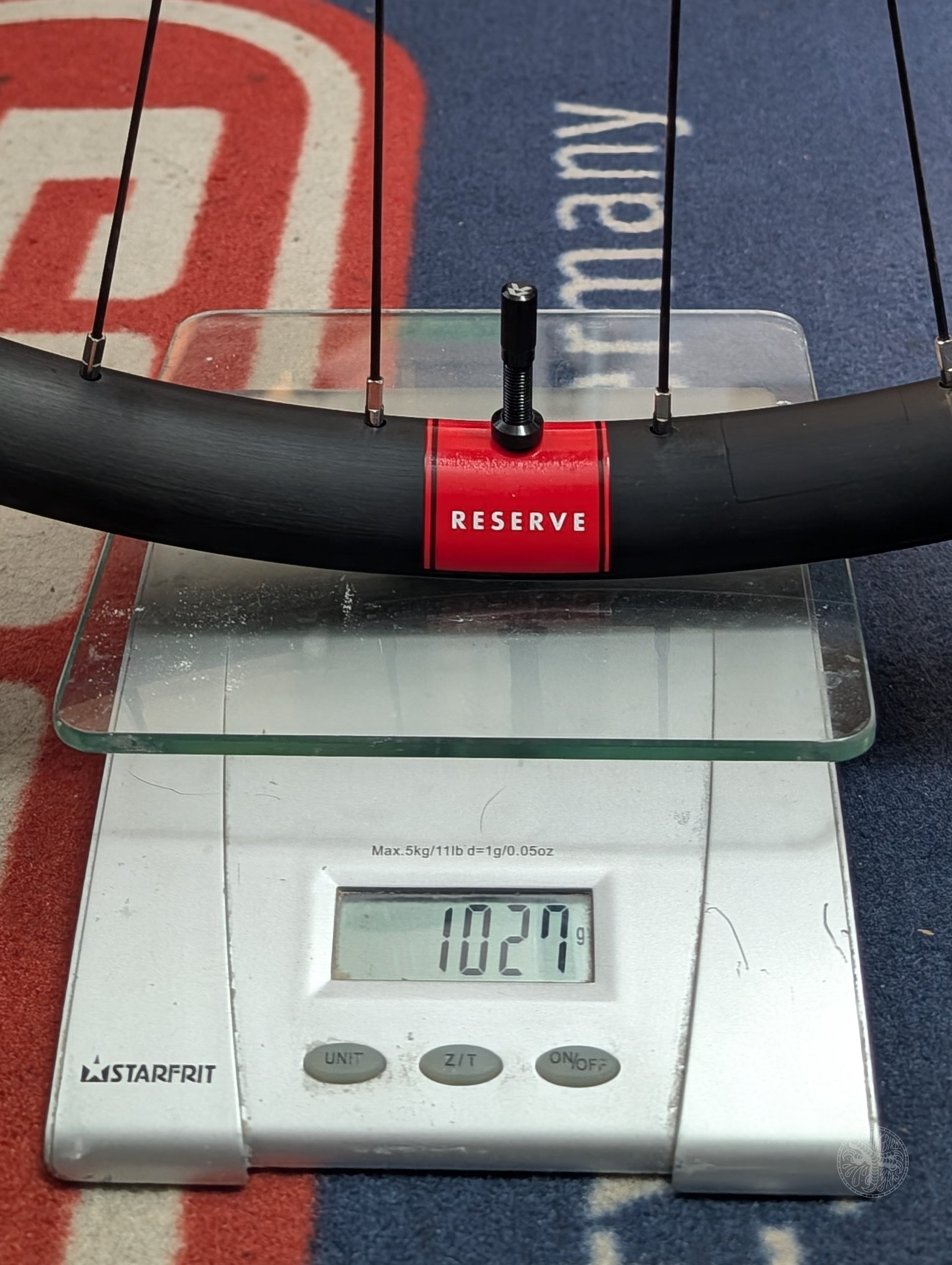

Reserve 30HD Aluminum OneUp front

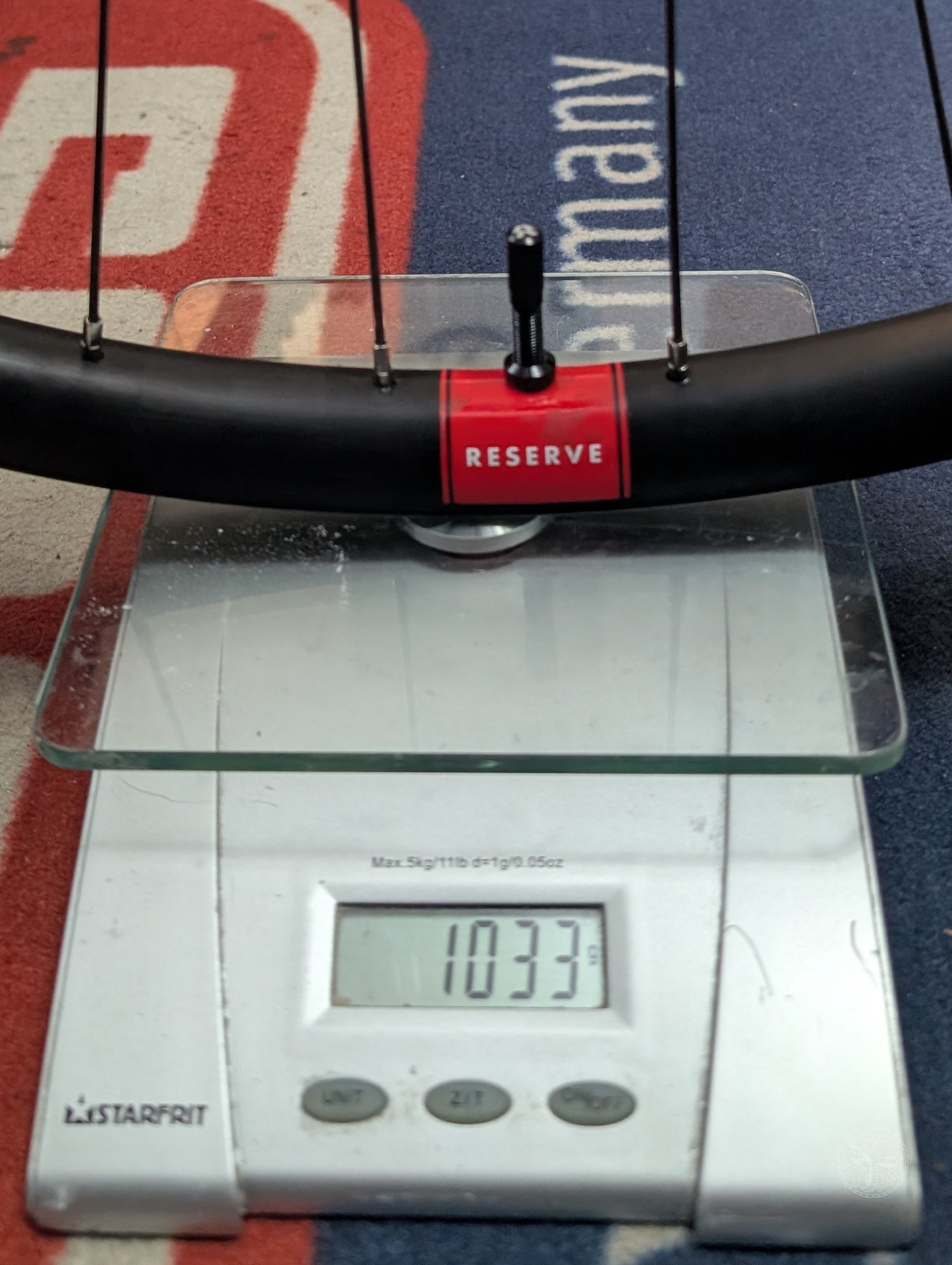

Reserve 30HD Aluminum OneUp REAR
Ease of Service
Opening up the new hubs, the simplicity of the Ratchet Drive system is evident. There are no pawls or impossibly tiny springs to deal with, making this system robust and simple to work on. All you need to do is occasionally remove the freehub, the ratchet drive, and the spring and give the grabby bits a good cleaning with some 90% Isopropanol. No portion of this procedure requires special tools. Once cleaned, 2.5ml of Dumond Tech Freehub Grease will ensure water repellency and will quiet the racket these hubs make if they are run dry.
If you want to replace the bearings on the rear hubs, a Shimano cassette tool gives you access to the lockring on the non-drive side. The bearings come out and go back in from the non-drive side of the hub. This is a clever bit of engineering allows for easier home maintenance. My biggest issue with the I9 Hydras has been the frequency of bearing replacements I've had to perform and the need for over-the-axle bearing tools. I much prefer using the axle itself to drive new bearings in. This makes road trip wrenching a breeze.
There are also great instructions on the OneUp Website.
No pawls to lose or strip

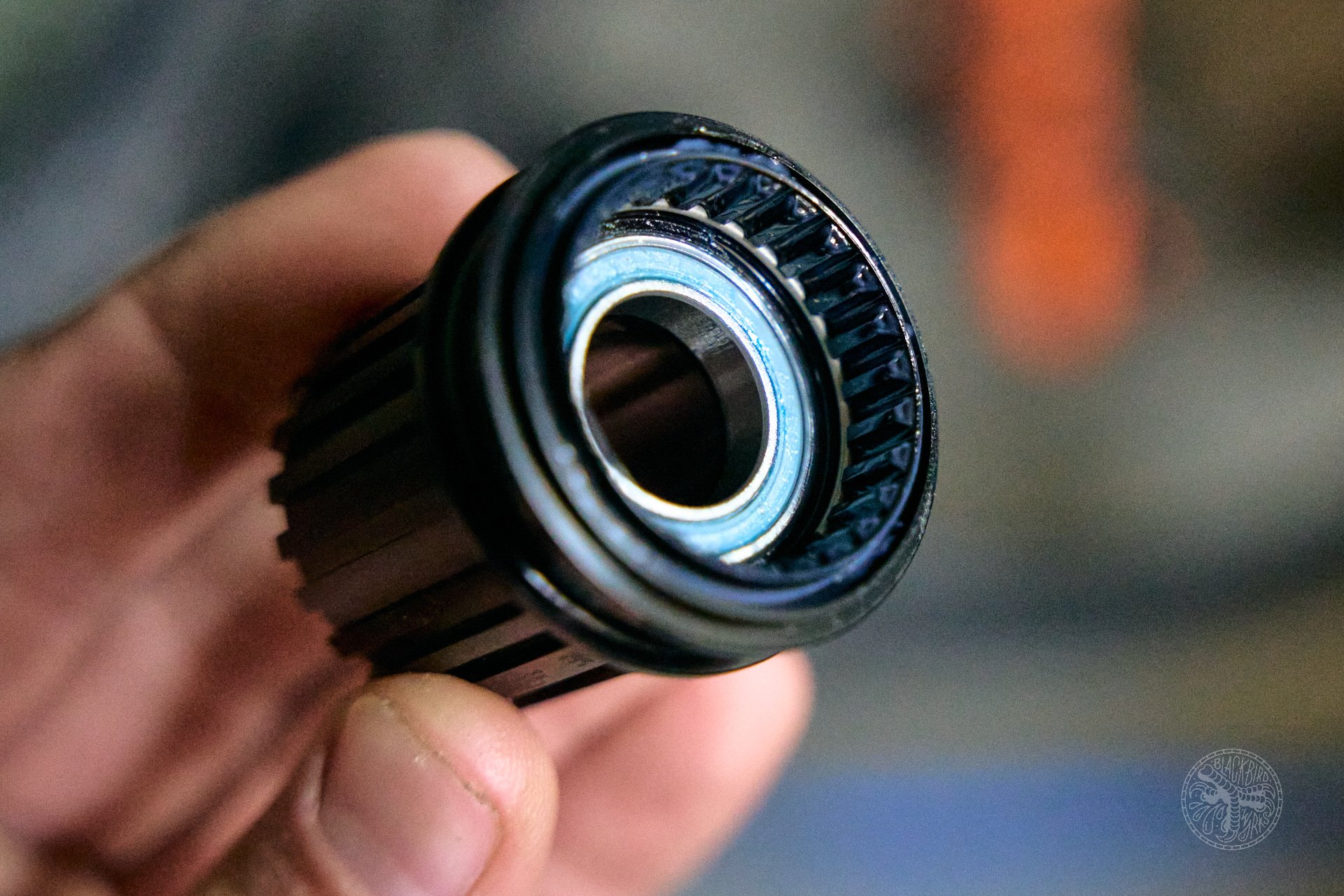

Inspecting the teeth is easy and the bearing is extremely accessible too
On The Trail
These hubs have been rolling trouble free for a while now. They are on the Orbea Rallon with plenty of suspension travel and Goodyear Wrangler tires. The sound on the trail is different while rolling, obviously. Switching to aluminum rims on this bike has made a bigger difference however. I have never run alloy rims on the Rallon, so it has been interesting comparing them to the reserve 30HDs that I really like. There seems to be less pop out of supported corners with these wheels. The alloy doesn't have the springiness of the carbon hoops. But over the rough stuff, the bike feels a little more planted and holds a line better - and it feels more comfortable through my hands and feet. I have no reason to worry about the durability of the Reserve 30 HDAL rims however. When and if they do fail to hold a tubeless setup reliably, I will most likely cut them off the OneUp hubs and re-lace the Reserve Carbon rims in their place.
OneUp hubs are an excellent option for most every rider. They are simple in construction, reliable and have features that should make home mechanics happy. That said, there hasn't been a OneUp product I haven't liked.
Final Thoughts
There are many reasons why you may choose a certain brand of hub to run on your bikes; where they are made, how they sound and engagement could all factor in. I've run Industry Nine Hydras on my bikes for years and have gotten used to their quirks and appetite for bearings. But, if I wanted to build some new wheels for a bike today, I would put these hubs on the top of my list.
Hubs do not come with freehub bodies. You need to buy them for your use case. Shimano HG/Shimano Microspline? Sram XD Photo: OneUp Components
Hubset Price: 370 USD / 500 CAD / 370 EUR / 315 GBP
Front Hub: 100 USD / 135 CAD / 100 EUR / 85 GBP
Rear Hub: 220 USD / 270 CAD / 220 EUR / 186 GBP
Freehubs Bodies: 50 USD / 70 CAD / 50 EUR / 44 GBP
5'8"
162lbs
Playful, lively riding style
Photographer and Story Teller
Lenticular Aesthetician
