e13 LG1R Tire AndrewM
RELEASE | FIRST IMPRESSIONS

New e*thirteen LG1 29 & 27" DH Tires

Words Andrew Major
Photos Andrew Major
Date Jan 8, 2018

Rubber

Nine years ago Jeff Steber showcased a 29" prototype of Intense's popular 951 DH bike. It had a 64.5° head tube angle (hta), 463mm chain stays, a 1220mm wheelbase, 180mm travel up front via a modified Manitou Dorado and 190mm of rear wheel travel. With all due respect to Alex Morgan, it was the first production ready 29" DH bike.

Looking back at photos it's still a thoroughly modern machine. Until this year the same thing holding it back in 2009 was a barrier to racing 29'ers on World Cup DH tracks and the toughest EWS courses. That's of course a lack of suitable rubber.

e13 LG1R Tire AndrewM

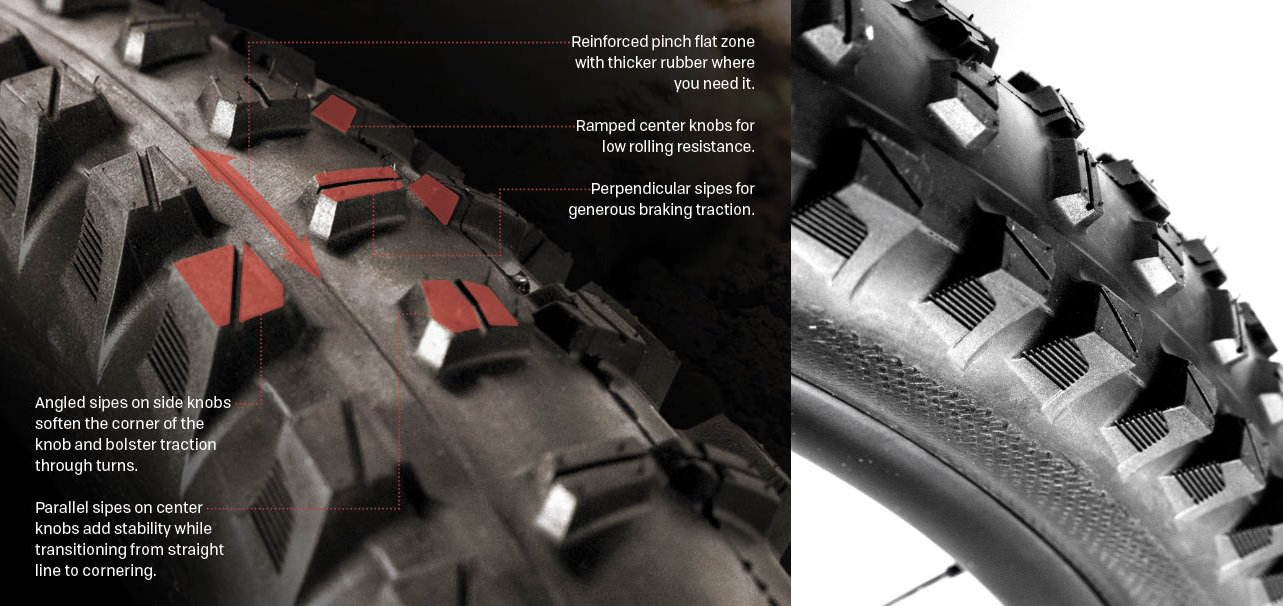

The dual-ply e13 LG1 Race tires feature their three A's: Apex sidewall inserts for support, Aramid reinforcement for protection and Accordion knob siping for controlled deformation.

Good, aggressive, 'Shore-worthy' 29er trail rubber has existed since around 2012 when Maxxis released the Minion DHF 3c. These days our cup runneth over with awesome tires like the Schwalbe Magic Mary, e13 TRS, Bontrager SE4, Maxxis DHR2, etc. But with a plethora of mega aggressive Enduro and DH 29ers hitting the market in 2018 there is still an obvious dearth of true 29" DH tires.

Enter the new dual-ply LG1 Race from e*thirteen, a 1260 gram 29 x 2.35" DH tire that sells for 70 USD.

Tread

The LG1 Race and Plus models, in 27" and 29", share the identical dimensions and tread pattern with e*thirteen's TRS tires. The TRS is a very popular choice with the crew here at NSMB: Cam, AJ, and Dave all love them.

In my limited experience, they thrive in all the conditions aggressive North Shore trails deliver. The sticky compound grips wet rock faces and armoring as well as anything I've ridden and the tread pattern digs in sensationally braking or cornering in loose conditions even in steep awkward turns.

15062016-NSMB-geareview-reynoldsenduro-eThirteen-trs-0068421.jpg?w=1600

The greater NSMB crew is full jingo on the e13 tires. Please check out Dave's review of the previous-gen TRS Race tires here. Photo: Dave Smith

All the tires, Race and Plus, share the same slow-rebound tacky rubber compound down the center. It's plush rubber, and certainly not fast rolling, but everyone I know who has used it is impressed by how long the tires last given how sticky they are on the trail.

Speaking of rolling resistance it's not a total exercise in self-flagellation to pedal the e13 tires uphill but the very square profile puts a lot of rubber in contact with the ground. For comparison's sake, up and down, it's very similar to riding around on a pair of Schwalbe Magic Mary Super Gravity or Maxxis DHR2 Maxx Grip tires.

e13 LG1R Tire AndrewM

The square shape of the tire on a 30mm ID rim means the side knobs bite hard and fast. Support is excellent as I lean my bike over.

Both the LG1 Race and TRS Race tires use a softer rubber compound on the outside knobs. With a very square tire this will maximize grip through multi-directional wet roots, off camber drop-ins and any cornering situation where my bike is leaned over. For the extra 10 USD over the Plus models it's a no-brainer upgrade for me.

Casing

For the new year, e*thirteen has re-engineered the single-wall TRS tires to improve puncture protection and casing stability and recognized the demand among the class of riders going harder, faster, longer and sicker for a true DH version of their "True 2.35" tire.

My Marin Rift Zone is a very confident short-travel Shore 29er but I think the 120mm bike actually peed itself a little when I mounted up the dual-ply LG1 race tires. They're mean meat. I've never had an easier tubeless mounting experience than airing these tires up on a pair of Bontrager Line Comp 30 wheels. I just pumped them straight up like I was running tubes and the SNAP as the beads seated up shook my windows.

e13 LG1R Tire AndrewM

The e13 LG1 Race tire has all the features of the TRS Race with a dual-ply sidewall. It's 160 grams heavier and significantly stiffer.

The big focus with the new tires is the 'tapered Apex inserts' which make the tire tread more flexible. The idea is that it will increase grip, braking, and cornering in irregular trail sections. The Apex inserts add around 1mm to the thickness of the sidewalls which will also improve durability. The Race tires also have an Aramid layer in the sidewall to prevent punctures and tears.

Apples-to-apples it looks like the extra protection features add about 70 grams over a previous generation 27" TRS Race tire.

With both tires using a folding bead, the dual-ply construction of the LG1 Race 'only' adds about 160 grams per tire over the 1000 gram TRS Race. Neither is a light weight tire, but anyone pedaling the LG1 uphill is justified in considering a SRAM Eagle upgrade.

First Impressions

My main barrier to enjoying the LG1 Race tires has been the cold weather. The casing stiffens up considerably when it's chilly and that requires me to dump air pressure to keep them feeling decent on the trail. Locally, I prefer a higher volume 1.5 casing tire in the winter for a more supple feel on the trail. I'm really looking forward to getting out on these tires on a long travel 29er when we get up over 10°C.

The 2.35" TRS and LG1 Plus tires sell for 60 USD each in both 27" and 29" sizes. The Race versions of each tire come in at 70 USD. Look for a full review of the updated TRS and the LG1 in the future.

For more information please see e*thirteen 'Wheelgoods' here

Comments

sp00n
0
sp00n  - Jan. 9, 2018, 4:43 a.m.

Did only the casing stiffen up in cold weather, or did the rubber on the tread itself also? I.e. comparable to a Maxxis 3C tire, where Maxxis itself warns from using it below 6°C.

Source: translate.google.com/translate?ie=UTF-8&tl=en&u=http%3A%2F%2Fmaxxistires.de%2Ftechnologie%2Fgummimischungen%2F
(This info somehow doesn't show up on the English version of the page...)

Reply

AndrewMajor
0
Andrew Major  - Jan. 9, 2018, 9:52 a.m.

I find the tread cap stays flexible and grips well. I haven’t ridden the 1-ply TRS version but I’d think that would be a winner for cold/technical rides.

The LR1 definitely stays more flexible than 3c. That’s compared to my Maxx terra experiences as I haven’t ridden the new 29” Maxx Grip.

I’m excited to try the new Specialized Gripton rubber at some point as apparently it stays comparatively flexible in the cold.

Reply

sp00n
0
sp00n  - Jan. 9, 2018, 11:38 a.m.

Yeah, Gripton supposedly stays flexible in the cold, as does the new Addix compound from Schwalbe. Continental's Black Chili compound (BCC) does this as well, which I can tell from personal experience (and a low cost Shore A Durometer tester). It would be interesting to see a comparison for the various rubber compounds in cold weather, as most MTB magazines constantly ignore the fact that there are riders on their bikes when it's below 10 or, good grief, even below 5° Celsius.

I've measured the tires available to me, but of course I don't have the means to measure all the interesting tires and compounds.

By the way, coincidentally all three cold resistant compounds I know of (Gripton, Addix & BCC) were developed by the same guy (or at least he was part of the team) - Wolfgang Arenz.

Reply

AndrewMajor
0
Andrew Major  - Jan. 9, 2018, 2:40 p.m.

Thanks for that sp00n! I had never heard of Wolfgang Arenz before.

What brand of Durometer tester do you have? I had looked into getting one previously to add a small quantitative element to my usual qualitative ramblings but couldn't bring myself to fork over 300 USD for something that is apparently only accurate against itself?

If I could pick something up cheap enough that was ballpark accurate (and accurate against itself) it would be very cool to map the tires I come across through various temperatures.

From what I've read for something that is scientifically accurate the cost is around 2500 USD+

Reply

sp00n
0
sp00n  - Jan. 9, 2018, 3:25 p.m.

The durometer I use is a very cheap Chinese one. Something like $15 or so. It's certainly not very accurate, and nothing scientifcally usable - but it indeed generates somewhat reproducable results.
The problem with those measurements is that you'd need a well defined block of the tire rubber. And a well defined force for a well defined time. But tire knobs on mountainbike tires are particularly bad for measuring the shore value, because they're too small, have ridges, grooves, sipes, and what else is there.
I've tried to measure the tires available to me, and while there are a couple of inconsistencies, other results seem to match the official values pretty good.

fotos.mtb-news.de/p/2088921 (my comments are in German, but you'll understand the important parts)

Wolfgang Arenz has developed the BCC compound for Continental years ago, then went on to Specialized, who now have their Gripton compound, and finally ended up at Schwalbe who recently introduced their Addix compound. At least there seems to be a pattern here... I wonder where he'll end up next. Maxxis would be a good choice, they could need a temperature resistant compound...

Reply
