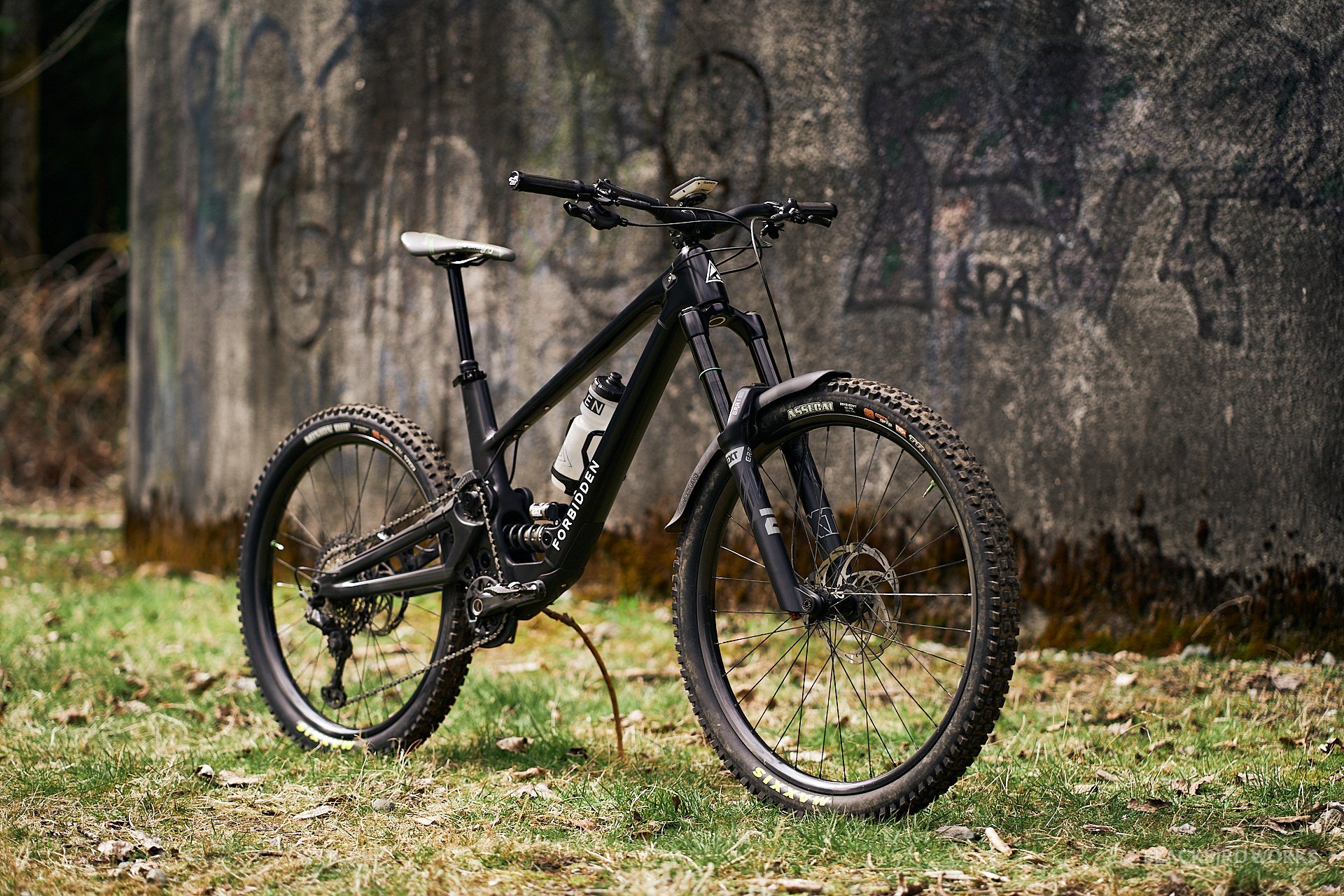

Mike's Forbidden Dreadnought is one mean looking machine.


Stealth trail destroyer.

Hi Mike, Can you introduce yourself and your riding background?
I first started riding mountain bikes in the early 1990's, right around the time that the Panaracer Smoke came out (awesome at the time). I took a break for a while, then started riding again in '99 when freeride was all the rage. I was in Kelowna, which was a great place to learn how to ride off stunts and hit bigger things. I moved to Calgary for a while, then ended up in North Vancouver.

Tell us about your bike catalogue, the bikes you own and owned in the past. What stood out and why?

Well, that's a tough one. I've had the opportunity to ride a lot of bikes since in the past 20+ years. Highlights have included a 59 pound Banshee Scream (so stable and easy to jump), some Knollys, a Yeti SB150 (one of the better all around bikes I've ridden), Forbidden Druid (the secret sledgehammer), and an aluminum Specialized Stumpy EVO (highest smiles per dollar I've ever ridden). Lowlights include a recent e MTB (not my cup of tea), Yeti SB 5.5 (too linear), and a 2017 Specialized Enduro (too linear). My current bikes are the Forbidden Dreadnought and a Geometron G1. I'll talk about the Dreadnought below, but the G1 is awesome because it can be built however you want. Mine is currently set up with 460 mm chainstays, 495 mm reach, mullet and a 190 mm Boxxer. It's so much fun but handles the trails very differently to the Dreadnought.


Understated graphics.

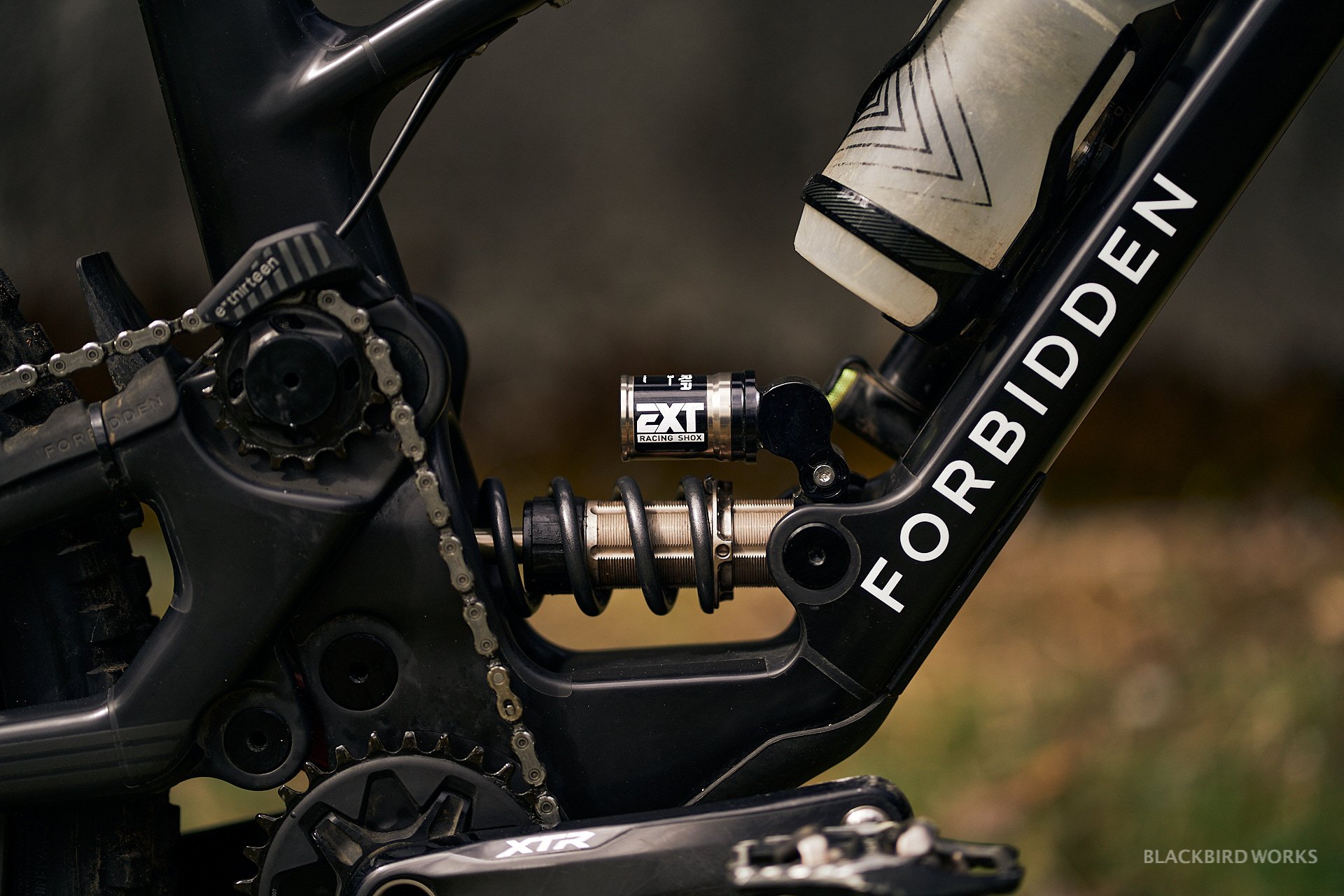

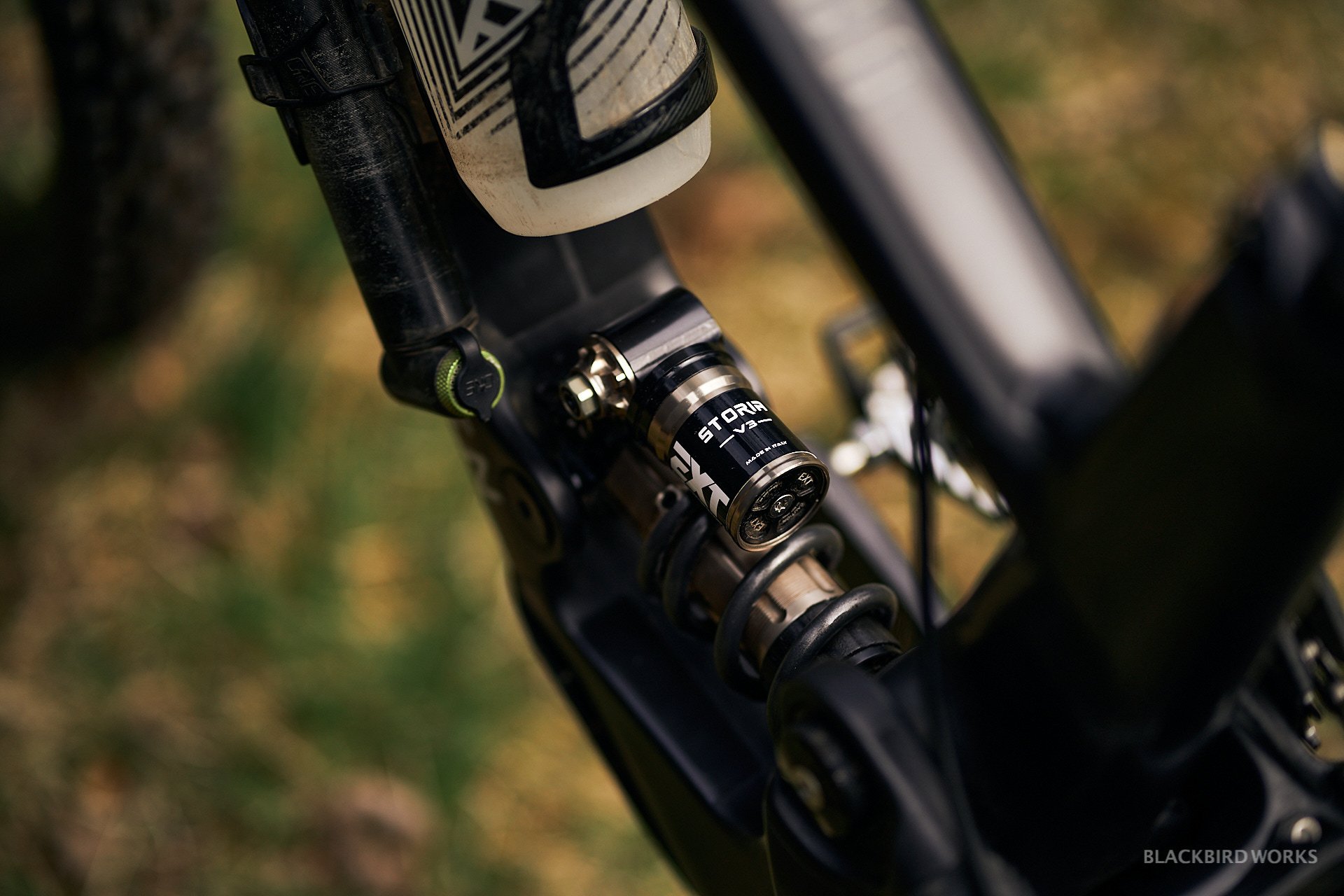

A shock fit for a king.

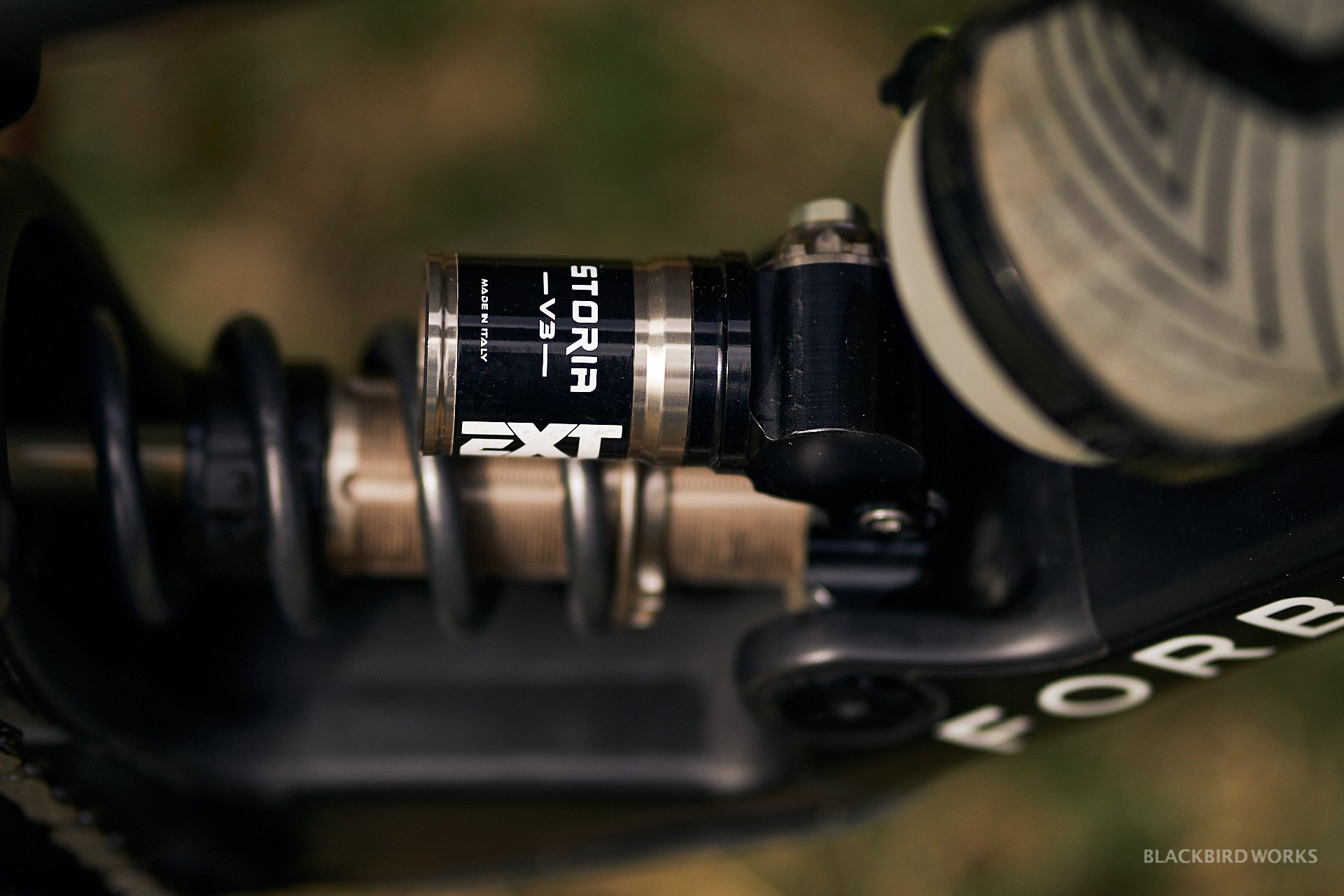

Storia V3 ... better than V1 and V2 obviously.

How did you go about the Dreadnought build?

I had a couple of goals for this build. I wanted it to be less than 36 pounds and I wanted it to complement my G1. I'm 5' 8" (173 cm), but I went for a size large so it wasn't a massive size difference to the G1. Yes, it's a little less playful, but it feels safer (harder to go OTB). Some of the parts were taken off an old build, but most were new. I'm sure people will ask why I didn't go full XTR and that's because I couldn't find it (COVID); I bought what I could for the build. I had heard great things about the Era fork and I have wanted to try one since they came out. Yes, they are crazy expensive. And yes, it's awesome in so many ways. The big thing is that their base settings were bang on for me so I bolted on the fork, broke it in over one trail, and that's it. I like playing around with geometry, but I hate faffing with suspension. The other parts were chosen to survive the COVID bike boom (like the King hub and BB). I was happily surprised when I finished the build and weighed the bike at 34.8 pounds.

Can you share your settings?

21.5 psi front, 23.5 psi rear for wet days, 22 front, 24.5 rear for drier/faster days. Rear shock has a 300-lb spring which is just a hair soft for my 190 pound weight (86 kg) (but feels awesome) with the damper settings in the middle for all (not sure on the tune). The fork I'm running 70 psi in the + chamber and 110 in the ++ chamber. Again, running the exact recommended settings; HSC - LSC - R, 7 - 7 - 9 clicks from full closed.

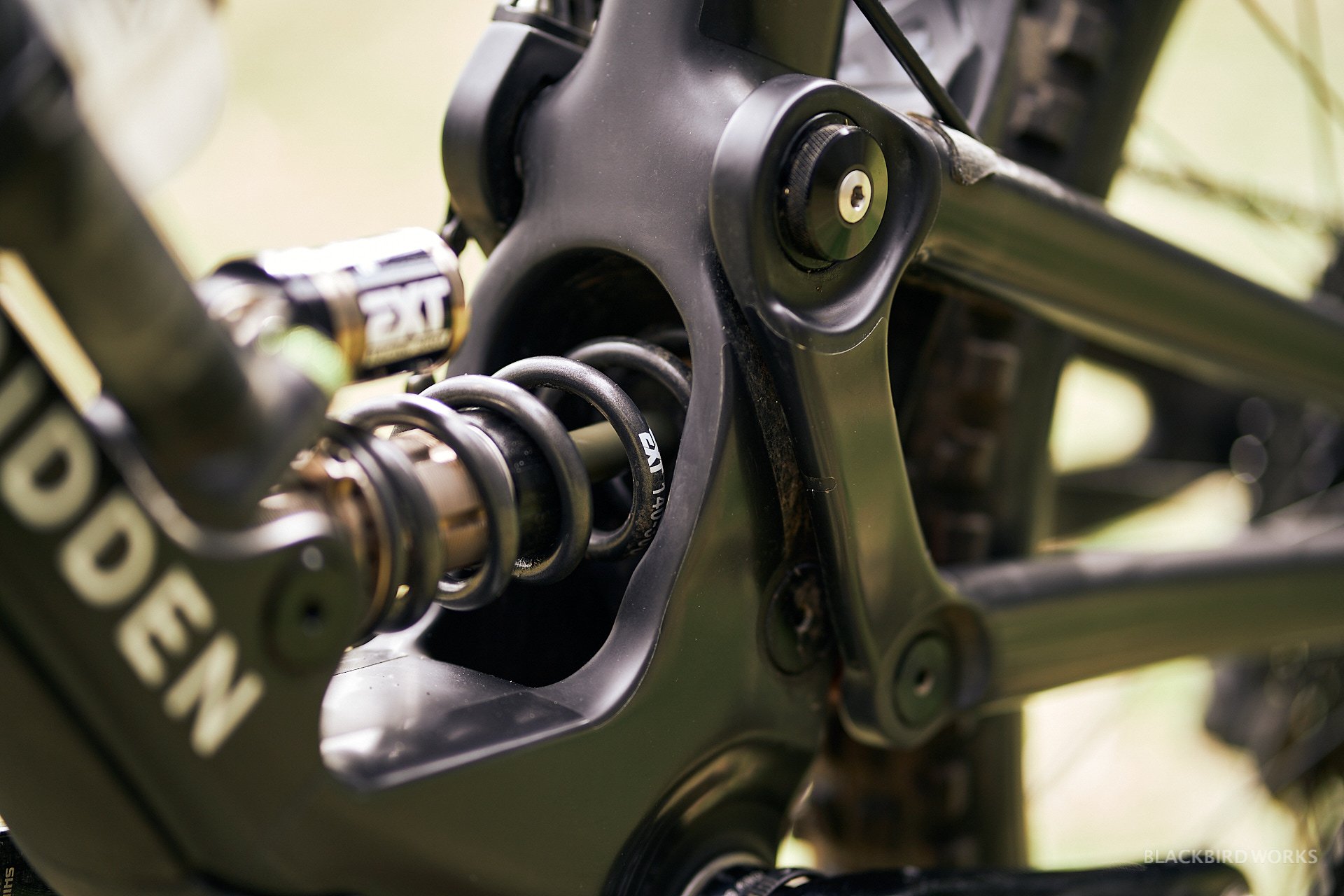

Can't stop looking at this machined beauty.


300-lb spring for Mike.

Mike, why are you so hung up on mullets?

I love the traction of the big front wheel. And yes, a full 29 is probably faster. But early in my freeride 'career', I got pinned between the rear wheel and the seat. The seat broke off the seat rails and a seat rail went through two sides of my scrotum. So the more clearance I can get over the rear wheel, the better!


The secret sauce to Mike's love affair Mullet Link from Forbidden.


Designed to work with both the Druid and the Dreadnought, the Ziggy link allows for a 27.5" rear wheel without altering geometry.

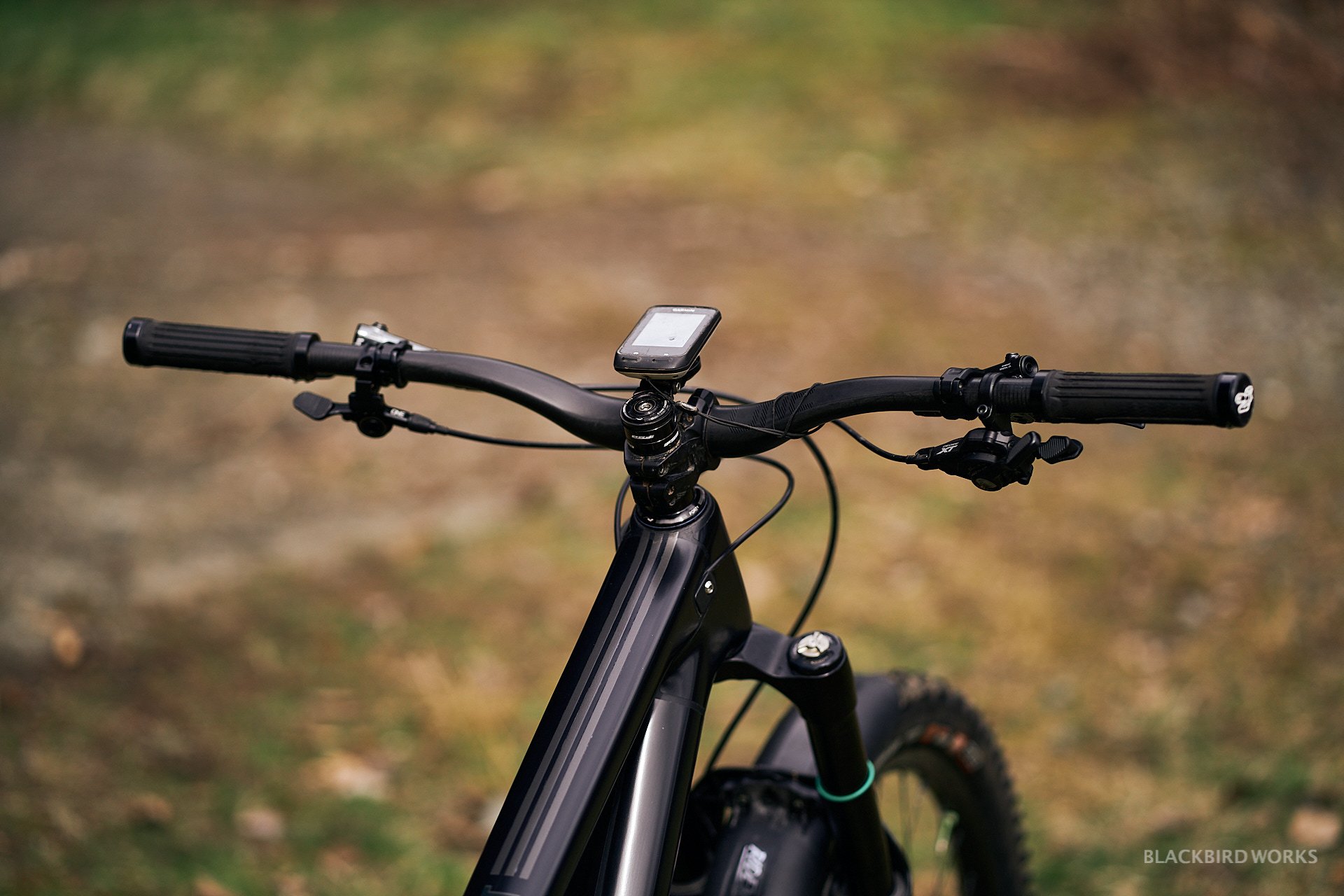

Fighter jet cockpit.


A ride computer lets Mike know all the KOMs he has been crushing.


With the saddle down, This thing is a gigantic BMX.

Tell me about the missing lower chain guide. Any issues?

When I had the Druid, the extra friction due to the lower chain guide was really noticeable. Or at least it was in the stand, so it was in my head... The customer service with Forbidden was excellent so I knew that I wanted their bigger offering (especially since I could mullet it), so I was hoping I could run it without the lower guide to reduce some of the drag. So far, I haven't had any issues and for the intentions of the Dreadnought, it's pretty fast uphill.


The upper idler pulley with the integrated E-13 Chain keeper.


The chainguard needs a little help from tiny zip ties.


X...T...R...


Fast rolling Maxxis DHF for the rear end.

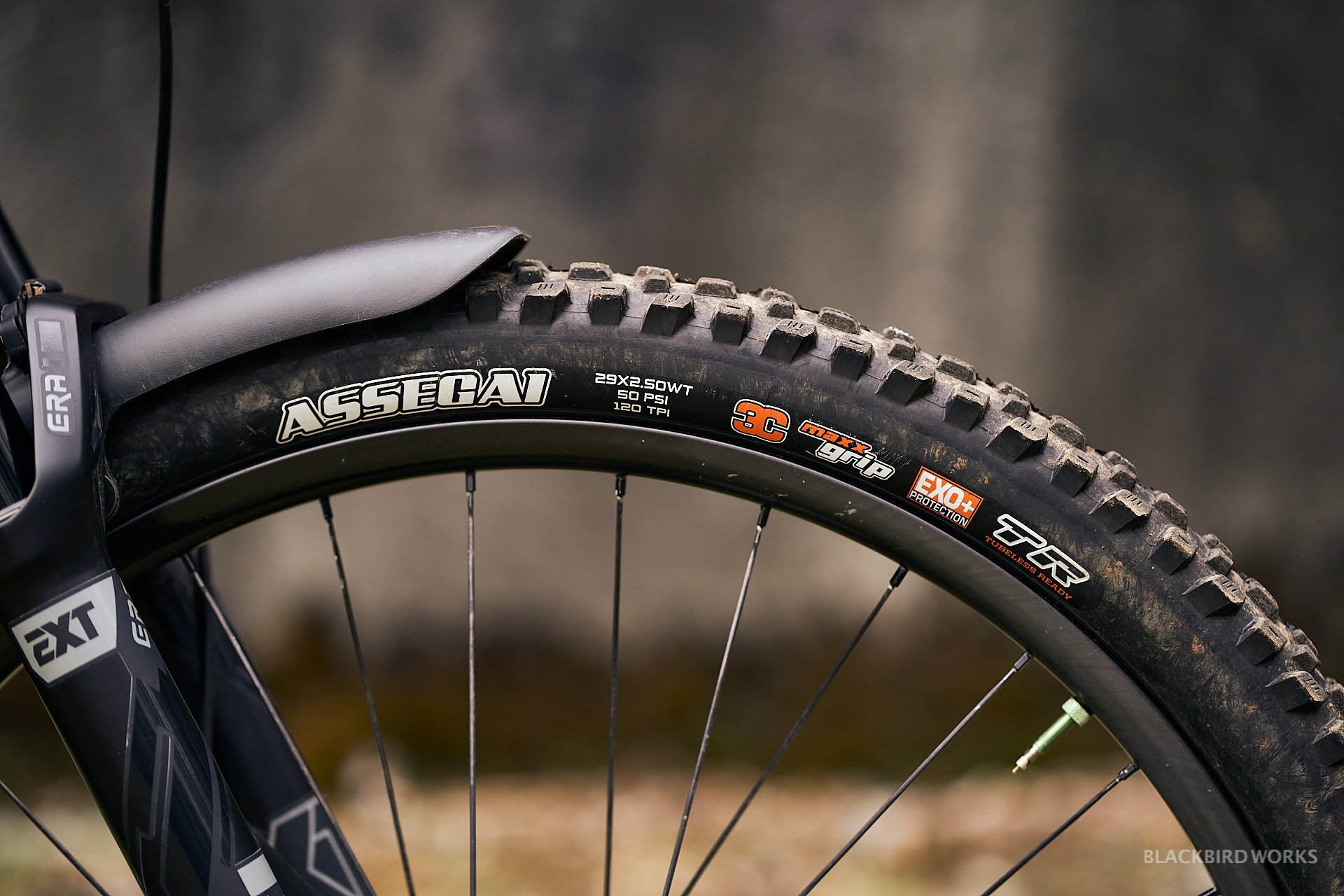

Traction Factory Assegai for the front.

Did this bike make you faster, more confident? or both?

Faster? I'm not sure. Confident, I think so. I love having the extra room over the rear wheel to move around and I like that the rear breaks traction before the front. It's a really comfortable bike to get loose (well, dad loose, not Remy loose...).

How did the RideWrap come about on this bike? and do you like it?

I bought the frame from Beaufort Cycles on the island, dealing with Ryan. He was very friendly and gave me updates to when I'd get the bike. So when he said he had RideWrap kits ready for the Dreadnought, I said yes. Ryan sorted out the install and it was awesome to just build the bike and ride and not worry about rub marks from heels, brakes cables, etc.

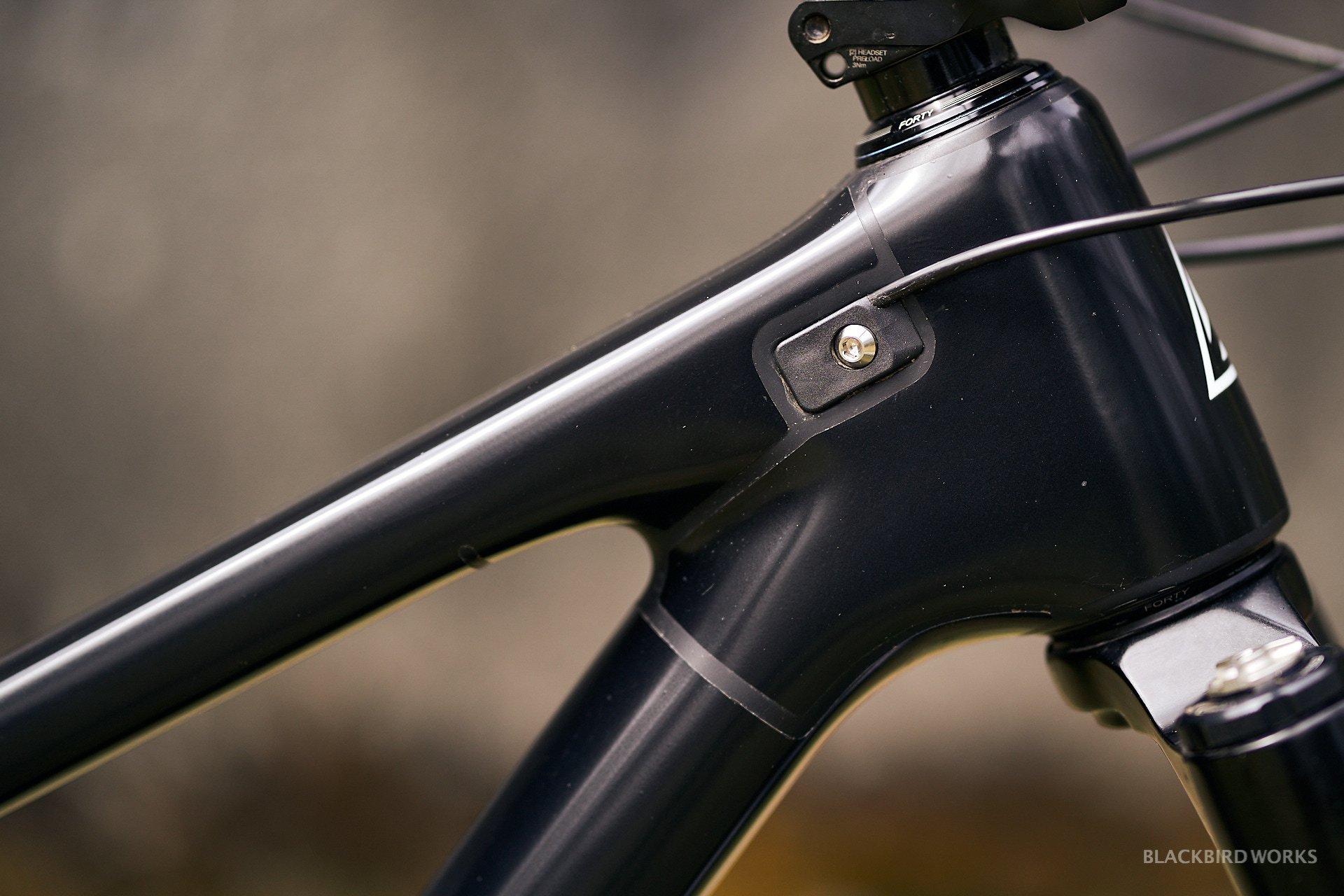

The RideWrap coverage is so good. This is matte on matte.

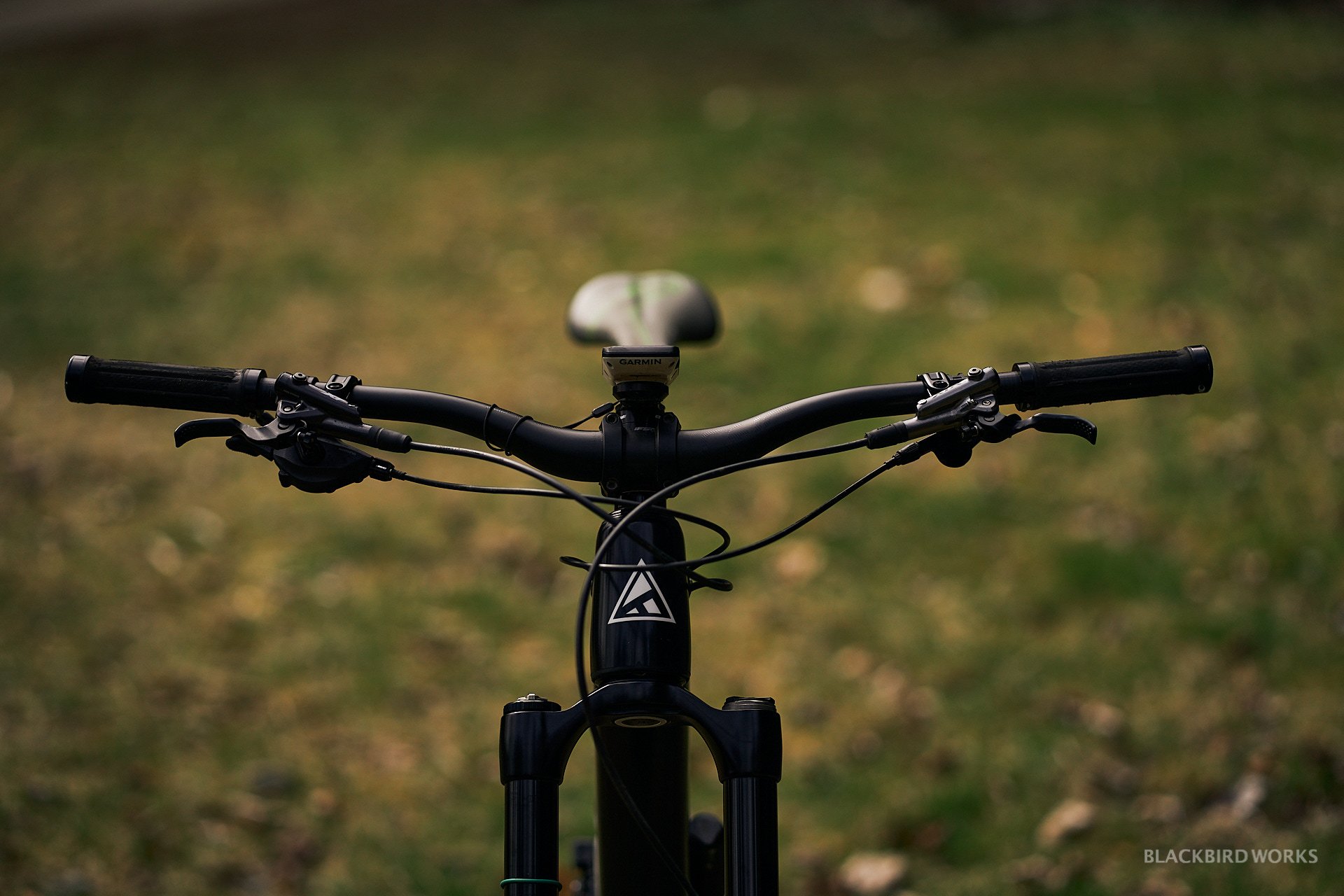

What you'd see if you had a rear view mirror on your bike.

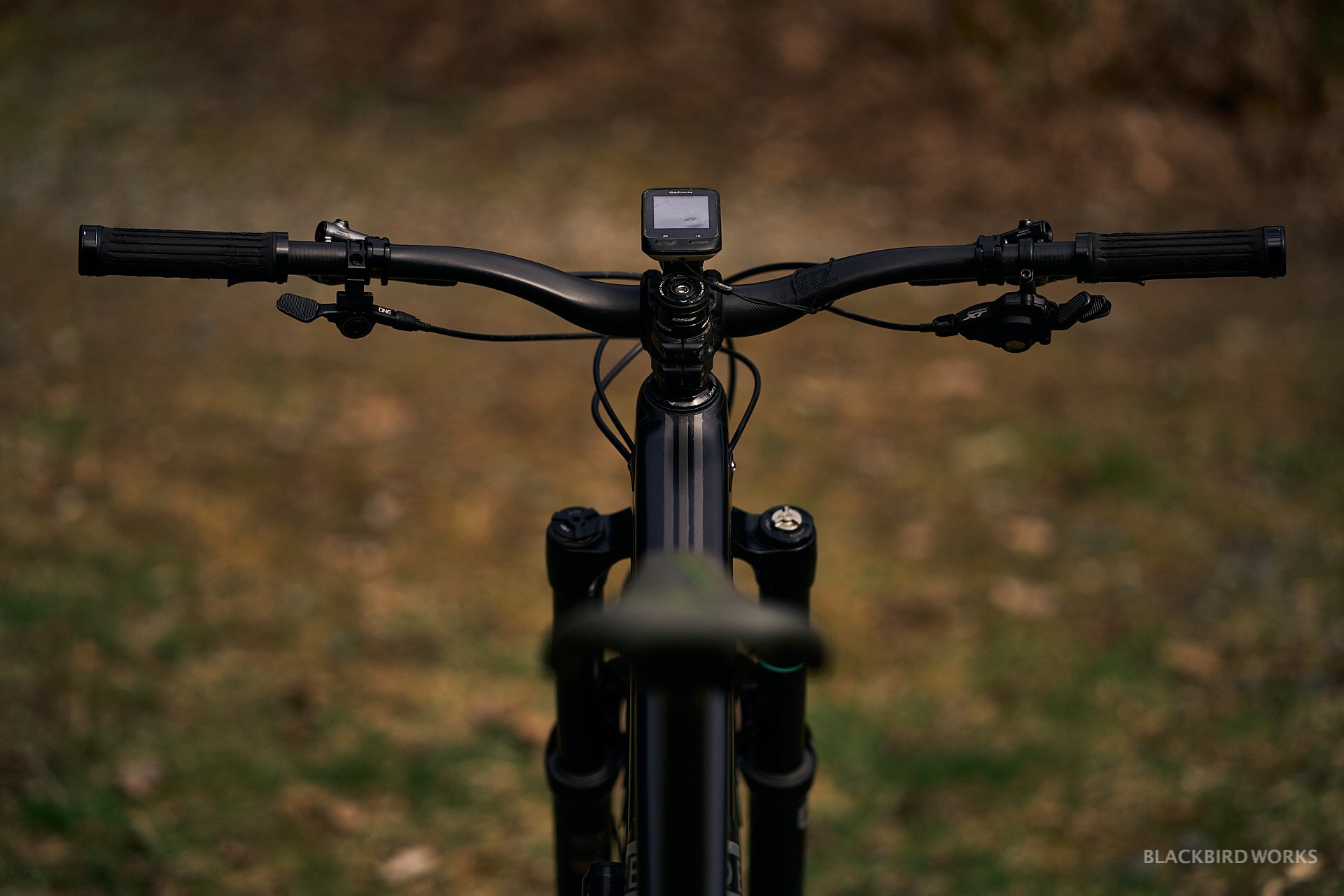

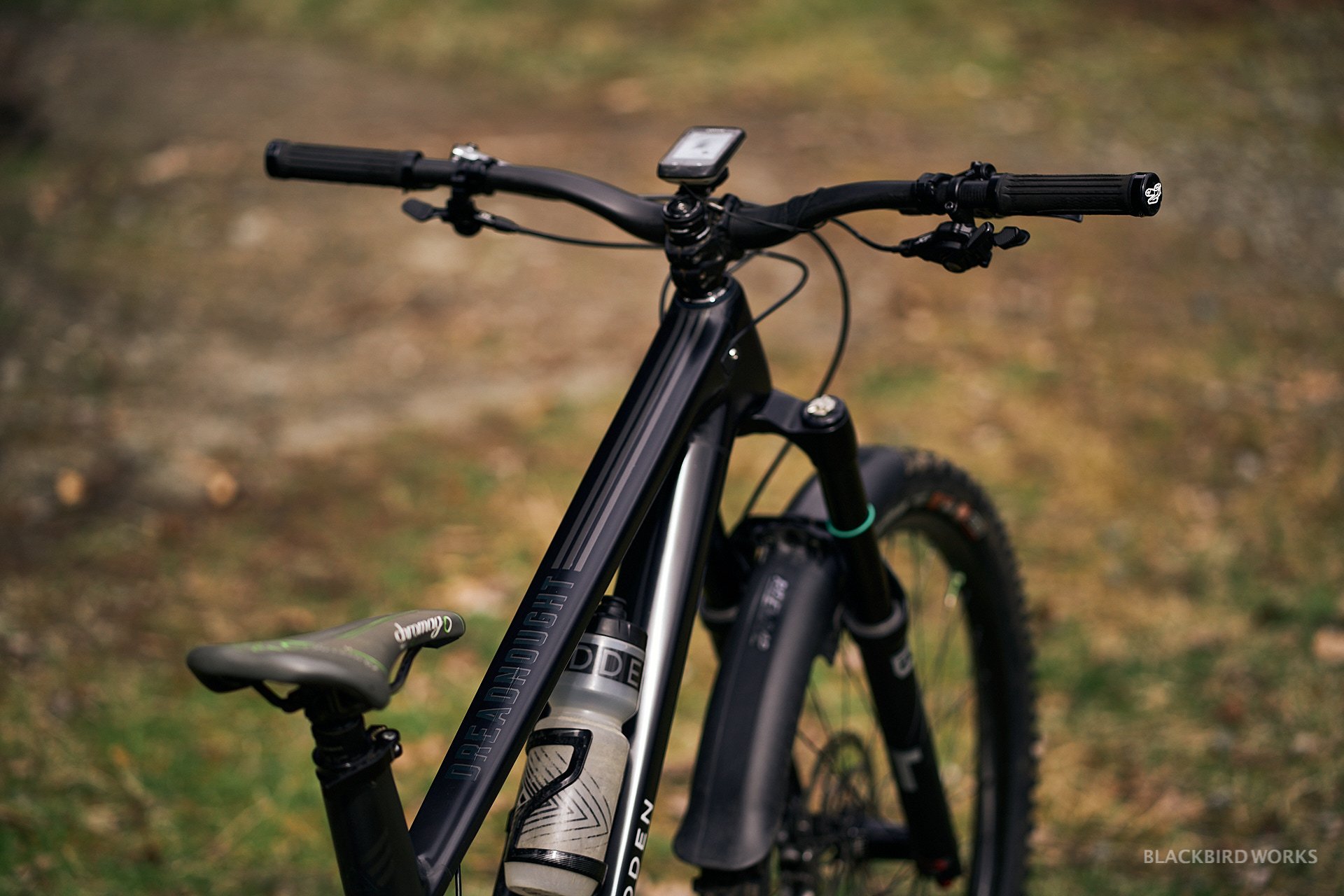

What Mike gets to see each ride.


Sticky Renthal grips.

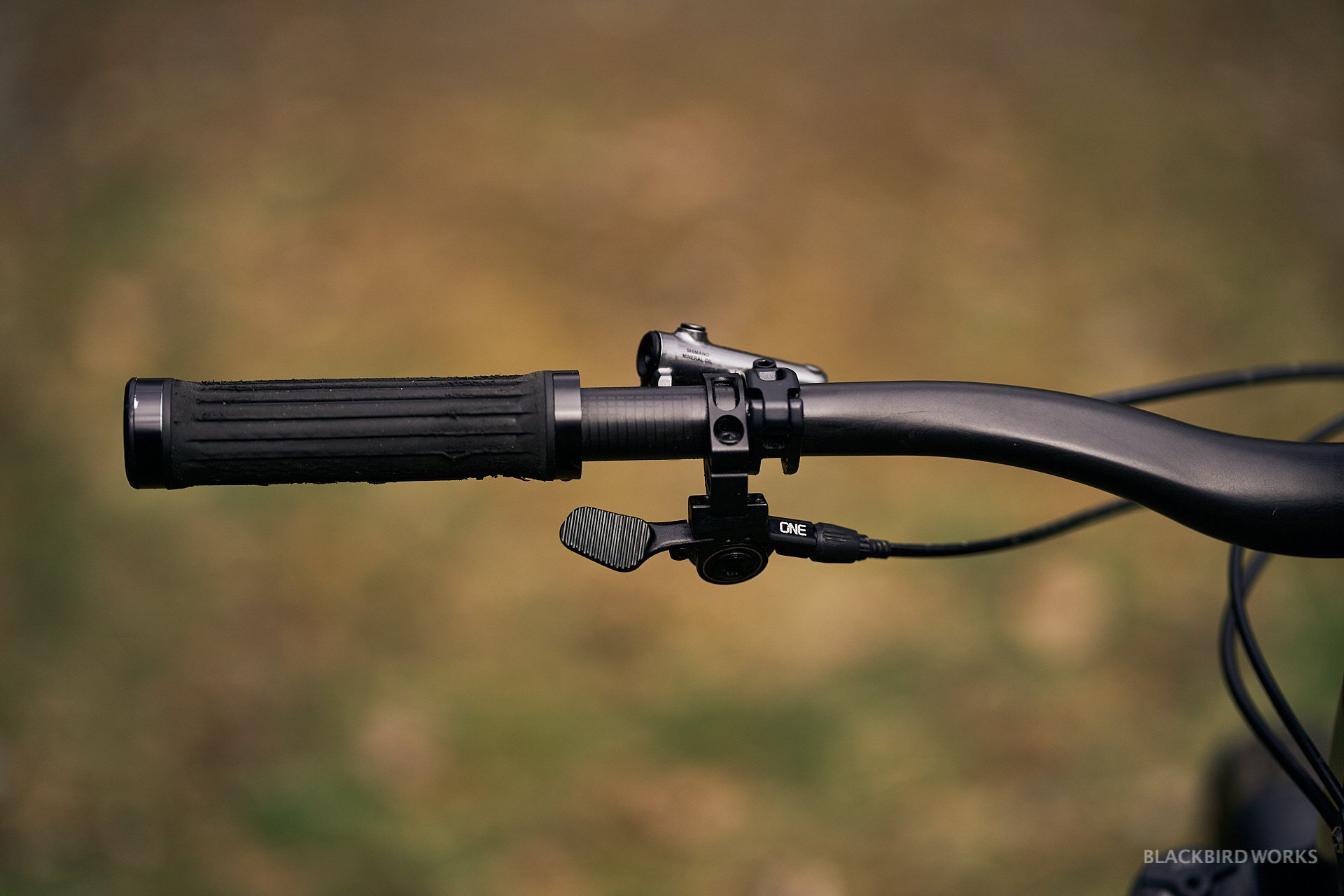

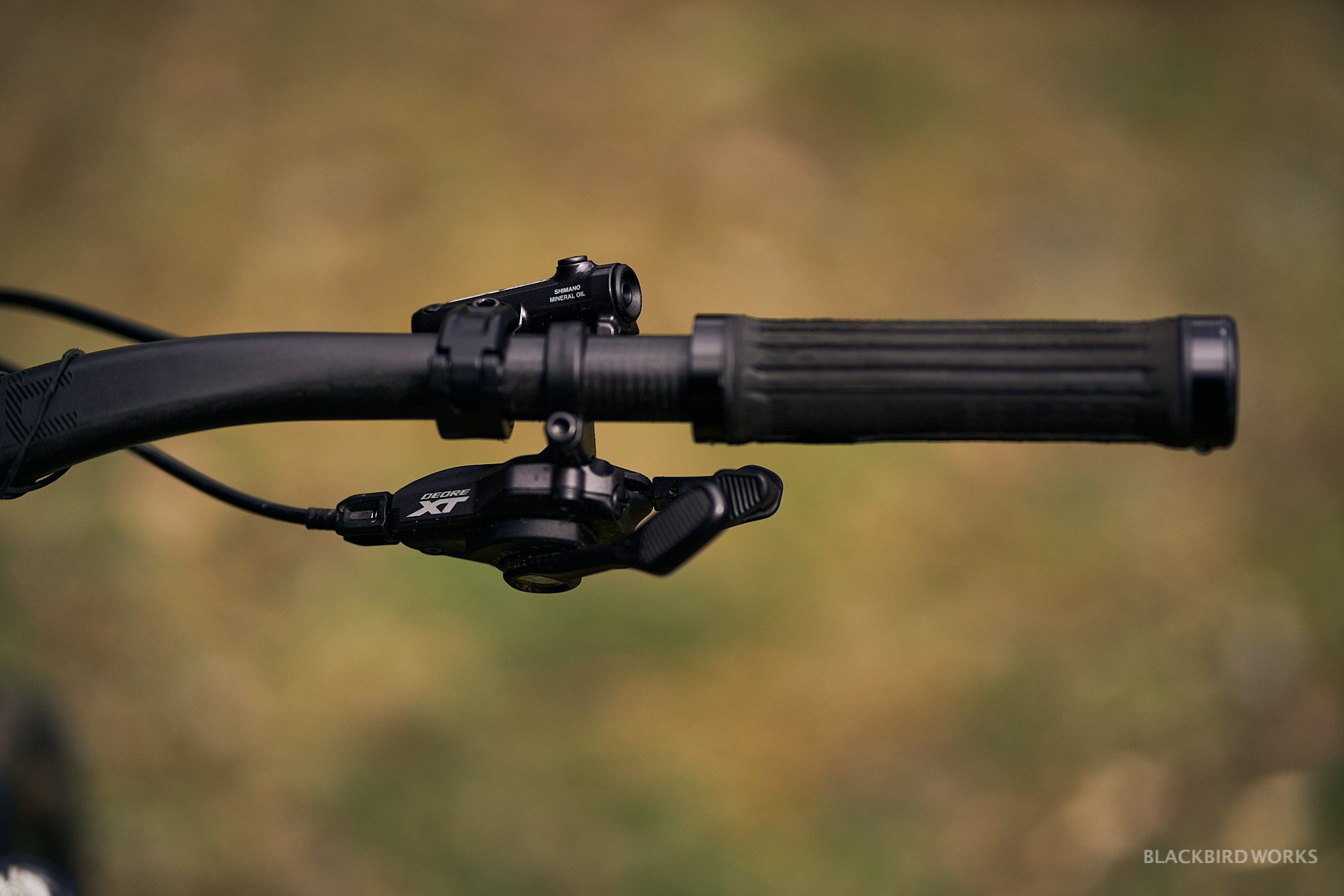

"One Up, One Down" lever.


Fool proof setup for the shifting.

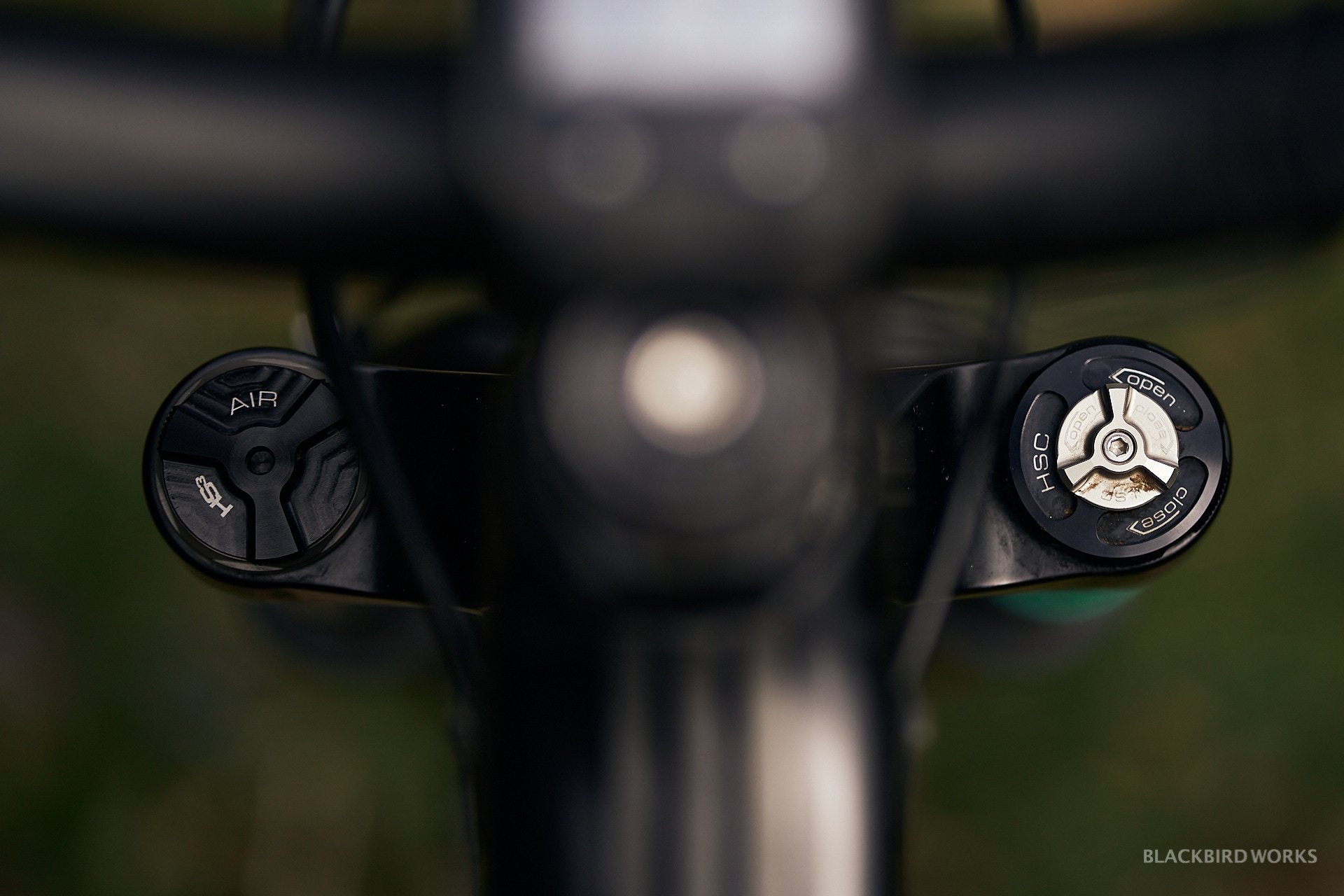

Not much fiddling necessary with eh EXT suspension.

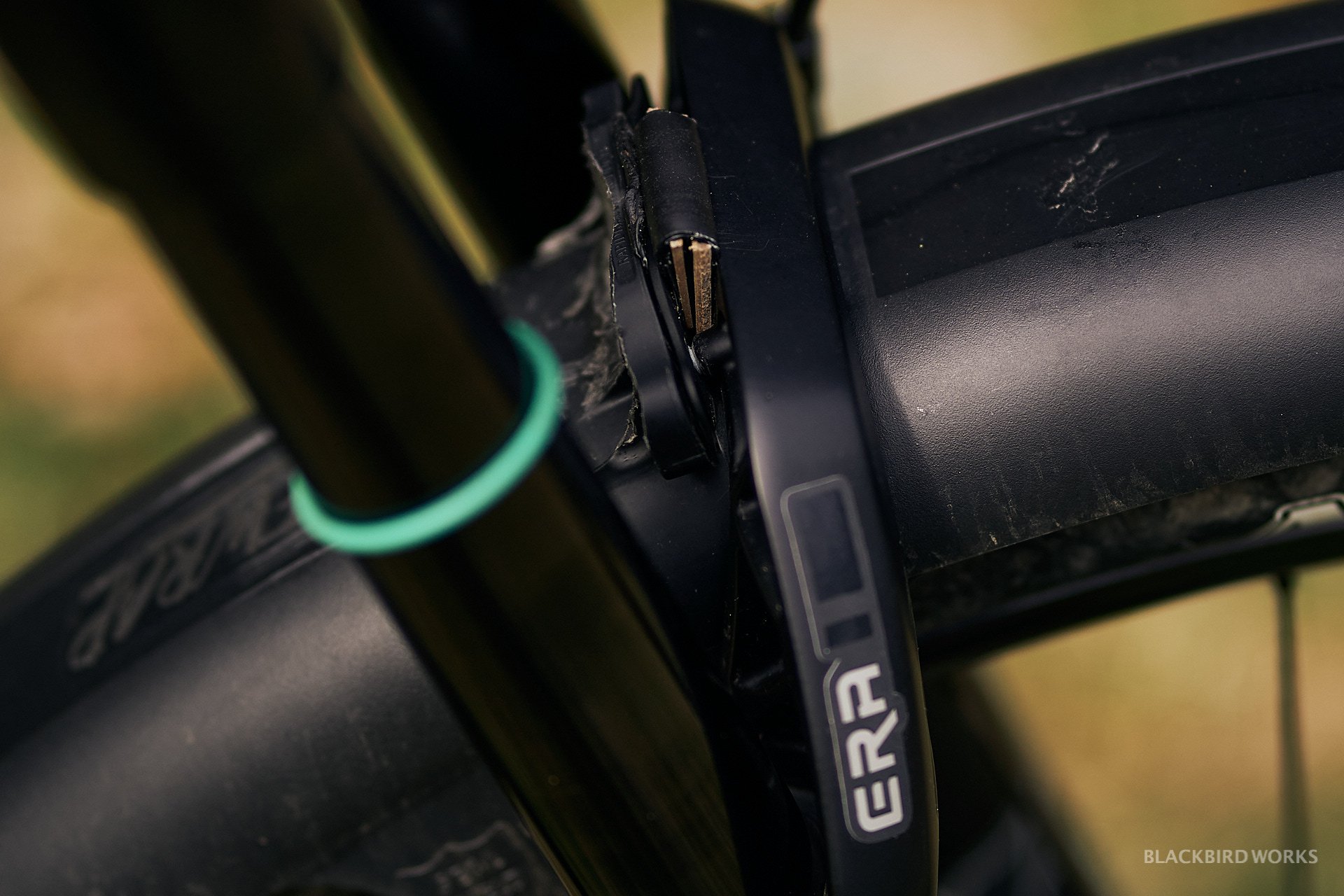

North Shore Woodwork finds its way to lots of places. DIY fender shims by Mike.


Cable rub eliminated with some carbon mastic tape.

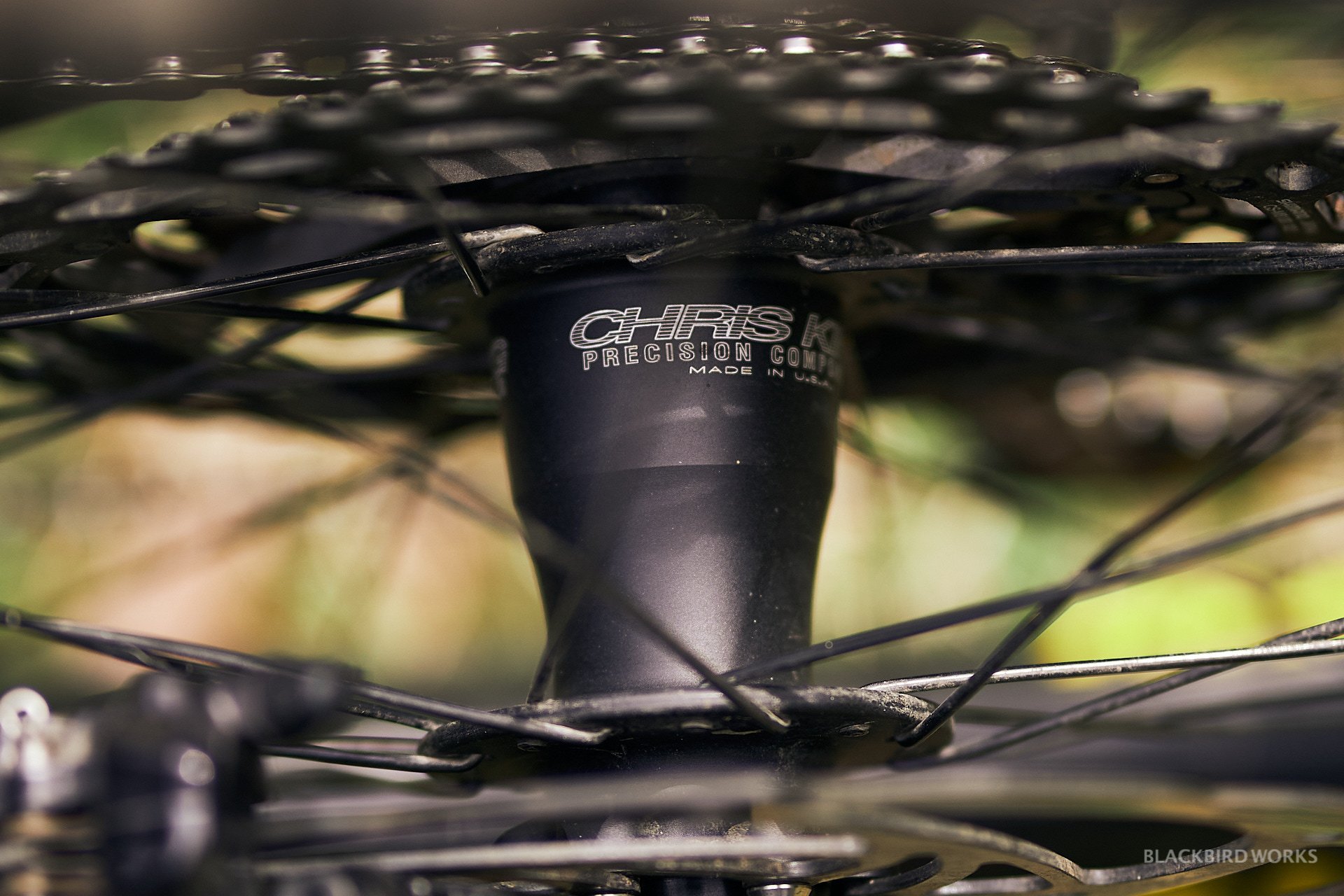

From bike to bike to bike...Chris King stuff lives forever.


More King bling.

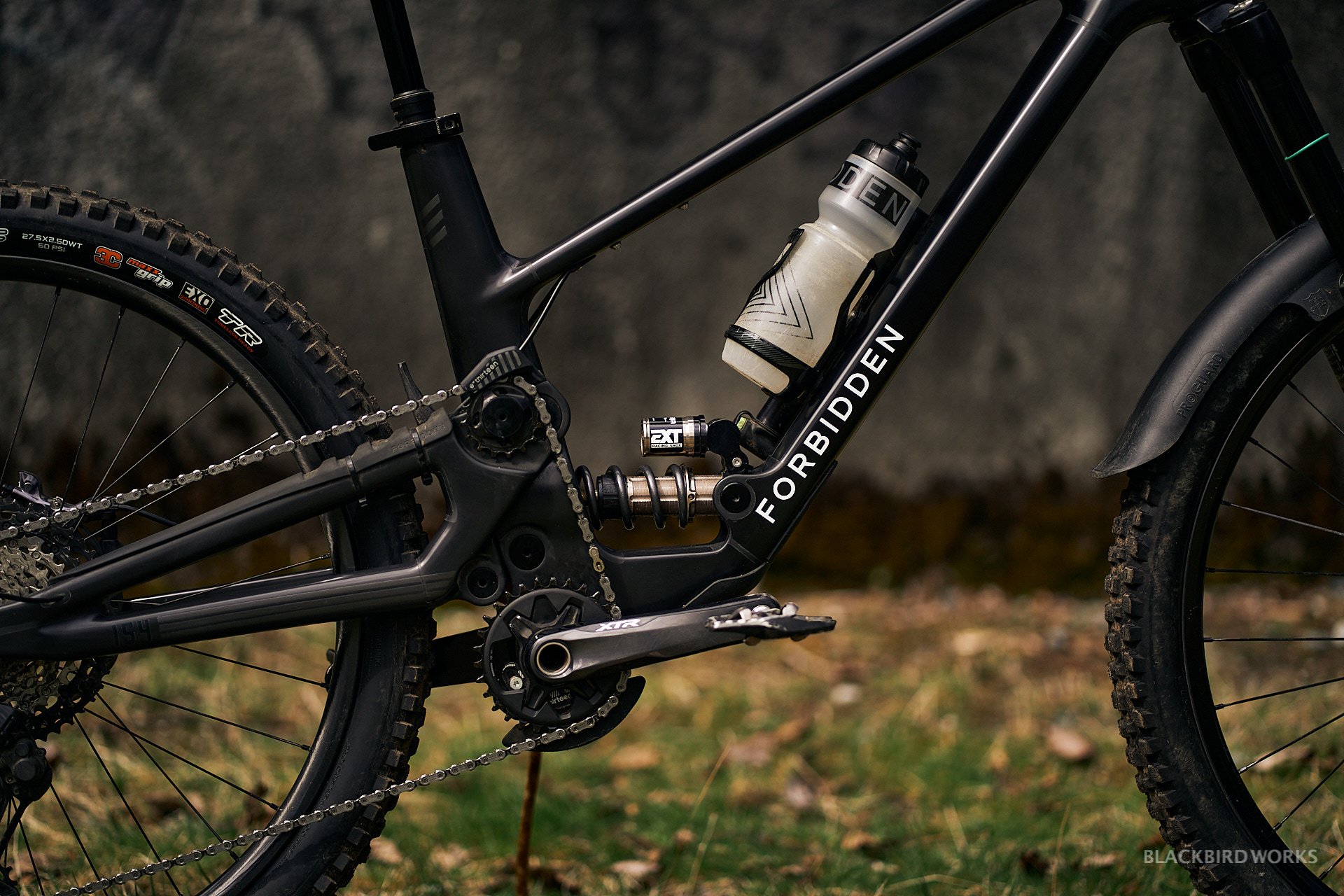

The powerhouse.

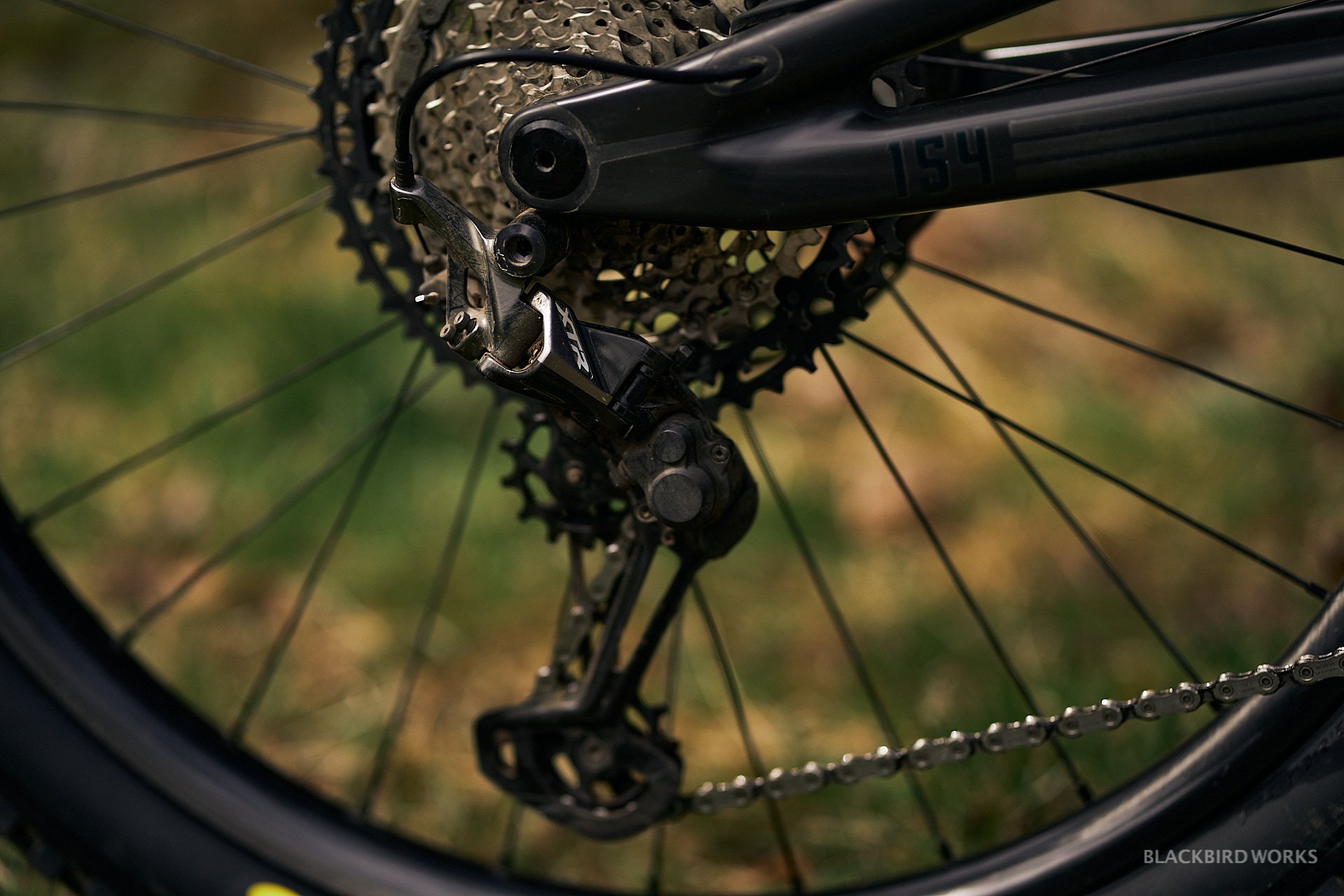

Real world clickbait. XTR shifts beautifully.


Oh hey Mike!!

Brand/Model Notes
Frame Forbidden Dreadnought, size L, with RideWrap tailored wrap package. Ziggy Link for Safety Mullet setup (27.5" rear wheel)
Shock EXT Storia V3 300 lb spring 300 lb spring
Fork EXT ERA 170mm
Front Brake Shimano XTR 4-piston M9120
Rear Brake Shimano XT 4-piston M8120
Rotors Formula 203mm
Handlebar OneUp 35 mm rise 770mm wide
Stem OneUp 35mm
Grips Renthal traction Ultra Tacky
Shifter Shimano XT 12 Speed
Derailleur Shimano XTR 12 Speed
Chain Shimano XT 12 Speed
Cassette Shimano XT 10-51 10-51 teeth
Cranks Shimano XTR 170mm
Chainring Shimano XT 30 tooth
Bottom Bracket Chris King black
Front Wheel I9 hydra, Sapim CX Ray spokes, We Are One Faction 29"
Rear Wheel Chris King, DT swiss double butted spokes, We Are One Union 27.5"
Tires Maxxis EXO+ Assegai (front), Maxxis DHF (rear), both MaxxGrip Cushcore XC inserts
Seatpost OneUp Components 180mm
Seat Chromag Moon Moon
Pedals Shimano XTR Trail Clipless

A stunner of a build by one of the nicest guys around.
