FIRST IMPRESSIONS

Knolly Warden: Alloy vs Carbon

Words Pete Roggeman
Photos Dave Smith
Date Nov 27, 2017

Once your bike budget hits a certain threshold, you face an interesting choice: carbon frame with a slightly lesser spec, or alloy frame with a bit more bling? We paired up with Knolly to look at it a slightly different way: if you could ride two identical bikes whose only difference was frame material, what differences would you notice, and would ride quality help you decide whether the 'carbon tax' is worth it? We need a little more time before we can answer that question, but that didn't stop us from setting up a shoot at Beere Brewing Co. in North Vancouver, so we could capture these two Wardens' souls in a friendly climate before getting them dirty.


Beere Brewing Co. opened in late October. Our early favourite is their Mental Floss IPA, but it's the right time of year to try their Cold Brew Stout.


Matt Beere is the proprietor. His father has operated a timber company in the same building for many years. He agreed to create some space for Matt as long as his son agreed to brew beers that he and his friends would enjoy. Well played, sir.

The Knolly Warden

The Knolly Warden is not a new design, but it occupies that All-Mountain/Enduro category with modern-ish geometry numbers and has developed an established reputation for being able to handle BC's toughest terrain. Its reach - formerly on the long side - is now decidedly in the middle of the pack but not what you would call outdated. The carbon version introduced slightly tweaked numbers, including 5mm more travel (totalling 155) and 4mm more reach for each size. The stated goal of the Fourby4 suspension design is traction, and after a few initial rides, that trait does make itself clear. The quick version is that the two links of the Fourby4 system allow Knolly to 'decouple the performance aspects of the rear suspension'. In other words, independent control of axle path and leverage rate, and the ability to independently tune pedaling efficiency, rear wheel traction, braking performance (and suspension performance under braking).

Adjustable geometry lets you select head tube angle (66.5 or 65.5 degrees), seat tube angle (74 or 75 degrees) and BB height (345.5 or 337mm).  Geometry numbers are below, for both the alloy and carbon versions.

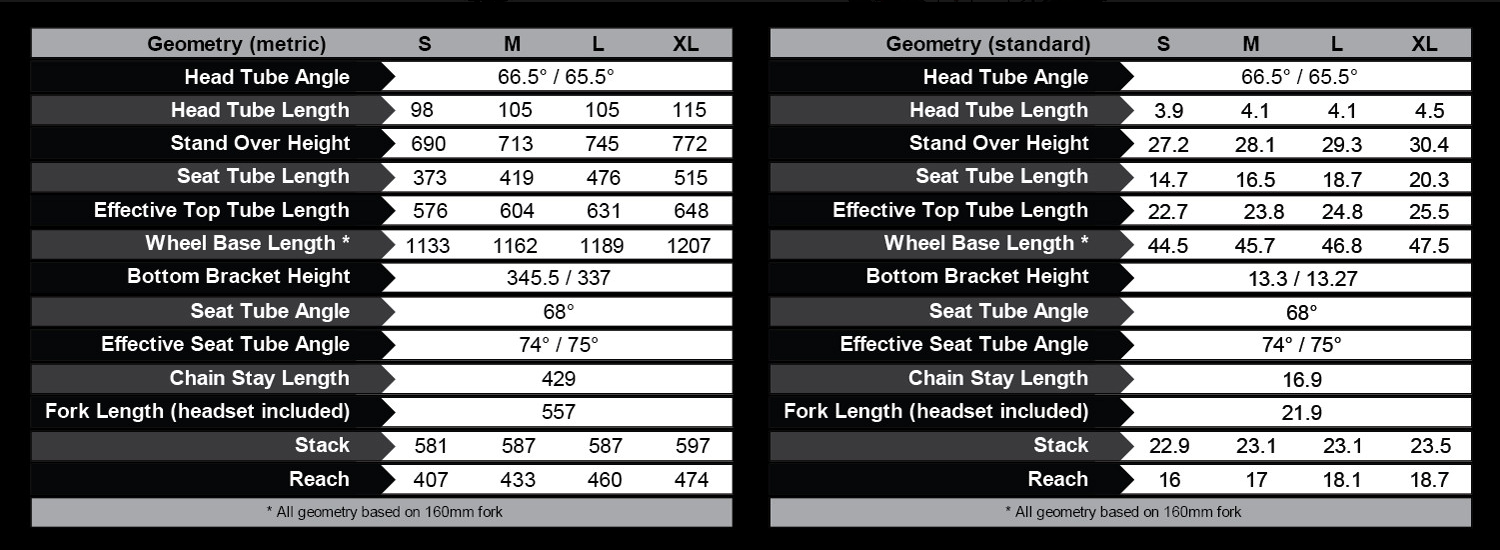

Knolly Warden Alloy geometry

Knolly Warden Aluminum Geometry

Knolly Warden Carbon Geometry

Knolly Warden Carbon Geometry. The two are almost identical, with small changes in reach (+4 mm for each size in Carbon), Stack and Standover.

The Carbon Warden also has 155mm travel vs 150mm for the alloy version.


The Knolly Warden's Fourby4 suspension linkage as seen on our Primer Grey / Orange alloy version.


Here's the drive side version.


The Knolly Warden Alloy with top of the line Supreme Leader build kit. CAD 8380 / USD 6684


Here's the Knolly Warden Carbon - also with the Supreme Leader Build kit. CAD 9712 / USD 7747 - or a premium of 1330 over the alloy version.

Frame Highlights

  • Adjustable geometry (as mentioned above)
  • 150 / 155mm travel (alloy / carbon) with 160mm recommended up front
  • Threaded BB
  • Titanium pivot hardware; ACB (Angular Contact Bearings)
  • Clean, internal cable routing
  • Compatible with 1x or front derailleur, bash guard or chain guide
  • Full length, straight seat tube

As mentioned, our testers have an identical build, with some impressive highlights:

  • Fox Float 36 Factory fork - 160mm travel
  • Fox Float X2 shock
  • SRAM Eagle X01 drivetrain
  • SRAM Code RSC brakes
  • Industry 9 Enduro S wheelset
  • Maxxis Minion DHF front & Highroller II rear tires
  • Race Face SixC Carbon bar

Knolly Warden Supreme leader build kit

Knolly Warden Supreme Leader build kit - full specs.

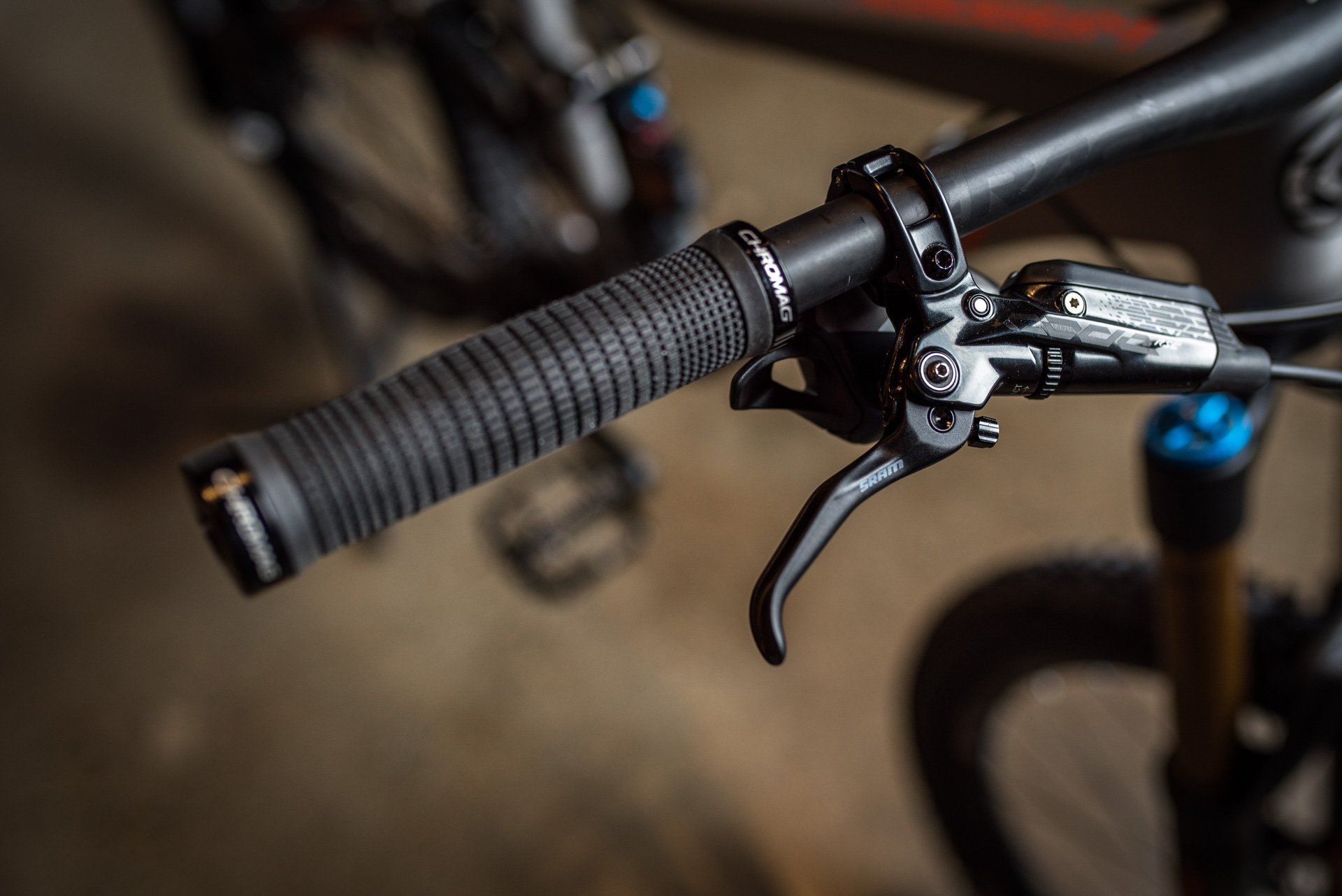

SRAM Code RSC brakes. 100% approval rating so far from NSMB editors and testers.

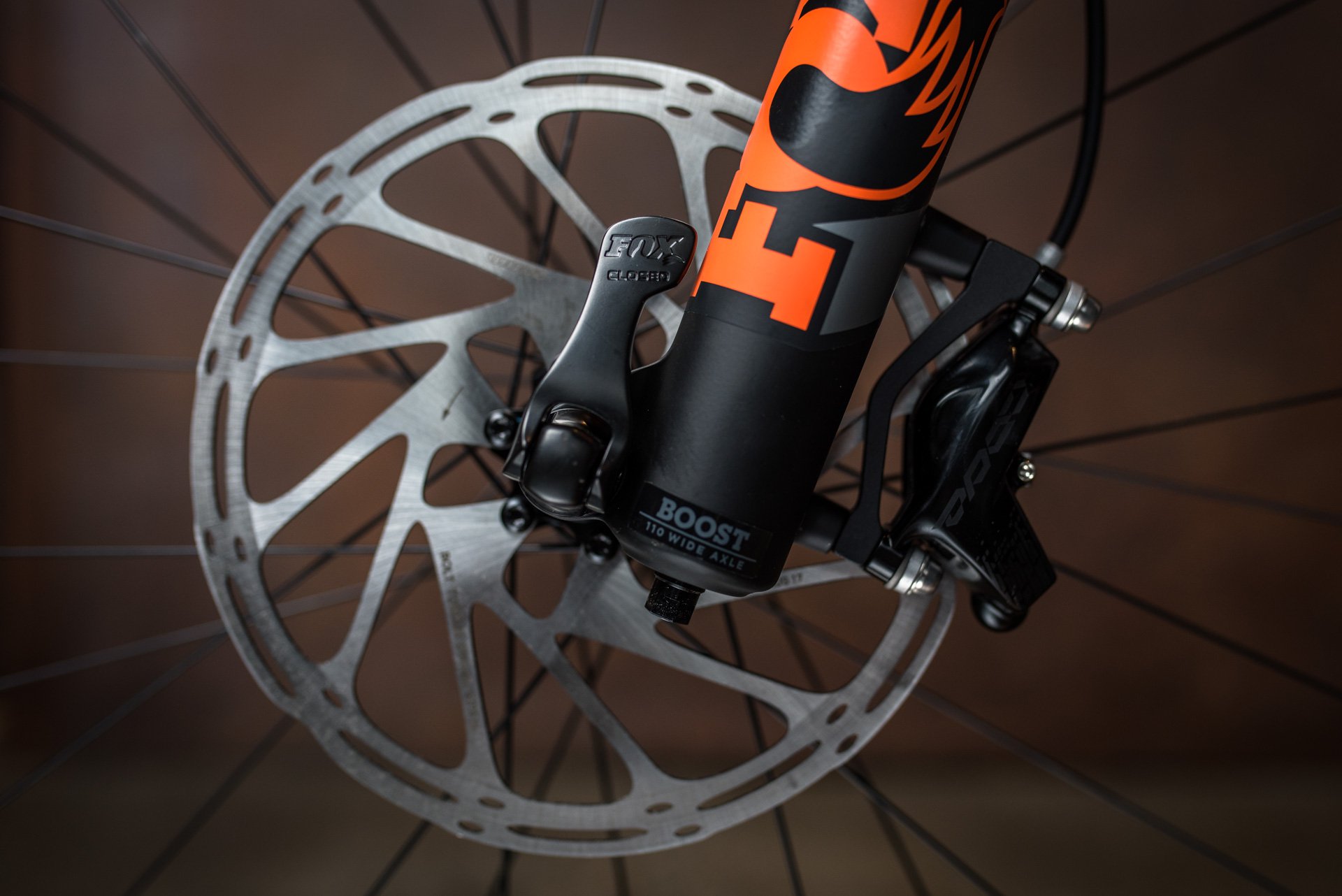

200mm up front / 180 rear. Also approved.

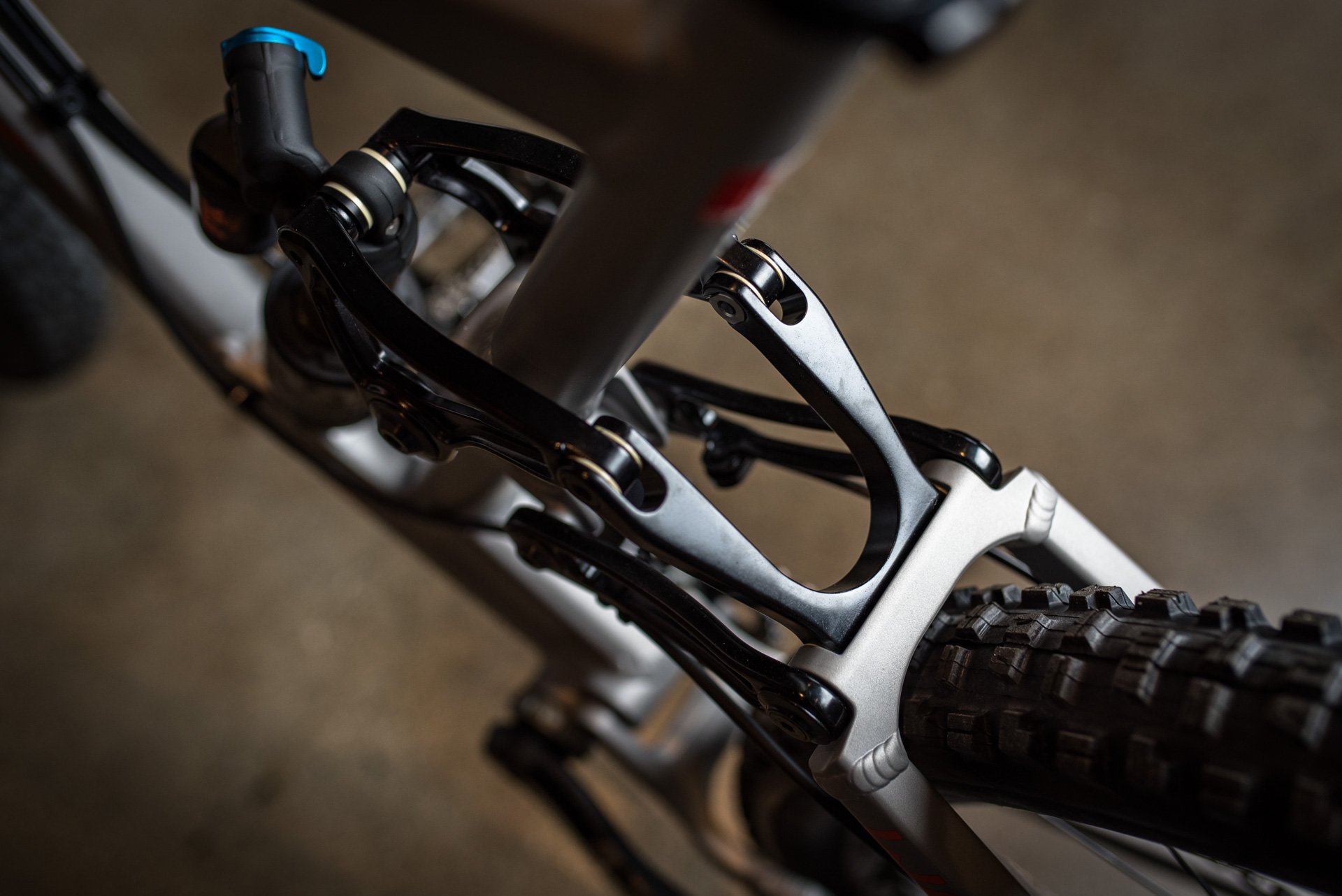

A couple of good looks...


...at Knolly's Fourby4 suspension linkage.

So, we've sampled the beer and taken the photos, but now it's time to ride and compare. We will employ a few different methods for bringing you our thoughts:

  1. Ride both bikes in back-to-back laps using qualitative observations and notes;
  2. Testers will spend a bit of time on one bike, then the other over the course of a few weeks;

This isn't science, but ultimately we hope to have each tester's thoughts about the relative merits of shelling out an extra $1,300 for a carbon frame over the aluminum version - as well as to try to discern any differences in ride quality and feel. It's possible that answer would be different if we were comparing the base model (since $1,300 is a proportionately larger amount at a lower price point), but for our test, we were sent the top of the line build kit. Do you splurge for a carbon frame? Would you go for carbon wheels instead? We'll answer the first question for sure, the second question - maybe.


The Warden Carbon has internal routing...

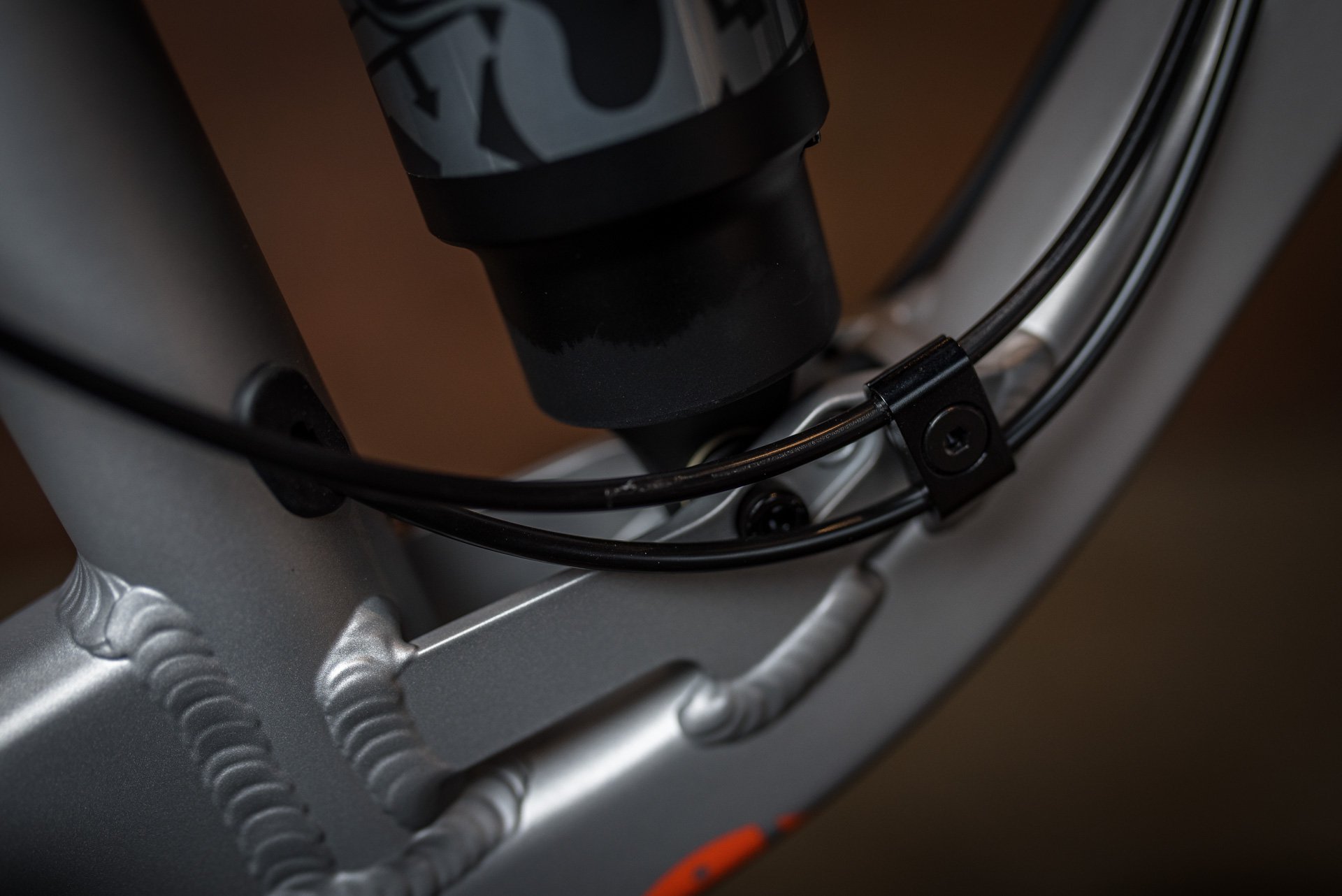

...whereas the Warden Alloy has mostly external routing, minus the provision for a stealth dropper.

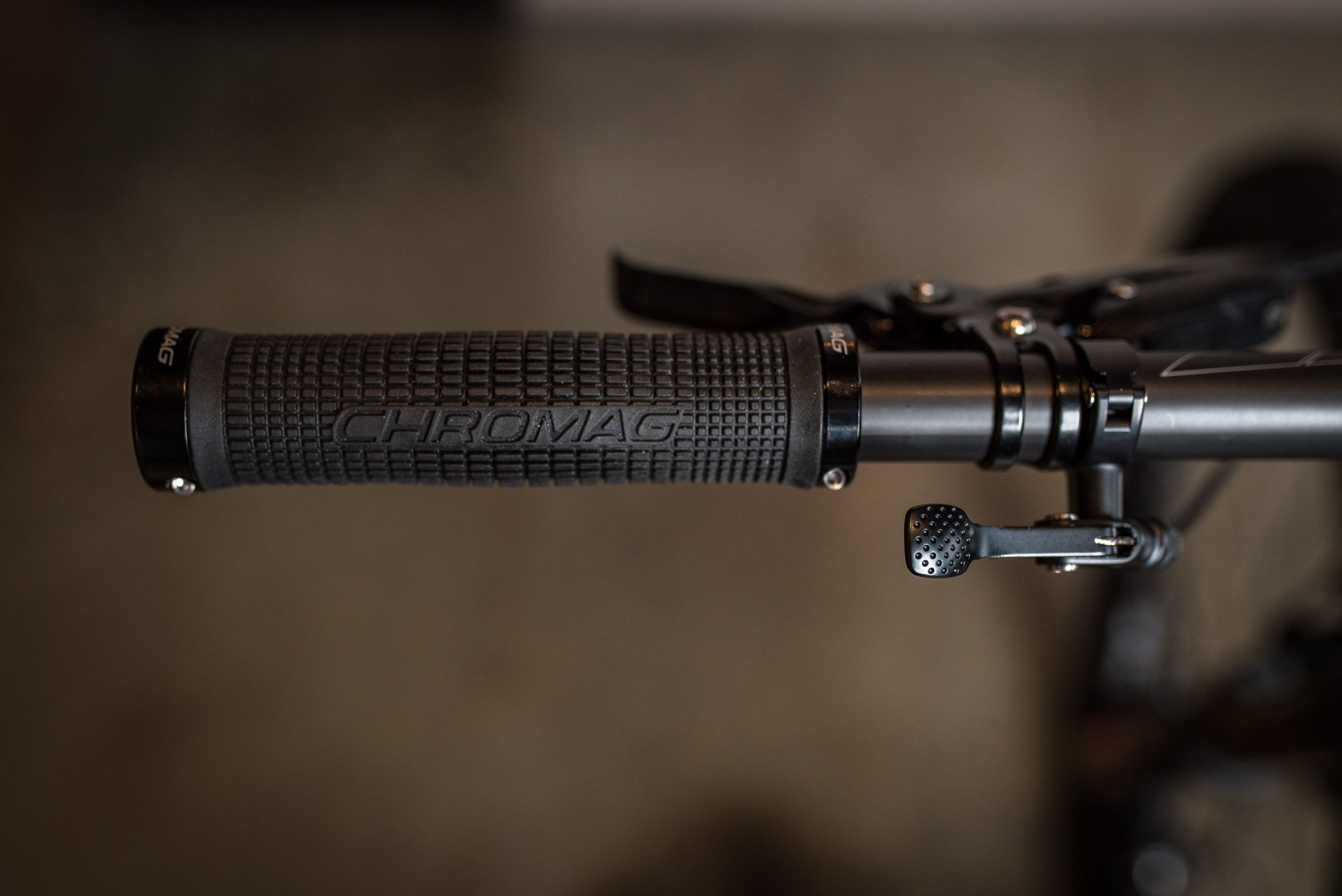

Chromag Squarewave grips.


And Lynx DT saddle.


The Warden Carbon is full of nice details.


#haveabeere


Thanks to Beere Brewing Co. for hosting our shoot. It's one of our favourite new growler fill stations.

Pricing - Knolly Warden Alloy

Warden alloy VP build kit CAD 5331 / USD 4252

Warden alloy Dawn Patrol build kit CAD 6410 / USD 5112

Warden alloy Supreme Leader build kit (tested) CAD 8380 / USD 6684

Pricing - Knolly Warden Carbon

Warden Carbon VP build kit CAD 6663 / USD 5315

Warden Carbon Dawn Patrol build kit CAD 7742 / USD 6175

Warden Carbon Supreme Leader build kit (tested) CAD 9712 / USD 7747


Have a look at the Knolly site for a bunch of great manufacturing info (and other stuff).

https://www.knollybikes.com/quality
