PRESS RELEASE

Introducing the All-New Rocky Mountain Element

Date Sep 28, 2021

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. Roadie-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents.


“The Element gives me a lot of confidence when it comes to racing, giving me a huge advantage at an event. It’s incredibly light and efficient but somehow rides like a trail bike, a combination that eliminates any weak points and allows me to push it on every section of a racecourse. Outside of racing, I love the feeling of being way the hell out there and the Element is perfect for that. You can cover ground all day without holding anything back on the descents.” – Felix Burke, Rocky Mountain XC Athlete and 2019 BCBR Winner
Element 2.jpg

THE EVOLUTION OF SIZE SPECIFIC TUNE

The 2021 Thunderbolt and Element platforms were positioned on the shorter end of our bikes' travel categories, with notable differences being wheel size, travel amount, and ride characteristics. The natural evolution of these platforms was to blend the Trail and Cross-country categories into one platform for efficient and precise riding.

Looking at the needs of shorter vs. taller riders, we’ve introduced a wheel size split with our extra-small Element frame. Our extra-small frame is offered with 27.5” wheel to help shorter riders with acceleration, and it also lowers the bike for a better fit and ride experience. The 2022 Element in extra-small has 33mm of increased standover against the 2021 Thunderbolt XS and 56mm vs 2021 Element size small.

For riders that are tall enough to ride small, medium, large, or extra-large frames, the Element is available with 29” wheels.

Element 3.jpg

One of the goals with the new Element was to give more rider support across the range of travel but without giving up on rear wheel traction. We’ve increased the anti-squat to offer quicker acceleration and reduced the end-stroke progression to make it easier to access the entire range of travel. This revised kinematic allow you to run less pressure and damping in your shock, leading to a smoother, calmer ride.

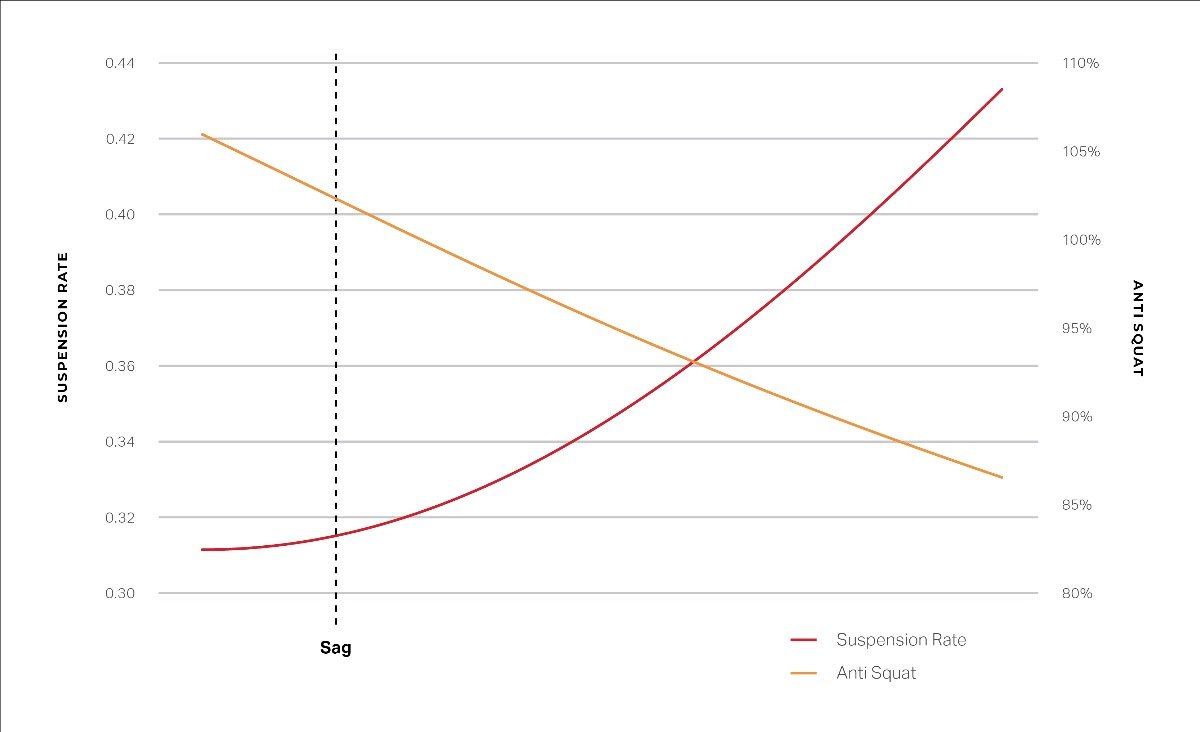

Element Curve

TECHNICAL DETAILS

Element (29”)

  • 130mm, 44mm (FOX) or 42mm (RockShox) offset fork
  • Max tire clearance is 29 x 2.6
  • Max chainring size 36t
  • Min chainring size 30T
  • Sizes: SM-XL

Element (27.5”)

  • 150mm, 37mm offset fork
  • Max tire clearance is 27.5 x 2.6
  • Max chainring size 36t
  • Min chainring size 30t
  • Sizes: XS
Element 4.jpg

FRAME FEATURES

We’re always looking for ways to take our bikes to the next level, which leads our engineers to incorporate thoughtful ideas through flawless integration. Added benefits like the ability to control the balance between stability and playfulness, ease of maintenance, and frame durability are just the beginning for these bikes.

RIDE-4 adjustment system

  • The RIDE-4 adjustment system is compact, lightweight, and can be adjusted with a single Allen key.

Internal guides (Carbon models) and large ports (Alloy models)

  • Full guided internally for easy cable and hose management
  • Moto style compatible
  • Secured for rattle-free setup

Added protection, guards, and chainguide

  • Downtube protection, noise cancelling chainstay protection

Bottle clearance and mount options

  • The upper bottle mounts can serve as an accessory mount giving you the ability to carry tools, food, and small frame bags.
  • The lower bottle mounts have two positions, giving you the option to mount the lower bottle closer or further from your hand depending on your chosen configuration.
  • Bottle carrying options:
    • XS: Fits one Large (710 ml / 23 Oz) bottle.
    • SM: Fits one Small bottle (620 ml / 21 Oz) and one Large (710 ml / 23 Oz) bottle.
    • MD – XL: Fits two Large bottles (710 ml / 23 Oz).

Frame profile updates

  • Sleek and slim top tube that gives the Element a modern look with a focus on steering precision.
  • SRAM UDH compatible.

Increased bearing life and versatility

  • Increased stiffness and durability at the chainstay/seatstay pivot.
  • Shielded bearings featured on all pivots including at the lower shock mount (compatible with aftermarket shocks as well).
  • The Main pivot features dual seal spacers, prolonging bearing life by preventing water from entering.
  • The main pivot nut is interchangeable with the one on our Instinct and Altitude, allowing the Element to accept our Canadarm chain guide.
Element 1.jpg

Geometry

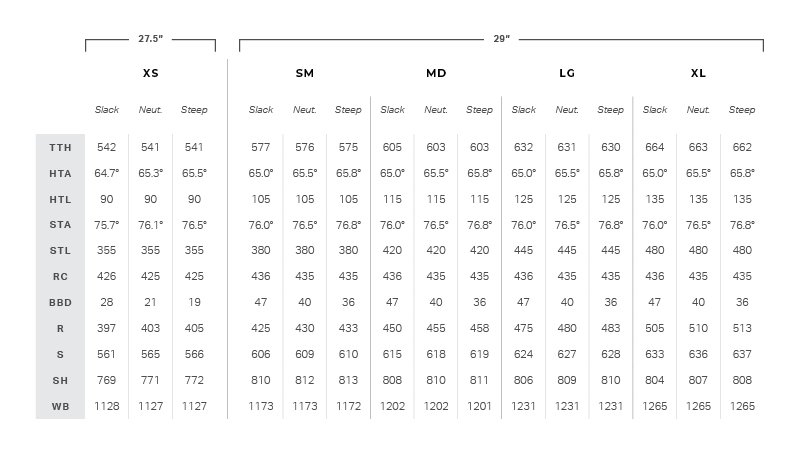

2022 Rocky Mountain Element geometry chart.png

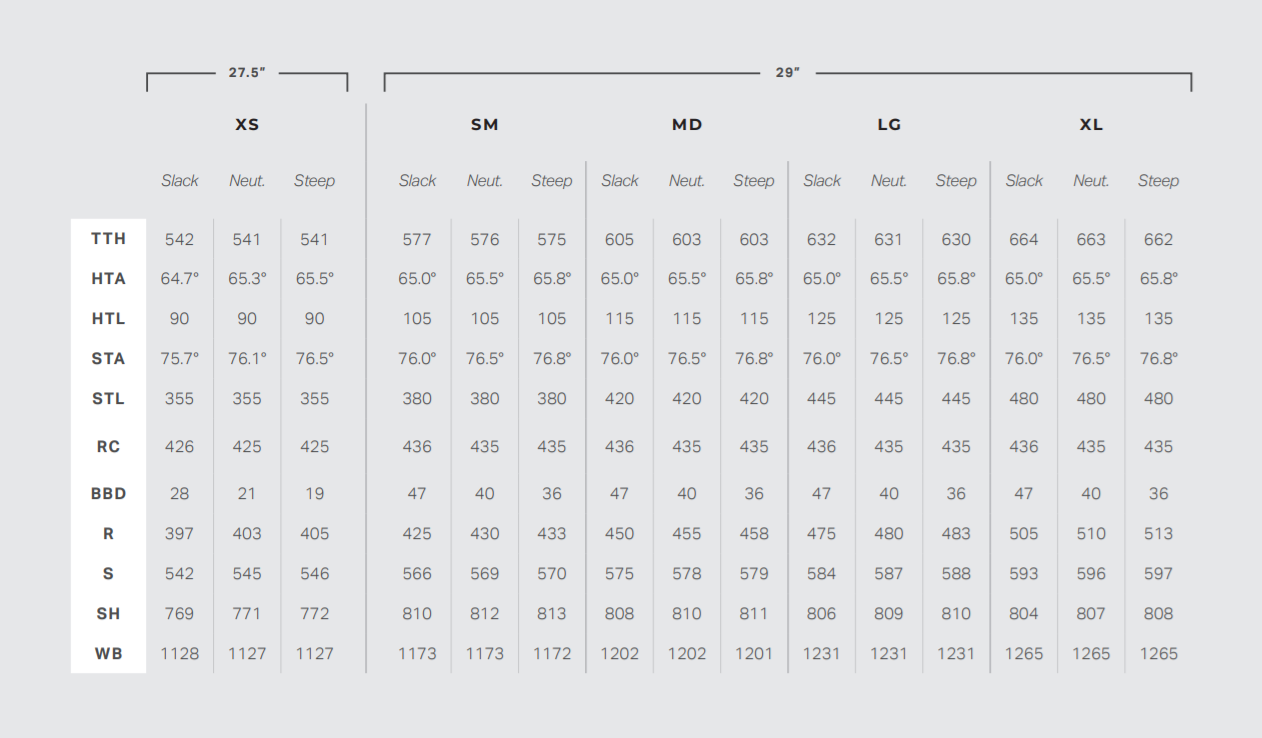

Element Geo 2.png

PRICING AND AVAILABILITY

The Element will be available this winter from your local Rocky Mountain dealer. Regional availability may vary.

  • Element Carbon 90: $11,549 CAD / $9,589 USD
  • Element Carbon 70: $7,879 CAD / $6,819
  • Element Carbon 50: $6,299 CAD / $4,899
  • Element Carbon 30: $5,249 CAD / $4,259
  • Element Carbon Frameset: $ $3,889 CAD / $3,199 USD
  • Element Alloy 50: $4,619 CAD / $4,049 USD
  • Element Alloy 30: $3,679 CAD / $3,089 USD
  • Element Alloy 10: $2,999 CAD / $2,559 USD

Trending on NSMB

Comments

Ddean
-4 Joseph Crabtree Kenny IslandLife Alex Durant
Ddean  - Sept. 28, 2021, 10:44 a.m.

Would have expected a much steeper STA than that. Wonder how this new Element compares to a Spur?

Reply

shoreboy
+6 Joseph Crabtree IslandLife Nologo Andrew Major Spencer Nelson Alex Durant
Shoreboy  - Sept. 28, 2021, 11:49 a.m.

Steeper than 76-77 degrees?

Reply

Kenny
+8 IslandLife Nologo Niels Andrew Major ManInSteel Spencer Nelson Alex Durant DylanZ91
Kenny  - Sept. 28, 2021, 1:08 p.m.

Especially since shorter travel bikes don't sag as far into the rear suspension when climbing.

You can't compare the  sta on a 130mm bike to that of a 160mm bike.

Reply

Jotegir
+1 IslandLife
Lu Kz  - Sept. 28, 2021, 1:19 p.m.

Shorter travel bikes in the XC-sphere are much nicer with that 75-76 degree range as these bikes encourage you to get out of the saddle and hammer up climbs and allow you to have a bit more body positioning flexibility for rolling terrain. Much steeper than this and it feels weird while out of the saddle sprinting and hampers quick moves with the seat up.

Reply

andy-eunson
+2 IslandLife Andrew Major
Andy Eunson  - Sept. 28, 2021, 1:20 p.m.

Too steep for my liking. That leads to a more upright and relaxed fit which is less aggressive.

Reply

Ddean
-1 IslandLife
Ddean  - Sept. 28, 2021, 1:29 p.m.

Yes steeper than 76/77

I wish that my HARDTAIL was steeper than it is and its about 76 degrees. It obviously has no sag.

Why would you not want a steeper STA? Its totally benign when you are off the saddle, doesnt really impact the rear of the bike either and doesnt change the reach (when you are off the saddle).

I see that Spur has similar STA as this Element.

Reply

Ceecee
0
Ceecee  - Sept. 28, 2021, 4:16 p.m.

Rocky didn't care to proofread stack figures before going to press, so we can't count on the geo table. I like a slacker angle because it allows for a good seated toptube length on a downsized frame. Also saddle is dropped forwardly quicker. Besides, the angle on Element directly above b.b. is 89 degrees

Reply

Timer
+1 ManInSteel
Timer  - Sept. 29, 2021, 1:27 a.m.

Its very beautiful, really loving the thin tubes. Prettier than the Spark, which i would consider it's main rival. The Spark wins the price/value contest by a mile, though.

Reply

xy9ine
+1 ManInSteel
Perry Schebel  - Sept. 29, 2021, 8:56 a.m.

yes - love the thin tube aesthetic. looks like a super fun trail shredder too.

Reply

Kenny
0
Kenny  - Sept. 29, 2021, 9:18 a.m.

You think so?

Here in the PNW at least I feel the the spur is by far the most obvious competitor?

I think this bike looks good but the spur is just gorgeous.

Reply

Shoreloamer
0
Greg Bly  - Sept. 29, 2021, 10:56 a.m.

Increased anti squat makes for a smoother calmer ride. Who writes this stuff! Increased anti squat equates to less pedal Bob. Less small bump sensitivity.

This is an XC bike so having plenty of pedal platform through anti squat numbers way over 100 percent is a good idea but the ride will be choppy not smooth.

But hey if your a cluttz with lousy biking skills . Having plenty of pedal platform is what will sell the bike.

Reply
