Ibis Ripmo front 3/4
First Impressions/Release

Ibis Ripmo 29-inch Brawler

Words AJ Barlas
Photos Product: AJ Barlas / Action: Ibis Cycles/Dave Trumpore
Date Mar 26, 2018

In the last two years, manufacturers have worked out the kinks with 29ers and coupled with the push toward single-chainring drivetrains, a surge of long-legged variations began to hit the market. From Trek to Evil, the brawlers have continued to impress with their lively personalities and incredibly capable descending prowess. Now there is yet another option to add to the mix thanks to the folks at Ibis Cycles in Santa Cruz, California, and with it comes another suspension option to choose from, which certainly doesn’t hurt.

Welcome the Ripmo; a combination of the Ibis Ripley and Mojo – or should it be Ripjo? Maybe Moley… I digress. For those that don’t know the Ibis range, the Ripley is their snappy 29er focused on trail duties while their Mojo, in the latest incarnation as the HD4, is the brand’s burly 153mm/6-inch travel bike ridden by their EWS team, which were coincidentally the 2017 Team Champions.

What do you get when the Ripley and Mojo have a love child? Aside from a bike that has a clear resemblance of the two parents, we get a whip with 145mm rear wheel travel and 160mm up front with some sturdy components capable of taking on the world's best enduro tracks. For the regular rider that’s a bike that, on paper at least, is capable of inspiring confidence and will be a challenge for most to push to its limits. We’ll have to wait for the full review to see if it lives up to the expectations but initial impressions are promising.

Ibis Ripmo front 3/4 crop


A Closer Look

Across the range, the bikes are fitted with some proper sized tires in the way of Maxxis 2.5 wide-tracks front and rear, the front being a Minion DHF and the rear, the Aggressor. While some may complain that the EXO casing may not be sufficient enough, it’s a damn sight better than some specs out there – our test bike arrived with proper rubber too, none of that OE rubber compound, rather, the Maxx-Terra. The new frame is also capable of fitting 2.6-inch tires, for those that are interested in large volume options.

The full lineup, which features five options and a sixth if you include the frame only option, is fitted with Fox Shock’s latest suspenders, with the 36 up front starting from a Performance version on the 4,099 USD base model through to the Factory RC2 36 on the 9,399 USD flagship model. In the rear is a DPX2 of the 210 x 55 variety, providing the 145mm of smooth DW-Link travel and while the Ibis EWS team ran this shock over the weekend, there is the option to upgrade to a Float X2 for an additional 249 USD, should you want either more adjustability, a more DH focused rear shock, or both.

Ibis Ripmo Maxxis 2.5 WT Tires

Big treads and proper rubber. The Ripmo is ready to cut sick on the rowdiest of trails.

Ibis Ripmo Fox Float X2 Shock

The Float X2 is an optional upgrade and one that our test bike has been fit with.


There is only one option in the range that is fitted with a Shimano drivetrain and that’s the mid-tier, 6,199 USD option. For that money, you get full Shimano running gear (brakes and drivetrain) while all of the other bikes are fitted with SRAM drivetrains and aside from the base model, all are shod with Shimano stoppers. While we’re talking about SRAM drivetrains, for 4,799 USD you can get into the Ripmo with a GX Eagle 12-speed drivetrain – the base model features SRAM NX 11-speed.

In addition to the shock upgrade, there are a number of other ways that Ibis allow you to bling out the Ripmo model of your choosing. Want carbon bars? Easy, for 68 USD you can fit a set of Ibis carbon bars. Keen on carbon wheels but don’t want to fork over for the top end model – the only one spec’ed with plastic hoops – you’re in luck, you can get the Ripmo with Ibis carbon wheels for an additional 800 USD or Industry Nine’s wheels for 1,300 USD.

Ibis Ripmo XO model with Shimano XT Brakes

Most of the range shares a combination of Shimano brakes and SRAM drive train components.

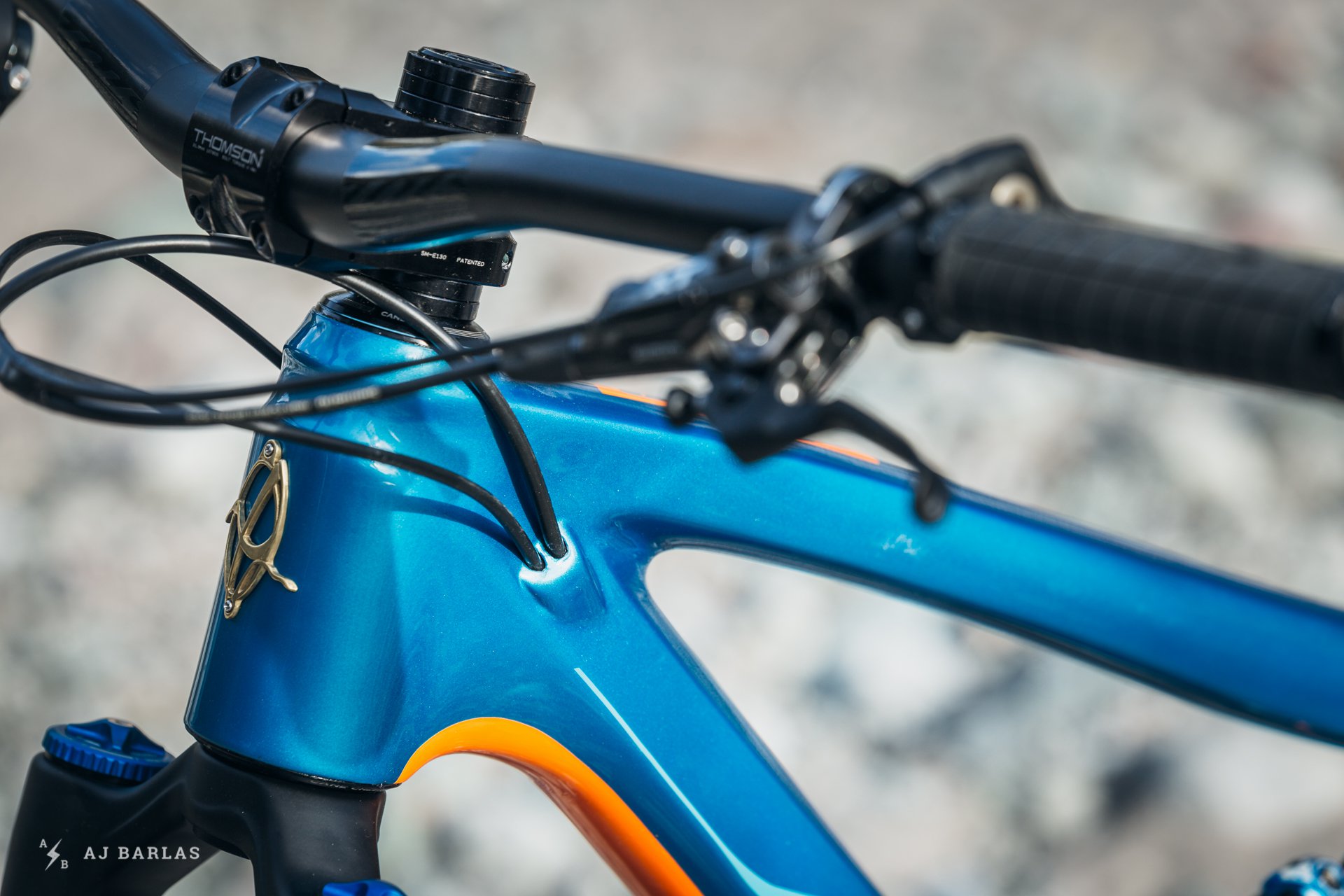

Ibis Ripmo Carbon Bars and Thomson Stem

The XO Ripmo comes stock with Ibis carbon bars but you can upgrade to them on any model.


The model shown here and that will be tested for the next while is the X01 Ripmo, which will retail for 7,099 USD. However, Ibis surprised me with some updates for the test. Fitted with a Float X2 and Ibis carbon wheels, this bike would end up costing 8,169 USD and while the DPX2 is a good shock that the bike is no doubt very capable with, I have not ridden it with it just yet. it will be great to test the bike on the aggressive gravity oriented trails of the PNW with the X2 – extra damper control is also very welcomed. To round out the full review we will look to spend time on the DPX as well.

Ibis Ripmo Model Range Specs


Peering down at the drive side of the bottom bracket I was surprised to see a lack of ISCG tabs, especially on such a bike. Little did I know that Ibis offers a separate ISCG mount that is optional – if you want to run a chain device of any kind and this bike is looking of interest to you, it can be done with the extra part. It’s also pleasing to see a brand continue to use a threaded bb in their bikes and the Ripmo is one such bike.

Ibis Ripmo Internal Cable Routing


New Improved Features

New for Ibis are “in-frame molded cable tunnels”, making it easier than previously to run cables through Ibis's carbon frame. The ends aren’t sealed in any way leaving the internals open to easy water access but water finds a way into all frames anyway. With no fixtures anywhere, the cables are able to move freely as the suspension moves through its travel; however, a possible downside could be excess shifting of the cables, or cable creep, something that we’ll keep an eye on as testing progresses. There haven’t been any downsides thus far and the routing is clean throughout.

The Ripmo also features Igus bushings in the lower pivots, something that has been done due to the lower link featuring “high loads and minimal rotation”, two points that bushings are ideal for. As a result, it also means that the link is lighter but thanks to an airtight seal Ibis claim that the bushings should last a long time. They’re also backing the move with lifetime replacements of the bushings when they do wear out.

Ibis Ripmo cable routing

Cable routing from the front to rear triangles is very clean. The dropper routing exits the downtube before entering the seattube.

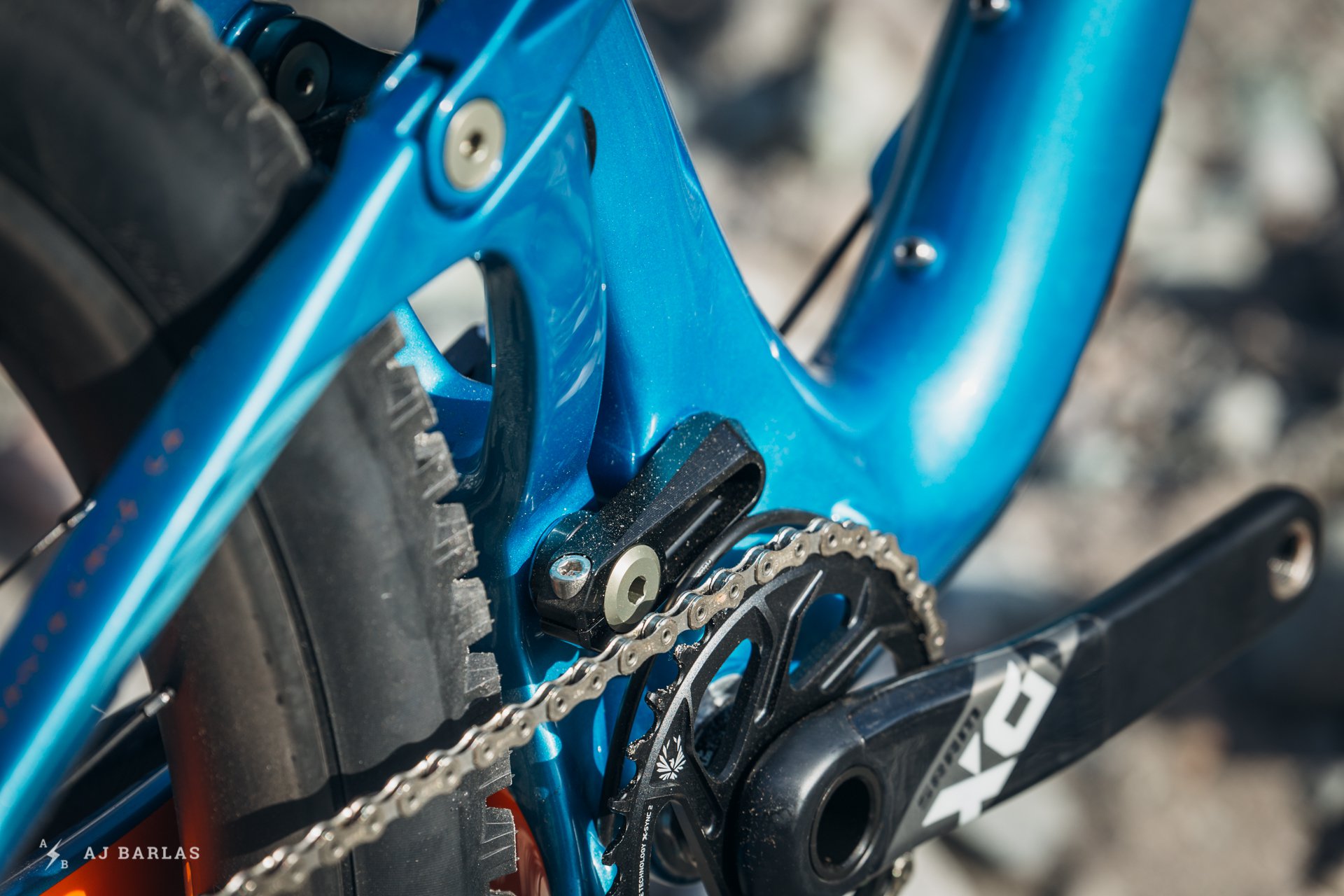

Ibis Ripmo lower link

The lower pivots of the DW-Link suspension have been made to use Igus bushings rather than bearings to help with the "high loads and minimal rotation".

Ibis Ripmo threaded bottom bracket

The Ripmo features a threaded bottom bracket. As a number of brands begin to move back to threaded BBs, Ibis simply continue with what they've been doing.


Ibis also say that they designed the new bike around a 175mm dropper, with the exception of the small which was designed with a 150mm dropper in mind. The only model to come stock with a 175mm dropper is the top end*, which is a shame given how awesome it would be to have a 175mm dropper on this XL. Space would be tight for me personally, though (I’m about 190cm). Ibis claim to have worked on flexibility in the sizing so that riders can focus on reach more than standover height and the XL comes with an 18.5-inch seat tube length. It isn’t crazy, but it’s an improvement in the right direction. Some riders will be able to take advantage of the lower seat masts, sizing up or down, depending on where they fall.

*Correction: The only model spec'ed in the supplied documentation with a 175mm dropper is the XX1 model, but you can in fact opt to for either a 100, 125, 150, 175mm dropper across the range while the 175 mm post is an upgrade at the NX and GX level due to the fact that there aren't any suitably priced droppers offered at that travel.

Ibis Ripmo driveside


Geometry

When the Mojo HD4 was developed Ibis pushed the size of their bikes considerably, noting that prior to the HD4 they had seen an increase of customers buying up a size to get the fit that they wanted. That growth has continued with the Ripmo, though not quite as drastically, with the XL being tested coming in with a reach of 495mm – the XL Mojo HD4 had a reach of 483mm. On a size large the shift is more pronounced, with a move from 455mm on the HD4 to 471 on the Ripmo. The rest of the sizes are more in line to that of the XL; just above the 10mm mark.

Ibis Ripmo Geometry

2018 Ibis Ripmo Geometry

Frame size: Small Medium Large Extra-Large
Reach: 431mm 447mm 471mm 495mm
Top Tube: 573mm 602mm 632mm 655mm
Stack: 613mm 623mm 632mm 641mm
Seat Tube Length: 14"/356mm 14.5"/368mm 16.5"/419mm 18.5"/470mm
Chainstay Length: 435mm
Head Angle: 65.9º
Seat Tube Angle (Effective): 77º on small, 76º throughout other sizes
BB Height (w/ 2.5" Maxxis Minions): 341mm
Wheelbase: 1,177mm 1,197mm 1,228mm 1,256mm
Head Tube Length: 90mm 100mm 110mm 120mm
Standover Height: 705mm 750mm 750mm 760mm


It’s obvious when viewing the numbers that Ibis has been paying attention to what’s happening in the industry. In addition to the extension in reach, the seat tube angle has been tilted forward to 76 degrees and they’ve incorporated a shorter, custom 44mm offset on the fork – the stock offset for a 29er fork from Fox is 51mm – to work with the bikes 66-degree head tube angle. Generally, the shorter offset is used to improve handling characteristics at the front wheel when pushing things slacker. In that sense, it’s interesting to see the shorter offset incorporated on something that many likely won’t feel is overly aggressive in terms of head angle. So is it necessary? Will it improve the bike's handling? More on that in the initial ride impressions below.

Ibis Ripmo Seattube offset

A look at the Ripmo's seat tube offset that results in the effect of a slacker actual seat tube angle.

Ibis Ripmo Downtube protector

The Ripmo's downtube protector is a sleek number. Details have been painstakingly dealt with and it shows.

Ibis Ripmo Chain protection

Chain and seat stay protection is equally slender. Just the right amount to protect and keep things quieter on the trail.

The chainstays remain about average at 435mm and wheelbases, despite the extra reach, aren’t massive with the XL here measuring in at 1,256mm. The cockpit feels adequately roomy despite the steep 76-degree seat tube angle thanks to a reasonably slacker actual seat tube angle, the result of a fairly significant offset – the difference from the center of the BB to where the center of the seat tube connects with the lower frame. It’s an uninterrupted mast aside from where the stealth cable routing for the dropper enters, making seatpost insertion less of an issue and hence the ability to run rather long droppers.

Ibis Ripmo in Chile - Dave Trumpore Photo

Photo: Ibis Cycles/Dave Trumpore

Initial Riding Observations

Once set up the cockpit and bike felt comfortable. Slacker than the effective angle given, the actual seat tube angle resulted in a need to push the saddle forward on its rails in order to move rider weight away from the rear hub, which it was easy to be out over at 190cm tall, especially with the average 435mm chainstays. With that change, seated climbing was improved significantly, with less aggressive weight shifts required to hold traction and keep the front end planted on steeper sections.

Out front, the shorter offset with the 66-degree head angle creates a sense of the front wheel being really close to the rider and coupled with the stock 50mm stem, gave a feeling akin to riding a bike with a 70mm–100mm stem. Through tight turns the front wheel seems to want to tuck under earlier than experienced on similarly angled bikes on the same sections of trail. It’s a sensation experienced during both climbs and on descents and it’s a little unnerving. It has never tucked to this point, however, it’s not a feeling that inspires confidence in those scenarios.

Where the shorter offset in this circumstance feels best so far is in open corners, allowing the rider to dig in more aggressively. It’s more forgiving to sloppy technique and when getting weight placement wrong. Where a traditional offset would have resulted in the front wheel pushing less predictably and likely resulting in ending up on your head, the shorter offset has instead allowed for more time to correct with the wheel hanging onto traction for longer.

Ibis Ripmo in Chile - Dave Trumpore Photo

The Ibis Enduro Team rode the Ripmo in Chile this weekend. Photo: Ibis Cycles/Dave Trumpore

There’s plenty more testing to be done before any of this is conclusive, but the feeling at the bars will be tackled first, with a shorter stem going on to see how it will affect the ride, and particularly the sense of where the hands are in relation to the front hub. Suspension setup is in need of further assessment also but as expected the DW-Link is responsive, offering good feedback when pushing into the bike. The 2018 Fox 36 RC2 is a great fork leaving little need to assess its merits.

The Ripmo will be shipping worldwide March 26th (today). If the bike sounds like you, get down to your local Ibis dealer and find out what and when theirs will be in. We’ll have a full review of the bike later this spring for those looking for more details on the ride qualities. You can also check out the Ibis website for more details.


Comments

pedalhound
+2 oudiaou Bogey Cr4w robnow
pedalhound  - March 26, 2018, 11:26 a.m.

Not a fan of the tiny seat tubes...those of us with long legs suffer. I do know that dropper posts are changing this...but that puts a HUGE lever and a ton of strain on the frame to hold my fat ass. Just put a 21" ST on that and I would be pretty happy. On my current 21" ST bike I can put a 180mm dropper on with no issues....so I could no imagine now long my seat post would need to be to ride this bike.

Reply

Vikb
+1 AJ Barlas
Vik Banerjee  - March 26, 2018, 1:23 p.m.

With the cost of carbon molds and the desire for some people to size up frames and use long droppers I think you'll see more and more bikes look like this in terms of seat tube length vs. reach. Bike companies have to try and fit as many people on each frame size to amortise the cost, which of course means folks some ends of the fit spectrum won't be happy.

If you are okay with metal you can get more sizing flexibility since the frames are not tied to expensive molds. Guerrilla Gravity will build you a medium frame with an XL seat tube for example or vice versa for a modest up charge.

Reply

craw
+4 Andrew Major pedalhound Bogey Andy Eunson
Cr4w  - March 26, 2018, 1:31 p.m.

If they wanted to make the outliers happy they could try varying ESTA by size, especially if they aren't going to vary CS length.

*edit: according to Hans Heim, Ibis CEO, who answered my comment on Pinkbike: the ESTA on the Ripmo is adjusted per size to deliver 76' ESTA for every size. So they do vary ESTA by size. Good for them!

Reply

craw
0
Cr4w  - March 26, 2018, 1:31 p.m.

If they wanted to make the outliers happy they could try varying ESTA by size, especially if they aren't going to vary CS length.

Reply

gdharries
0
Geof Harries  - March 26, 2018, 4:28 p.m.

I too usually seek out a 21” sized seat tube on mountain bikes. What’s interesting is that on Pinkbike they show a photo of the company’s staff and the guy is 6’6” on this bike.

Reply

legbacon
+4 Cam McRae Andrew Major Cr4w DMVancouver
legbacon  - March 26, 2018, 5:33 p.m.

This is my fault.  I'm 5'9" and have been ranting for several years that seat tubes are too long.  I guess someone listened to me;)

Reply

Vikb
0
Vik Banerjee  - March 26, 2018, 5:55 p.m.

Yup. Totally your fault LB! When STAs hit 91 deg I'm gonna pin that on you as well. ;)

Reply

aj@nsmb.com
0
AJ Barlas  - March 26, 2018, 6:57 p.m.

Bwahahaha.

Reply

dave_f
0
dave_f  - March 27, 2018, 12:06 a.m.

The trail calculator spits out trail and flop numbers that are almost identical for a 29" with 66 deg and 44mm offset and 26" with 65 deg and the then standard 37mm offset. So the steering should feel similar, with a tendency to wander/flop going at slow speeds like uphill, but being more stable as speeds pick up. Changing the stem length shouldn't affect that.

Reply

aj@nsmb.com
0
AJ Barlas  - March 27, 2018, 11:05 a.m.

In reality that's not the case. The feeling I speak of at the hands in terms of stem length is to try and move the contact point of the riders upper mass back from the front hub because in my humble opinion the front wheel is too close to said mass with these numbers. Maintaining trail numbers from geometry that is at least three or four years old also doesn't seem right in the slightest. Different wheel sizes, suspension, angles (elsewhere on the bike in this case, as you make it clear you are comparing similar headangles) drastically change weight distribution, too – it doesn't really compare as simply as one would like in the same way that two bikes with the exact same numbers on paper won't ride the same. Geometry needs to be looked at holistically, with less of a focus on individual portions.

Reply

robnow
0
robnow  - March 27, 2018, 3:56 p.m.

Interesting observation in regards to the fork offset feeling...not sure this point has been brought up before in the last few months with the intro of some of the other 42-44mm fork offset bikes.  I believe Transition has mentioned somewhere that they theorize stem length should equal fork offset for the most direct feel.

I do wish this Ripmo was slightly slacker in the front.  We need to bring back the ability to run angle headsets again.

Reply

aj@nsmb.com
0
AJ Barlas  - March 28, 2018, 11:54 a.m.

True, I had heard that but completely forgotten about it, thanks for the reminder. I found this quote from Transition on the topic: "We do think there's a little magic by keeping stem length very close to what your fork offset is." It will be interesting to test and I will report back in the full review.

Reply

sospeedy
0
sospeedy  - March 30, 2018, 6:35 a.m.

In response to your comment about a feel for the wheel tucking, maybe it might be an interesting comparison if you could try the identical bike again, but with the 51mm offset fork? Ibis’ EWS team looked good in Chile and i wonder what their overall setup looked like?

Reply

Lynx
0
MountainBikeBarbados .  - March 28, 2018, 12:49 p.m.

I'm curious as to what these "kinks" that you are speaking of, are that have only been "figured out" in the last 2 years and how many other 29ers you've tried?

> In the last two years, manufacturers have worked out the kinks with 29ers

Reply

aj@nsmb.com
0
AJ Barlas  - March 28, 2018, 7:14 p.m.

The ability to provide longer travel 29ers with good trail manners has only improved in the last few years, helped along greatly by the progression of the 1x drivetrain. For manufacturers to be able to achieve this without reintroducing some of the traits that weren't fondly looked upon when 29ers first took off is pretty great. That's what I meant by the kinks comment.

Thanks for reading!
