FSA FLOWTRON Dropper Post Teardown

Words Andrew Major
Photos Andrew Major
Date Nov 13, 2018


Full Speed Ahead (FSA) is taking a stab at the why-spend-more 150mm dropper post market with their well named FLOWTRON post. Wearing the increasingly-common 250 USD price tag, it includes a nice feeling remote, a solid looking three-keyway chassis with a one-piece shaft/head unit, 3-way adjustable cable leverage, and (quelle surprise!) a Wintek cartridge.

FSA Flowtron Dropper Post AndrewM

I've had the Beastie Boys rhyming "three keyways it's got no play || it be getting down with no delay" in my head for days.

Whether it's the X-Fusion Manic, new Bontrager Line, or Crankbrothers Highline I'm talking about I've had great results with dropper posts #poweredbywintek and all those examples have pros and cons that make them easy to recommend in different situations.

From my first impression tearing this post down with Jeff I'll be adding it to the list, especially since the slightly strange looking remote feels great.

FSA Flowtron Dropper Post AndrewM

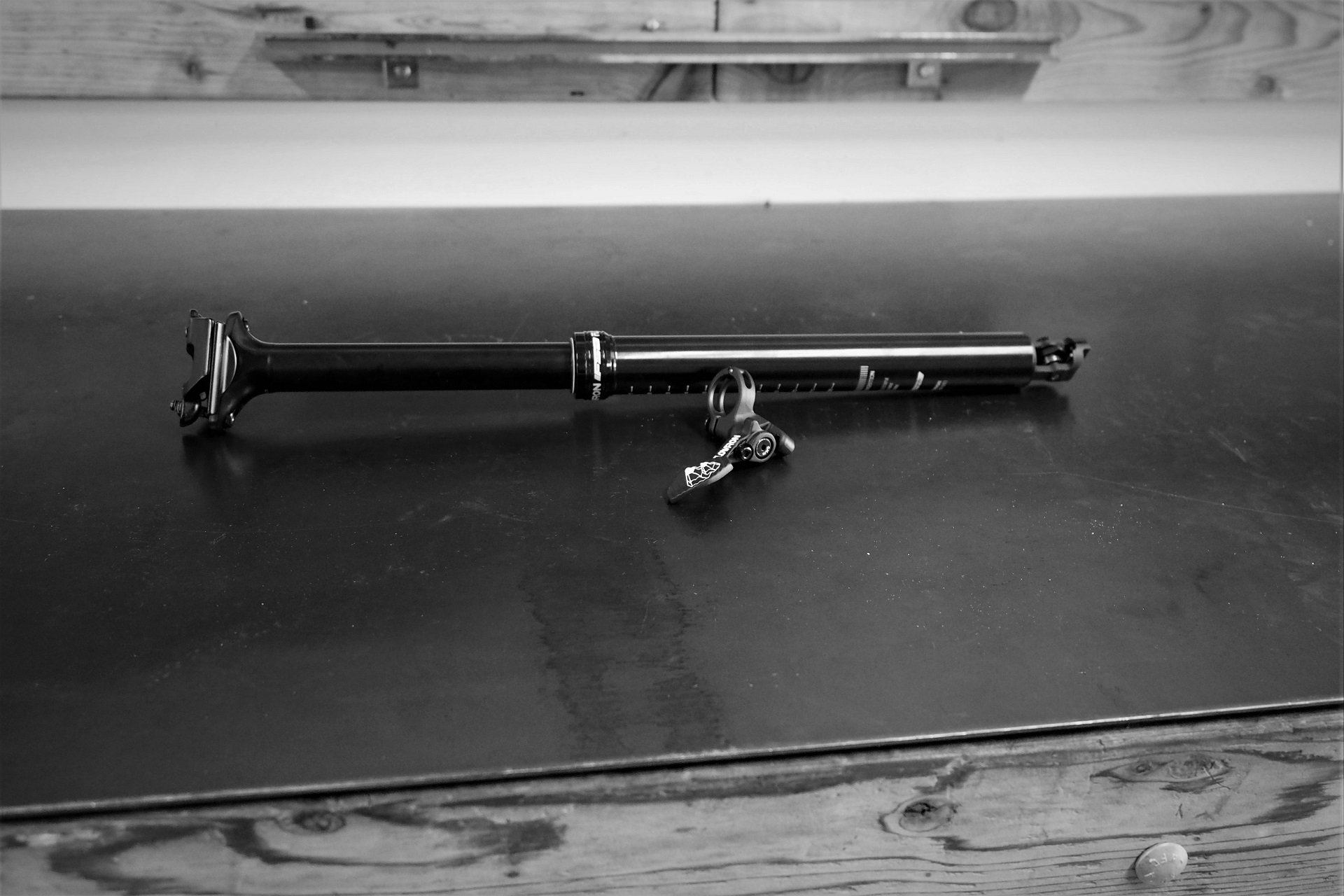

There it is in black and white. The new FSA FLOWTRON 150mm dropper.

Over the years FSA has earned a reputation for manufacturing quality, excellent customer service, and solid warranty commitment. Aluminum cranksets aren't in the same league as droppers when it comes to assembly QA but having seen the inside of this post, I'd say FSA is up to the task.

FSA Flowtron Dropper Post AndrewM

'Cause Jeff is a model,

FSA Flowtron Dropper Post AndrewM

you know what I mean?

FSA Flowtron Dropper Post AndrewM

As he does his little turn

FSA Flowtron Dropper Post AndrewM

in his bike shop

As disassembly goes FLOWTRON is a tight package that requires some elbow grease. A vice is definitely helpful but a competent home mechanic will be able to tackle this without issue; no proprietary tools required.


There is vast variation between Wintek-driven posts and trying one won't give you much idea about the others. I'm personally a fan of a couple of non-Wintek designs, but when it comes to performance and longevity at the lowest possible price, Wintek is what I recommend.

Out of the box the FLOWTRON has a nice tight head unit with no play, thanks to three easily replaced brass keyways, and a medium return speed from the cartridge that I think the vast majority of riders would be happy* with.

*If you want a faster return you won't be buying a Wintek cartridge post

FSA Flowtron Dropper Post AndrewM

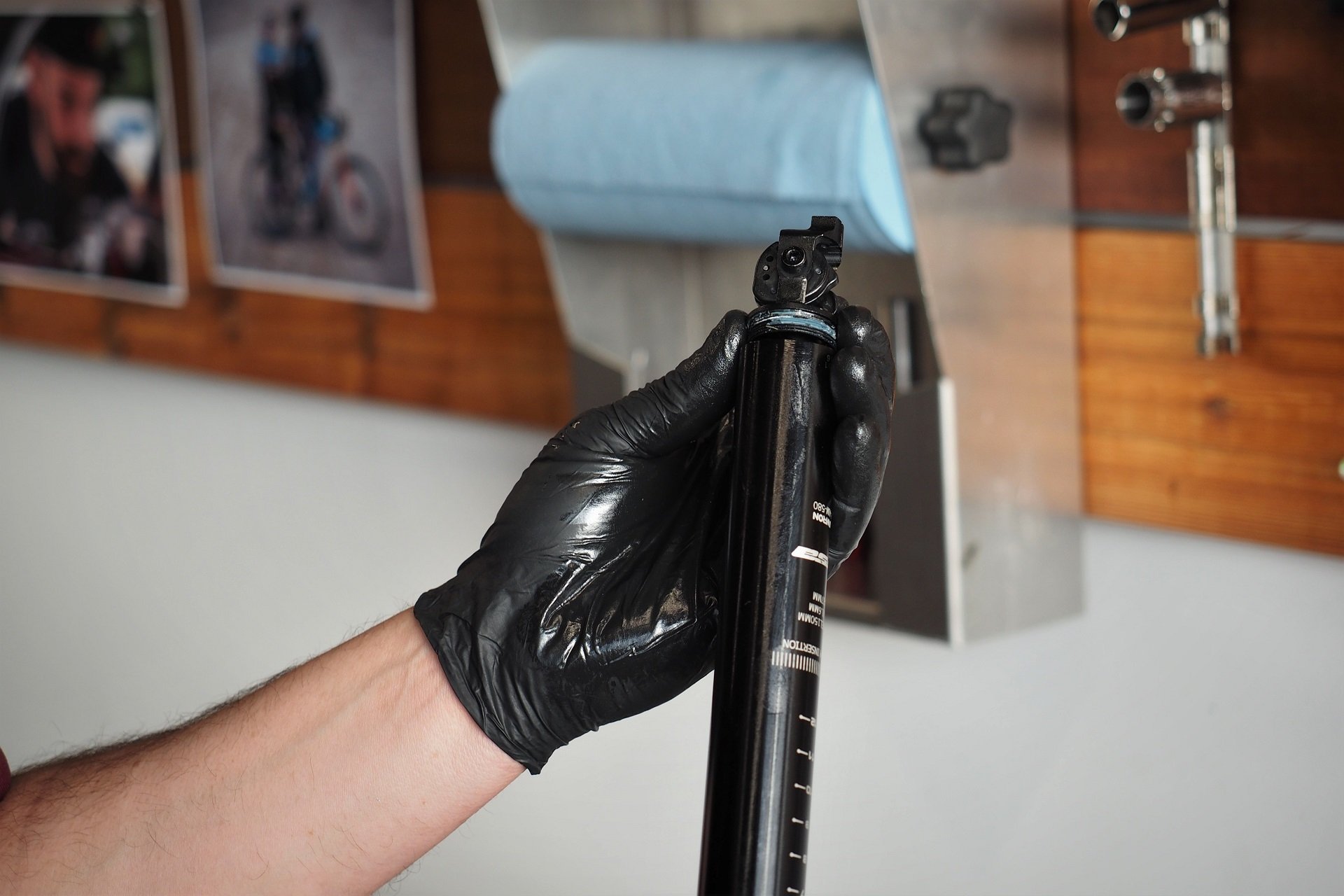

The Wintek cartridge is held in place at the head with a nut.

FSA Flowtron Dropper Post AndrewM

And at the bottom by the actuator.

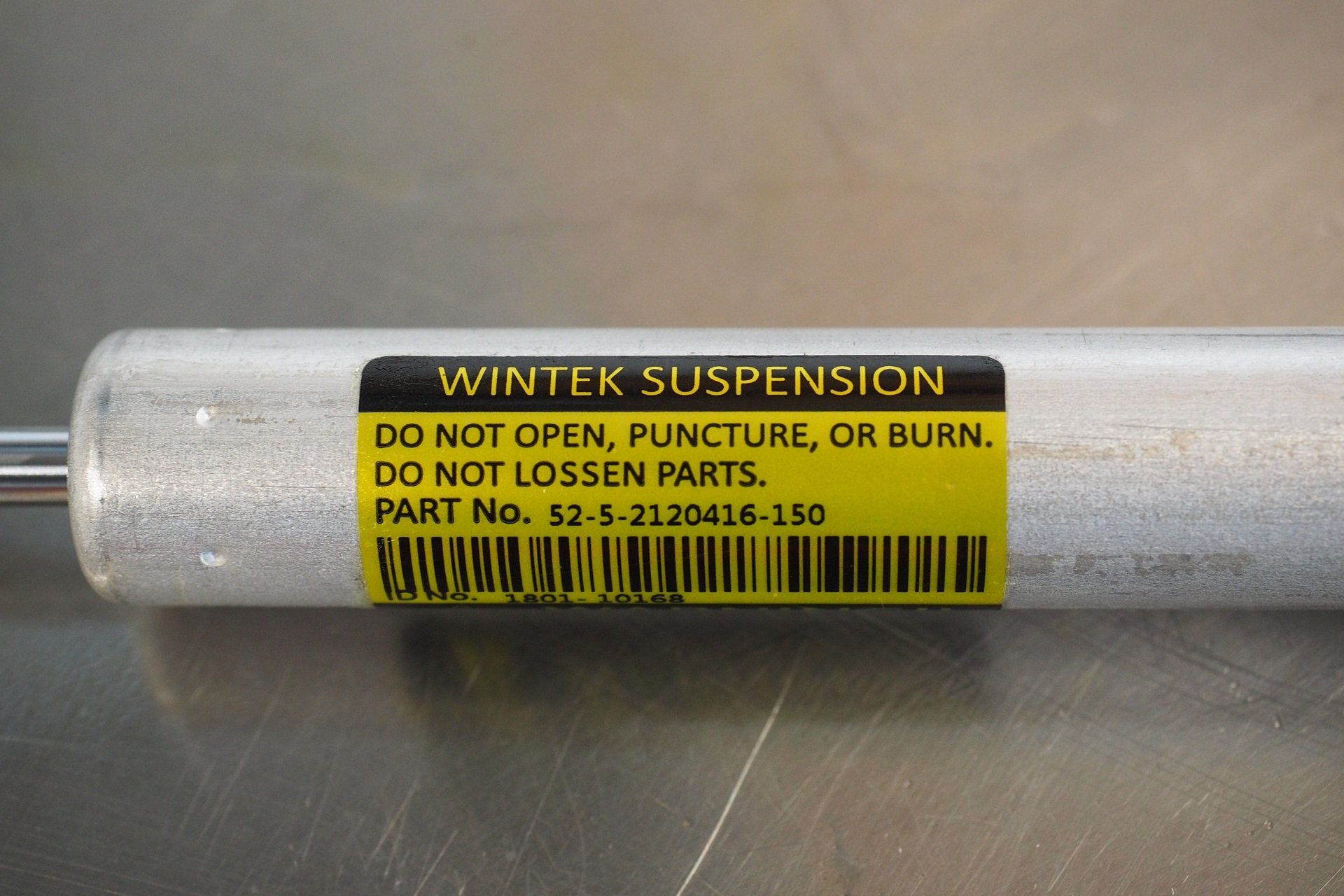

The cartridge is not rebuildable, but a readily available replacement is 50 USD when the time comes. Based on my experience with other posts, that will be hundreds of hours of riding with the only service required being a re-lubing of the main seal, easily accomplished without even removing the post from the bike.

That Remote

The FLOWTRON's remote was not an aesthetic love-at-first-sight experience for me but the ergonomics are great and thanks to the adjustable cam on the post it has the light action I prefer. It will also make riders who prefer more positive resistance from their dropper remote happy. The shape seems to mate well with the few brake levers I've bolted it against and once installed it looks much better.

FSA Flowtron Dropper Post AndrewM

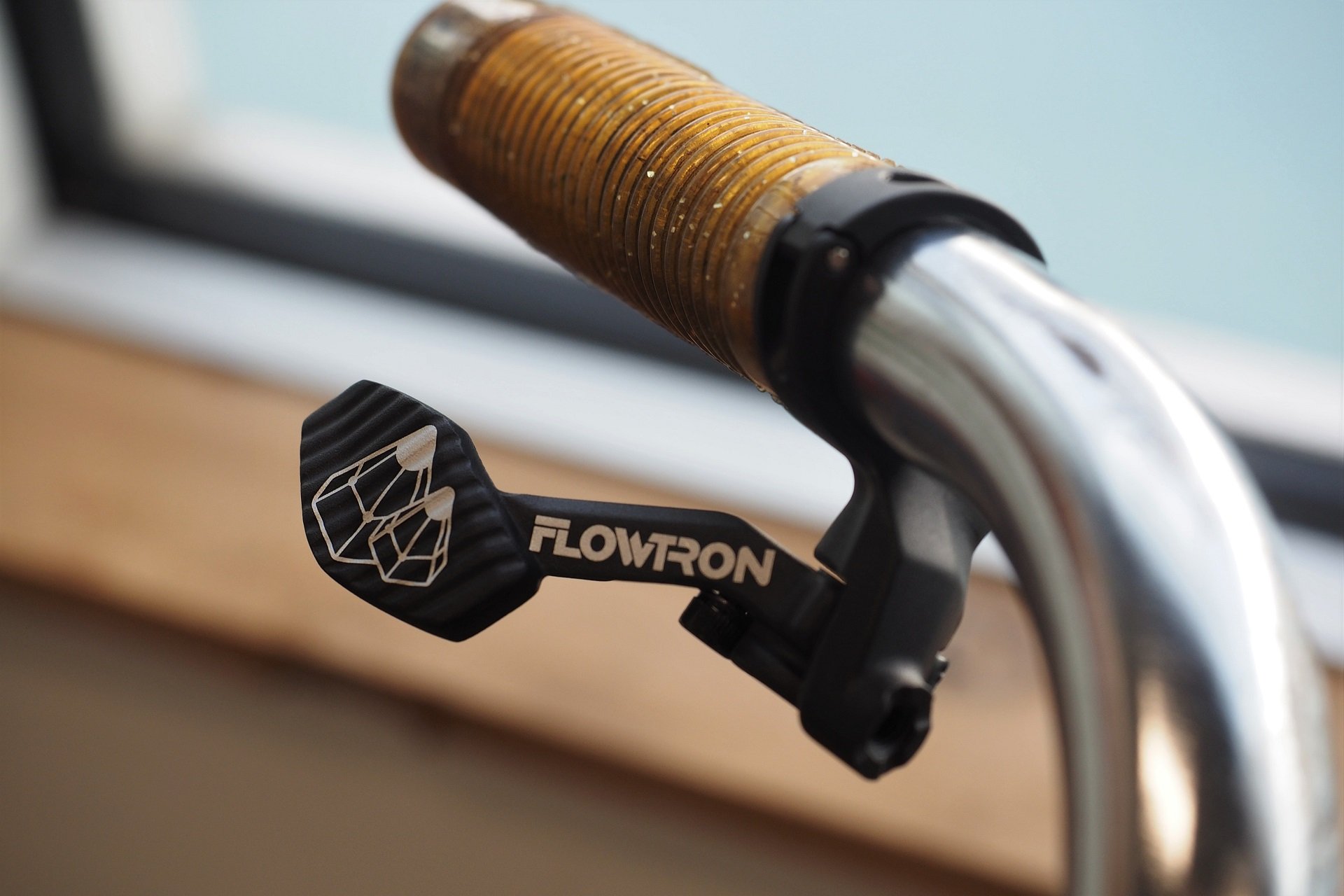

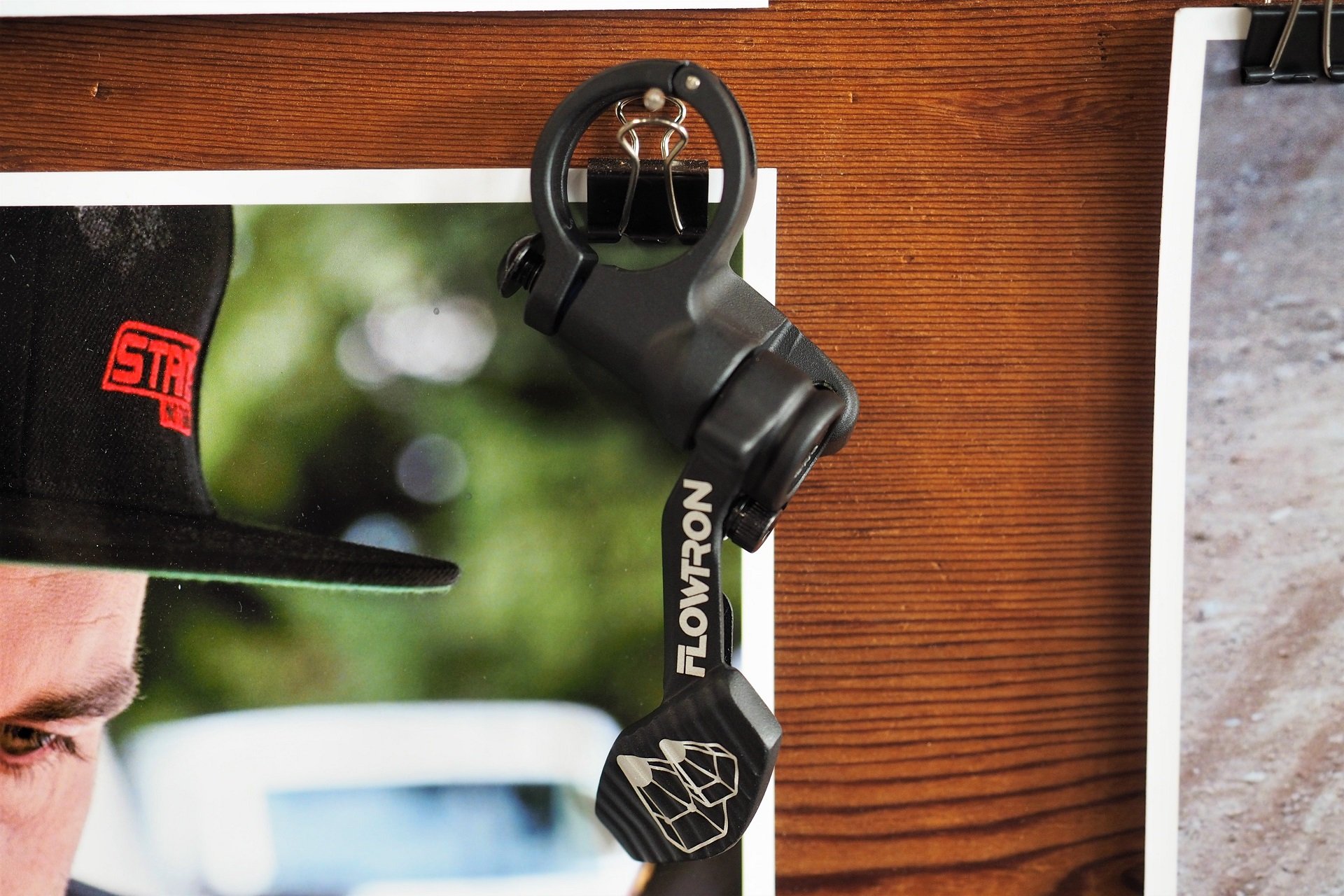

The FLOWTRON's remote looks a bit different but the ergonomics, smooth motion, large ridged paddle, and hinged clamp are all on point.

This remote appears to be a solid winner in the 250 USD class. I'll still give the slight performance leg up to the TRS+ with its cartridge bearing but the FLOWTRON's lever is much simpler and lower profile.

FSA Flowtron Dropper Post AndrewM

I hooked the FSA remote up to Jeff's Banana Bike for a laugh but it's doing duty on my 2019 Kona Honzo ST.

FSA Flowtron Dropper Post AndrewM

The remote works great on the inside of brakes with short lever blades (Magura HC here) if you have long thumbs or outside with a long-levered brake like the TRP if you have short thumbs.

Adjustable Actuator

Thanks to three spring positions on the cam at the bottom of FLOWTRON, once the post is removed it's quick and easy to adjust the lever actuation from a very light feel to a more positive push. Access to that range without having to buy different remote levers, is something even much more expensive posts don't offer.

FSA Flowtron Dropper Post AndrewM

The three spring positions on the cam correspond with three different feels at the remote lever.

Full Speed Ahead

FSA Flowtron Dropper Post AndrewM

Over-forkers and owners of unfashionably slack seat tube angle bikes rejoice!

FSA Flowtron Dropper Post AndrewM

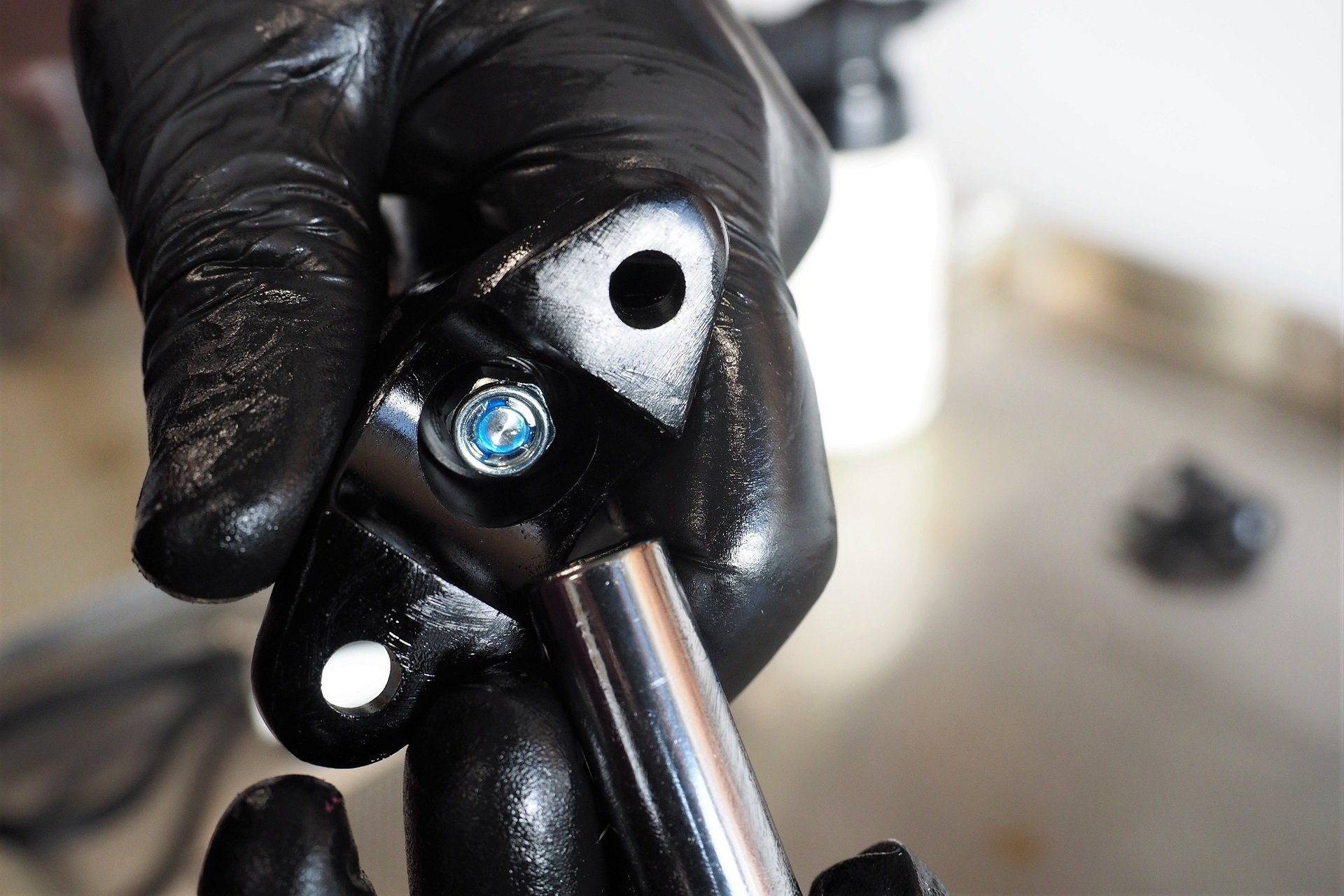

The Flowtron's lower seat clamp is reversible which helps slam that saddle forward.

FLOWTRON arrived nicely greased inside and very well assembled and the total teardown, including pausing for photos, took about fifteen minutes. A full clean of a dirty post including new seals and keyways is going to take significantly longer but a service on this FSA dropper, like other Wintek posts, should cost a fraction of the total for a service on a post with an IFP like the Reverb. Even if it's time to recycle the old cartridge the total is going to come out below the routine service on more complicated droppers.

FSA Flowtron Dropper Post AndrewM

Thumbs Up! A strap wrench, socket and adjustable wrench are all that's needed to teardown the Flowtron - but a vice with soft jaws sure is handy.

Now it's time to see if the FSA FLOWTRON lives up to its potential. I'm going to make it go up-and-down-and-down-and-up all winter in the worst conditions the North Shore has to offer and then I'll report back.

Any questions? Please post a comment below or check out the FLOWTRON at FSA.
