DVO Onyx SC
Release

DVO Releases 2019 Suspension Range

Words DVO Suspension
Date Oct 3, 2018

DVO Suspension has only been around for six years, but the people behind the brand have been involved in mountain bikes, and more importantly, mountain bike suspension for a great deal longer. Their 2019 line has just been released and with it, some new products to provide more options for riders. Two additions worth mentioning are the single crown version of their Onyx fork, and a 34mm stanchion diameter Sapphire. The 2019 line looks more refined and fills in some gaps that were existing before.

Check out their full release below and stay tuned for our first podcast, with Bryson Martin, coming very soon.


Here it comes, 2019 is around the corner. Thankfully, so are new products from DVO Suspension. DVO has grown immensely since its inception in 2012 but 2019 marks the next evolution for the brand. We strive to create high-end suspension products with customer service and quality at the forefront. This year we made many additions to our quickly expanding product line as well as updated many of our mainstay products.

DVO D1

Introducing D1

D1 is our premium line of suspension forks, no compromise or shortcuts. High/ Low-Speed Compression, Rebound and OTT features all come standard.

D1 is our premium line of suspension forks. Hand built with all the features and performance you’ve grown to expect from DVO. The D1 system is based on the proven diamond damping design featuring a compression bladder and full shim stack controlled dynamic damping.

High/ low-speed compression, rebound and externally adjustable OTT features all come standard with the D1 line. This is available on Sapphire 34, Diamond, and Onyx Series forks.

2019 DVO Sapphire D1

The all new Sapphire D1 gets upgraded to 34mm stanchions, stiffer chassis, and more progressive air spring.

DVO Sapphire 34 2019

DVO's Sapphire comes with a 34mm stanchion option for 2019.

The new Sapphire D1 is bigger and better—simple as that. A new chassis design utilizes 34mm stanchions and a stronger casting design to keep up with today’s demanding riding standards. A slightly modified air spring provides an extremely supple beginning stroke, improved mid-stroke support, and a progressive end for control on the big hits. Combine that with the proven damping features and characteristics of the Diamond, this fork is the new standard.

Quick Spec:

  • Travel Range: 27.5 = 130–150mm 29 = 120–140
  • Crown: 27.5 = 42mm offset / 29= 44mm offset
  • Stanchions: 34mm Tapered Alloy
  • Wheel Size: 27.5 and 29
  • Color Options: Green, Blue and Black

2019 DVO Onyx SC D1

This is the Onyx SC D1. At 180mm of travel, this is our top of the line enduro race fork.

DVO Onyx SC

DVO expand the Onyx line to their single crown fork range.

The little brother to the Onyx DC, this is the Onyx SC D1. At 180mm of travel, this is our top of the line enduro race fork. Featuring the proven D1 damper, high/low-speed compression, rebound, and externally adjustable OTT. With 36mm stanchions and our stiffest chassis yet, charge hard into the roughest sections with confidence.

Quick Spec:

  • Travel Range: 27.5 = 160–180mm 29 (coming soon) = 160–180mm
  • Crown: 27.5 = 42mm offset 29= 44mm offset
  • Stanchions: 36mm Tapered Alloy
  • Wheel Size: 27.5, (29 coming soon)
  • Color Options: Green, Blue and Black

2019 DVO Onyx DC D1

The long-awaited Onyx DC D1 is here. Tested and proven on the World Cup circuit with the Giant Factory Off Road Team.

DVO Onyx DC

DVO's new dual crown fork is the Onyx DC D1.

We went to the basics and took years of rider feedback to create a fork that was performance oriented and user-friendly. The Onyx DC D1 is fully loaded with high/low-speed compression, rebound, OTT, and our new AVA system. Learn about AVA below.

Quick Spec:

  • Travel Range: 203mm
  • Crown: 48mm offset
  • Stanchions: 36mm Tapered Alloy
  • Wheel Size: 27.5
  • Color Options: Green, Blue Black
  • Retail Price: 1,850.00 USD

DVO Advanced Volume Adjust (AVA) System

Advanced Volume Adjust (AVA) is a new feature for us. It allows the rider to change the height of the air piston and control end stroke progression.

DVO AVA

Using a 32mm socket or open end wrench, remove the AVA unit from the top of the stanchion, remove or insert the volume clips on either side of the piston. Put a clip on top and the fork becomes more progressive. Put a clip on the bottom and achieve more travel.

Rémy Métailler Testing the AVA System

Rémy Métailler in Whistler B.C. Rémy played a huge role in the development of the new Onyx DC.


New DVO Topaz 2 Rear Shock

The Topaz 2 is our newest shock from collaborating in the partnership with Giant Bicycles. The shock features an optimized air spring suited to Maestro Suspension kinematics. We also updated the reservoir to a transverse design to aid with oil flow.

The Topaz 2 is available in metric trunnion sizes as an upgrade to your Giant Bicycle.

Quick Spec:

  • 3 Position Compression
  • Dynamic Rebound Adjust
  • Pos./Neg. Volume Adjust
  • Bladder Pressure Adjust
  • Retail Price USD: $500.00

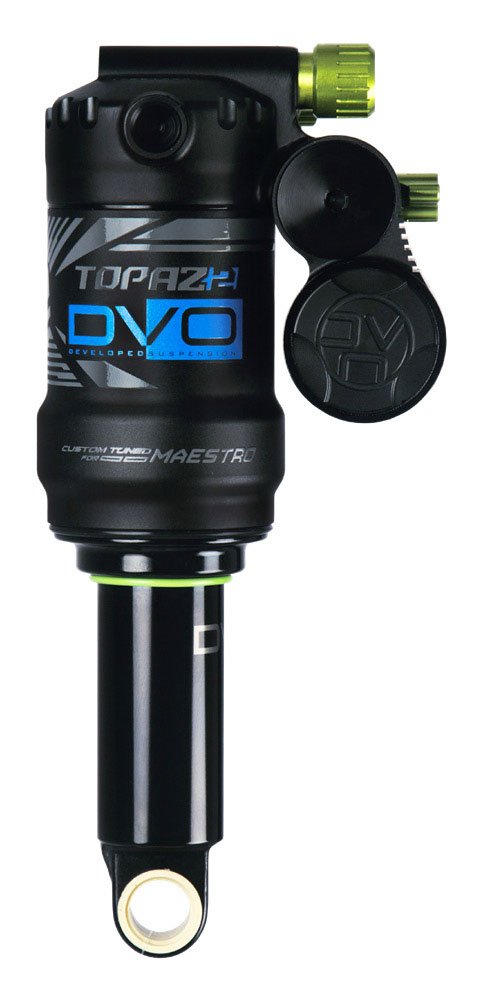

DVO Taqaz 2 Shock

DVO's new Topaz 2 rear shock

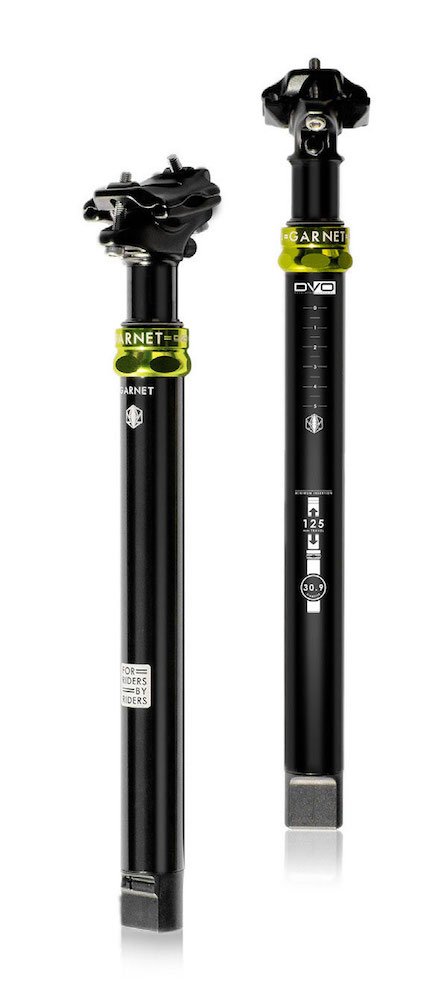

DVO Garnet Dropper Post

The updated Garnet dropper post

Updated DVO Garnet Dropper Post

The Garnet Dropper has been a very successful post for us. Making sure the durability was at the forefront in design, this is the most reliable dropper on the market.

For the updated version, we listened to our customers to create a better overall dropper post. The updated Garnet features reduced weight, a shorter overall length, countersunk seat head bolts, and a low profile easy access air valve.

Quick Spec:

  • Actuation: Cable Remote
  • Infinite Adjustment
  • Diameters: 30.9 or 31.6
  • Length: 445mm at 125mm Travel
  • Travel: 100mm, 125mm, 150mm
  • Retail Price: 399.00 USD


About DVO Suspension

DVO Suspension is 100% designed, engineered, tested, and proven in the USA for riders by riders. We base all our designs from an Intelligent Engineering perspective which means we build it with the consumer in mind in regards to tuning, ease of servicing, cost of spare parts,  manufacturing, reliability, and ultimate performance. Combined, we offer over 80 years of high-end suspension building and design experience.

To get the full details on our entire 2019 range please visit: dvosuspension.com
