DREAM BUILDS

Alex Sinanan's Geometron G-1

Words Deniz Merdano
Photos Deniz Merdano
Date Jul 16, 2021
Reading time
Presented By
Ride Wrap logo.png

Dream Builds is a new series that highlights two-wheeled passion projects among our fellow riders. Turning a Dream Build into a reality takes time, passion, and commitment. The folks at RideWrap want to help you protect your own Dream Build because it's an investment. If you've got a bike that fits the series, we'd love to feature it, and give you a chance to win a Tailored Protection Kit from RideWrap. You can submit your Dream Build photos in one of two ways:

Send us some photos and a description of your build. Make sure to include 'Dream Builds' in the subject line.

Or simply post a few bike photos and details to Instagram and use the hashtags #dreambuilds and #nsmb.

We'll pick two winning submissions and feature them on the site. The two winners will get a Tailored Protection Kit, courtesy of RideWrap.


Hi Alex, tell us a little about yourself and your riding history.

I’ve been riding since the early 90s. I grew up in Toronto when high end bikes were barely a thing. I grew up around a shop called Cycle Logic that was one of the first shops in Canada to carry early exotic brands like Pace, Ibis, Specialized, Moots, Merlin, Whiskey Town and Bridgestone. That shop exposed me to early technical riding, such as it was in Toronto at that point. I ultimately moved to BC for university and to continue riding! The bike I brought with me to BC was a custom bike from Toronto called a Cameron. It was made by hand by a retired aeronautical engineer/toolmaker. He made every single part on that bike by hand except for the shock. It was a really cool bike but it didn’t last long in BC. Fun fact: Andrew Major met this bike at UVic around that time in the late 90s.


The ultra adjustable Geometron

I love riding here in the S2S. I love big climbs and steep technical descents. I’d say I do most of my riding on the Shore and Eagle and now that COVID restrictions are lifting I have a lot of catching up to do in the Fraser Valley, Squamish and Whistler valley trails. Whistler west side trails are my perfect trails.

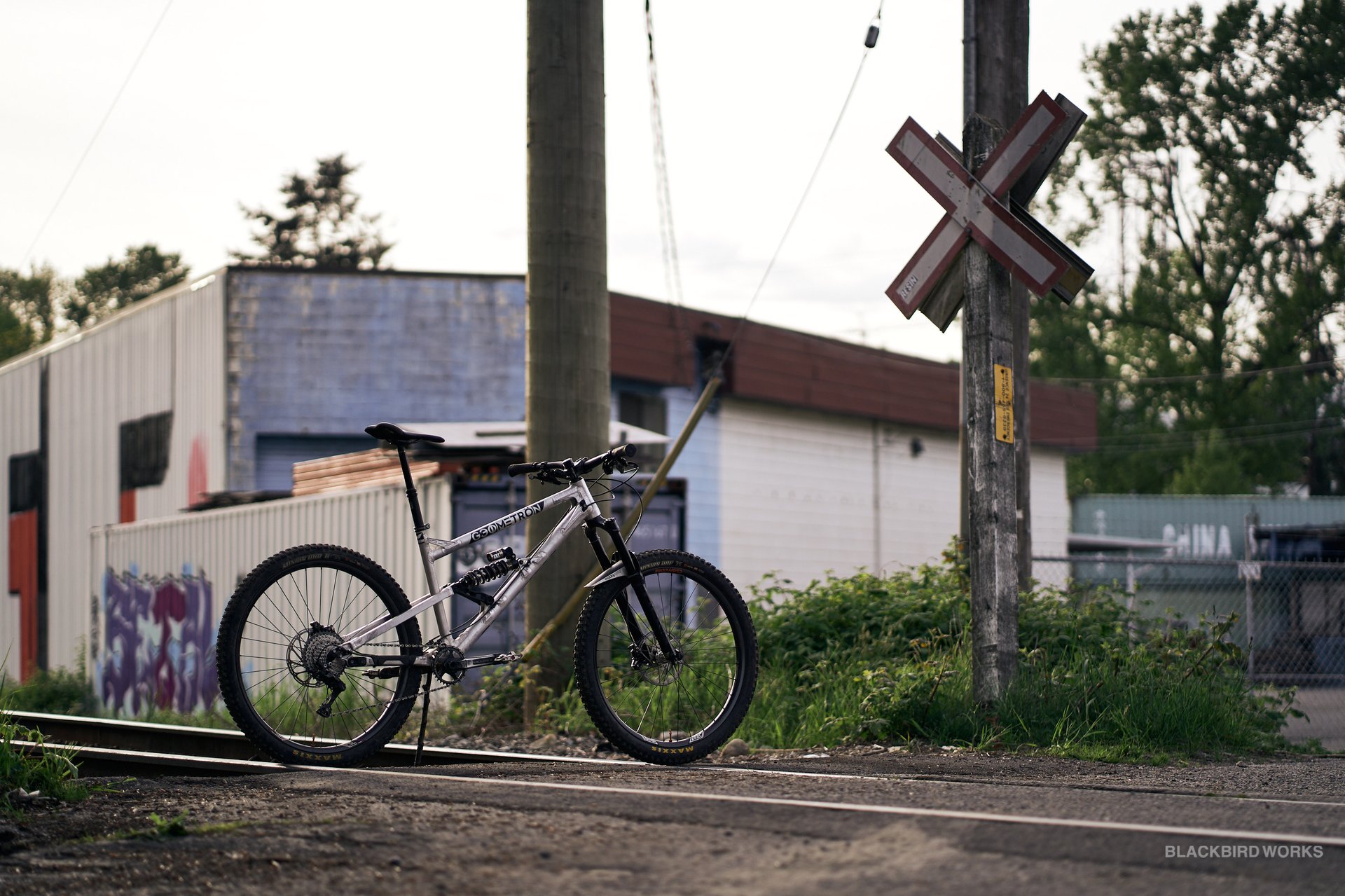

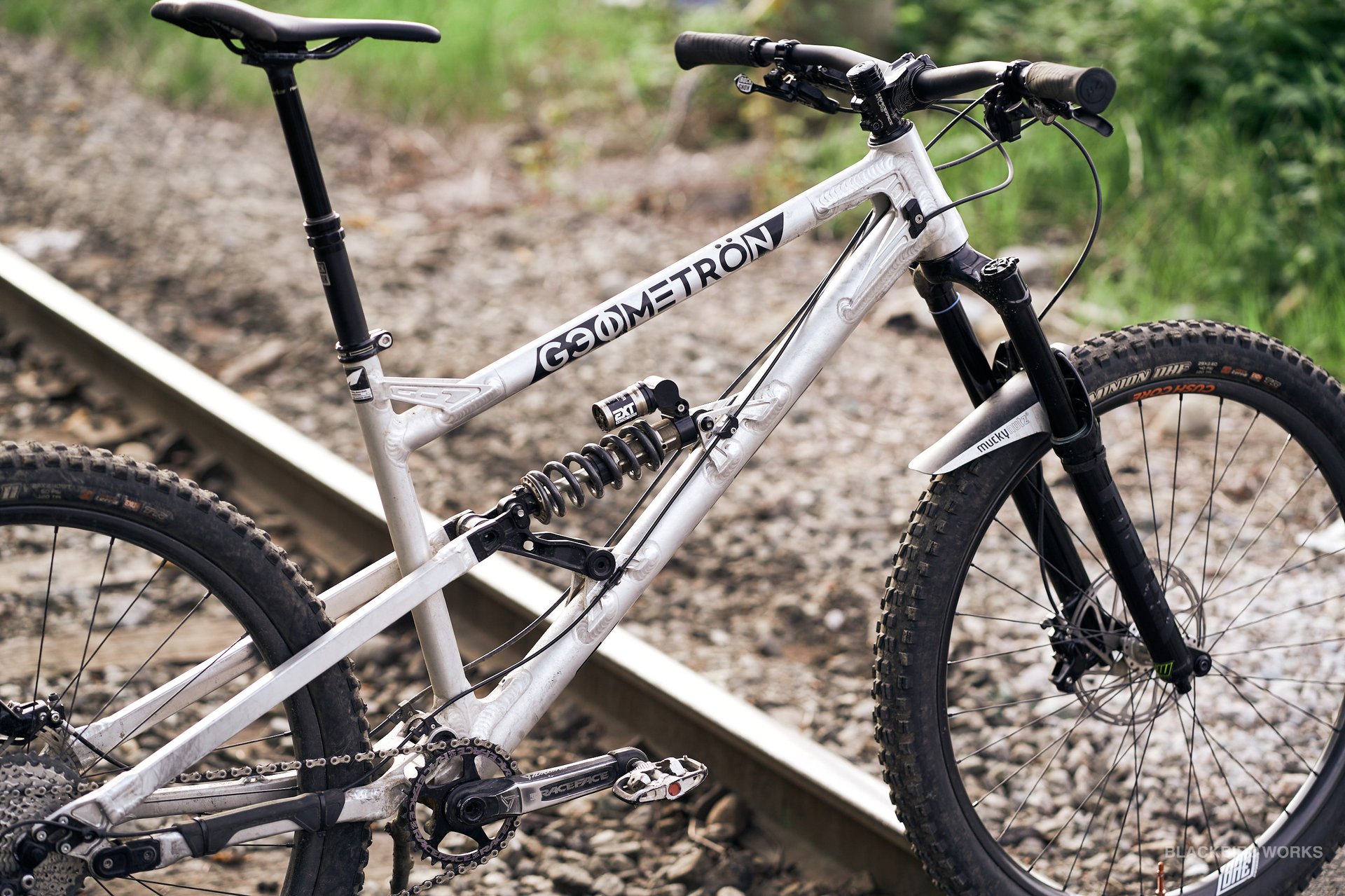

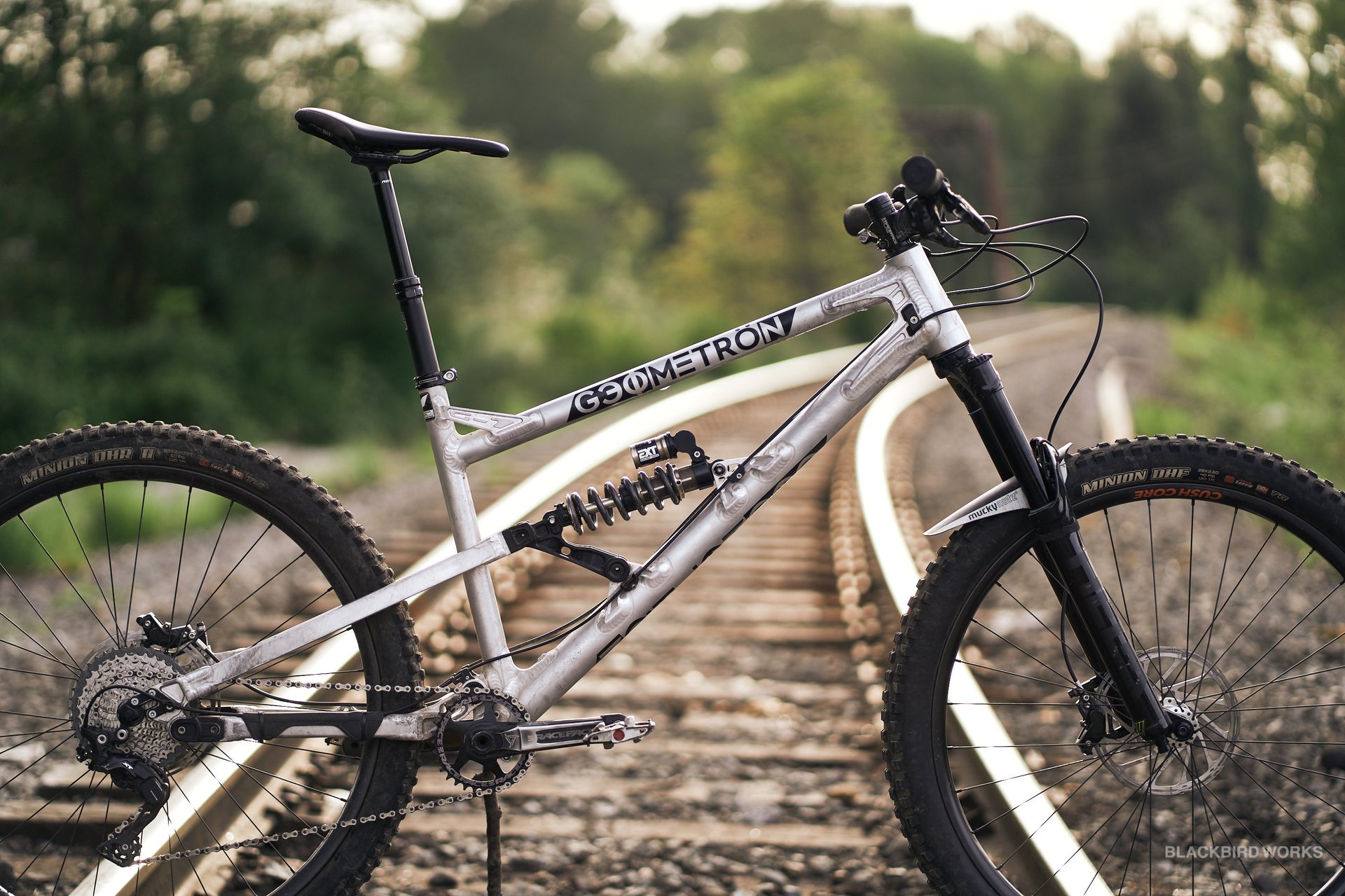

2020 Geometron G1 XL

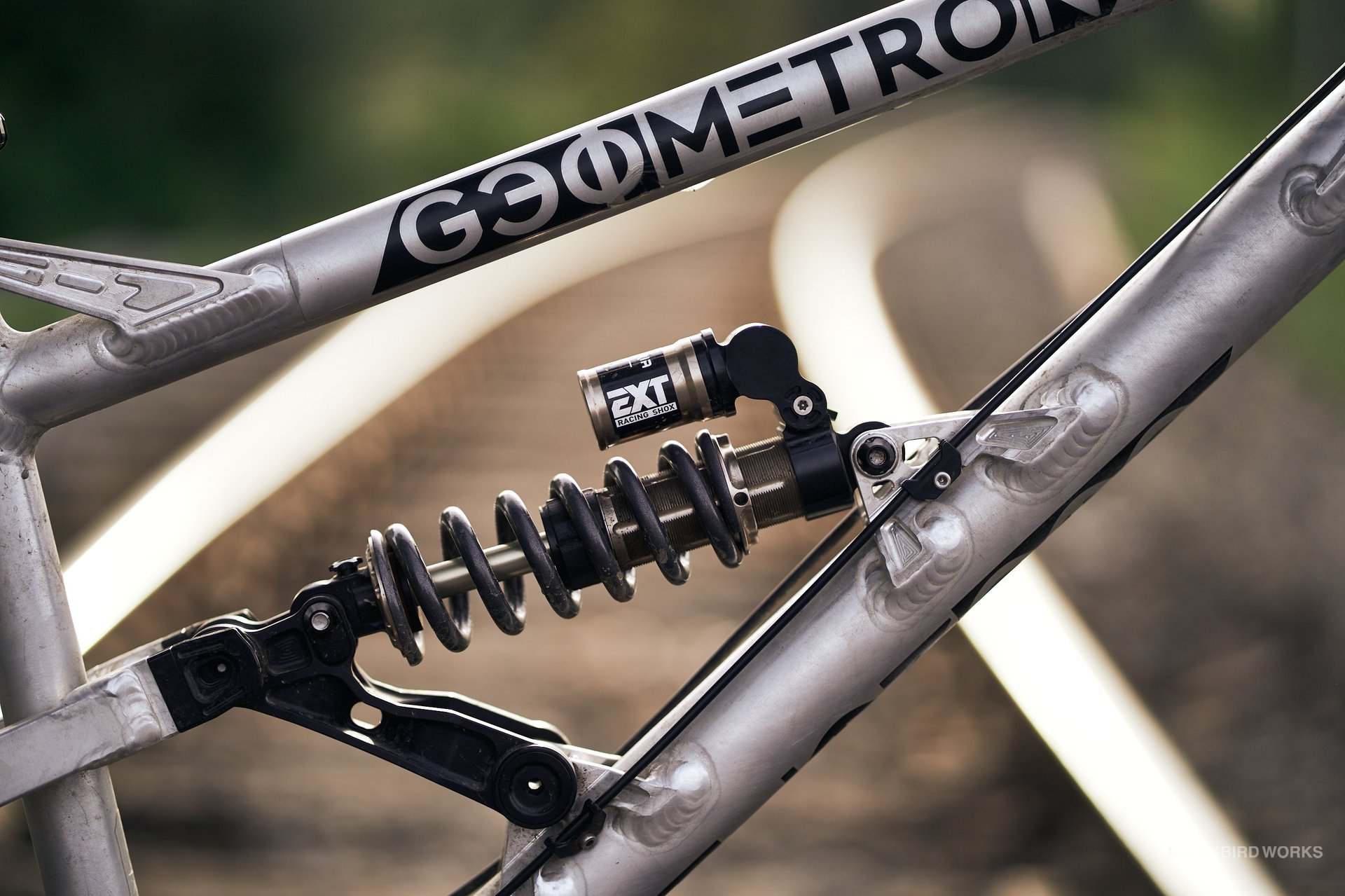

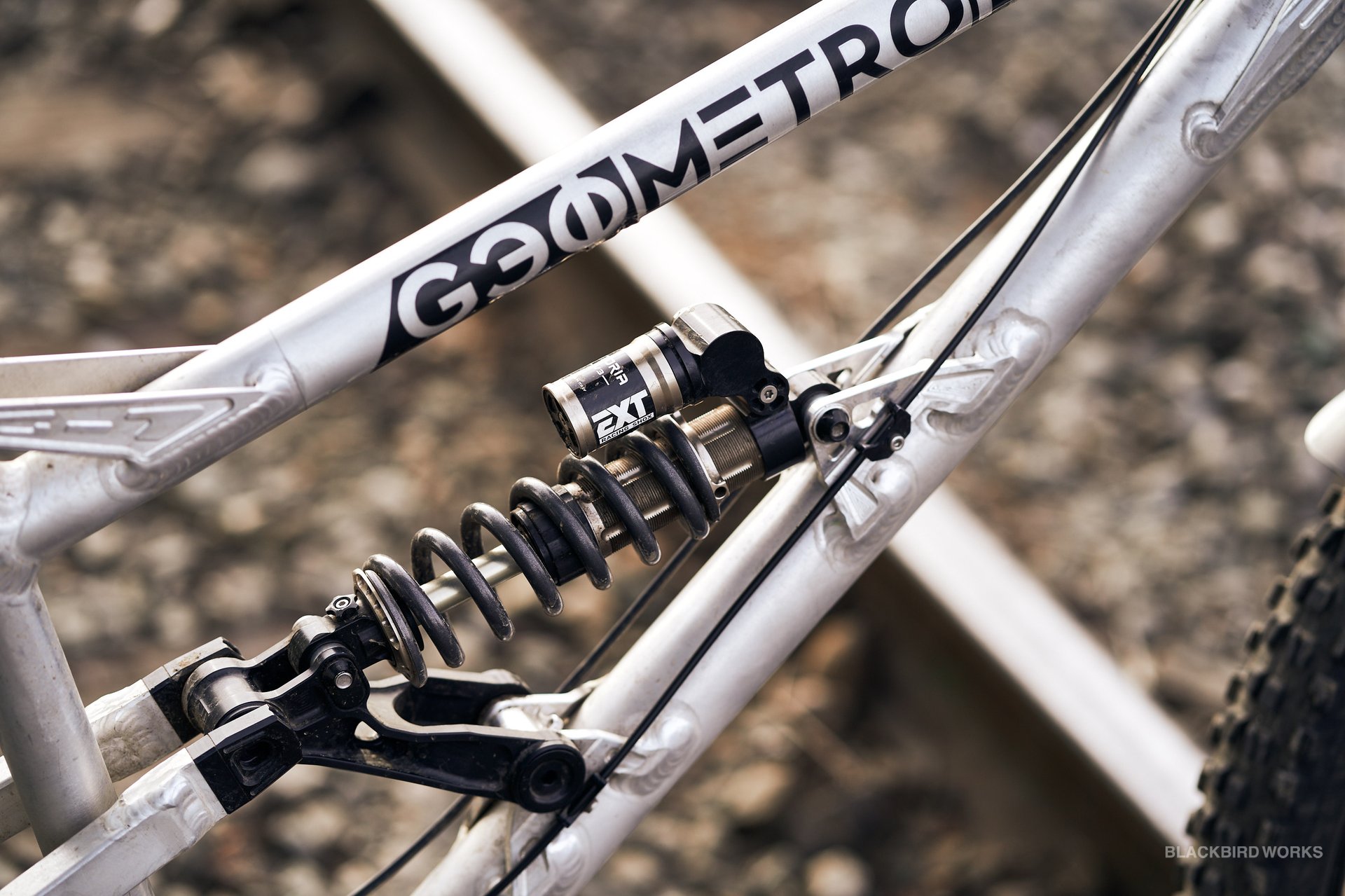

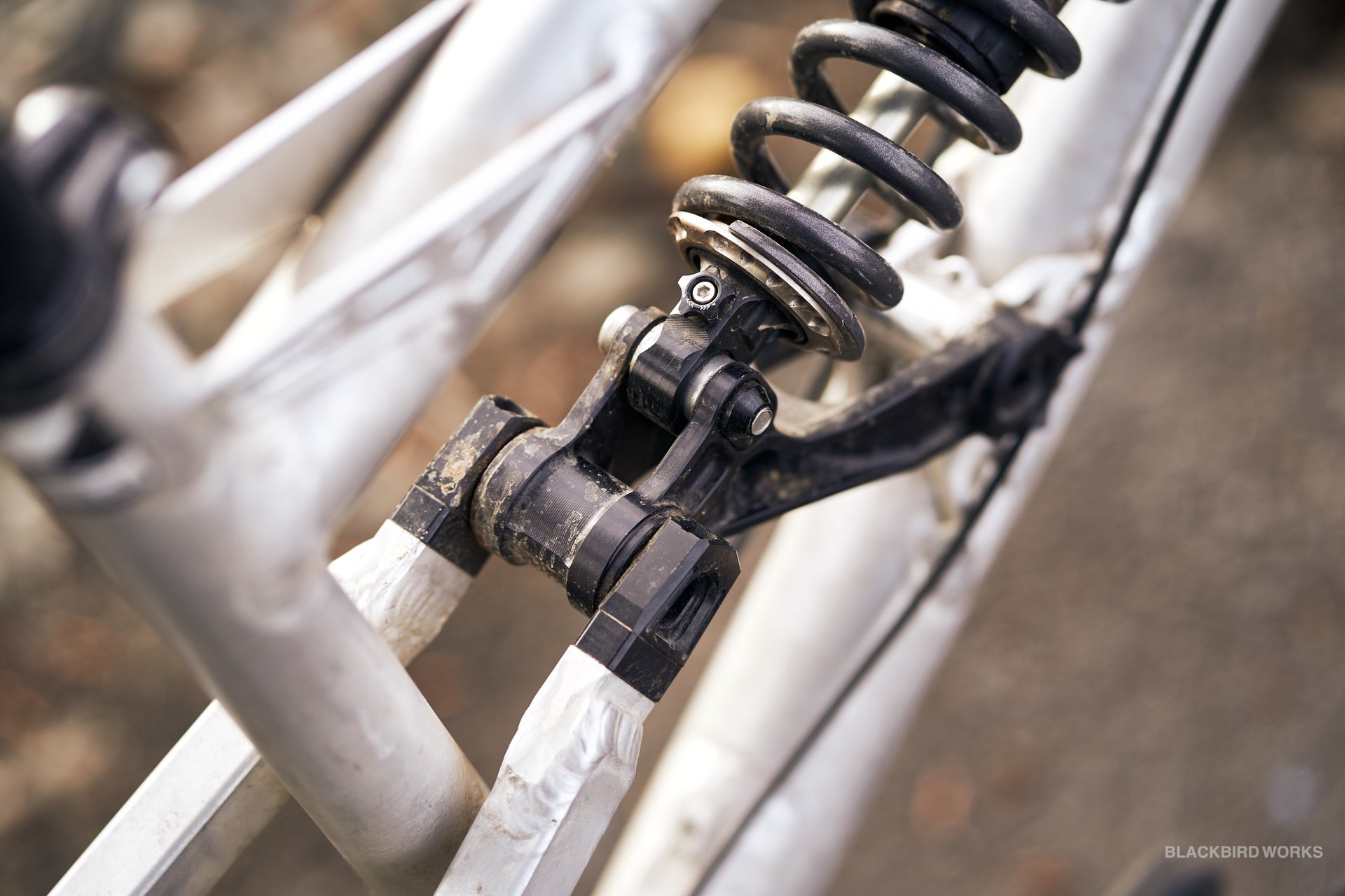

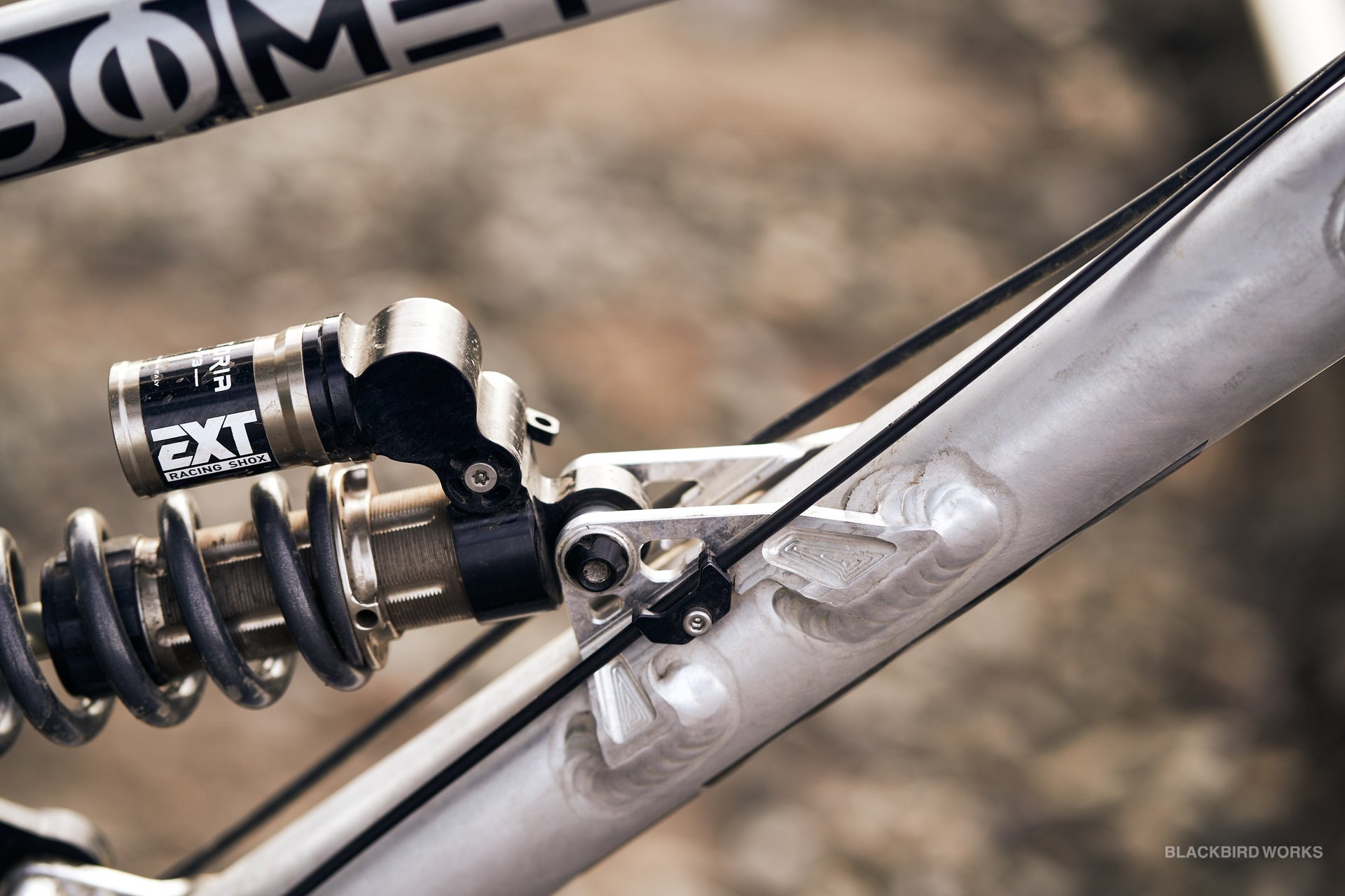

no messing around.. EXT Storia shock

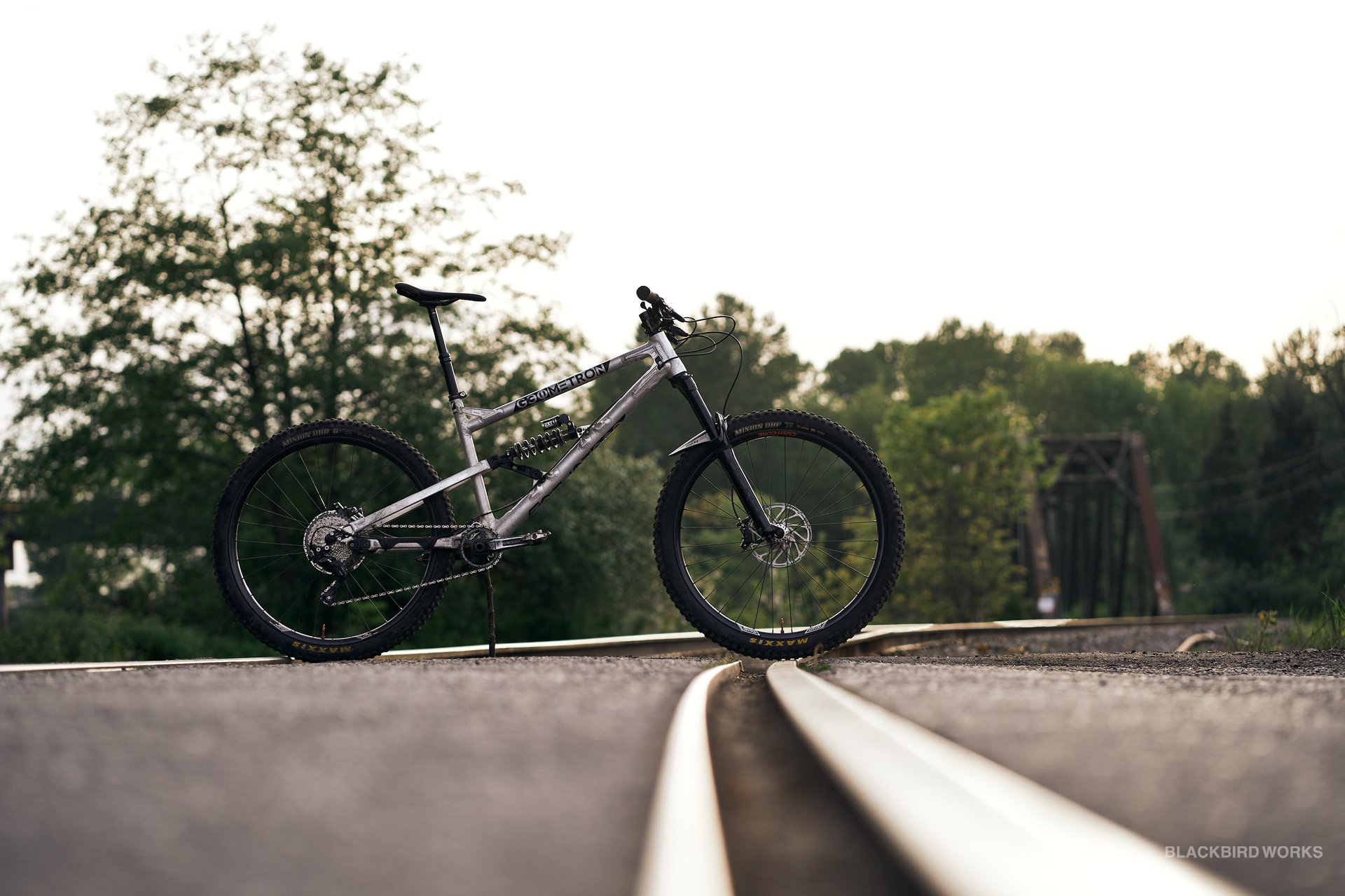

Rare, yet familiar beast in this part of the world



What is your bike stable and history like? What was the path that led you to the geometron?

I’ve tried having multiple bikes but I always end up wishing I had brought the other bike. My G1 is set up as a super aggressive climbable monster descender - it’s perfect up and down the S2S corridor. My current stable includes the G1, a progressive Ti hardtail and a Ti gravel bike. I spent most of last year exclusively on the hardtail but now I ride pretty much just the G1 and the gravel bike.

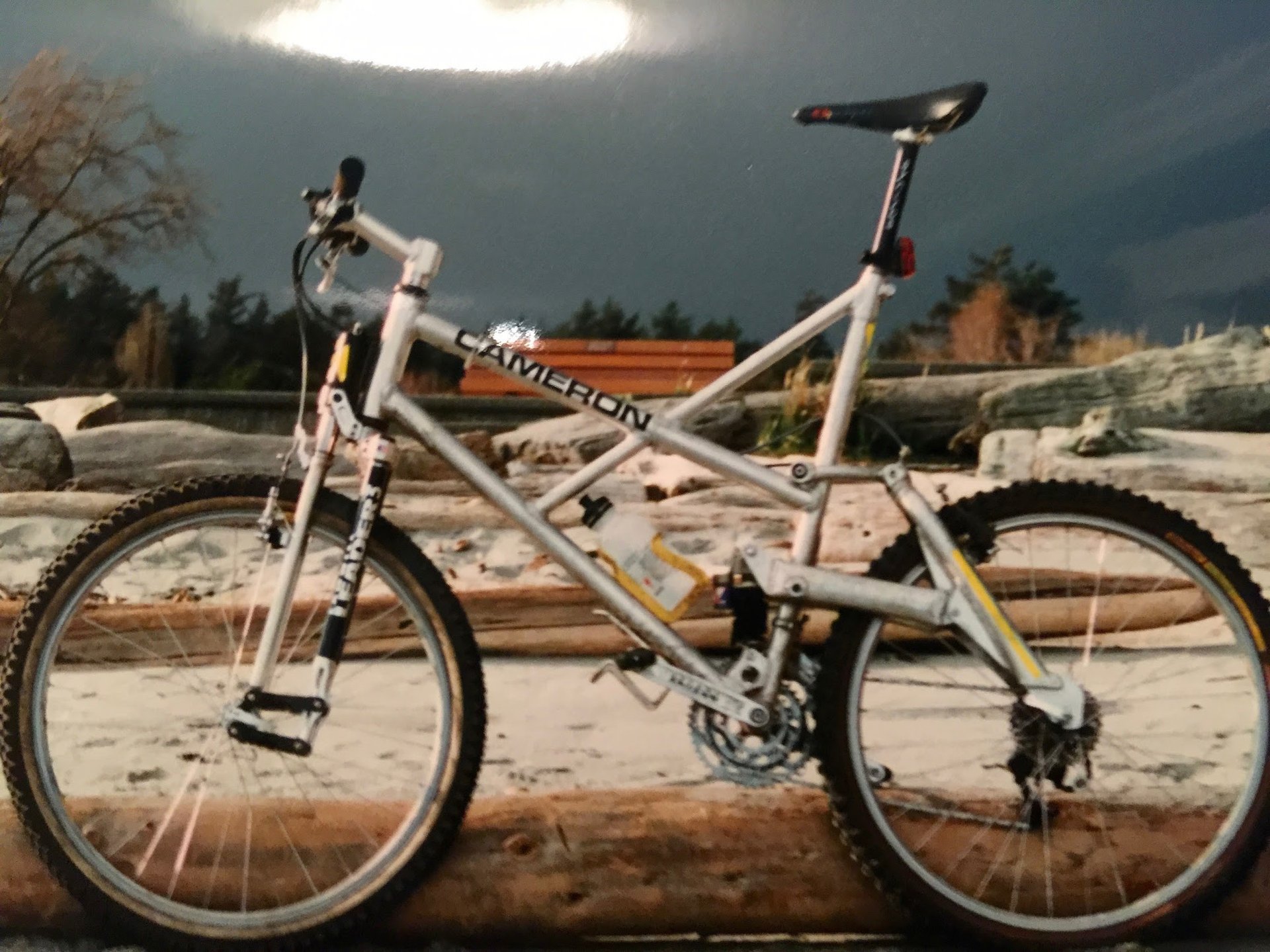

In the 90s I had a bunch of early hardtails like a Ritchey Ascent Comp and a Bridgestone MB1. Like a lot of us I went through a slew of bikes as riding evolved in the late 90s and beyond. Broken BBs, disc brakes, bigger heavier tires, early suspension, etc. I was always the alpha bike nerd in my riding circles. I went from the Cameron to a Psycle Werx Wild Hare with a Hanebrink fork (ultimately switched to a White Brothers UD150). I ran that Hanebrink on a Rocky Mountain Reaper hardtail frame for a while. The best of the bunch was a Turner RFX with a Stratos MX6.

That was a different time which younger riders might find hard to appreciate. Production bikes were woefully inadequate. The boutique bikes were expensive, finicky, inconsistent and very hard to keep running and the DH bikes that had the travel we needed were focused on racing not on pedalling or surviving slow speed big impacts. It was normal to have a major mechanical and at least one flat tire per ride.

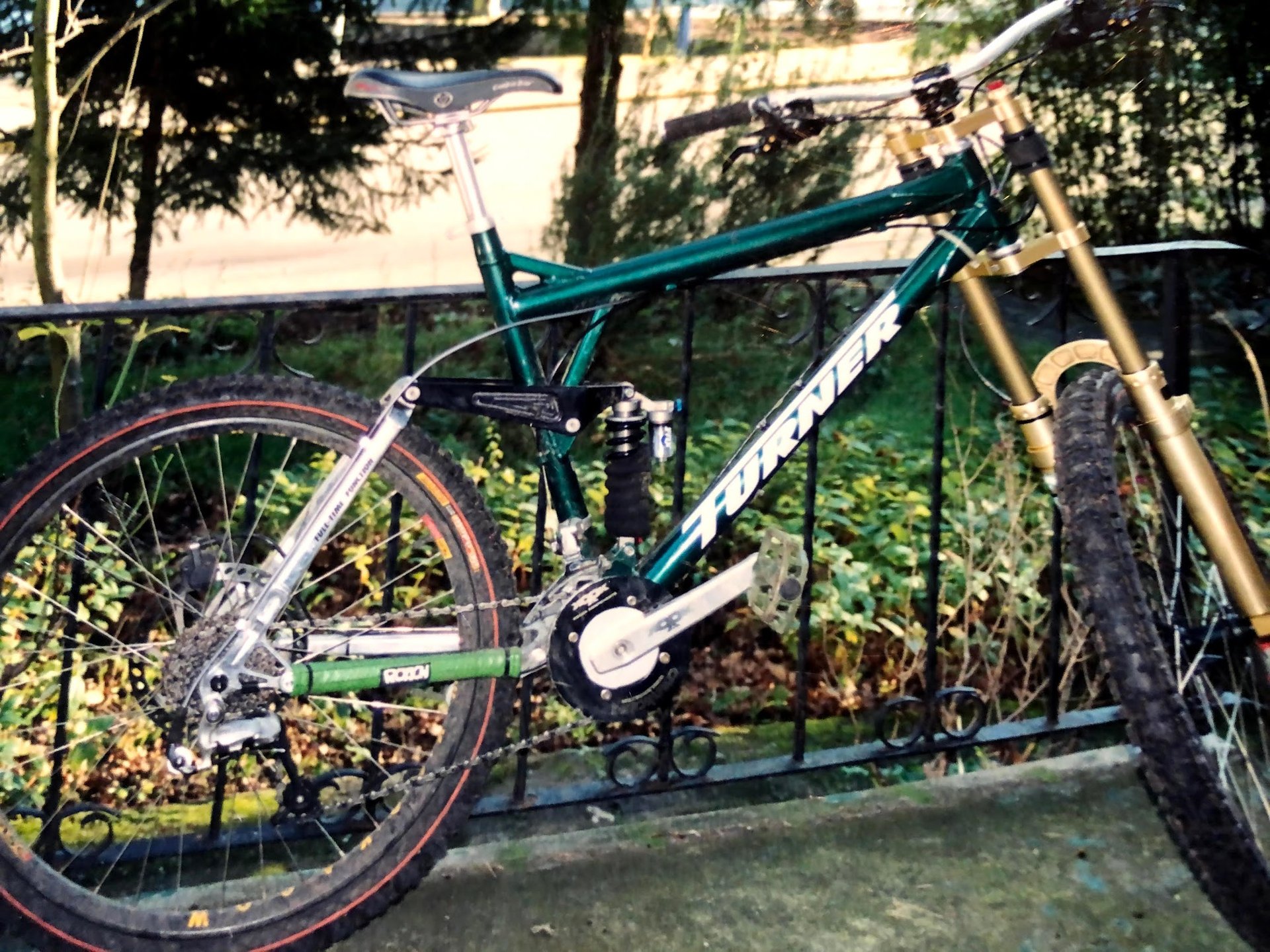

I sold the Turner just in time to get one of the first generation Knolly V-Tachs around 2004 or 2005. I had a couple of other Knollys which I absolutely loved but I sought out an Enduro S-Works 26” around 2011 that had a tall head tube and steep seat tube and I never looked back.

I flipped from the latest most progressive big guy bike to the next until I finally acknowledged that they were all too damn small and committed to a Geometron G16. I loved the G16 but I had many of the same issues AJ had with it. The G16 was so close; the G1 was everything the G16 wanted to be.

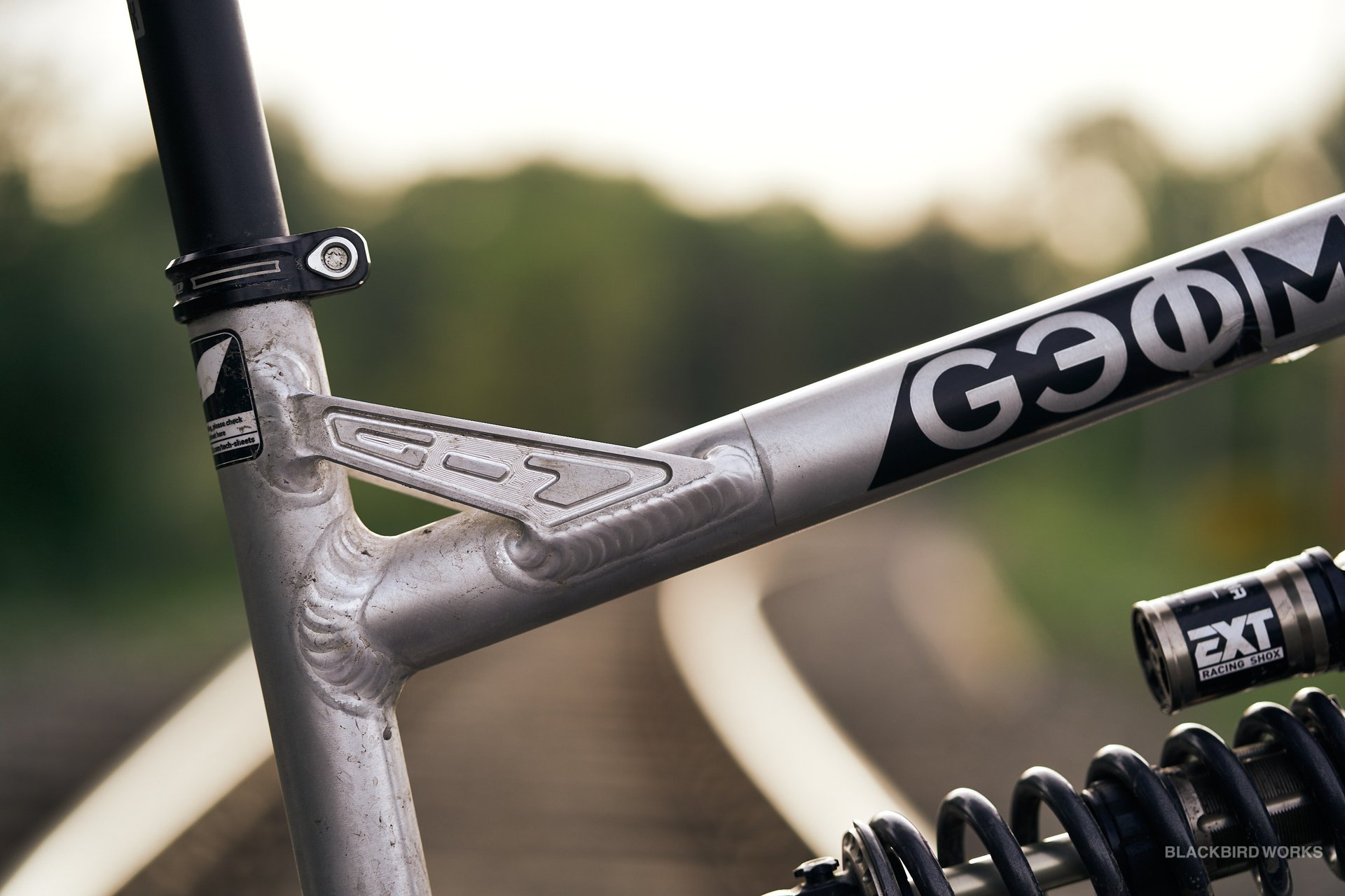

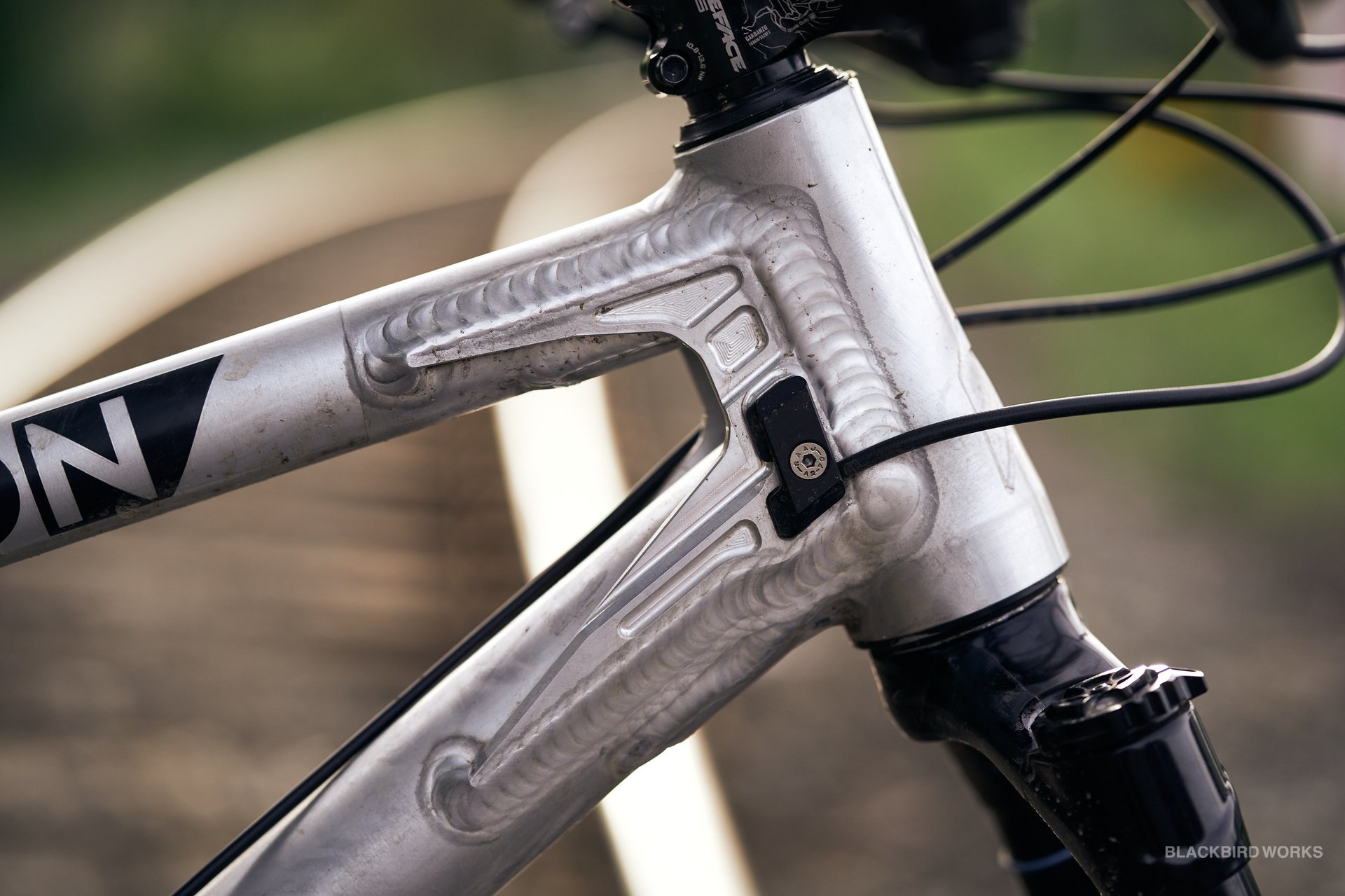

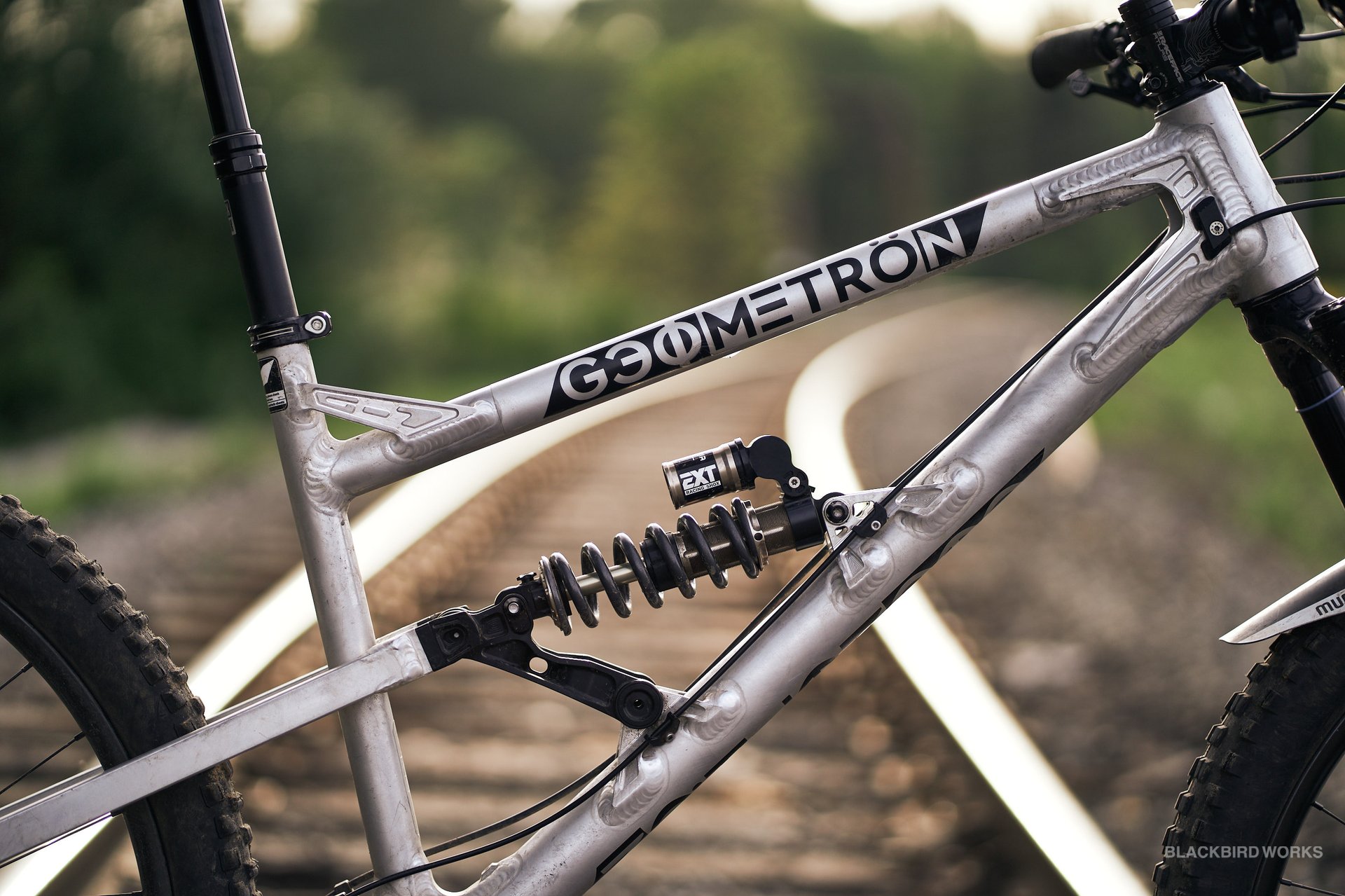

what do we think of these welds?


::drool::

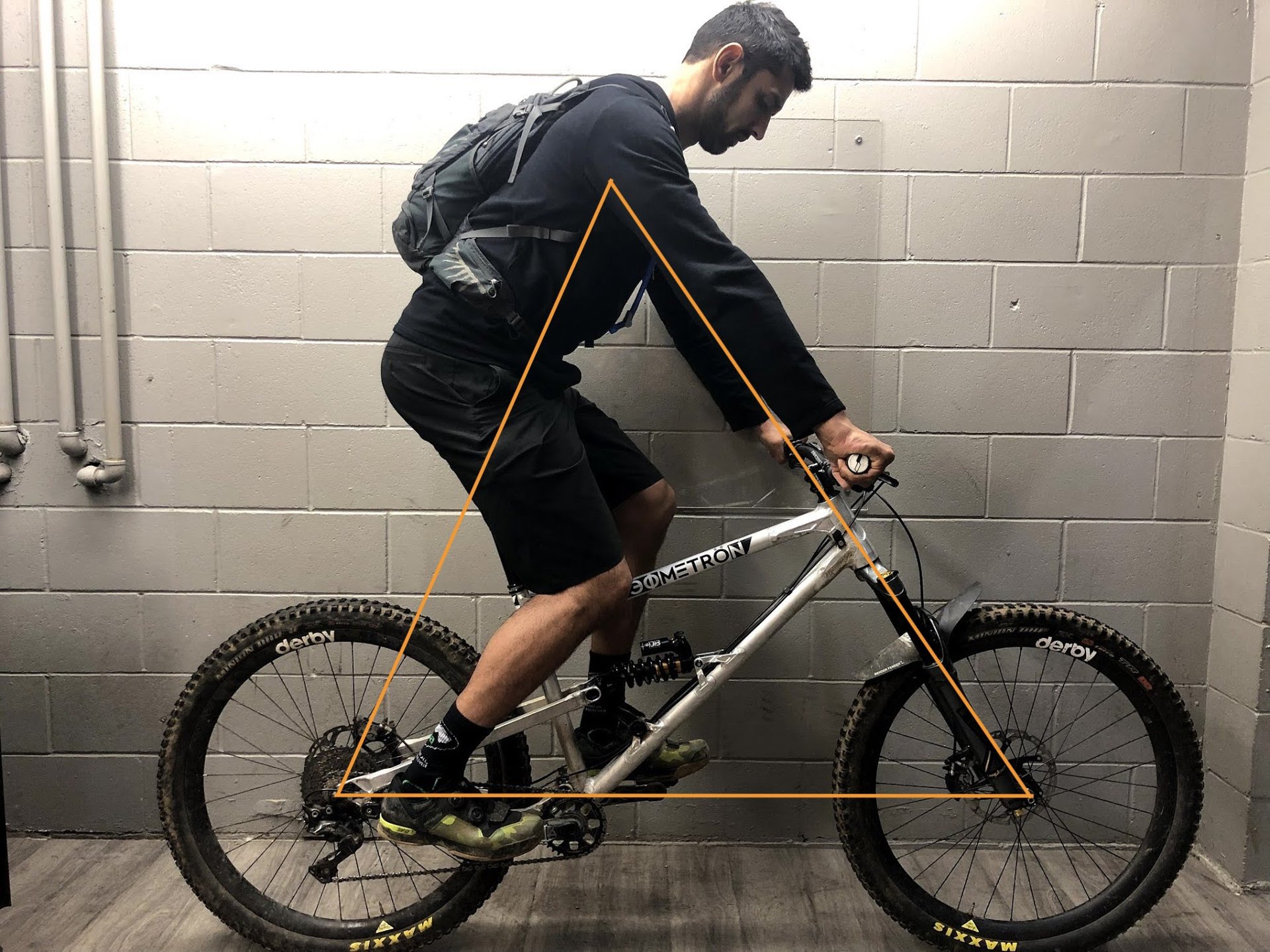

What makes a good bike geometry?

The big realization is that production bicycles generally fit people up to about 6’3”. Most bikes are optimized for M-L riders and everyone else has to make do with compromises because companies don’t want to go the extra mile to ensure that bikes actually fit. I think that’s unacceptable for a $6000+ bicycle.

For a taller rider, production bike geometry has always been a huge compromise. You’re either endo-ing downhill because the wheelbase is too short to balance against your high center of gravity or you’re flipping over backwards when climbing because of a rearward weight bias due to slack seat angles and short rear centers. It took a leap of faith to buy a bike that most didn’t understand to solve a problem that few others had. It’s easy to balk at someone making exotic choices when they are sitting right at the apex of the bell curve themselves.

Geometron for a long time was the only company that approached geometry differently: multiple chainstay lengths, varying seat tube angles by size, mutators, taller stacks and an XXL size that was truly monstrous and proportional. I find it amusing that other companies are finally getting on board with this and they’re acting all virtuous, like they weren’t dragged here kicking and screaming by consumer demand.

My G1 is the XL size running the 41mm CS and 10mm SS mutators which yields pretty much the biggest XL bike you can buy from any company.

535mm Reach

63” HA

78” ESTA

452mm CS

25mm BB drop

1330 WB

Generally I leave my bike alone until I notice something is off and then I embark on a process of experimentation but so far that has not been necessary. This configuration works so well that I haven’t even considered swapping mutators. I could definitely set it up more extreme but so far this configuration has been great.

This is the best fitting bike I’ve ever had. It’s the first bike that really truly works for me. I feel like I’m well balanced and centered in the wheelbase and it’s got enough stack that I don’t have to run lots of spacers or a high rise bar.

It’s easy to drive the G1 really hard uphill or down and it’s possible to configure it to do well at both tasks at the same time. It’s the most comfortable climbing position I’ve yet been able to achieve yet still have perfect descending performance. I can climb anything on his bike and it’s an absolute monster on steeps. The only real trick is tight uphill switchbacks. Every climb has that one switchback which only has one arc my bike will fit so I have to be extra precise.

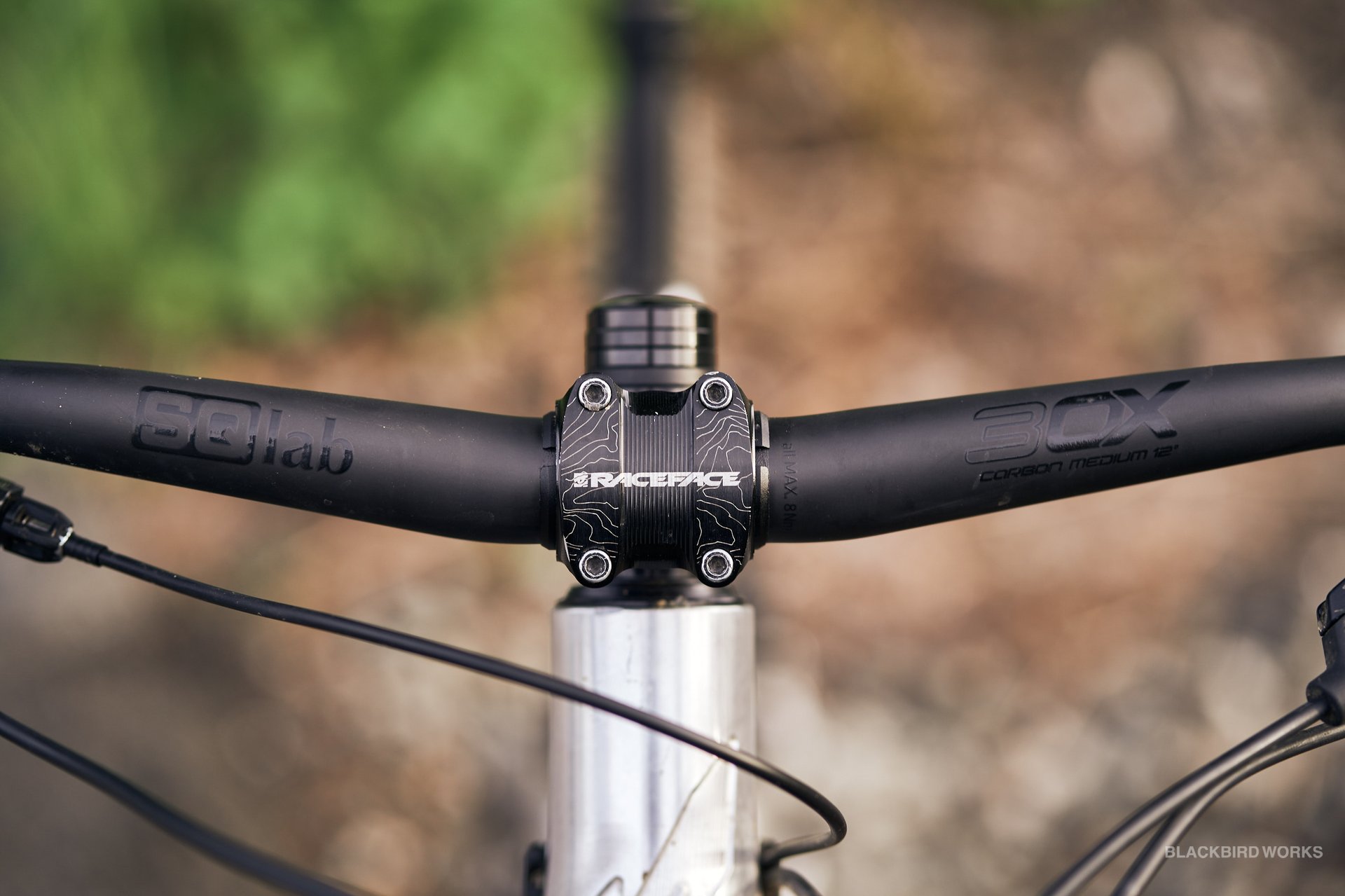

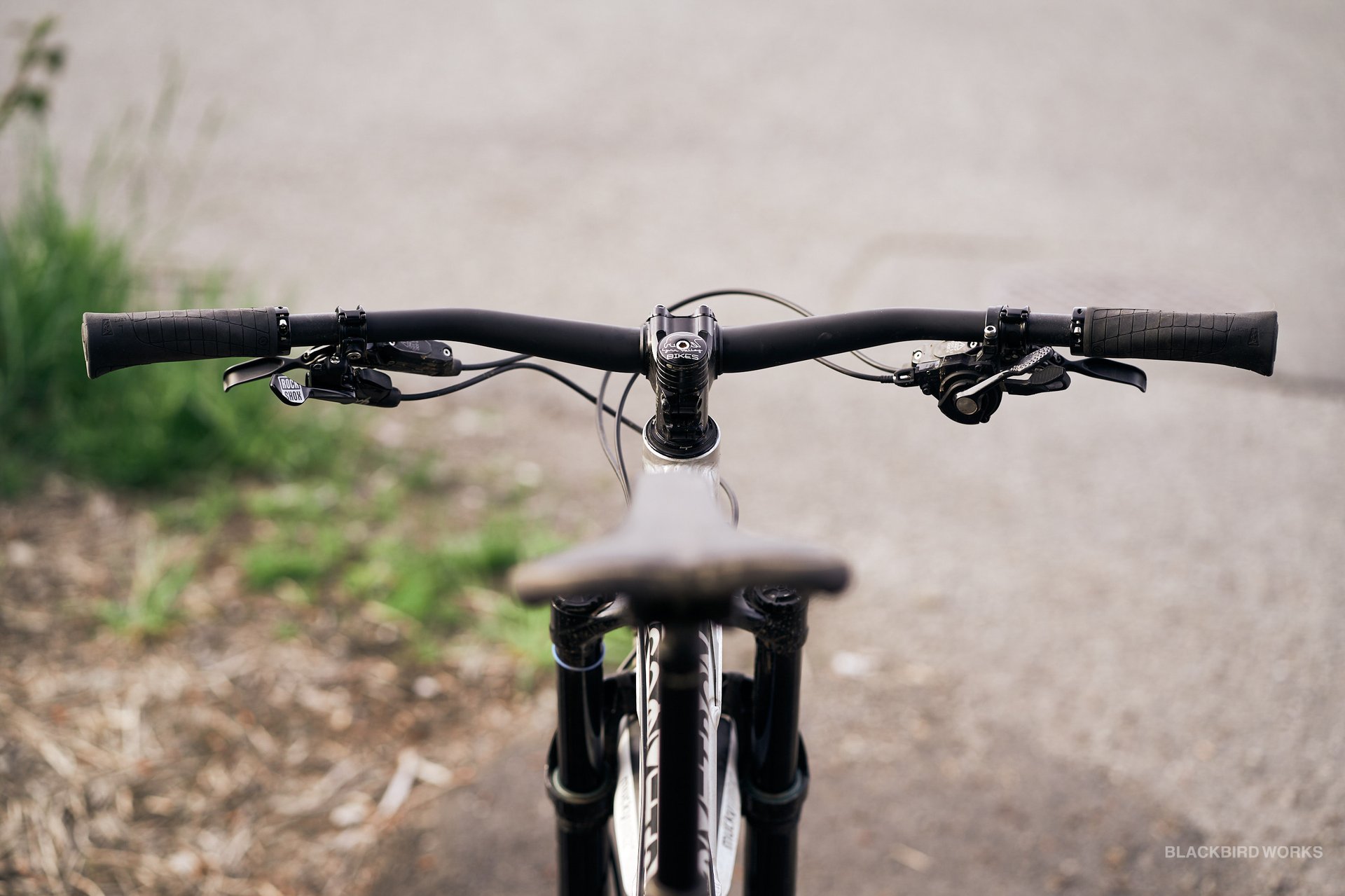

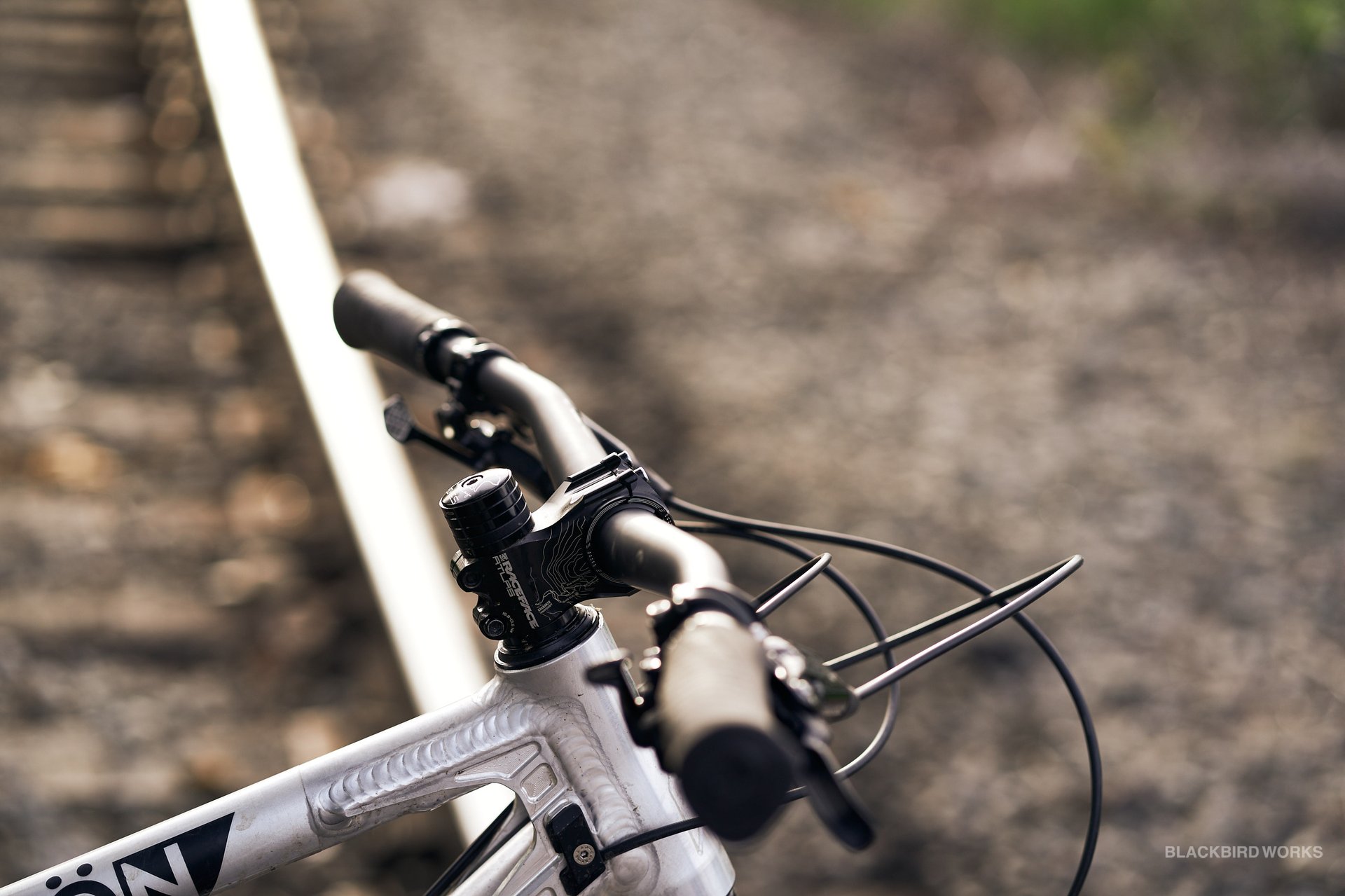

12deg sweep bars

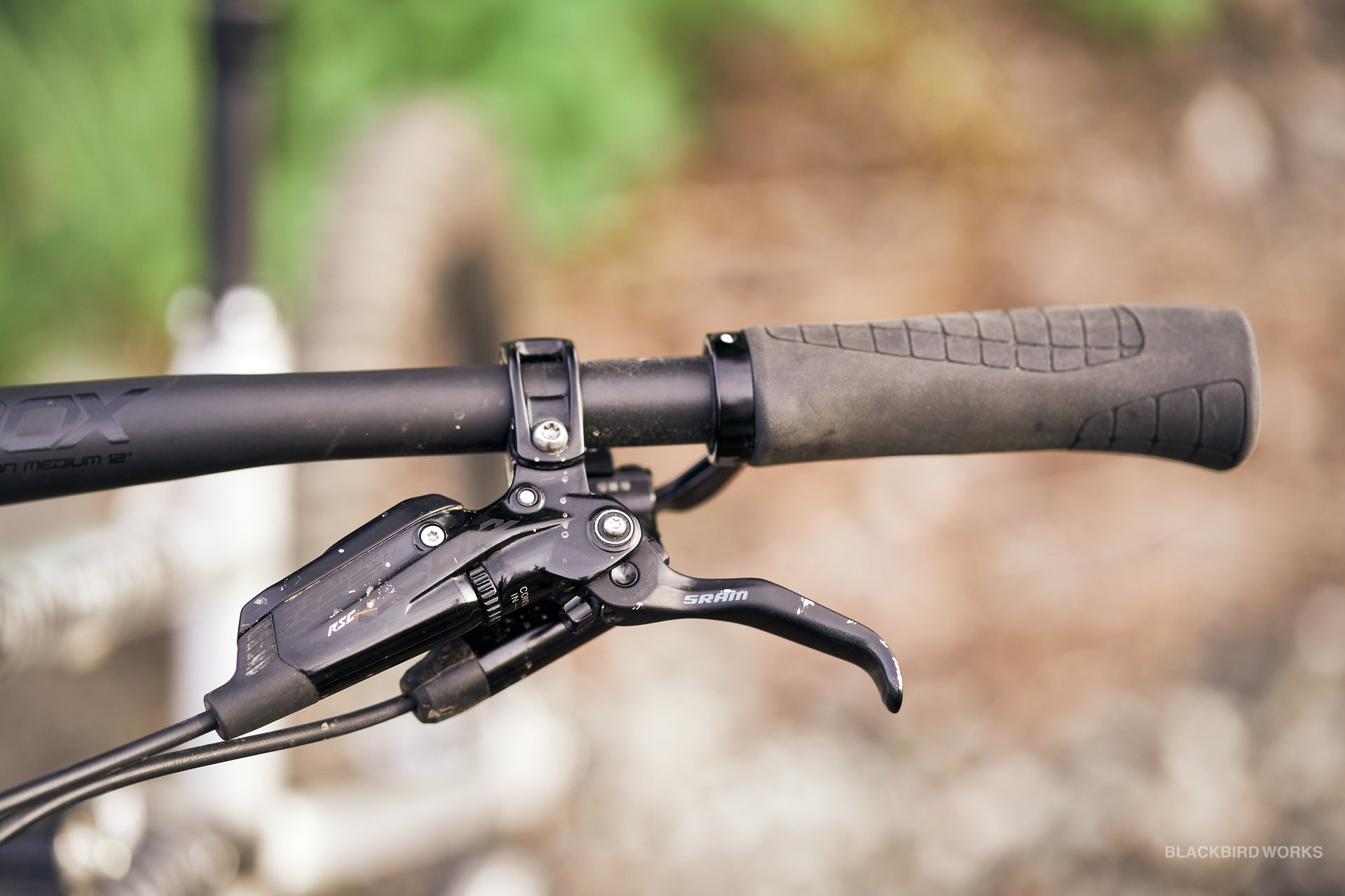

The sweep is evident here

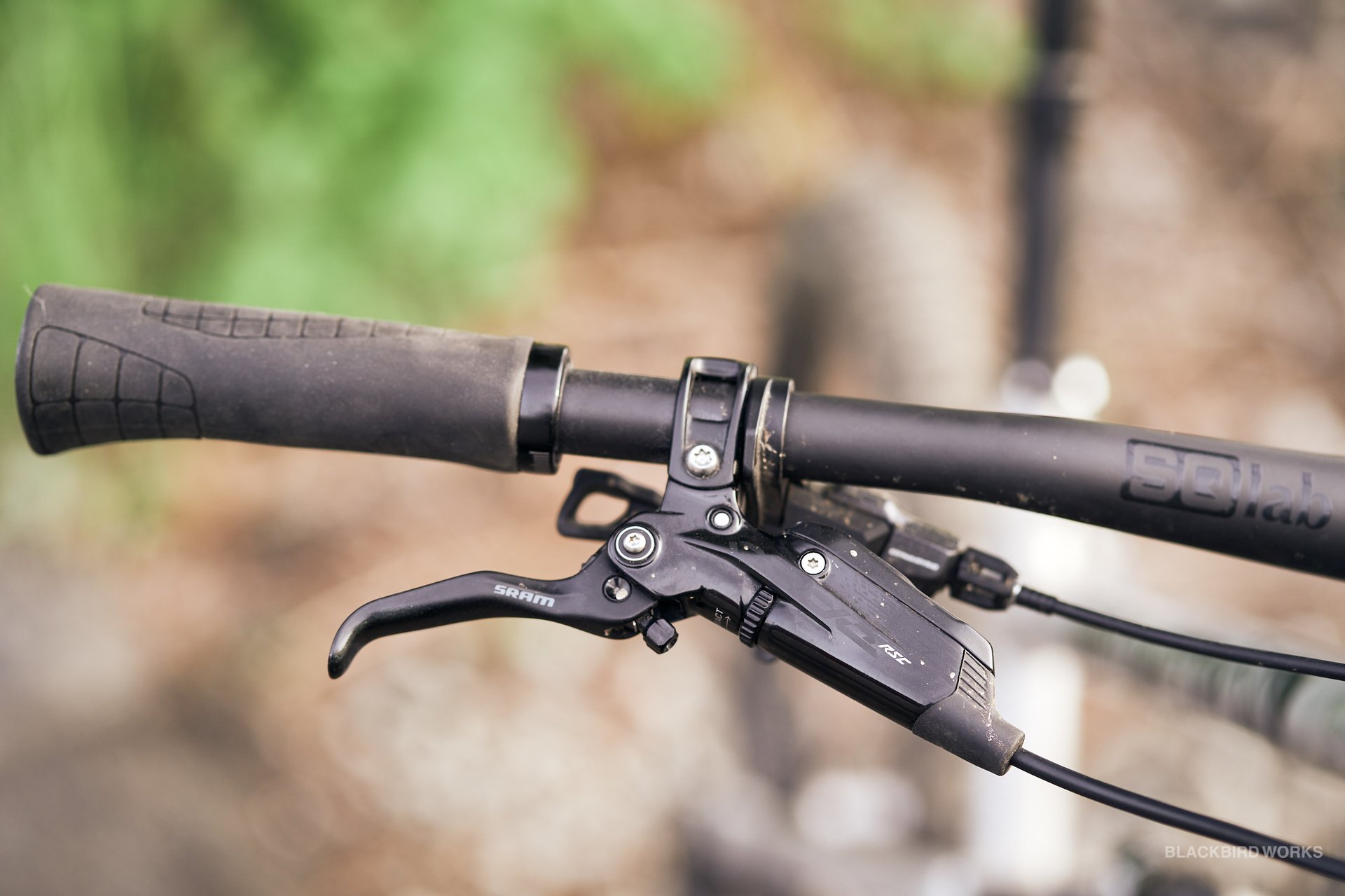

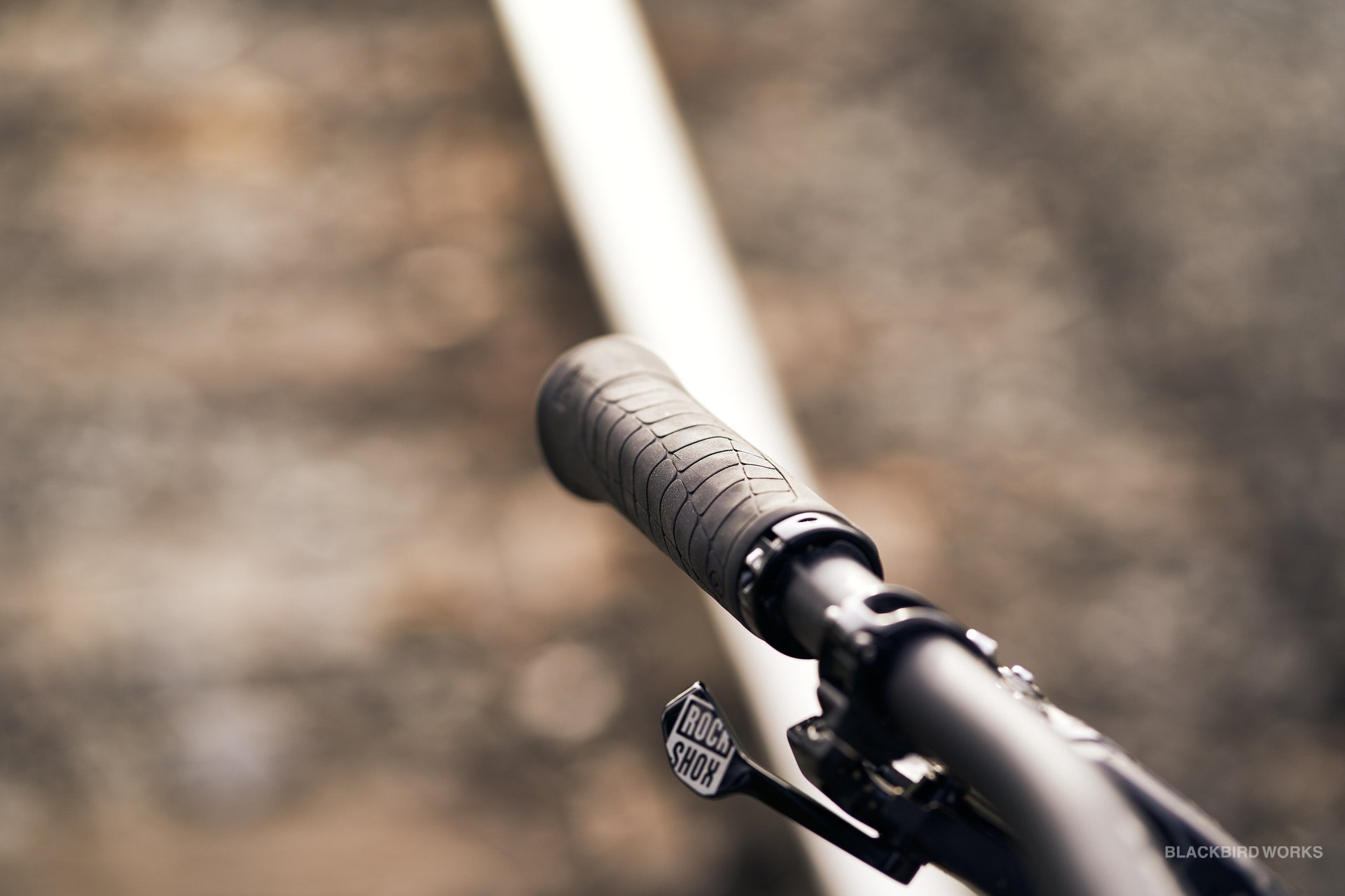

Comfy Ergo grips

Tell us about the Custom Hardtail a little

When I realized I wasn’t happy with my G16 I figured it would be worth trying a progressive HT. Maybe a compliant titanium frame with a big fork and super progressive geometry would give me what I need. Maybe I could just do without the full suspension frame that companies seemed intent on not making.

I did a lot of research and ended up ordering a frame from Waltly in China. I designed the frame from the ground up. I knew that a North American brand could do the same thing but I wanted to learn about hardtail geometry first hand and for the price of a single domestic Ti frame I could get three from Waltly and figure it out for myself. I was tired of people telling me what was supposed to work for tall guys (which always seemed to coincide with what was most convenient for them) so I opted to do it myself.

My Ti hardtail:

63’ HTA

76’ ESTA

630mm Reach

448mm Rear Center

150mm Head Tube

66mm BB drop

I really like the soulful connective vibe of the hardtail but to ride it at the tempo where I get happy requires a lot of focus and physical commitment. Anything I can do on my G1 I can do with my hardtail, but it’s much harder on the body and the margin for error is lower. A cool hardtail is the perfect second/backup bike.

I think it’s good to have an heirloom quality hardtail around.

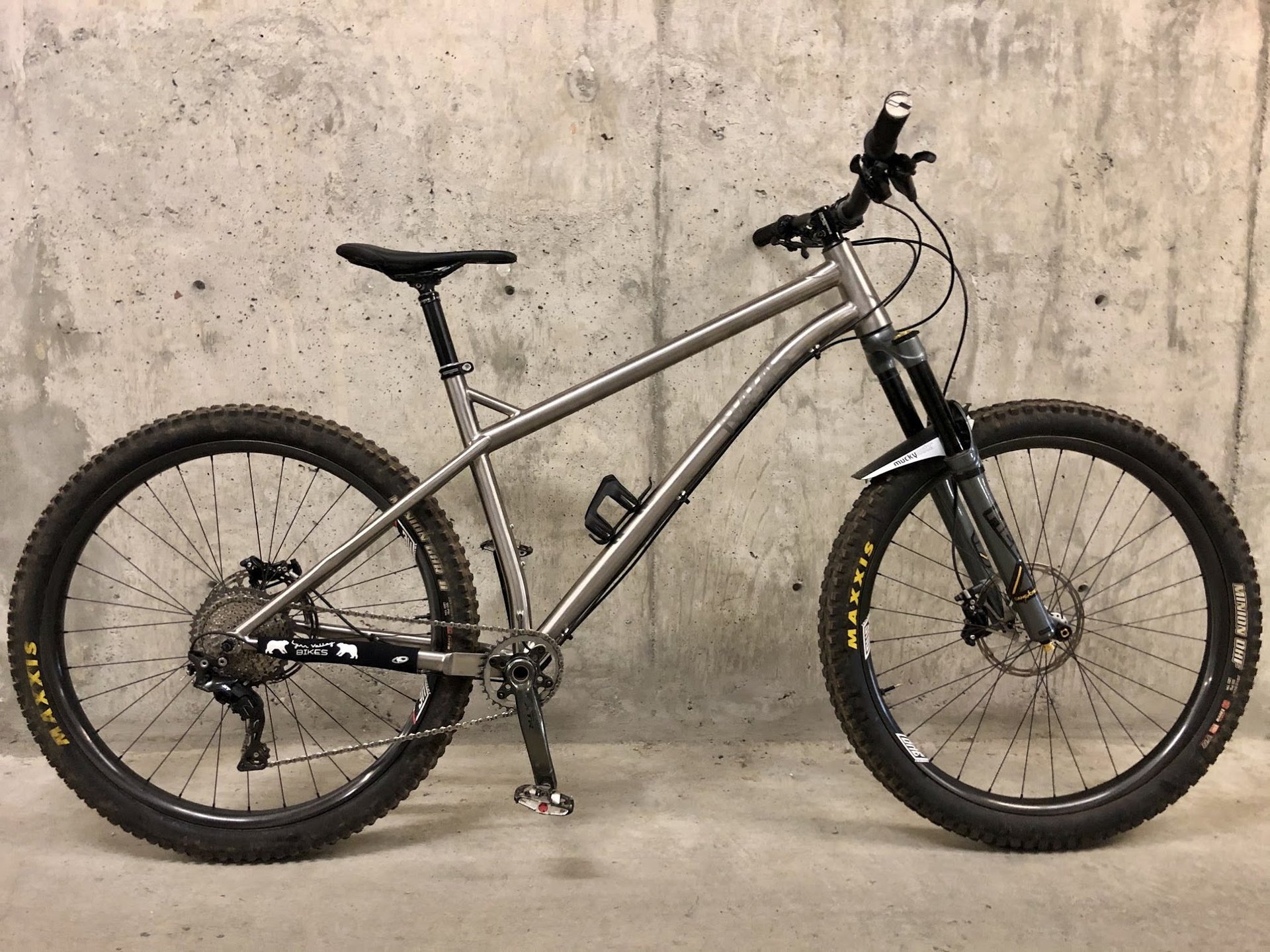

Custom Ti Hardtail Alex got made


It is all about the fit.

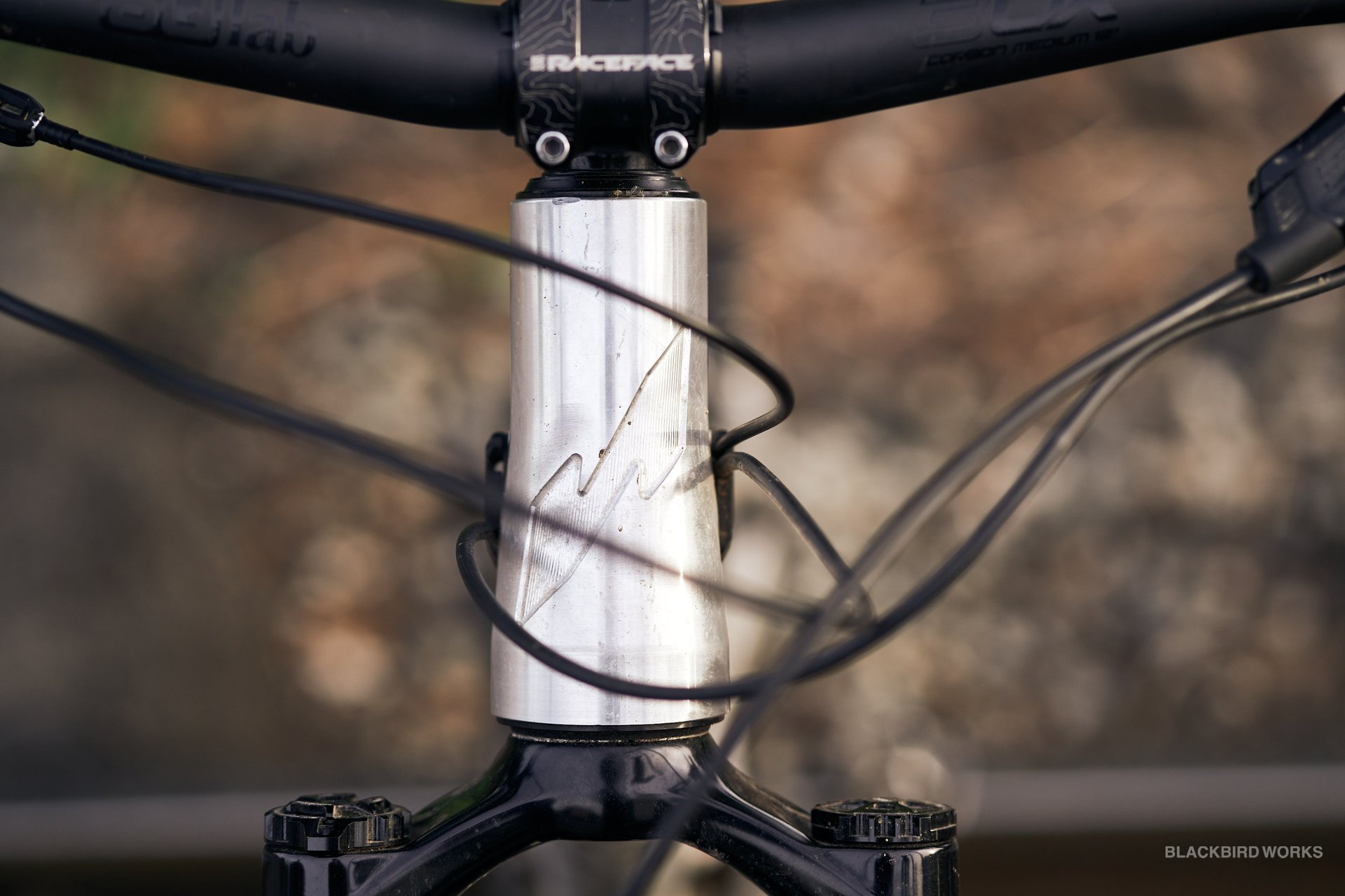

Enough material in the head tube to machine out the logo

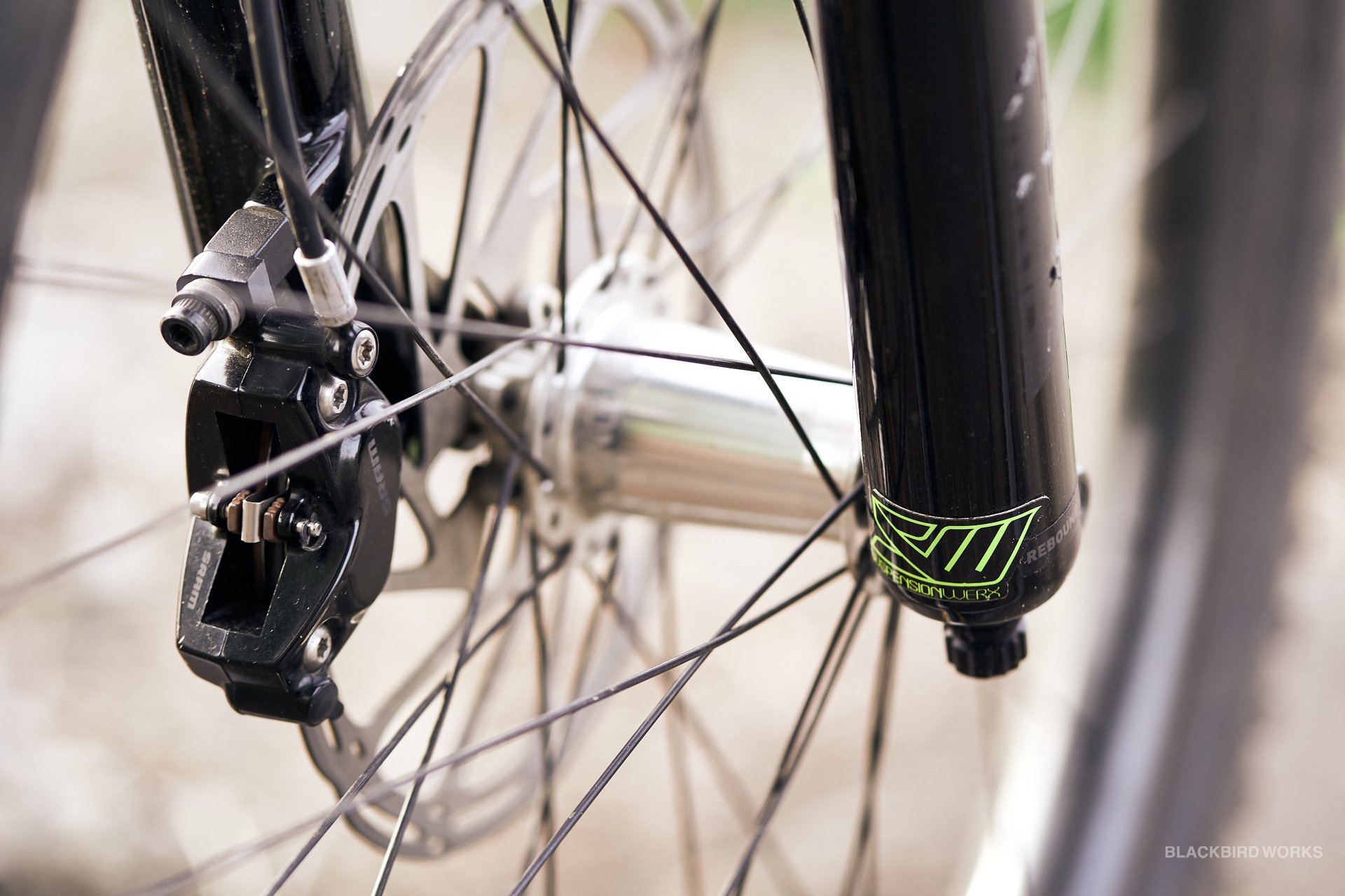

Tuned by Suspension Werx North Vancouver


Hand Laid in Canada WR1 rims


Rail to Rail, G1



Tell us about your suspension settings.

I’m running a 475lb spring on the EXT shock with sag closer to 30%. I like the bike to sit tall and peppy. The EXT stock rebound range is very fast to my taste so I had it revalved slower by Ben at Alba in Whistler. I’m still running the rebound maxed out and it still seems very fast on a parking lot test but I am riding better than ever so I’m just going with it.

I run around 101psi in my fork main chamber. I’m 3 positions down for the volume reducer. 3 clicks from open for HSC, LSC and rebound. I got happy on this fork almost right away. I made a few adjustments to the volume setting and main chamber pressure but within two rides I was at the settings I’ve been running ever since. I don’t mess with my fork too much other than dropping a few psi from the main chamber in the winter.

Generally speaking this bike was tricky to get dialled. Between the long wheelbase, steep seat angle and slack head angle the G1 requires a fair amount of adaptation. It took me close to 20 rides with lots of note taking before I got it pretty much perfect. This is a bike that rewards a systematic approach to setup. The end result is that I’m now riding faster more easily with a greater margin for error than before.

Do you set your bike up for comfort or speed?

I’m set up for speed - this is a hard to ride casually. I like my bikes set up taut and precise and smashy and it takes a special kind of bike to work well under those conditions under a big strong rider. I don’t really think of myself as speed-oriented but I’ve always set up my bikes this way so I guess I am. I like my speed to come from precision not recklessness.

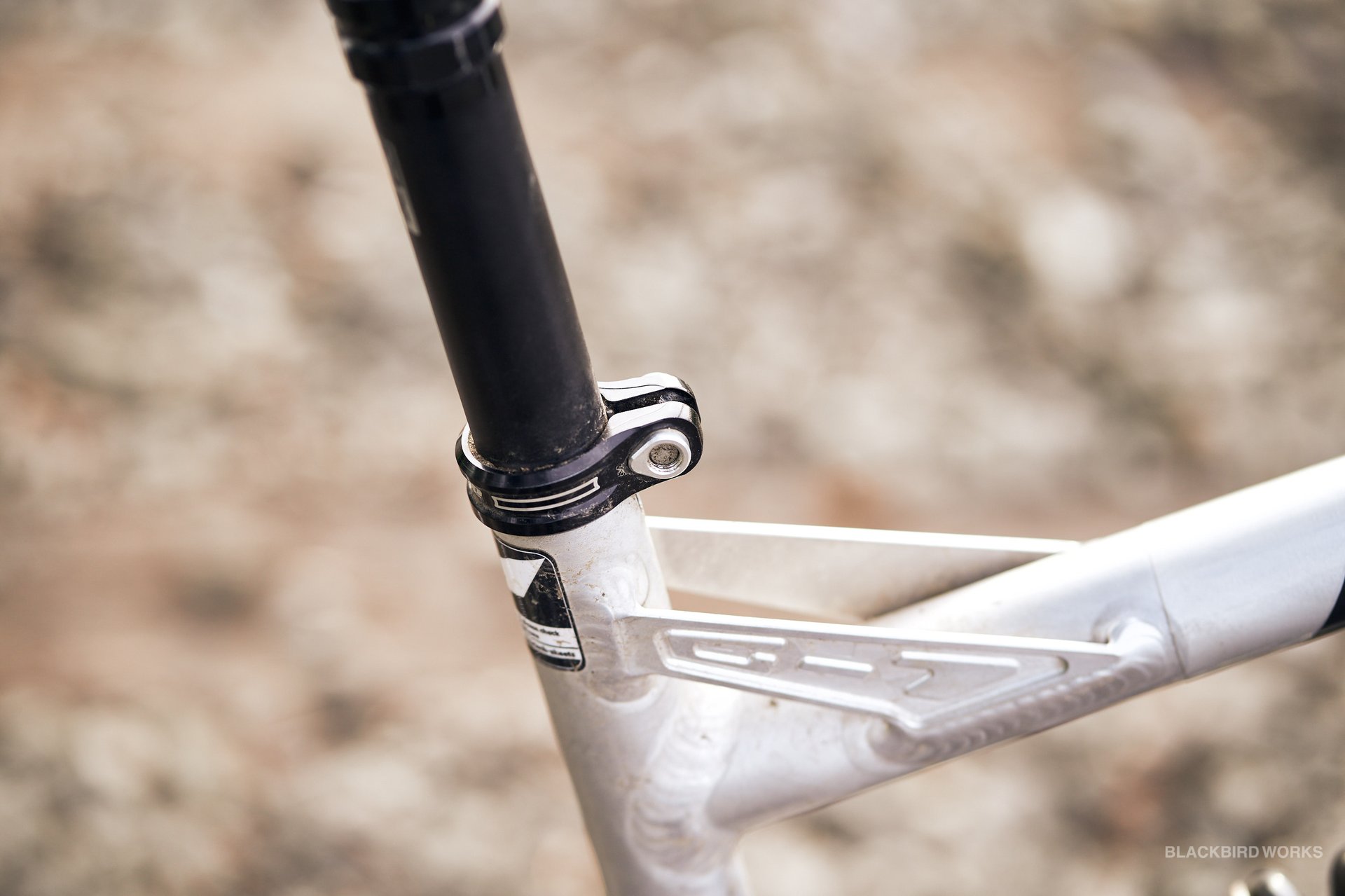

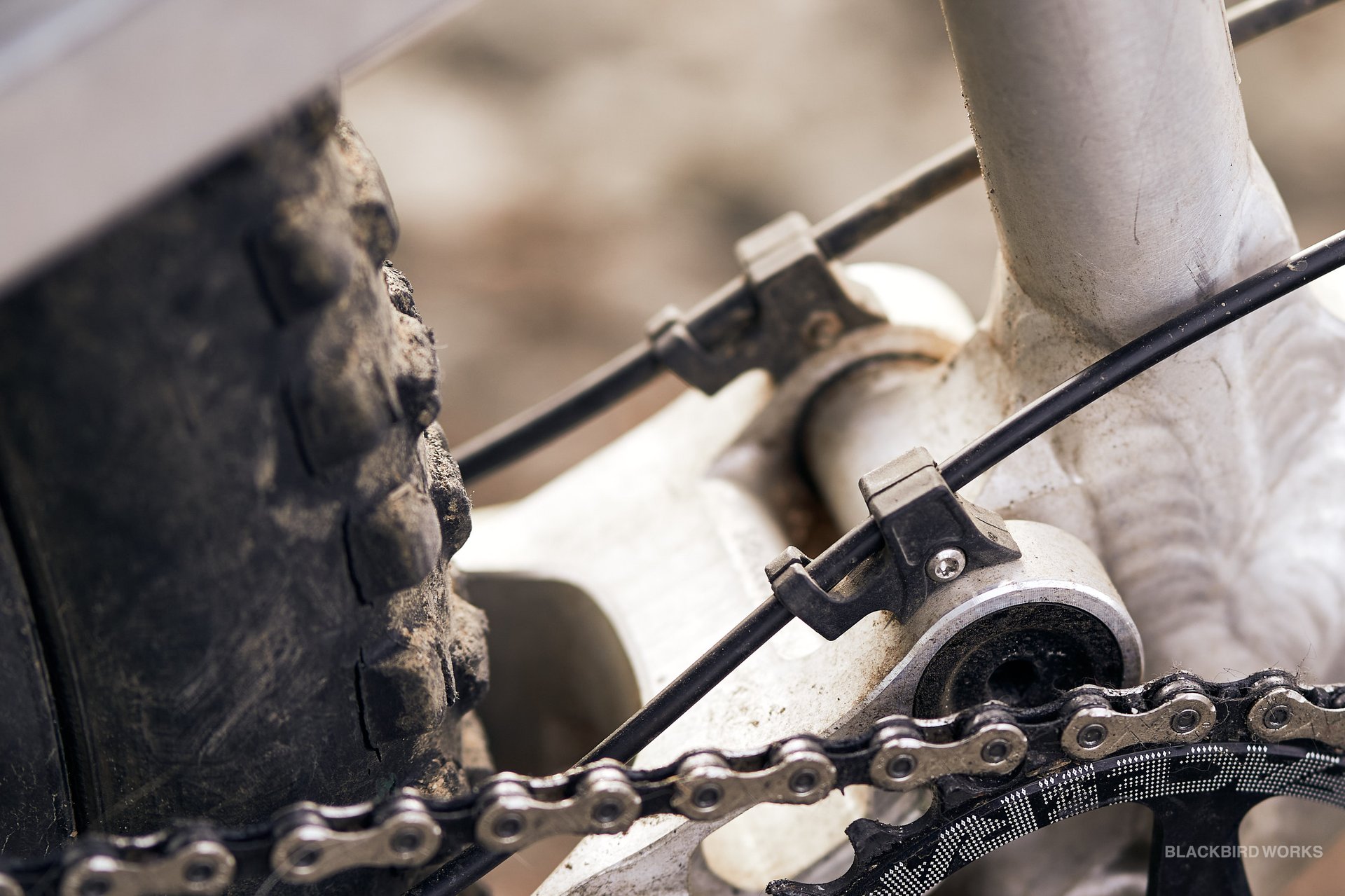

Integration and attention to detail throughout the frame

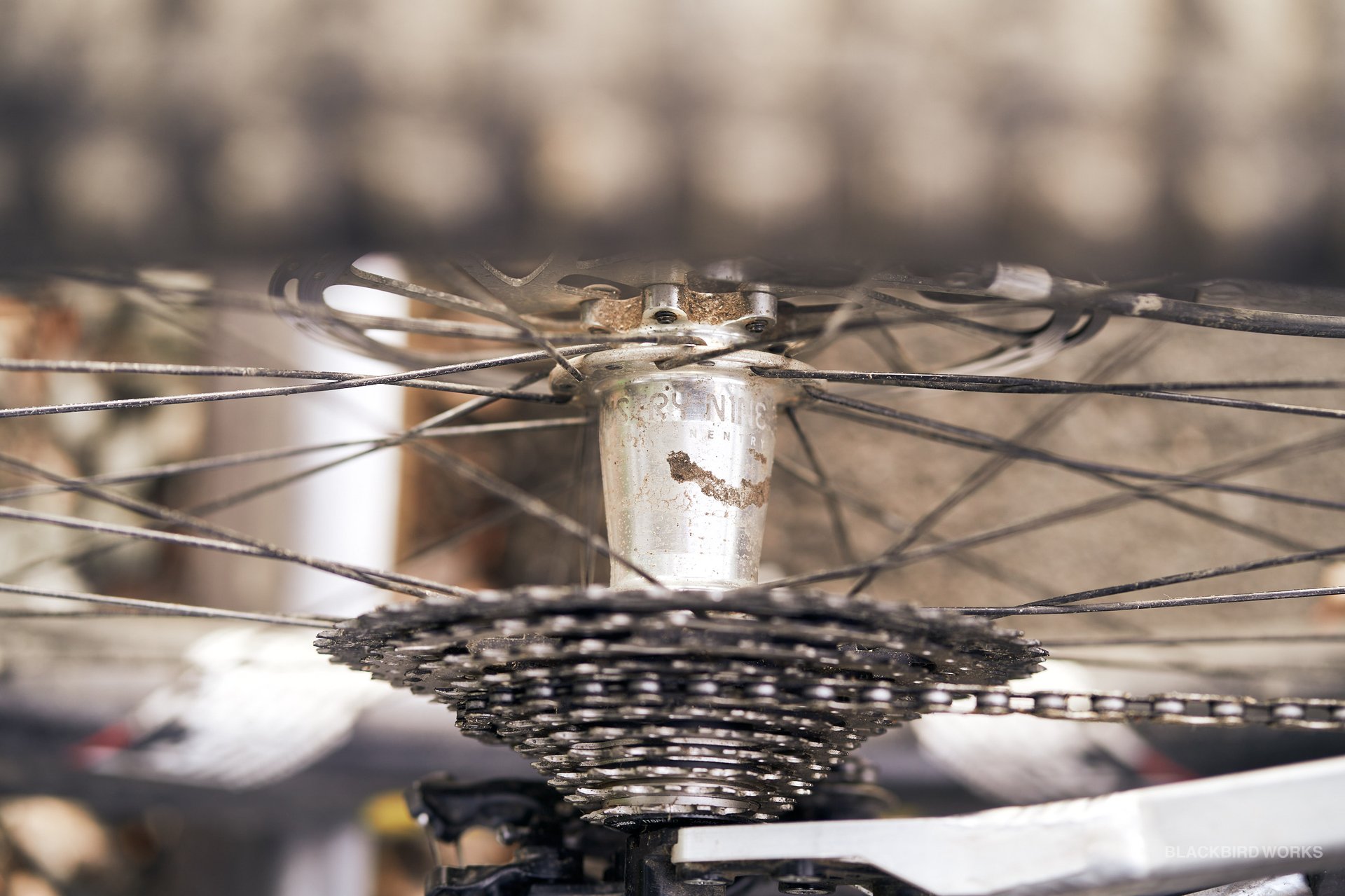

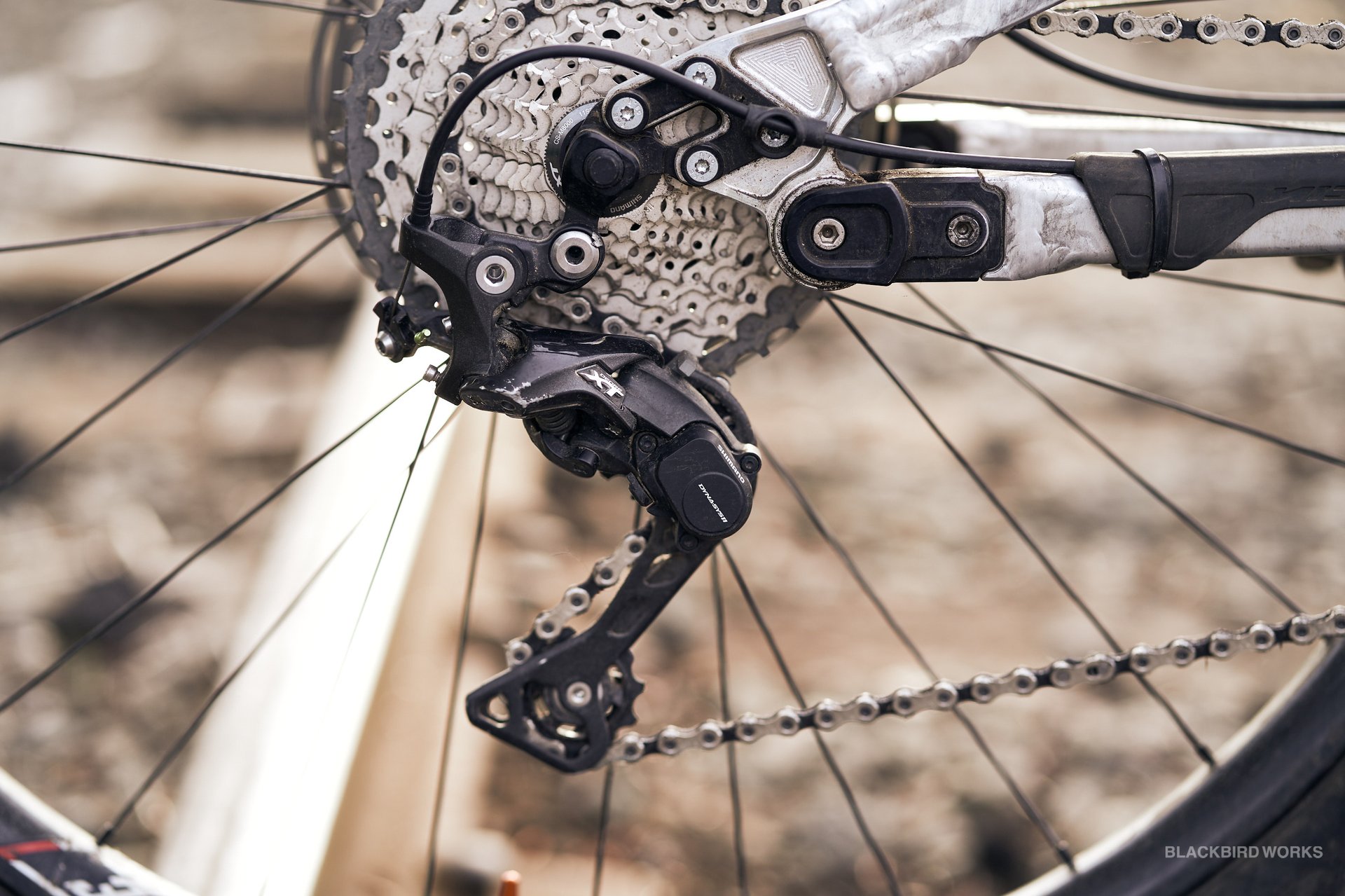

Alex pushes these gears easy enough


silver on silver on silver

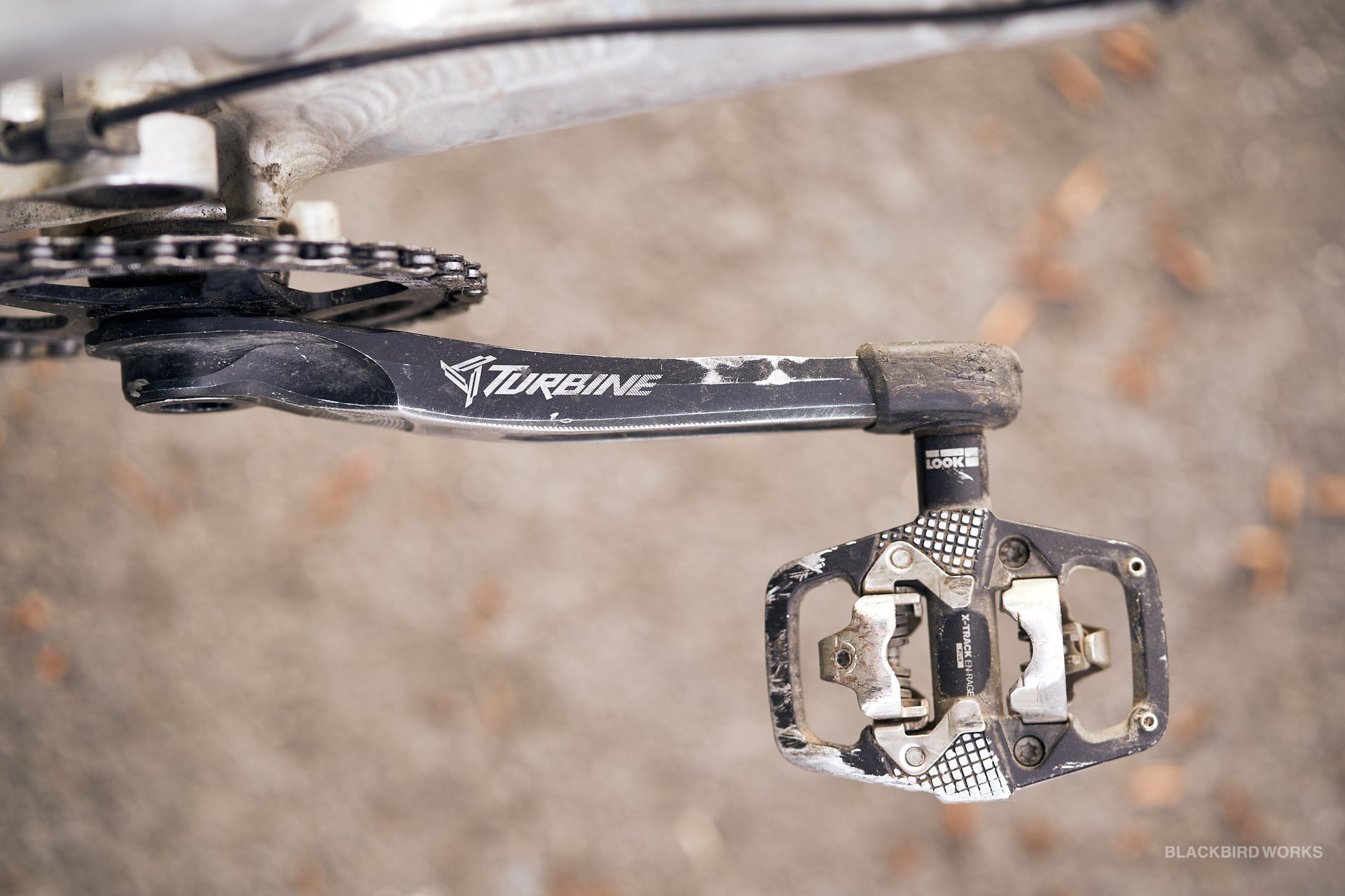

Look Pedals with Shimano SPD cleat system



SQLabs in all the touch points.


G-1

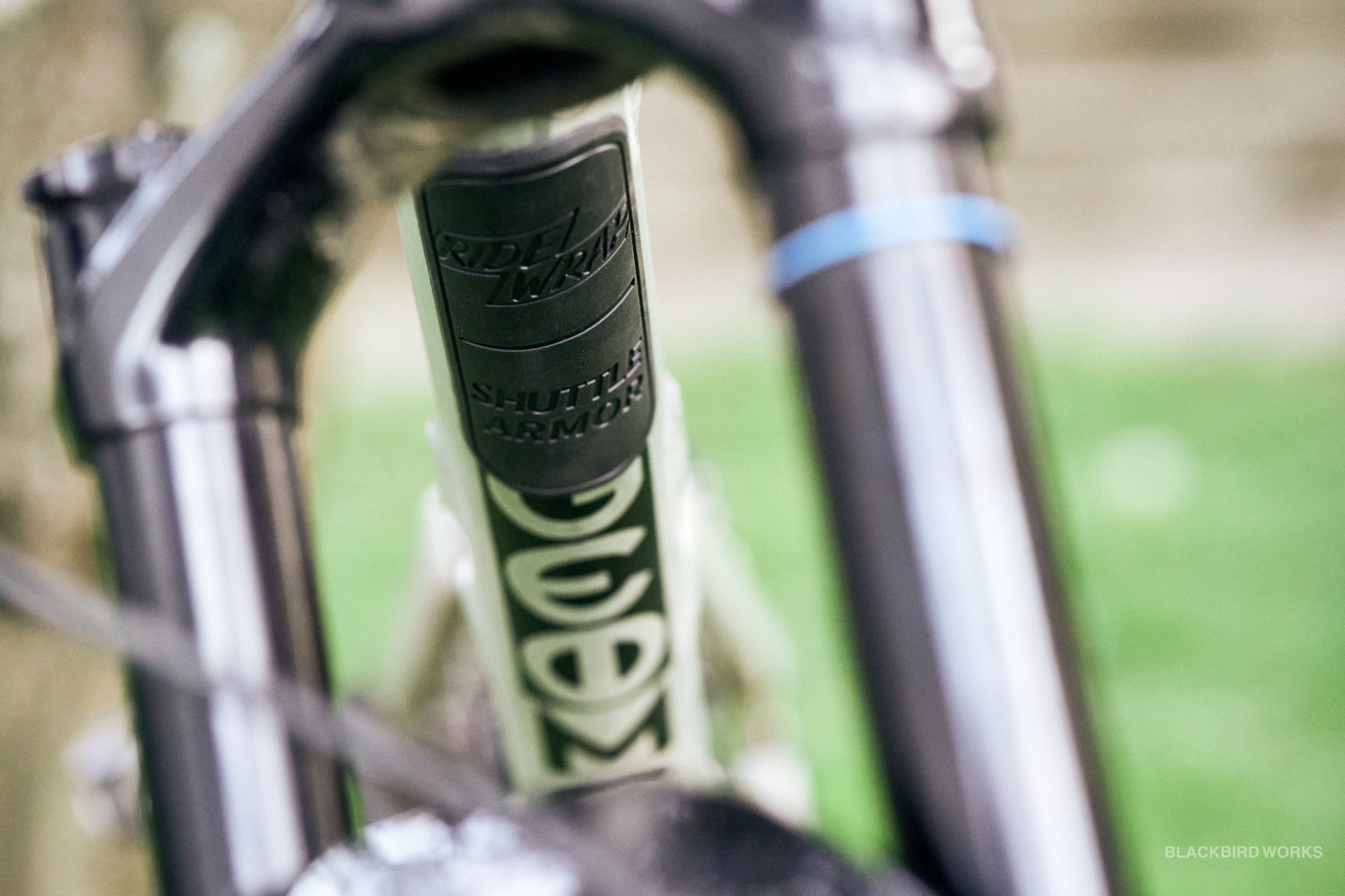

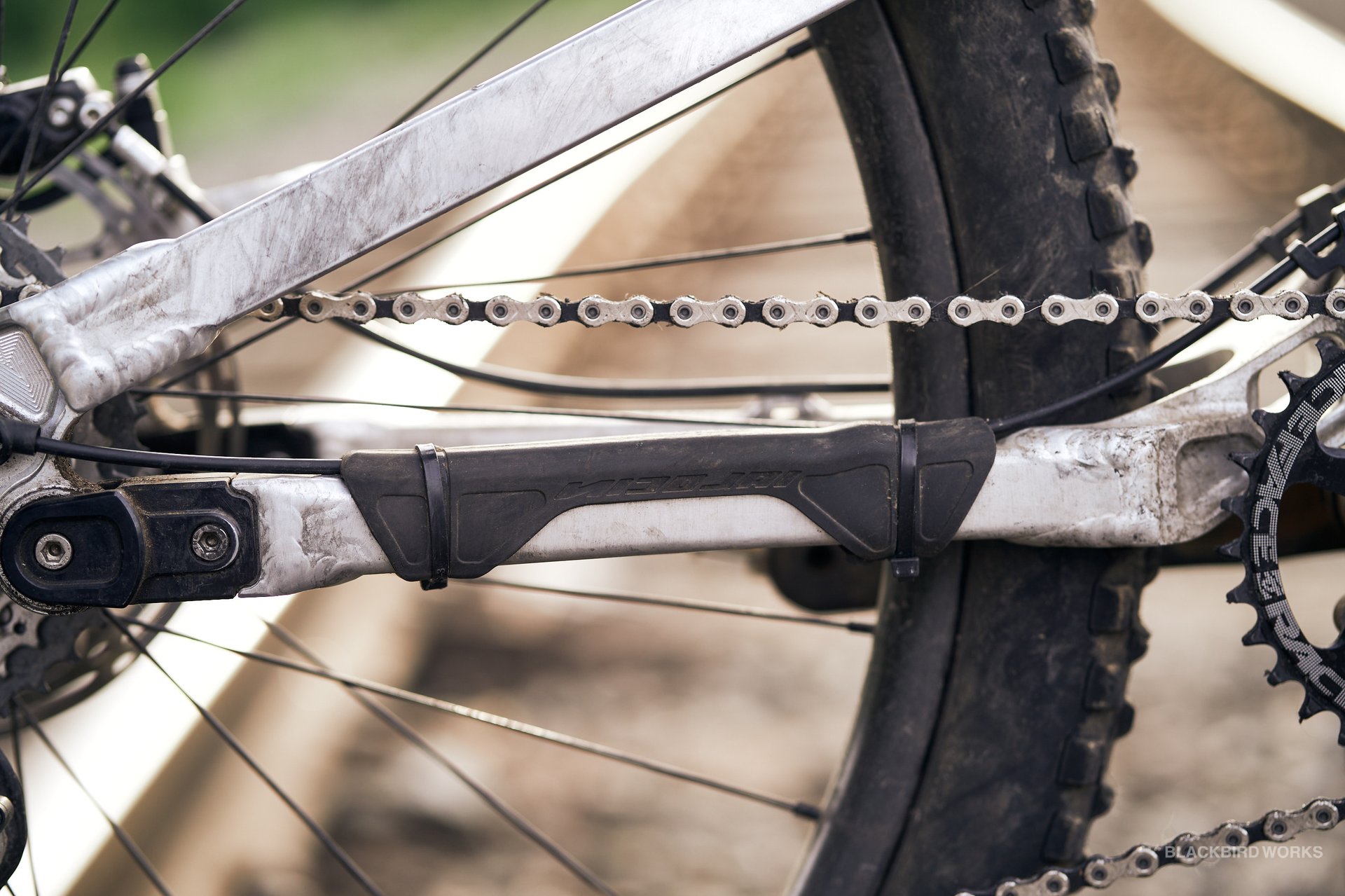

Ride Wrap Shuttle guard

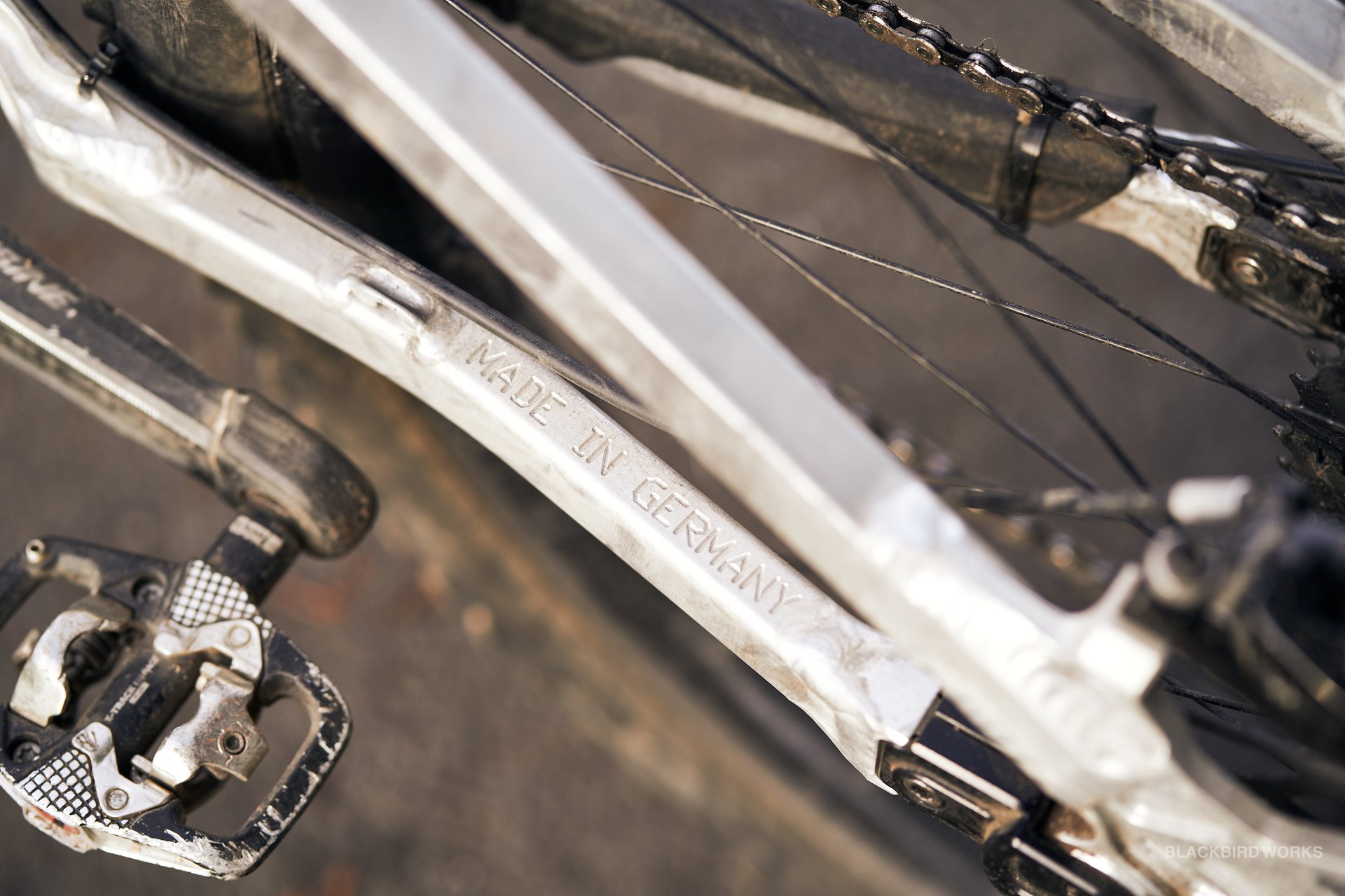

Made in Germany

I love clipless pedals. So many people who don’t like clipless established that idea when pedals were little and shoes were too stiff and forced you to pedal on your toes. Once shoes became available that allowed you to position the cleat further back to better mimic your position with flat pedals - that’s when things changed. Now you can get a nice positive attachment for climbing but a balanced position for descending.

I found Shimano pedals great but they never had enough spring tension. Even at max with brand new cleats I’d blow out of them at the most inopportune moments. The Look X-Track En-Rage pedals have been perfect. Besides the ridiculous name they offer a good 30% more spring tension than XTR (mine aren’t even maxed out), are compatible with Shimano cleats and they’re tough as hell.

SQLab 30x carbon 12’ backsweep bar. I’ve been trying to resolve some nagging wrist issues and I was happy on the SQLab bar almost right away and my wrist stopped hurting soon after. Flex-wise it’s a very comfortable bar though I don’t know if that’s due to the carbon layup, the backsweep angle or the 31.8 clamp diameter. It’s also 780mmn wide which doesn’t seem to bother me at all despite me being much wider at the shoulder than most people.

Dear bike industry: I find it frustrating that there isn’t a universal measure for bar stiffness, just arbitrary anecdotes. I find it even more confounding that while multiple widths and rises are available they are only available with 5’ upsweep and 8’ backsweep, as if we are all identical in this respect. Another curious compromise everyone just accepts, along with saddles and grips. Seems to me that selling more ergonomic customization options would be more productive and meaningful than more unnecessary standards?


2020 XL Geometron G1, dual 29

EXT Storia coil shock, 475lb spring

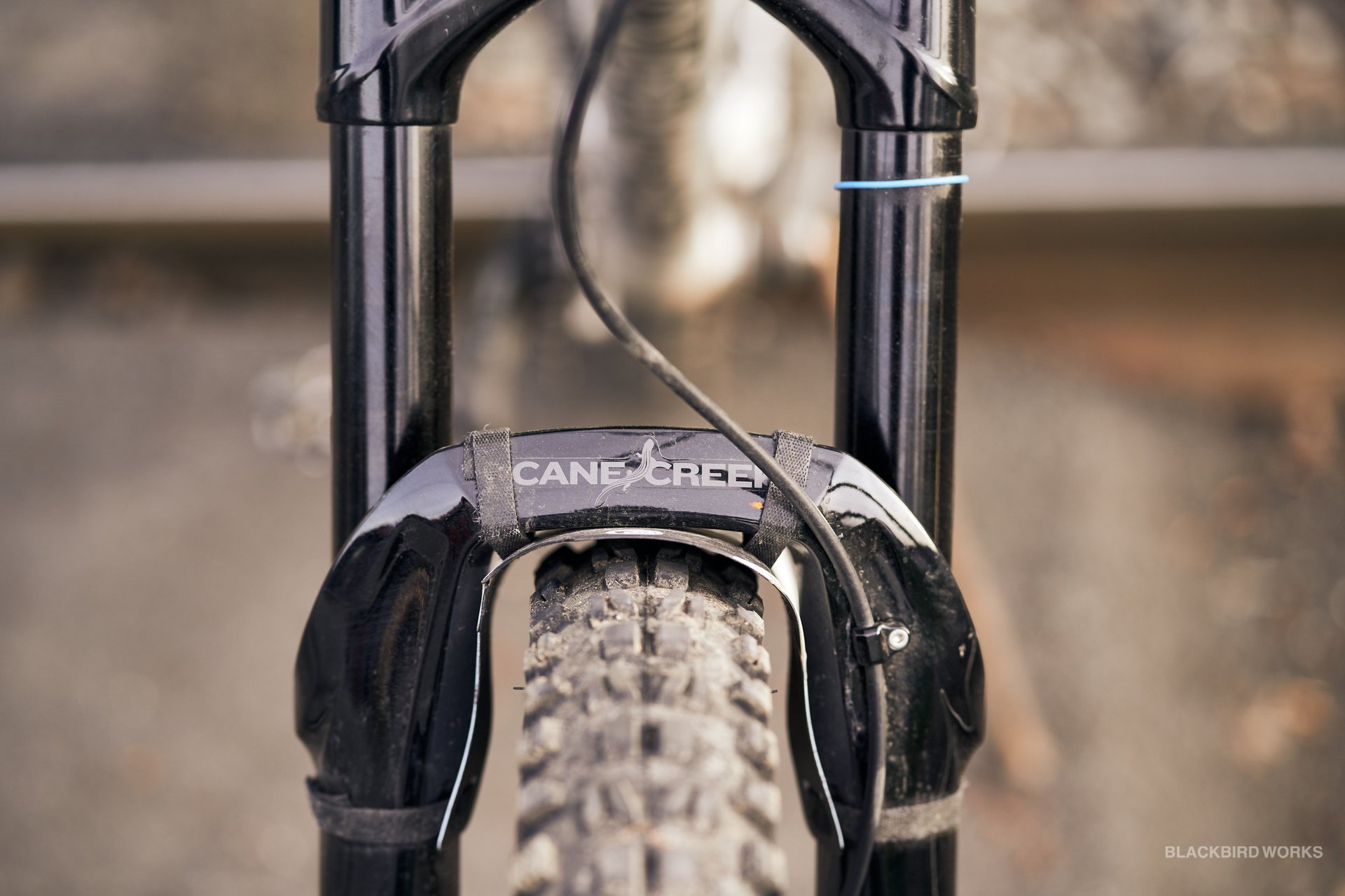

Cane Creek Helm Mk2, 160mm, 44mm

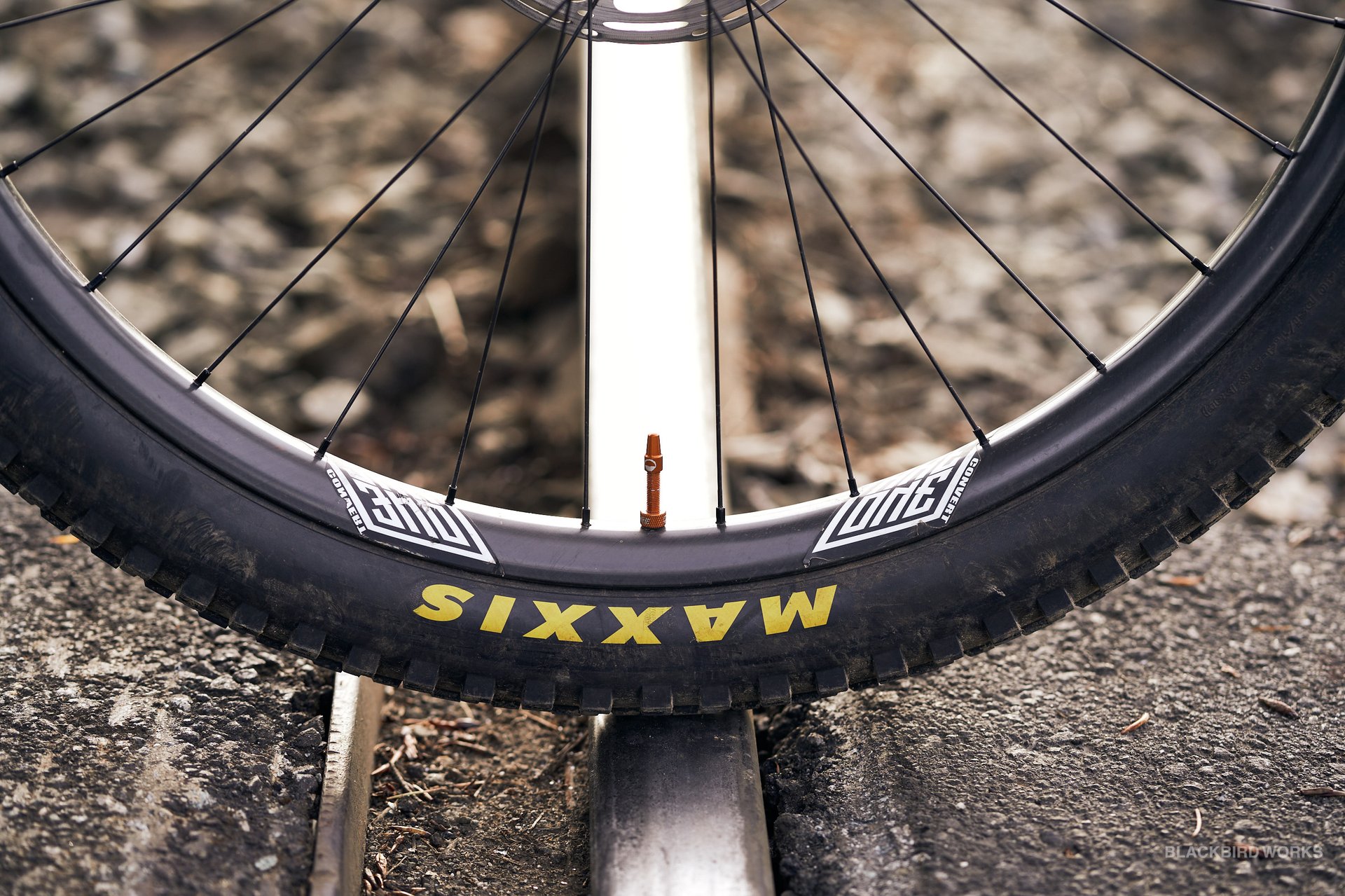

WR1 Convert Wheels w/ I9 Hydra hubs

11spd drivetrain: XT 11-42 / 32t front

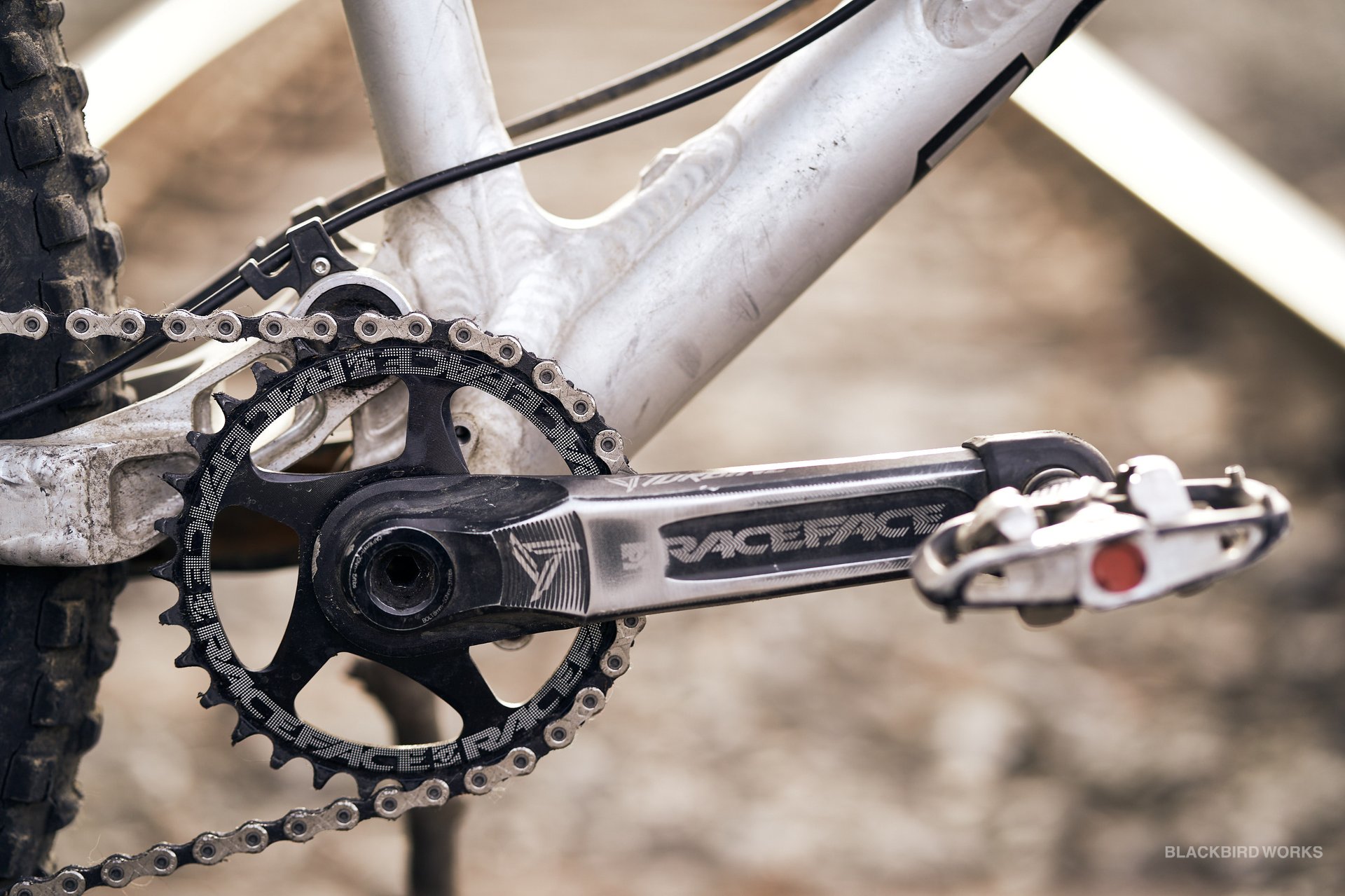

Raceface Turbine Cranks 175mm

Rock Shox Reverb 200mm

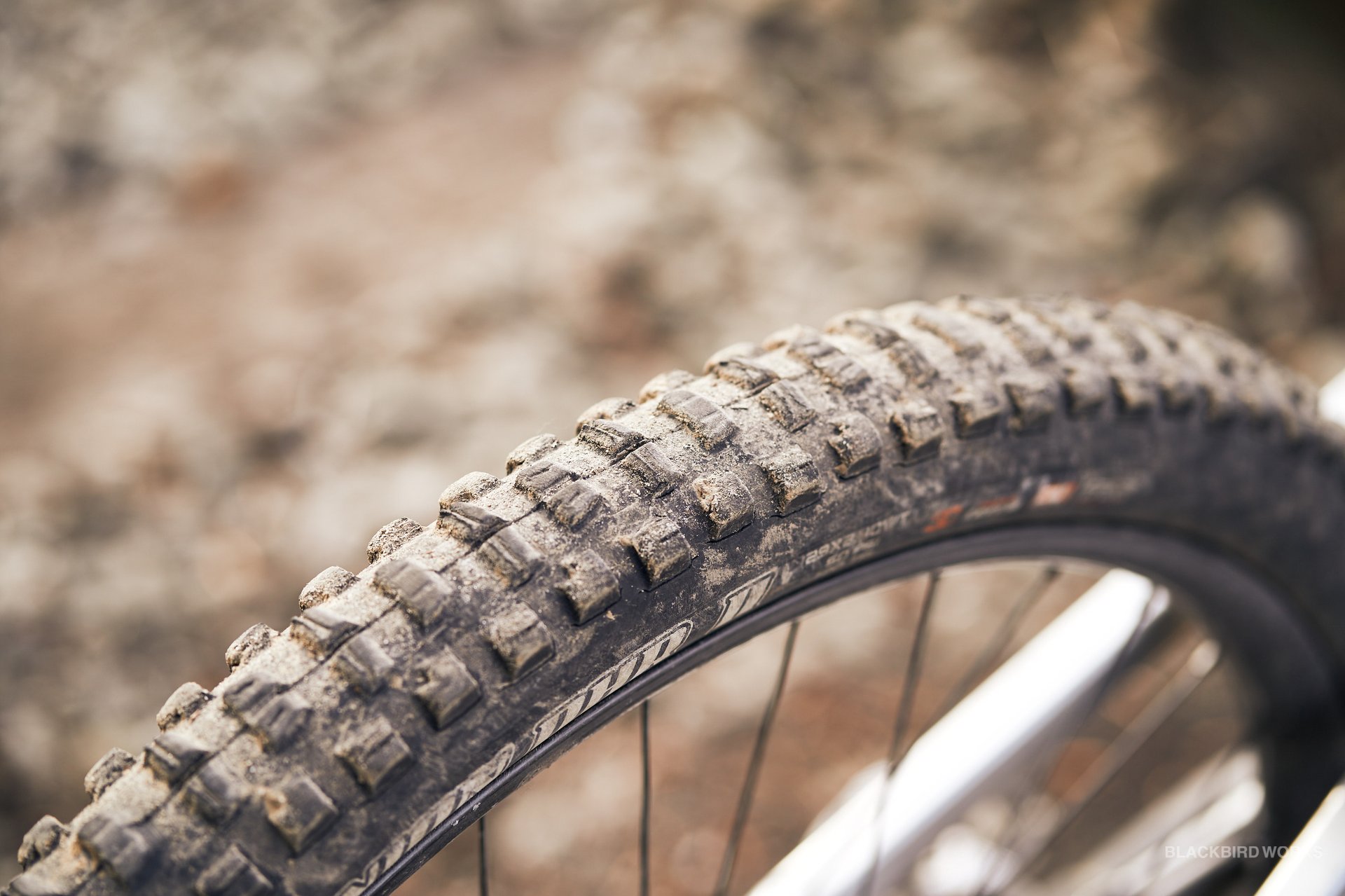

DHF2.5 front, DHR2 2.5 rear, both EXO+, tubeless, Tannus tubeless inserts (cushcore at the time of the shoot)

Code RSC brakes, 200mm rotors

50mm Atlas stem

SQLab 30x carbon bar (30mm rise, 12' sweep)

SQLab 711 grips, size L

SQ Lab 611 Ergowave Active saddle 150mm

Look X-Track Enrage platform pedals


Alex is the founder of NavasLab Clothing

Do you have huge bike envy?

Related Stories

Trending on NSMB

Comments

Wilson
+1 Geof Harries
Wilson  - July 16, 2021, 4:40 a.m.

Sick bike. Alex, do you mind sharing some of your dimensions. Also, who was your dealer for the frame? Did you consider the pinion version? And, how much of a bummer is it to have no water bottle bosses?

Reply

gdharries
0
Geof Harries  - July 16, 2021, 11:01 a.m.

Yes, me too. What's Alex's physical height, inseam and saddle height?

The XL only has a 475mm seat tube so with that 200mm dropper post, I'm curious.

Reply

craw
+1 Geof Harries
Cr4w  - July 16, 2021, 12:12 p.m.

6'6/198cm, 35.5" inseam. I couldn't run my 185 Bikeyoke Revive on this bike and they hadn't released the 210 yet. Until I can justify the expense to upgrade I'm slumming on the Reverb.

Reply

hongeorge
0
hongeorge  - July 18, 2021, 4 a.m.

What stopped you running the Bikeyoke? Run a 185 on my size L with room to spare

Reply

craw
+1 Whitesell1041
Cr4w  - July 16, 2021, 12:54 p.m.

I don't care about water bottles. I don't like strapping tons of stuff to my bike.

Reply

Sethsg
0
Sethsg  - July 16, 2021, 1:49 p.m.

What do you do for water on long rides? Do you use a backpack? It's easy for me when it's winter here in North Vancouver because there are tons of streams so just carry a Life Straw, but its a pain in summer and my bike doesn't have water bottle bosses so I sometimes come back dehydrated because I don't want to carry my full-sized backpack and there are none that are small enough that they don't bug me, and are big enough that I can carry my old film camera and a couple of lenses.

Reply

craw
0
Cr4w  - July 16, 2021, 3:01 p.m.

Osprey Raptor 14 pack. It's slim, super light, stays in place well, tons of clever storage. Does everything better than the smaller packs or hip packs I've tried. Plus I can carry way more water and I actually drink more on rides versus a bottle.

Reply

Sethsg
0
Sethsg  - July 17, 2021, 7:18 p.m.

Thanks!

craw
+2 AJ Barlas Endur-Bro
Cr4w  - July 16, 2021, 12:14 p.m.

I bought it direct from Geometron.

I have never ridden a Pinion so it wasn't really an option though I love the idea of a gearbox. Apparently Nicolai is releasing their own proprietary gearbox later this year. If anyone can make a great gearbox it's them. Maybe that will be cause to get a G2! (I have no idea if a G2 is in the works - they swore it was not)

Reply

Mojo16rider
+2 Cr4w Endur-Bro
Jakub Gábriš  - July 17, 2021, 4:44 a.m.

nicolai is co owner of pinion ;)

Reply

fartymarty
0
fartymarty  - July 16, 2021, 11:31 p.m.

You can always run and SKS anywhere mount.  I run one on my Murmur and it works well.

Reply

Vikb
0
Vik Banerjee  - July 16, 2021, 5:55 a.m.

Great looking bike. I'm glad you found something that works so well for you.

Reply

Gbergevin
0
Gbergevin  - July 16, 2021, 5:56 a.m.

Awesome rig. As a guy with giant hands that is constantly battling pain and numbness, I lovemy SQlab grips, but I noticed yours are 1. twisted along the bar axis. Mine do that naturally because the clamp sleeve is only about 1/3 of the grip, but I'm wondering if that is intentional on your part because 2. you also have the clamp set in a weird spot - they look almost upsidedown relative to mine.

Reply

craw
0
Cr4w  - July 16, 2021, 12:56 p.m.

Good question. I made sure to get L and R correct. Other than that I've just gone by feel. This way has good support for the outside of my palm. The bar and grips have required a fair bit of experimentation - should I roll the bar or roll the grips?

Reply

cooperquinn
+3 Deniz Merdano Cr4w DadStillRides
Cooper Quinn  - July 16, 2021, 8:43 a.m.

TIL, mid-July is Geometron Week on NSMB.com.

Reply

xy9ine
+3 Bushpilot BenHD 4Runner1
Perry Schebel  - July 16, 2021, 9:17 a.m.

haha. geometrons: so hot rn.

also - sweet, no-bs utilitarian build. my preferred aesthetic!

Reply

fartymarty
+2 moraucf ChocolateThunder
fartymarty  - July 16, 2021, 11:06 a.m.

That's because its the best bike ever made (IMHO)

Reply

craw
+3 AJ Barlas Deniz Merdano Pete Roggeman
Cr4w  - July 16, 2021, 7:53 p.m.

Deniz forgot to mention the bike's name is "The Black Metal Express".

Reply

denomerdano
0
Deniz Merdano  - July 17, 2021, 12:09 p.m.

Checked all my records and found no mention of "the black metal express"

But my memory fails me at times.

Reply

xy9ine
0
Perry Schebel  - July 17, 2021, 1:16 p.m.

*nods approvingly & tosses horns*

Reply

clipless
+1 JVP
Kyle Smith  - July 16, 2021, 9:24 a.m.

Is that 630 mm reach number for the hardtail a typo? If not, holy hell!

Reply

craw
0
Cr4w  - July 16, 2021, 12:06 p.m.

Should be 535!

Reply

joseph-crabtree
0
Joseph Crabtree  - July 16, 2021, 10:15 a.m.

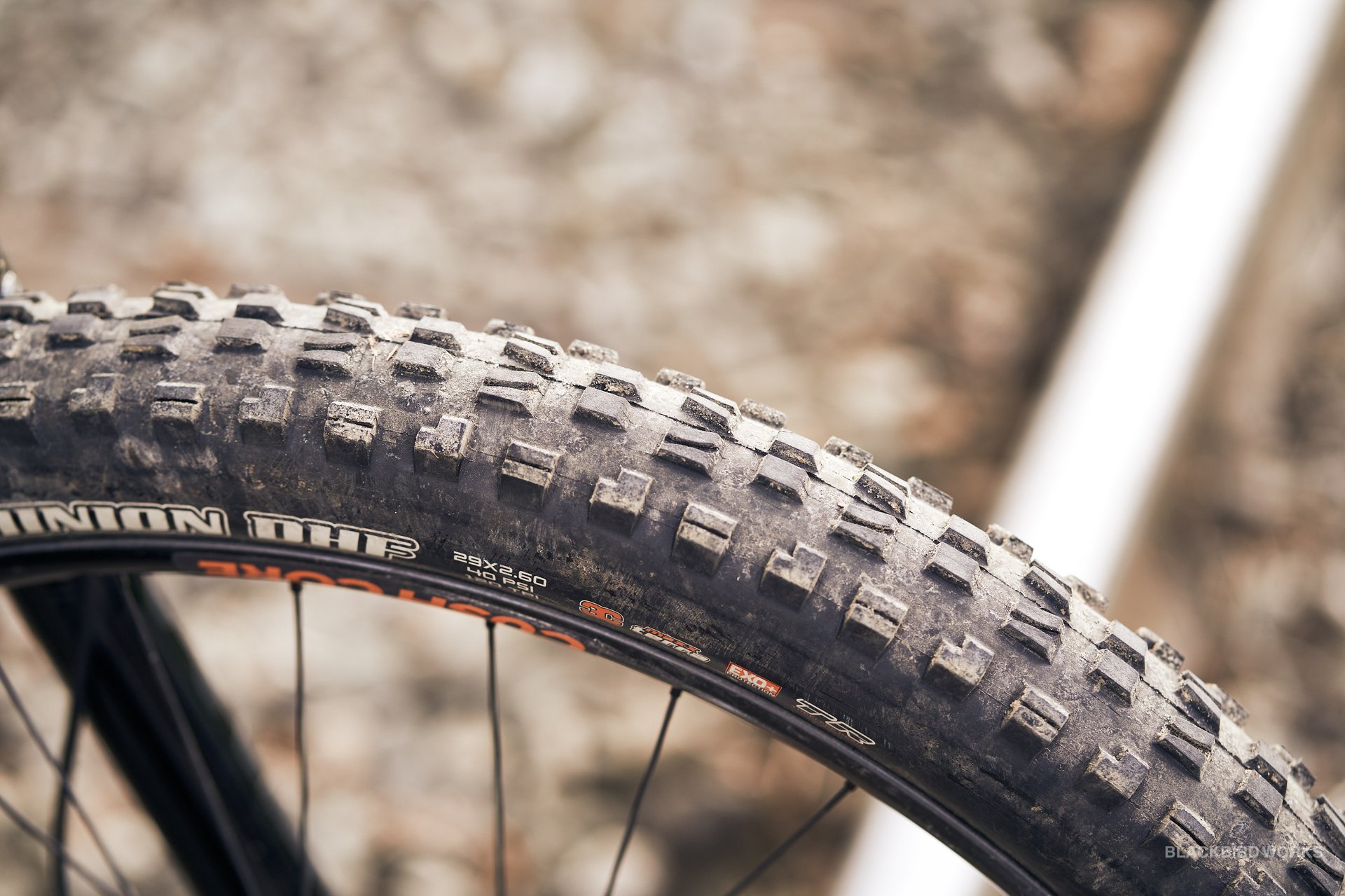

Specs say 29x2.5 DHF EXO+ but the picture show's a 2.6. I'm digging the DHR2 2.6 for the chunk in the EXO+. It seems there is this stigmata about bigger tires, possibly a backlash over the Plus push a few years ago. I run what works.
