First Impressions

Box One PushPush Drivetrain (& Cockpit)

Words Andrew Major
Photos Tim Coleman
Date May 18, 2017

Box Components

In virtually any industry competition tilts the table toward the consumer. In the drivetrain category of the MTB industry, each big player has only had one competitor to deal with. Recently a few smaller brands have launched efforts to slice that pie into a few more pieces. One of these is Box Components, a BMX Racing brand entering the fray with their Push Push line.

Cockpits are one thing, but when you consider all the brands that make bars and stems who haven't gone anywhere near derailleurs and shifter, it becomes pretty clear that manufacturing drivetrain components is the minefield of the MTB market.

For some reason this hasn't scared Box Components away. Before he started designing cycling products, front man Toby Henderson raced mountain bikes for GT Bikes and Ironhorse after racing BMX professionally through the 80's. Maybe a former racer nicknamed Captain Elbows is just the guy to stir up the drivetrain segment and serve up some choice for consumers.

Box One Timmigrant NSMB

Tim Coleman will be racing and riding the components on our Pivot Firebird long-term test bike.

It's exciting to see how many alternatives to SRAM and Shimano are coming online and the creative ways they are putting a wedge into the market.

Push Push

The mono-lever, thumb activated, Push Push shifter is the element that puts the most distance between Box and the competition. The Push Push is compatible with Box's One clutch derailleur or any Shimano 11spd mountain bike drivetrain. The shift lever rotates forward to select a lower gear and an inward push of that same lever drives the derailleur back down the cassette towards a smaller cog.

ib2016d3-box-shifter.jpg?w=1600

The Box One PushPush shifter is unique in function and appearance. The vertical surface pointing forward on the front of the paddle allows you to push the lever toward the mechanism to upshift. It will actuate any Shimano 11spd drivetrain in addition to Box's clutch derailleur. Photo: Fergs

Box One Timmigrant NSMB

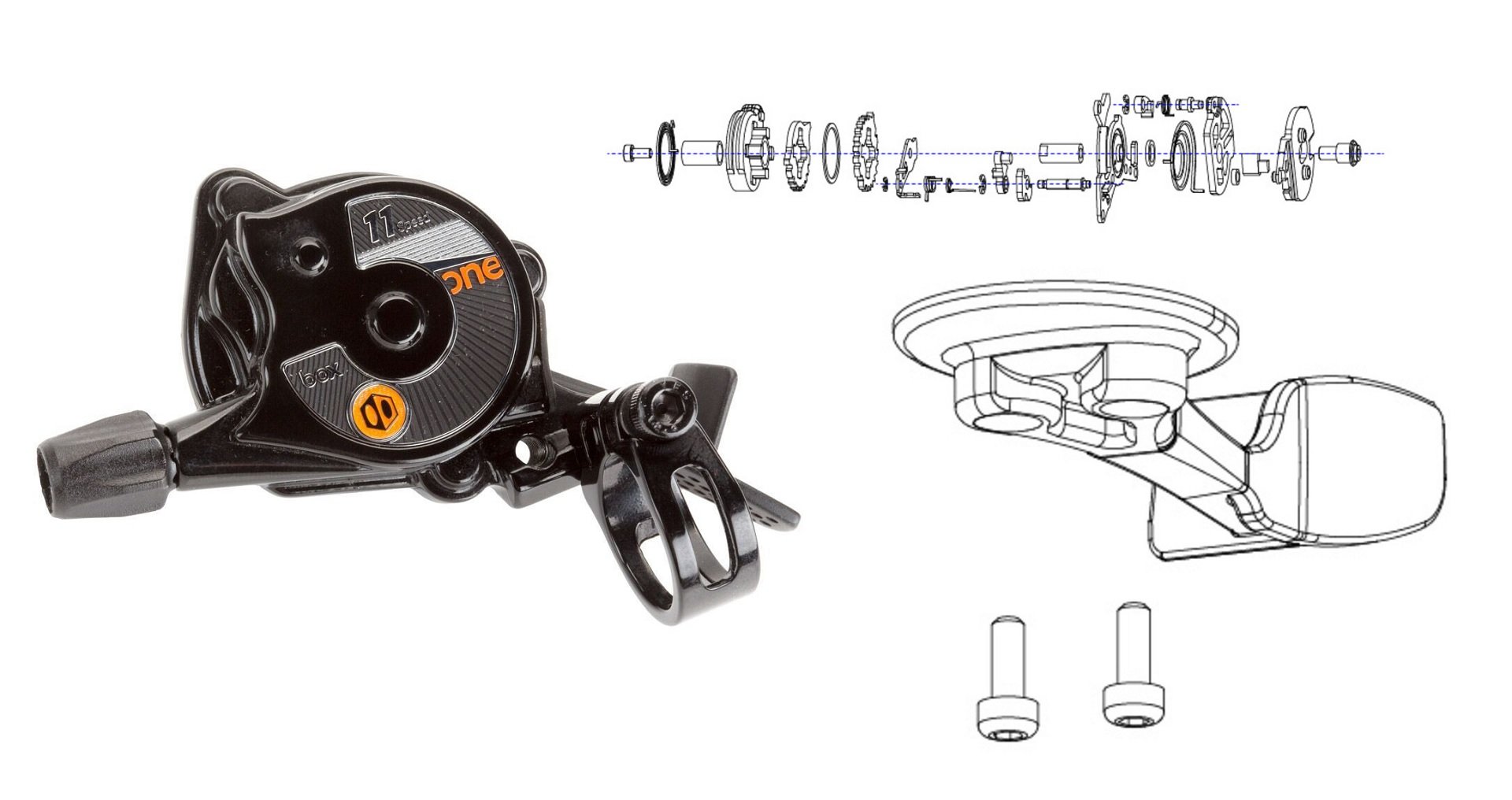

The PushPush shifter has two positions for its separate handlebar clamp. Pushing forward on the paddle causes it to rotate and take up more cable. Pushing inwards causes the paddle to slide and releases cable.

In these early days there is mixed feedback on whether the textured remote is as intuitive to use as Box suggests. Tim will be riding the remote in a variety of situations and will be best able to comment on any learning curve.

Box One Timmigrant NSMB

The textured shifter paddle is ergonomic. The downshifting action may feel a little challenging for longtime SRAM and Shimano customers.

Box One Derailleur

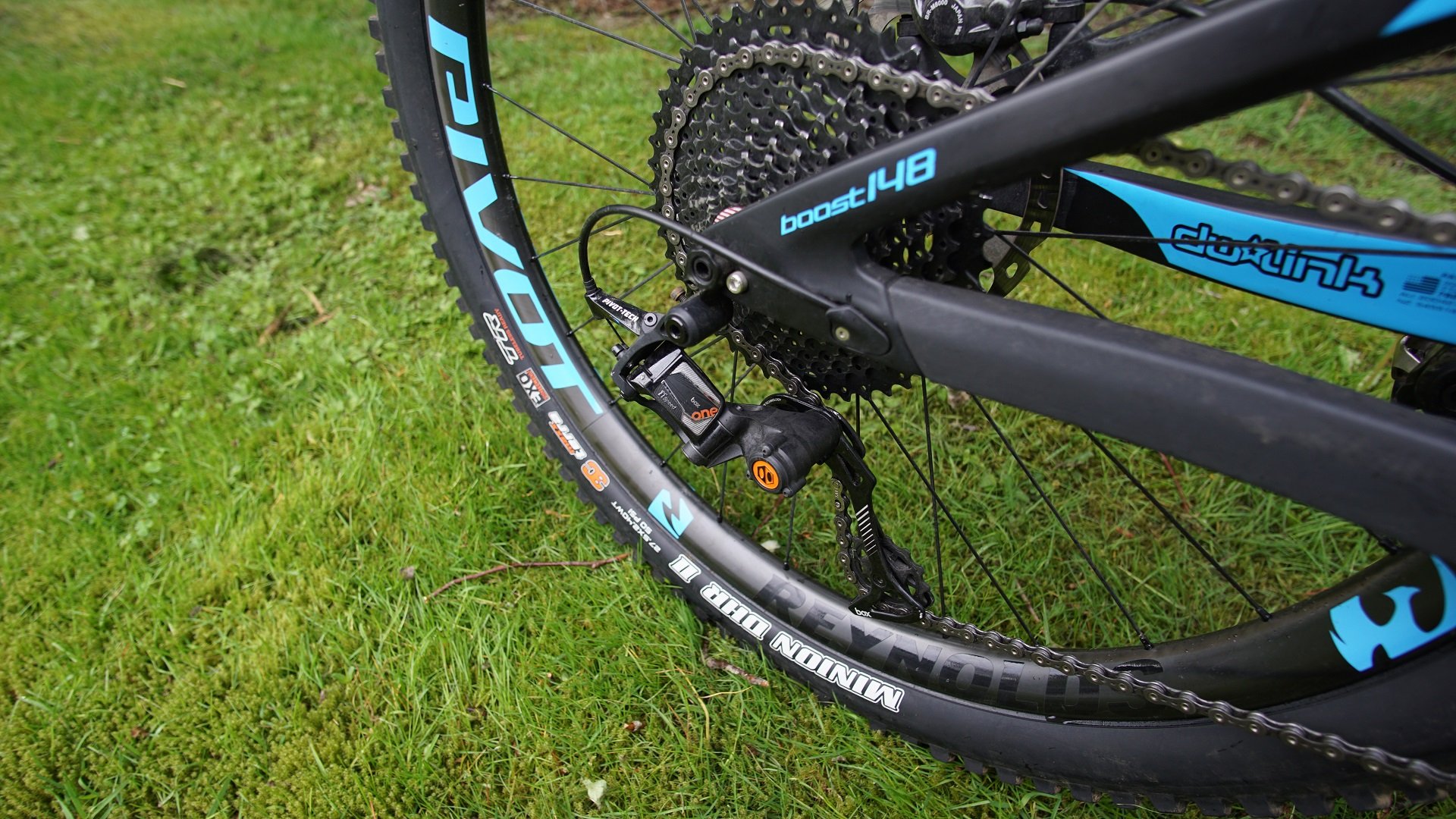

The Box One 11spd clutch rear derailleur is simple to set up. Shifting action on a fresh One derailleur is light compared to a Shimano Shadow Plus setup with the clutch engaged likely because the Box One derailleur's non-adjustable CamClutch clutch engages with less force than Shimano and even the current SRAM Type-3 Roller Clutch mechanism.

While the cover for the clutch is removable, Box does not suggest the mechanism is adjustable, likely because Shimano holds a patent for adjustable clutch derailleurs. Box tells us the cover is removable to facilitate cleaning, but I wonder if it is possible to increase chain tension by preloading the one-way friction plate of the CamClutch the way it was with the original SRAM clutch derailleurs.The derailleur also features a spring loaded cable stop designed to make the mech less vulnerable to damage in the event of contact with trail features.

Box One Timmigrant NSMB

An adjustable clutch could land Box in court - so they tell us tension is fixed. Patents may also explain the unique shift mechanism.

Box Two Cassette

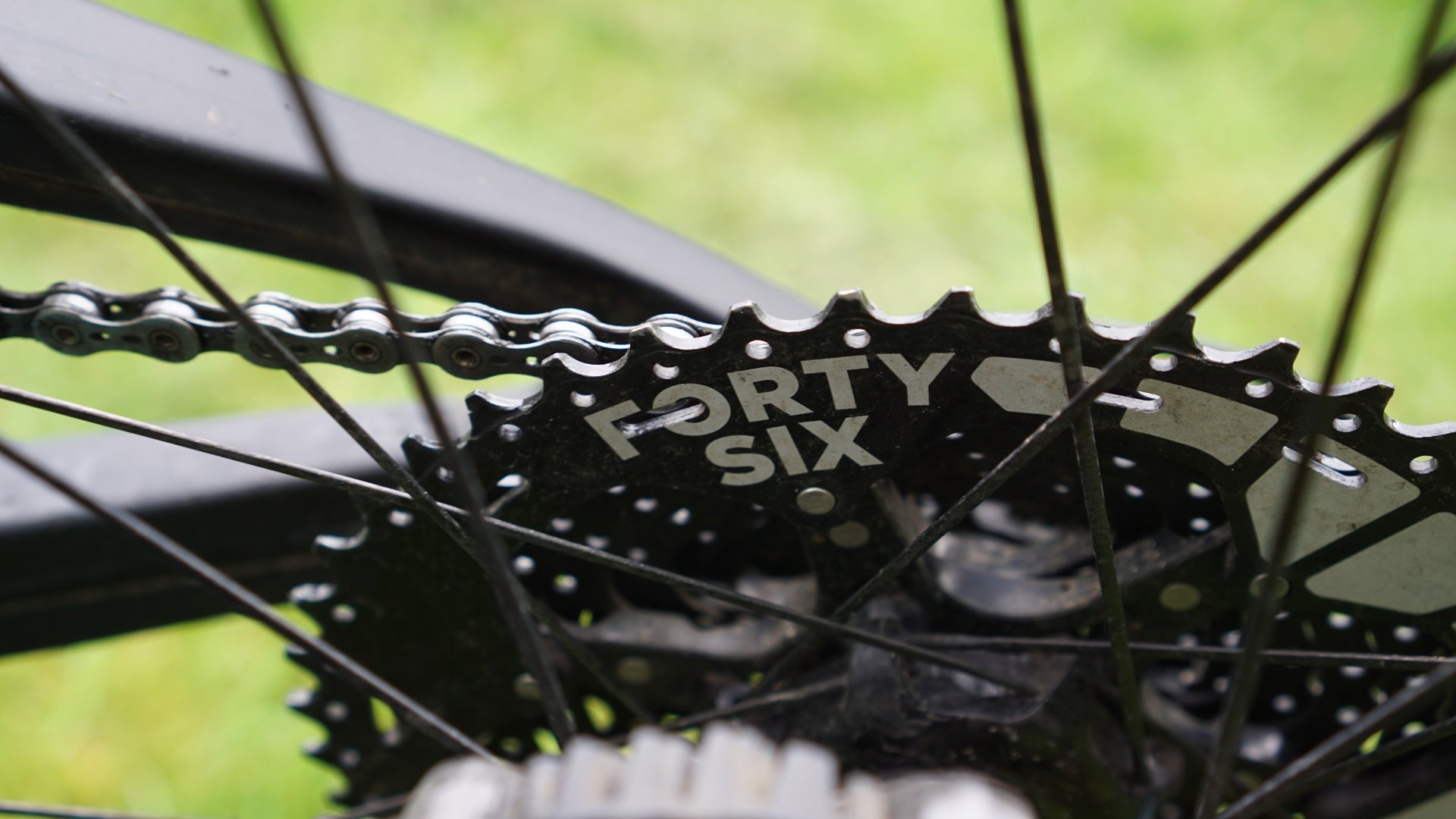

No top-of-the-line Box One cassette exists at this time so our drivetrain is equipped with a lower end Box Two model. The steel and aluminum cog carrier manages a 418% range with an 11-46t range and Shimano freehub compatibility.

This is a rebadged Sunrace MX8 cassette. My experiences with Sunrace's cassettes have been very good so this wide range cassette should prove to shift well and offer very good durability.

Box One Timmigrant NSMB

The Box Two cassette is a rebadged Sunrace 11-46t cassette that retails on its own for US $100 and has a claimed weight of 480g.

Box One Cockpit

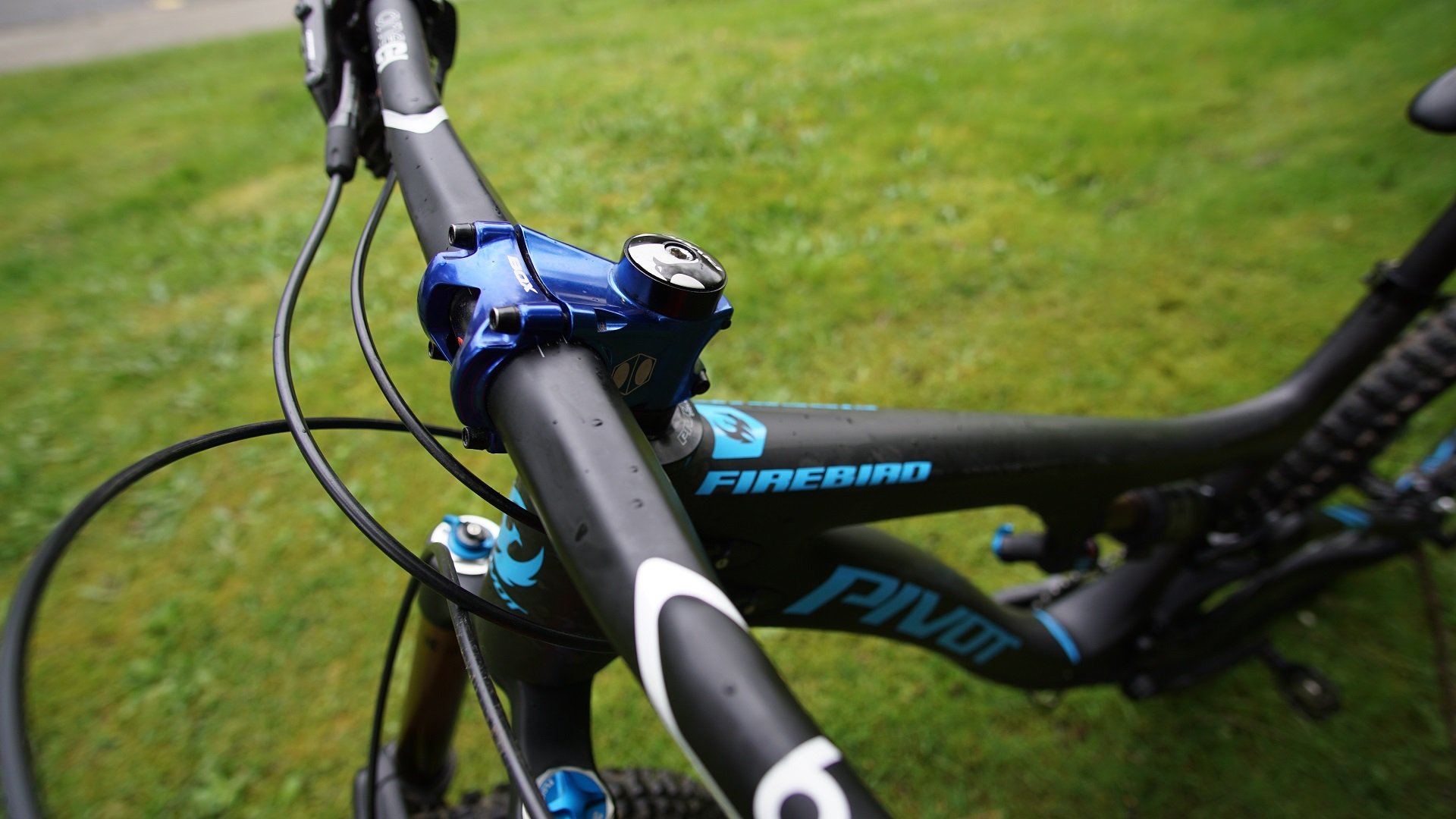

The 35mm Box Cusp stem comes in black, red or blue in 45mm, 55mm and 65mm lengths. It's a nice looking piece that weighs a reasonable (claimed) 164 grams for the shortest length.

The carbon Box One DH bar is a much more interesting piece. It exercises some of the promises of unique carbon fiber shapes that are seen in road bars with flat surfaces and raised areas to increase stiffness without adding weight. The bar we received is 800mm wide and there are also narrower Trail and XC versions. It comes in both 15mm and 30mm rises with a 35mm clamp.

Box One Timmigrant NSMB

It's about time someone did something a little more interesting with a carbon bar. The Box One has some muscular-looking bulges that are quite easy on the eyes.

Long Term Review

Tim's going to hammer on the Firebird and Box drivetrain for a few hundred hours and then get back to us with a proper review.

Choice is chief and I'm excited to see how the first generation of the Box One drivetrain holds up compared to the Pivot's stock XT/XTR drivetrain and the SRAM Eagle XO1 kit that Tim spent months on this winter.

The Box One carbon bar has an SRP of $170 and the Cusp stem sells for $100. The Push Push shifter lists for $75, the Box Two cassette at $100 and the Box One rear derailleur is $175. All prices in USD.

For more information check out Box Components here.

Comments

pete@nsmb.com
+2
Pete Roggeman  - May 18, 2017, 9:27 a.m.

Get PushPushing, Tim.

I rode the Box stuff on the Pivot for about 6 rides and was impressed with shift quality. The Upshift motion (pushing in on the shift paddle, parallel to the bar) took a bit of getting used to and I didn't get setup into a 'just-so' place, so the ergonomics weren't perfect for me, but I think a bit of tinkering could improve that.

Choice is good. Competition is good.

Reply

Endur-Bro
+1
Endur-Bro  - May 18, 2017, 6:10 p.m.

Agree with this. Took a long time for this product to actually come to market.  Recall the first protos and the involvement of Toby with the company, good to hear he's still with it.

Reply
