First Impressions REVIEW

2022 Trek Top Fuel

Words Cooper Quinn
Photos Cooper Quinn
Date Feb 9, 2022
Reading time

The Trek Top Fuel has historically been a platform focused on winning World Cup Cross Country races under the likes of Emily Batty and Jolanda Neff, garnering 17 wins from 2016-2018 alone. From there, it morphed into a bit of a marathon bike - a bit more relaxed and comfortable geometry - where it was probably a bit less put out if you wore baggies or had a couple extra pints after the local beer league XC crit. Forget most of that, though. The press kit for the new Top Fuel outlines everything you’ve come to expect in 2022: it’s a 120mm (+5mm) platform that’s now longer (~10mm), slacker (1.5 deg), steeper seat tube (1.0 deg) with internal storage, internal routing, a flip chip, and rolls on 27.5” wheels in size XS and 29s for the six sizes above that. And yes, even the XS fits a water bottle, and is adamant it's no longer cross country.

As far as genre goes… apparently it's “Fast Trail.” Sure.

2022 Trek Top Fuel Highlights

  • 120mm rear / 120mm front suspension travel
  • 26.4 lbs – size large review bike, with XT M8020 pedals
  • Rubber downtube & chainstay protectors
  • Knock Block 2.0
  • Alloy Pricing: C$3,479.99 – C$4,829.99
  • Carbon Pricing: C$5,899.99 – C$14,699.99

All the hallmarks of a new bike: longer, lower, slacker, and a bit more travel.


Top Fuel is not an anagram for Fast Trail.

Model Range

There are a lot of options across the Top Fuel range of stock builds: pick your price point (and thereby frame material), preferred drivetrain and suspension manufacturer from the big two in each, and you’re set. Or, if you fancy yourself a connoisseur, go factory custom with Trek’s Project One configurator where the world is your oyster with components and sparkle paint. Unlike some brands, Project One configuration is only available for higher-end builds, so you can’t get too aggressive with your min/maxing.


The frame here is what we'll try to focus on for the scope of this over the long term - most of the componentry is pretty well known and understood. And top tier.

Component Spec

Fork RockShox SID Ultimate, 44mm offset
Shock RockShox Deluxe Ulitmate RCT, 185mm x 50mm
Wheels Bontrager Line Pro 30, OCLV Mountain Carbon
Tires Bontrager XR4 Team Issue, 120tpi, 29.x2.40"

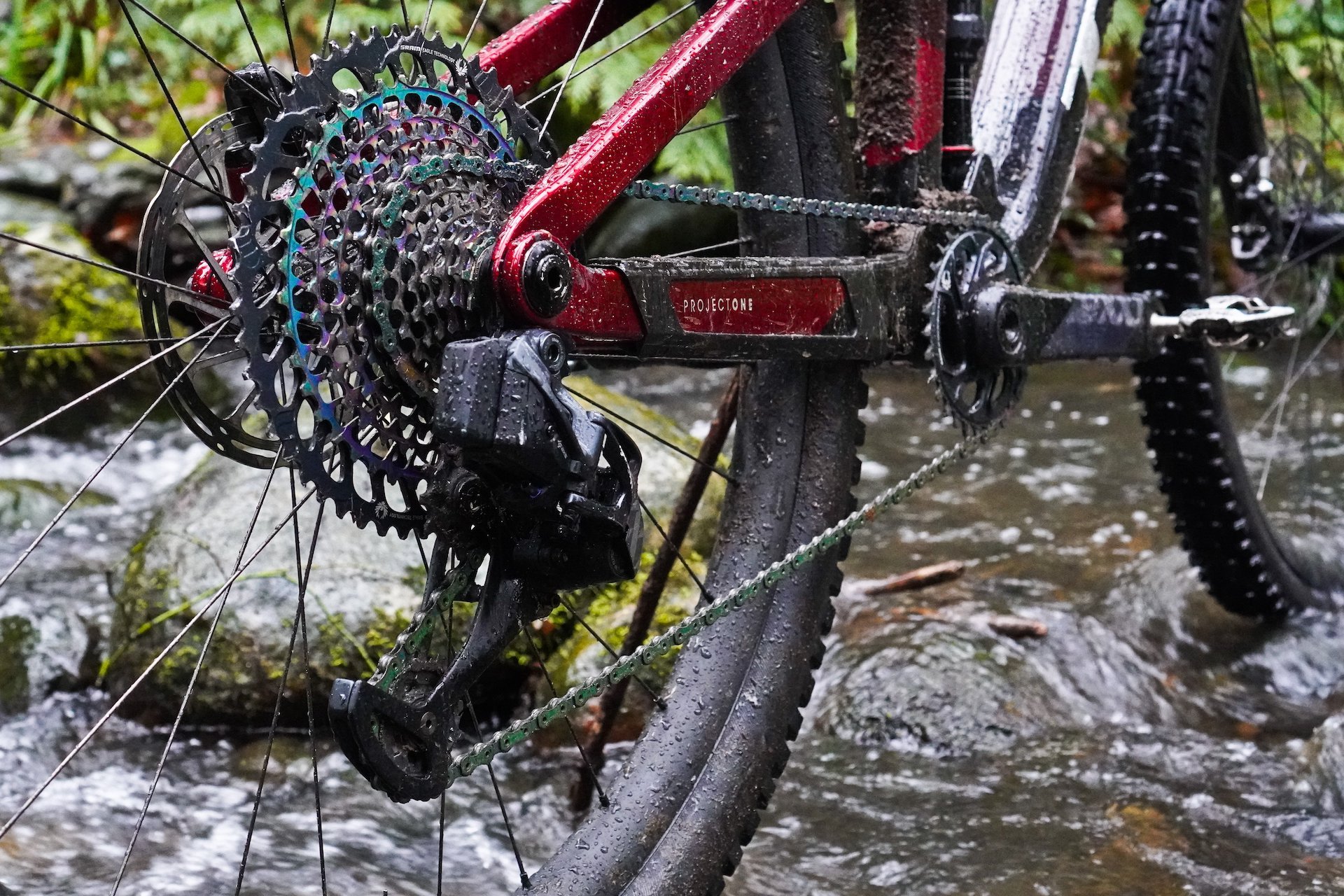

Derailler SRAM XX1 Eagle AXS
Crankset SRAM XX1 Eagle, DUB, 30T alloy ring, 55mm chainline
Cassette SRAM Eagle XG-1299, 10-52, 12 speed
Saddle Bontrager Arvada, austenite rails, 138mm width
Seatpost Bontrager Line Elite Dropper,34.9mm, (S - 100mm; M, ML - 150mm; L - 170mm; XL - 200mm)

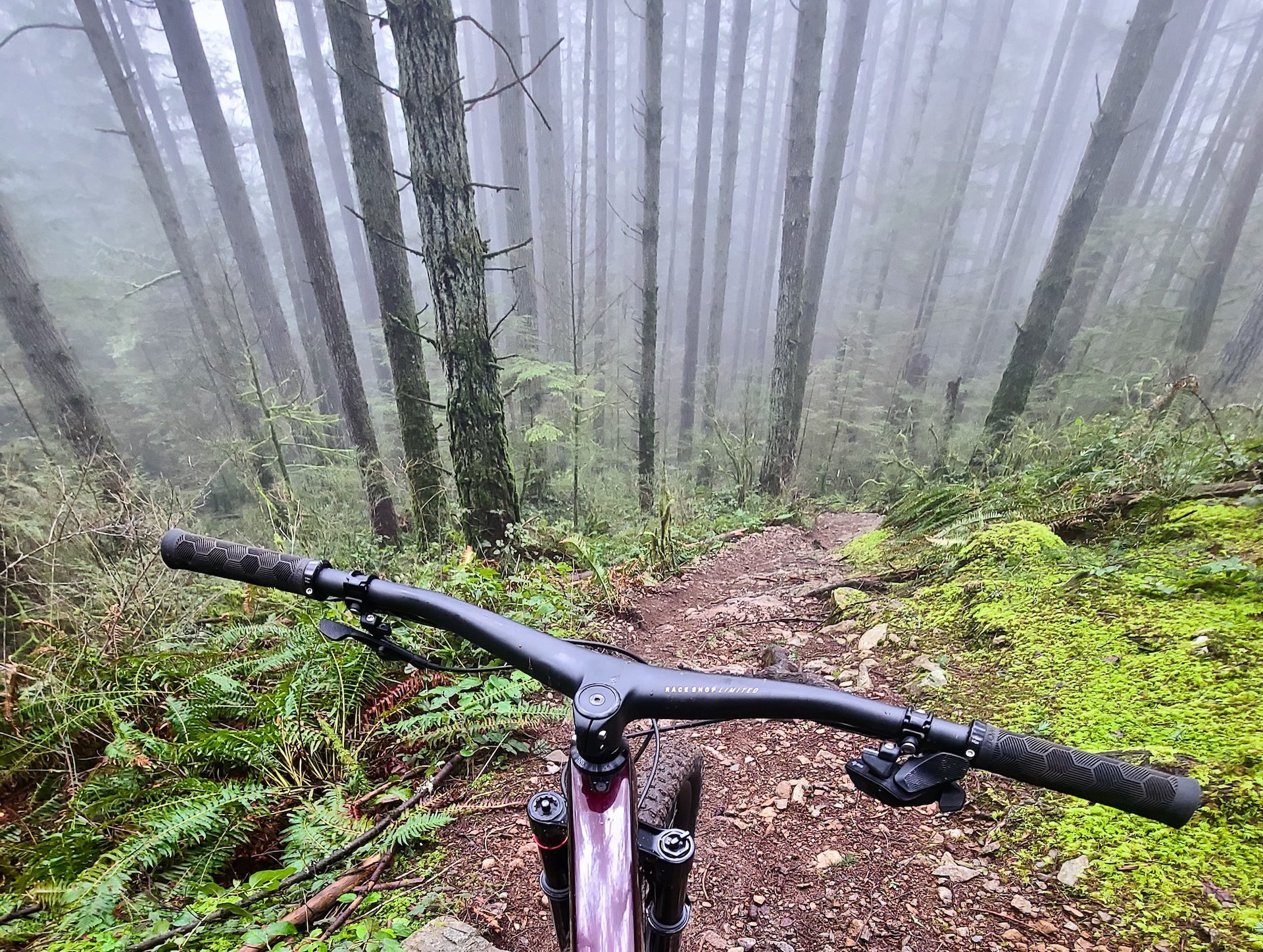

Cockpit Bontrager RSL Integrated handlebar/stem, 27.5mm  rise, 820mm width, 45mm stem (S - 35mm)
Brakes SRAM G2 Ultimate hydraulic disc

The review bike I’ve got is the 9.9 XX1 AXS build (sans AXS Reverb, welcome to media bike spec oddities), which would retail for an eye watering 13,974 CAD. The upshot to this is there probably isn't going to be much to comment on during the review period – the components are top tier and we’ll focus on the frame that holds it all together.

Frame Geometry and Suspension

Two years ago, a 66 degree head tube angle on anything with a SiD was very cutting edge; in 2022 it’s de rigueur. If we’re splitting hairs – which we’ll have to here – the Top Fuel geometry is slightly closer to its cross country roots than some of its competitors with significantly less stack height. This is down to a combination of a higher bottom bracket and shorter head tube. Will this mean it’s less comfortable at speed descending than some of its competitors like the new Rocky Mountain Element, or a personal favourite of mine, the Transition Spur? The Top Fuel seems aggressive enough to tread dangerously on the heels of its bigger sibling the Fuel EX.

There are lots of small upgrades over the previous Top Fuel. Both aluminum and carbon frames get an internal storage compartment in the downtube, there's a 34.9mm seat tube, and the Knock Block 2.0 gives a wider turning radius than the previous edition, as well as the option to remove it entirely. In theory, the Knock Block was originally conceived by engineers as a way to protect downtubes from fork contact, however this isn't the case here, which begs the question; "If the Knock Block doesn't need to protect the downtube, why is it there?" Personally I'd run a system like this on all my bikes given the option. It would alleviate concerns about brake hose damage in case of a crash, can make for tidier cables, and generally prevent some banging around and shuttle damage.


The flip chip (Mino Link, if you speak Trek) now sits at the lower shock mount. I don't love trunnion, but engineers love the packaging. I've got a lot of time on the SiDluxe, and it's wildly impressive especially considering there's roughly a thimble full of fluid inside.

Top Fuel Geometry

  XS - 27.5 SML MED ML LRG XL XXL
Reach 400 420 450 465 480 500 520
Stack 558 595 595 600 605 618 627
Effective Top Tube 539 568 598 615 631 654 676
Chainstay Length 435 435 435 435 435 435 435
Headtube Angle 66 66 66 66 66 66 66
Headtube Length 95 100 100 105 110 125 135
Effective Seat Tube Angle 76 76 76 76 76 76 76
BB Drop 20 36 36 36 36 36 36
BB Height 336 338 338 338 338 338 338
Standover (alloy) -- 715 735 740 745 755 765
Standover (carbon) 695 715 735 740 745 755 --
Wheelbase 1122 1151 1181 1198 1215 1241 1265
Front Center 688 718 748 765 782 808 832
Fork Axle-to-Crown 512 531 531 531 531 531 531
Offset 44 44 44 44 44 44 44
Trail 110 118 118 118 118 118 118

Geometry listed here is for the low ‘Mino Link’ position, with 120mm fork. Flipping the chip yields a roughly 0.5 degrees steeper head tube angle, and 6mm higher bottom bracket. Trek also suggests the Top Fuel is fully compatible with 130mm forks which yields numbers roughly 0.5 degree steeper.

There’s a broad range of sizing, and the extra effort that went into the XS is good to see, but it's a bit disappointing to see the same chainstay length and seat tube angle used across the full range. Reach grows by 120mm from XS-XXL and it’d be nice to see rear centres change proportionally. But for me, as a very average-sized male, 435mm chainstays are pretty standard for a size large. I might like to see something slightly longer, but being in the middle of the bell curve has its advantages.

Trek bills the Top Fuel as focused 60% on climbing, 40% on descending, and unsurprisingly it’s built around their split-pivot ABP system that's meant to decouple braking from suspension movement. Anti-squat is relatively constant at a touch over 100% throughout the range of travel in the hopes that whenever you put watts down, it motivates you forward.

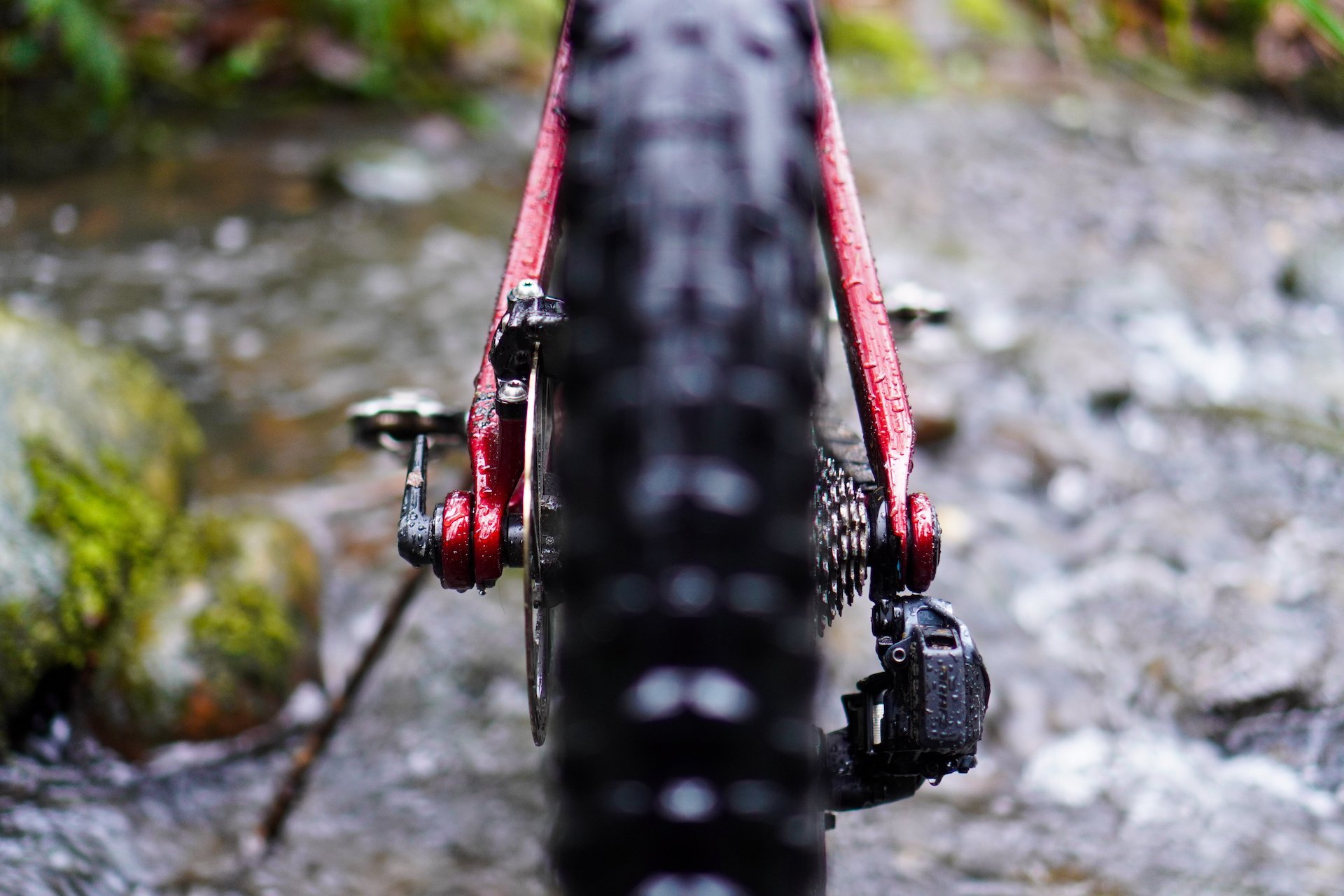

Trek's suspension pivots concentrically around the rear axle, which they claim gives them the best of both more complex linkage designs, and single pivot simplicity.

Early Impressions

This is a first look and I don’t have more than a handful of rides on the Top Fuel. So far, getting acclimatized has been simple and I've felt comfortable straight away. I’ve settled in around 30% sag in the rear and 25% up front. This may seem like a lot for an XC derived platform, but I’ve found there’s enough progression in the suspension and air springs that this is a good balance of traction, stability, and efficiency. I’ve ridden some pretty aggressive trails so far and I can’t say the lower stack is noticeably detrimental yet, but I’ll be doing some back to back days with the Spur to refine that opinion.


Internal storage is a really nice feature - both aluminum and carbon models get it. Flip the lever open and the lid pops right off.


However, stuff tends to rattle around. Trek doesn't include ferns with the Top Fuel, but if you cram some in it'll help tame the rattle. Beware, the storage compartment is bottomless. It can be hard to fish your flat repair tools out from the bottom bracket... or so I hear.

Two component quibbles have arisen: the Team Issue TR4 tires are a hard compound that’s sketchy here in the winter and on my first ride I ripped a hole in the centre of the rear tire. I patched it and kept riding, but I’ll be swapping tires around to find something a bit more comfortable and, if I still have this bike once it dries out, I’ll try them again. They do roll quite fast, considering I’m out of shape (holiday beer drinking, snow, COVID, etc…) but still managed to set a bunch of climbing PRs. The Bontrager seatpost is also glacially slow and I’m guessing there’s an issue.

Overall I’ve been getting along well with the Trek Top Fuel in its stock form, but it’s time to swap a few personal component preferences around and get some more saddle time to see where it excels (or doesn’t), and why you’d pick this over the myriad of other 120mm travel dadcountry bikes out there for your Shorecountry (or Othercountry) adventures.


This'll be my view for a while - let me know what you need to know about it!
