Intense Carbine 2018 AndrewM
First Impressions

2018 Intense Carbine 29'er First Ride & Release

Words Andrew Major
Photos Intense Bicycles & Andrew Major
Date Jun 27, 2017

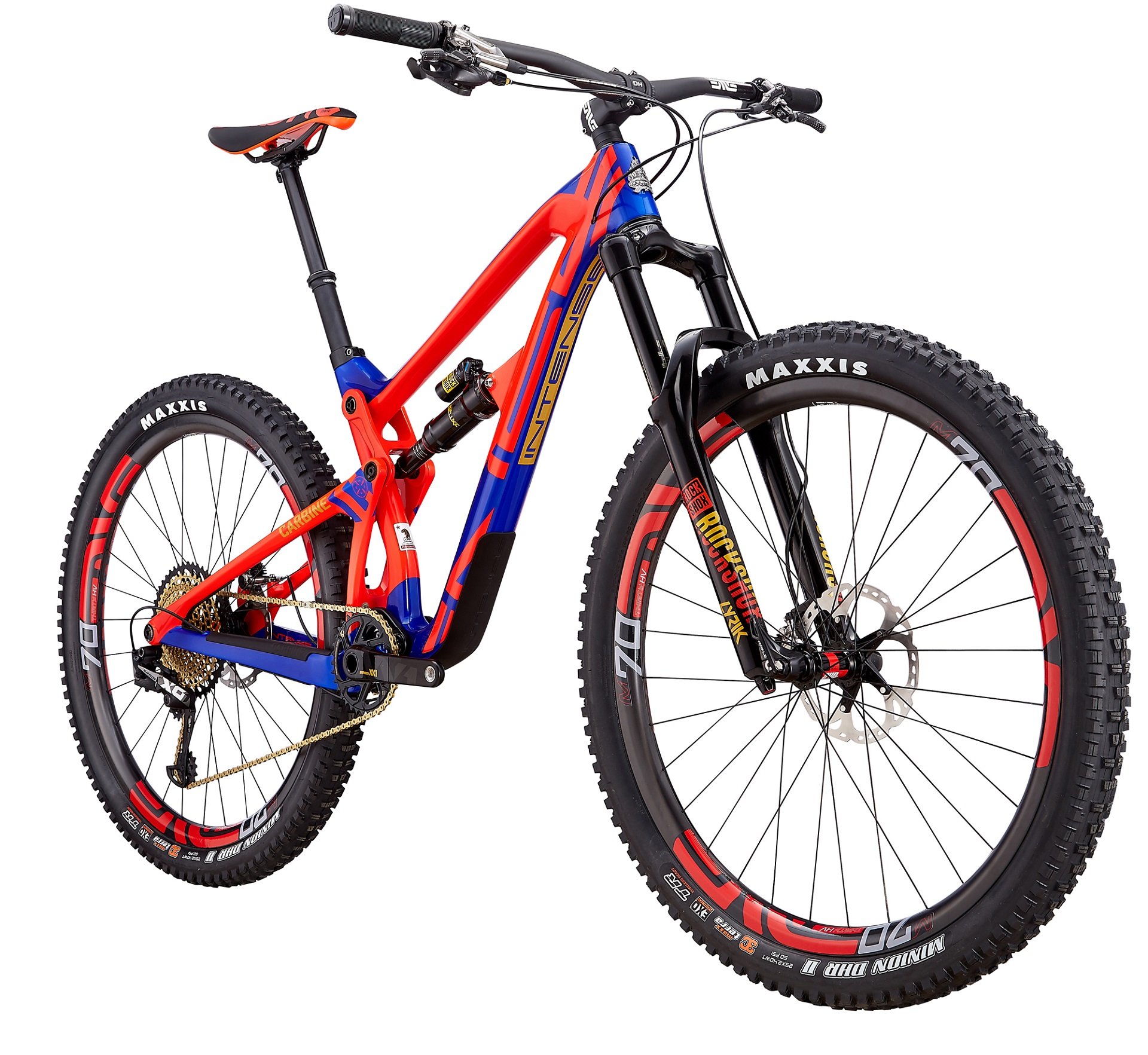

2018 Intense Carbine 29'er

From the Foundation to the Factory model, for a total of five price points, Intense introduces a brand new version of their JS-Link Carbine 29'er for 2018.

The 155mm travel platform features two levels of carbon frame, two suspension packages, four colours, and a range of 1x specific builds. The Carbines range in price from $4000 (USD) to $10,400 (USD) with both versions of the frame available for sale separately. In Canada, the Foundation, Expert, and Pro are CDN $5275, $6575, and $8190 respectively. The Elite build retails for CDN $9500 and the Factory an eye-watering $12250.

In addition to the media package, I had an opportunity to ride the Factory level Carbine on some technical Sedona singletrack but for the first time since they started offering complete builds, I'm most excited about the Foundation level build which I've focused on below.

Intense Carbine 2018 AndrewM

Sharing the same suspension layout as the new Intense Tracer, the Carbine is a 1x-specific 29'er Enduro bike. It has an impressive amount of support climbing with the shock wide open but this is a bike focused on riding down chunky sh*t really fast.

Philosophy & Geometry

The new Carbine platforms share geometry and a specific spec philosophy that focusses on suspension, wheels, and tires.

Intense Carbine 2018 AndrewM

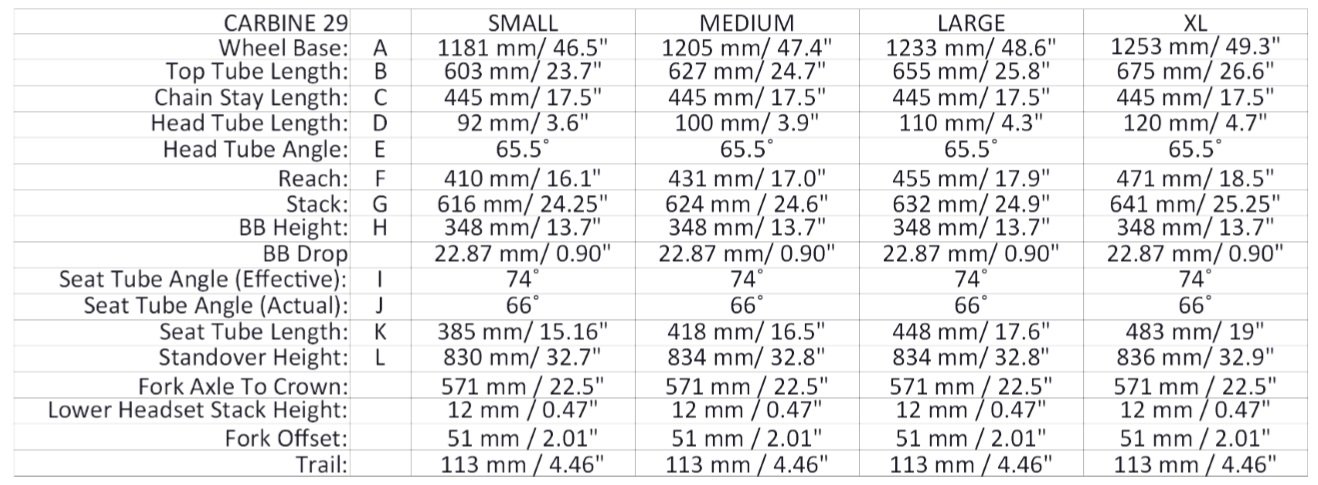

The geometry chart is pretty standard for long travel 29ers. From my experience (32" Inseam / Size Large) the seat angle feels really steep compared to past Intense bikes so I'll take the effective number at face value for my extension.

I've already focused in on Intense's 30mm internal rim standard in talking about their Recon carbon wheelset. From the Foundation to the Factory build, alloy or carbon, rims are a minimum of 30mm wide to take full advantage of current rubber.

Speaking of rubber. No sh*t OE tires to be found. The High Roller II found on the Foundation and Expert build is not my favourite rubber, and it's not 3C, but it's totally rideable. If you are similarly inclined, throw a 3C 2.5" DHF up front and keep that HR II as a spare rear tire.

Suspension consists of two RockShox packages. Intense is very specific that suspension is an expensive aftermarket upgrade so this was a chief focus when putting together the less expensive models. The two Carbine frame-based bikes come with a RockShox Deluxe air shock and a Yari fork. The three Carbine SL frame-based bikes come with a RockShox Super Deluxe air shock and a Lyrik.

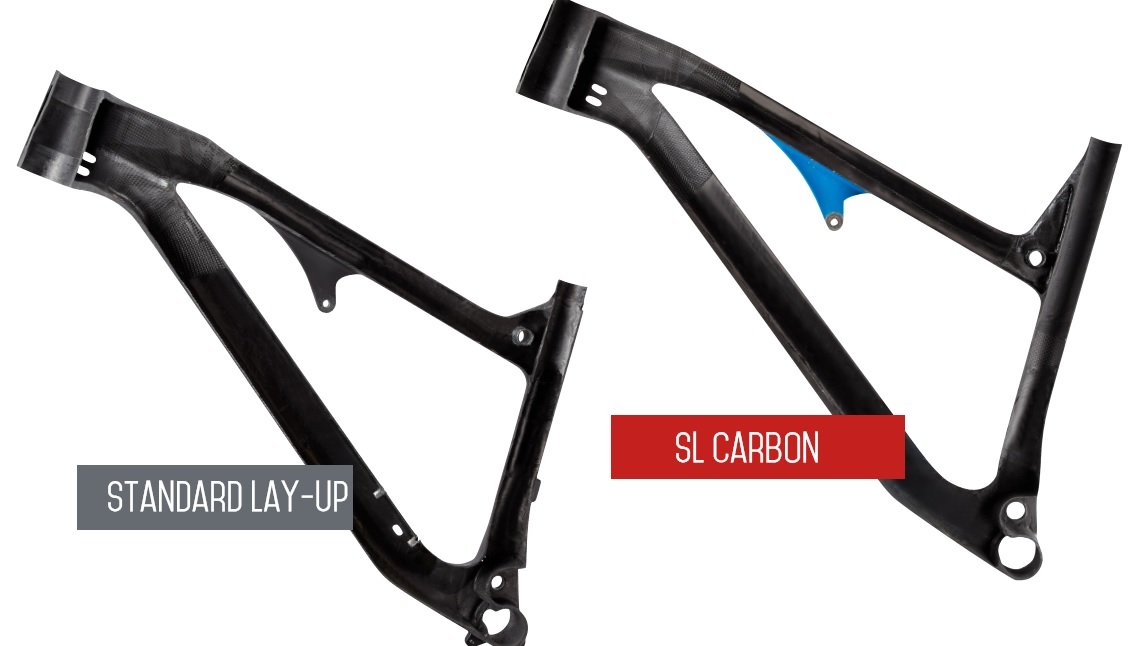

Carbine vs. Carbine SL

Intense offers two levels of Carbine frame. The standard Monocoque carbon Carbine is available in Charcoal or Orange and is used for the Foundation and Expert ($5000) level builds which are both available in either colour. The frame only Carbine is available as a why-not-just-buy-the-complete-Foundation-build-for-a-grand-more price of $3100 including a RockShox Deluxe shock.

The Carbine SL frame uses more advanced High Modulous construction and materials, a carbon upper link instead of aluminum and any frame hardware that isn't alloy is titanium. It's used for the Pro (US$7000), Elite ($8000) and Factory level builds. The SL frame comes in two paint schemes which are both available at each level: Red-Blue-Gold & Black-Grey-Red. The SL Frame only sells for $3400 including a RockShox Super Deluxe shock.

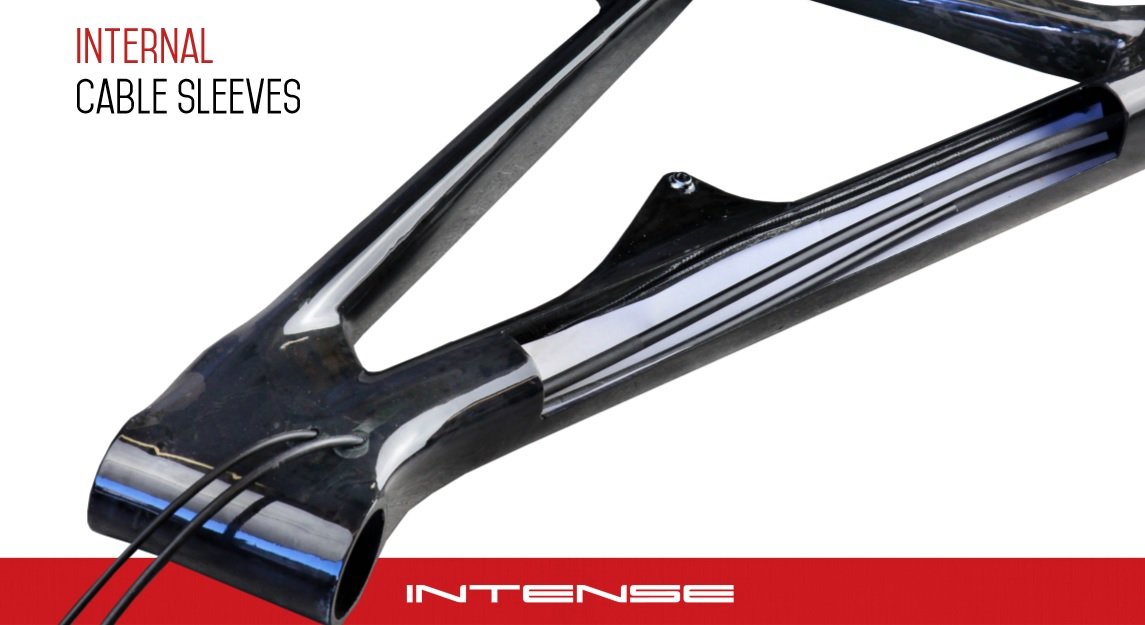

Both versions of the frame resolve cable rattle using internal sleeves. I can definitely vouch for how much quieter the new Carbine is compared to the past generation of Intense frames - no magic tricks needed.

JS Enduro

I've never found Intense's virtual pivot point bikes particularly difficult to set up. On the trail, bikes like the previous generation Carbine simply require you to find the sag pocket at around 28-30% and go from there. I got along great with the DVO shock I rode on the Recluse.

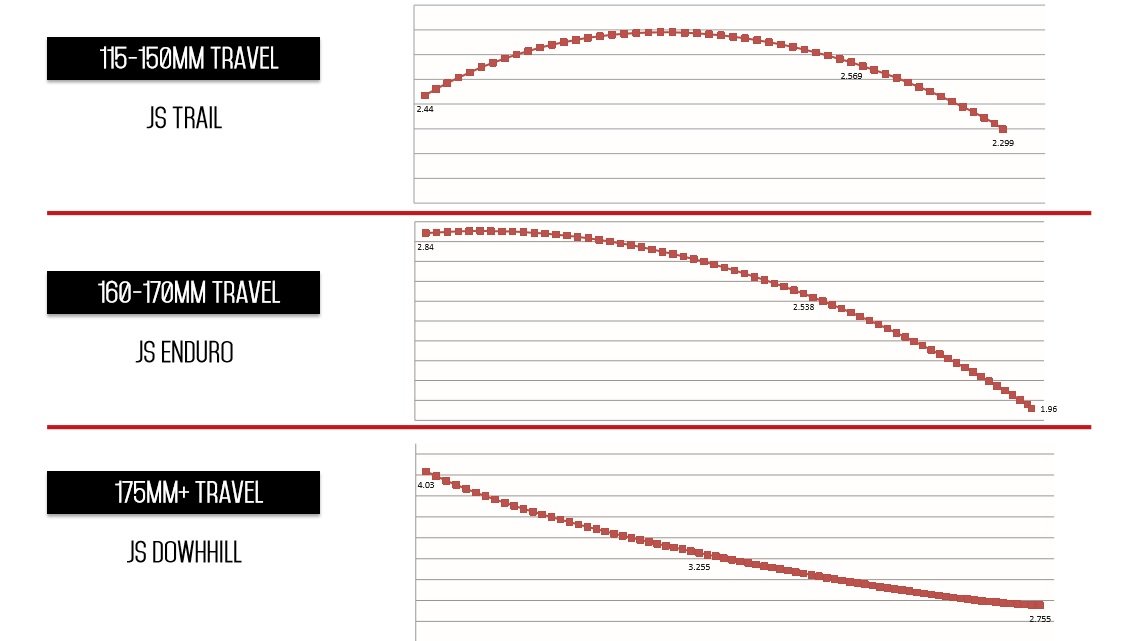

The new JS Enduro linkage provides better support while climbing and descending with the shock wide open with less faffing about than any other bike Intense has made. I'm not saying it's a peppy climber, it's a 160mm 29'er after all. But, it goes uphill as well as any bike I've tried in the category and better than most. That's especially true on technical climbs where the bike sits high and tractors up and over square edged shelves in a most impressive way.

The climbing chops of a long travel 29'er are certainly important but I'm thinking most riders looking at a Carbine will be focused on its downhill prowess. I only had a brief introduction but the Carbine frame is impressive. The 160mm Lyrik and Yari are both good forks but in the chunkiest terrain the Intense frame out guns them. Smooth, supportive and bottomless feature prominently in the cliché string.

Looking into my crystal ball, I can see the Carbine being run at bike parks and on shuttle trails using a new breed of 180mm dual crown 29'er forks. I joke but I would love to see Intense release a 140mm bike using this suspension platform.

Foundation Build

Any company can produce a sweet 10k bike. It's easy. Eagle, carbon everything, sexy paint job and done. Intense has it extra easy because they just bought a bunch of parts from Intense Factory Racing sponsors ENVE & SRAM and put them on the (dun dun duuuuuun) Factory model bike.

Intense Carbine 2018 AndrewM

Sweet Baby Jebus - a proper shifter style remote on the Foundation build. So many companies are guilty of going with cheaper front shifter compatible remotes even on their 1x bikes. Props for the Race Face Aeffect post on the $4000 (USD) Foundation model.

I've come around to the fact that there isn't a complete bike on the market, at any price, that I wouldn't change something on for my personal preference. The Foundation build has a few such parts. I'd install a SRAM GX shifter instead of the NX which will result in a significant improvement in drivetrain performance. I'd swap out the Intense brand grips, and I'd throw on a front tire with stickier rubber. Lastly, I'd buy a Shimano Zee caliper and install it in place of the stock M500** unit up front. The Carbine wants to go Fast and the extra control and power are worth any weight penalty.

Intense Carbine 2018 AndrewM

Race Face Aeffect Cinch cranks. I'm currently reviewing a set and I'm challenged to justify why I'd ever spend more money on cranks. They're even reasonably light.

The short of it is that the Foundation build at 4k has a well-considered spec on a carbon frame that I predict will be regarded as the best non-DH bike they've ever made. It leaves me wishing there was an aluminum option to hit the same level of performance at an even lower price point.


This is a first impression and not by any means a full review of the new Carbine 29er but it's also a prediction that this will be a very positively reviewed and received platform. I've ridden the last few generations of Carbine and the new bike is better in every way.

There may be better-appointed bikes for the money than the Carbine but if you are in the market for a long travel 29'er I'd highly recommend grabbing a test run on the new Carbine before you pull the trigger.

**Assuming the Shimano M500 is a compatible Servowave brake. The one I photographed had SLX brakes.


William Gaffney  - June 27, 2017, 7:34 a.m.

looks like a Nomad 3 :P Just saying.

Seems to be better priced though.


Andrew Major  - June 27, 2017, 7:54 a.m.

Aside from everything looking like everything (design optimization... yay?!) it definitely rides very differently from the Nomad-3.

Other than the obvious difference of wheelsize I thought the bike was a lot more interesting to ride up hill (Nomad-3 spins up a fireroad and suffers up singletrack fine for what it is but I wouldn't say it inspired).

The Carbine responds well to input on chunky moves and holds momentum surprisingly well pushing hard on the pedals. Enough so that I think a shorter travel version (giving away some all out descending prowess for trail manners) would be a simply amazing one-bike for most places.


cyclotoine  - July 2, 2017, 8:21 p.m.

I was thinking the same thing before I read the review. If only it was a 140mm platform. It's too much bike for most of my riding, but it is intriguing nonetheless.

Andrew Major  - July 3, 2017, 8:35 a.m.

It's definitely worthy of a test ride for anyone looking for a 29" tool for aggressive descending that goes up hill well. I could see the Intense DH team using this with 180mm Boxxers for tamer WC tracks - and it says something that it still climbs really well with that being the case.

Let's both cross our fingers for a shorter travel Carbine SS or a new Primer with this suspension and geo.

Endur-Bro  - June 27, 2017, 12:32 p.m.

This new breed of 180mm 29er dual crowns need to show up soon!


Andrew Major  - June 27, 2017, 1:29 p.m.

Fully agree - it's crazy to me that there is not a 29'er and 27" version of a 180mm Fox 36 RC2 dual crown in the lineup for 2018.

Based off the 40 I'd guess they'd weight around a pound more than their single crown models. No more creaking CSUs, direct mount stems, more room for guts. Awesome.

I'm also surprised that a company looking for market share (DVO, X-Fusion, Manitou) hasn't released something. Using the lowers from their existing forks (29'er/27") takes care of the largest expensive.


Tehllama42  - June 27, 2017, 2:41 p.m.

I'm with you, why hasn't DVO released a 29" 180mm travel variant of the Emerald?

Endur-Bro  - June 27, 2017, 3:12 p.m.

MRP and the Dorado are the only currently available market options besides the 170 and 180mm Lyrik 29s.

DVO missed the mark with the upcoming Onyx DC fork.  20mm bolt on thru axle, travel adjustable, 27+ compatible, but doesn't fit 29s. :|  The Diamond 110 goes to 160 in 29 and 170 in 650b. Same with the Öhlins 36.  And the MRP I believe.  X-Fusion Revel tops out at 140mm 29.  I agree with you on the 36 RC2 DC fork, especially if they put the five bolt axle like the 40.  It's a much better option than building a Franken-Fox-Fork with 29er lowers with 170mm 275 CSUs.

It boggles my mind that the industry goes to great lengths to market everything stiffer than the previous version or the competitions product, yet release 170 and 180mm single crown forks.  So a rider buys the newest BOOST 110 front hub with asymmetrical carbon rim then has the pleasure of all the stresses and flex going towards the stanchions and CSU of the fork.  Specialized was onto something when they put the DC fork on the Enduro way back when.

Andrew Major  - June 27, 2017, 11:58 p.m.

The weight penalty on inverted forks would be hard to justify for an Enduro bike - I mean there are so options like one piece magnesium uppers that could cut weight but I get why an Emerald wouldn't happen.

I do love the ride of the Boost Diamond and I think that platform would make for an awesome dual crown.

Agree on the Onyx.

Specialized also figured out that getting some of the fork offset out of the crowns with the E150 made for more knee clearance. Really too bad the forks were total sh*t because the concepts behind the chassis (24mm hub, direct mount stem for trail bikes, etc) were excellent.
Niels  - June 28, 2017, 6:47 a.m.

Interesting, that Raceface Aeffect dropper... No info on RF website. It looks suspiciously similar to the Iridium-branded dropper on my Canyon (same dropper also marketed as Brand-X Ascend (CRC) and PNW Bachelor).
