New Release
2024 Santa Cruz Stigmata 4
It's Crankworx 2023, it's a Sunday, and I'd flatted on my Canadian Open race run earlier. I'm absolutely gutted, and easing the disappointment by practicing for the upcoming Air DH race on what felt like comically small A-Line jumps after the 1199 track. I get a call in the gondola, Caller ID says it's Seb Kemp from Santa Cruz Bikes. Seb goes on to explain that Cooper couldn't make it to this bike ride tomorrow on their new Stigmata 4 gravel bike, and would I like to join instead. "Ahhh, Seb, mate, I've never ridden a gravel bike before, gravel biking is stupid, and LOL, did you say this is a ride from Whistler to Squamish?". On second thought, rides with Seb are always fun, so why not? A quick look through the Air DH schedule, and it's clear this ride should just squeeze in between plate pick up and practice laps. I'm in!
Our ride started out in the rain, resulting in fantastic dirt / gravel conditions.
The Stigmata 4 Notes:
- CC Carbon Frame
- 700c Wheel Size
- Small through XXL Frame Sizes
- Progressive geometry
- In frame Glovebox storage compartment
- 50 mm Tire Clearance
- 40 mm Fork Compatible
The Stigmata comes with 1x and 2x drivetrain builds.
The in-frame Glovebox storage compartment was large, and fairly easy to access.
The frame comes with neat tailored bags that fit into the Glovebox and minimize rattling.
The Stigmata 4 has clearance for 50 mm tires.
Subtle fender mounting points on the fork.
Subtle fender mounting points on the rear triangle.
Stigmata Frame Details
The idea of gravel biking has expanded in recent years to include everything between dedicated road bikes and cross country mountain bikes. Santa Cruz felt the need for an updated Stigmata that could be used for gravel racing, all-road riding, bike packing, backcountry and free-roading. The updated "progressive" geometry seems inspired by trends in the mountain bike world ( more on that below). The Stigmata comes in a number of different builds, designed to suit each of those styles. Beyond the numbers, Santa Cruz included subtle fender mounting points, and a large internal storage Glovebox that was deep enough to carry a light rain jacket, tools, and snacks.
After getting the bikes set up, we head off to the start of the Sea to Sky Trail, and my goodness is it beautiful.
Geometry
The Stigmata is a mountain bikers' gravel bike, and the new Stigmata 4 follows current geometry trends in mountain biking. Santa Cruz has slackened the head angle by 2 degrees from the old Stigmata, lengthened the reach by 30 mm on each size, and focused the geometry around a shorter 70 mm stem. The intent here was to make the Stigmata 4 more capable on rougher situations, while not giving up any of the efficiency and speed of the current Stigmata.
Geo numbers provided by Santa Cruz.
The progressive geometry of the Stigmata had me gooning around on all kinds of features on the ride.
Stigmata Builds
The new Stigmata 4 comes in five different builds, intended to span the wide spectrum of gravel biking. Stigmata 4 is available at your local Santa Cruz dealer. You can check out pricing at Santa Cruz or per build as follows:
- Apex 1x: $3,999 USD / $5,199 CAD
- Rival AXS 1x: $4,899 USD / $6,399 CAD
- Rival AXS 2x: $4,999 USD / $6,599 CAD
- Force AXS 1x RSV: $7,699 USD / $9,999 CAD
- Force AXS 2x RSV: $6,999 USD / $9,199 CAD
Stigmata CC Apex Build.
Stigmata CC Rival AXS 1x Build.
Stigmata CC Rival AXS 2x Build.
Stigmata CC Force 1x AXS Reserve Wheel Build.
Stigmata CC Force 2x AXS Reserve Wheel Build.
Ride Impressions
We met up in Whistler Village to get the bikes sorted. The bike I'm riding has an AXS dropper post and a suspension fork, which seems like sacrilege to me. To be fair, I hadn't been gravel riding before, but I've always thought forks on what is essentially a road bike is for softies. And a dropper post ... LOL ... why? To make it easier to unclip at stop lights?
I liked the 1x drivetrain on the bike I rode. I was impressed with how capable the bike was going up steep sections of road / gravel, yet still able to put down plenty of power at over 50 km/h.
There is a bit of a road ride to get to the first gravel bit. I was immediately comfortable on the Stigmata. I have a Norco Search with 25C slick tires that I use as a commuter bike. My Search is light and fast, and in comparison the Stigmata on it's 45C knobbies felt every bit as snappy and efficient. I thought I'd maybe spin out with the 1x drivetrain, but even on mild downhills I had plenty of gears to eat up the smooth pavement kilometers.
Sometimes you have to steer right to go left. A few minutes into the Sea to Sky Trail it became pretty clear that my preconceived notions about gravel biking, as well as forks / dropper posts on gravel bikes, were very wrong. This bike is so much fun!
After a bit of road riding, we started in on the trail. I'm following Seb, a very talented mountain biker, and within minutes he's backing his gravel bike into a rowdy corner. I drop my seat post, foot out, and slide the Stigmata through the same corner. Cackling with laughter Seb and I are back on the pedals, accelerating to the next pristine corner. The Stigmata is a joy to accelerate, and feels almost effortless getting from corner to corner. The Sea to Sky trail would probably be a bit boring on a cross country mountain bike, but given the speed and efficiency of the gravel bike, it turns the trail into a race track, filled with challenging corners.
Confirmed; the Stigmata is great for wheelies, and adventuring to gorgeous places.
I was riding the XL size, and I found the cockpit roomy and comfortable. The Stigmata felt surprisingly efficient on the road sections, yet on the rougher gravel sections the combination of the tires, fork and frame were surprisingly compliant and worked well to take the edge off jarring washboard. The seated position seems to strike a good balance between keeping the front end planted on steep, loose climbs vs. being able to weight the front wheel through the corners.
Freeride flicks with views!
The Stigmata 4 after the Sea to Sky trail.
The Rudy fork did a great job of smoothing out washboard on the roads, and rougher descents, while also helping build traction through the front tire in loose corners.

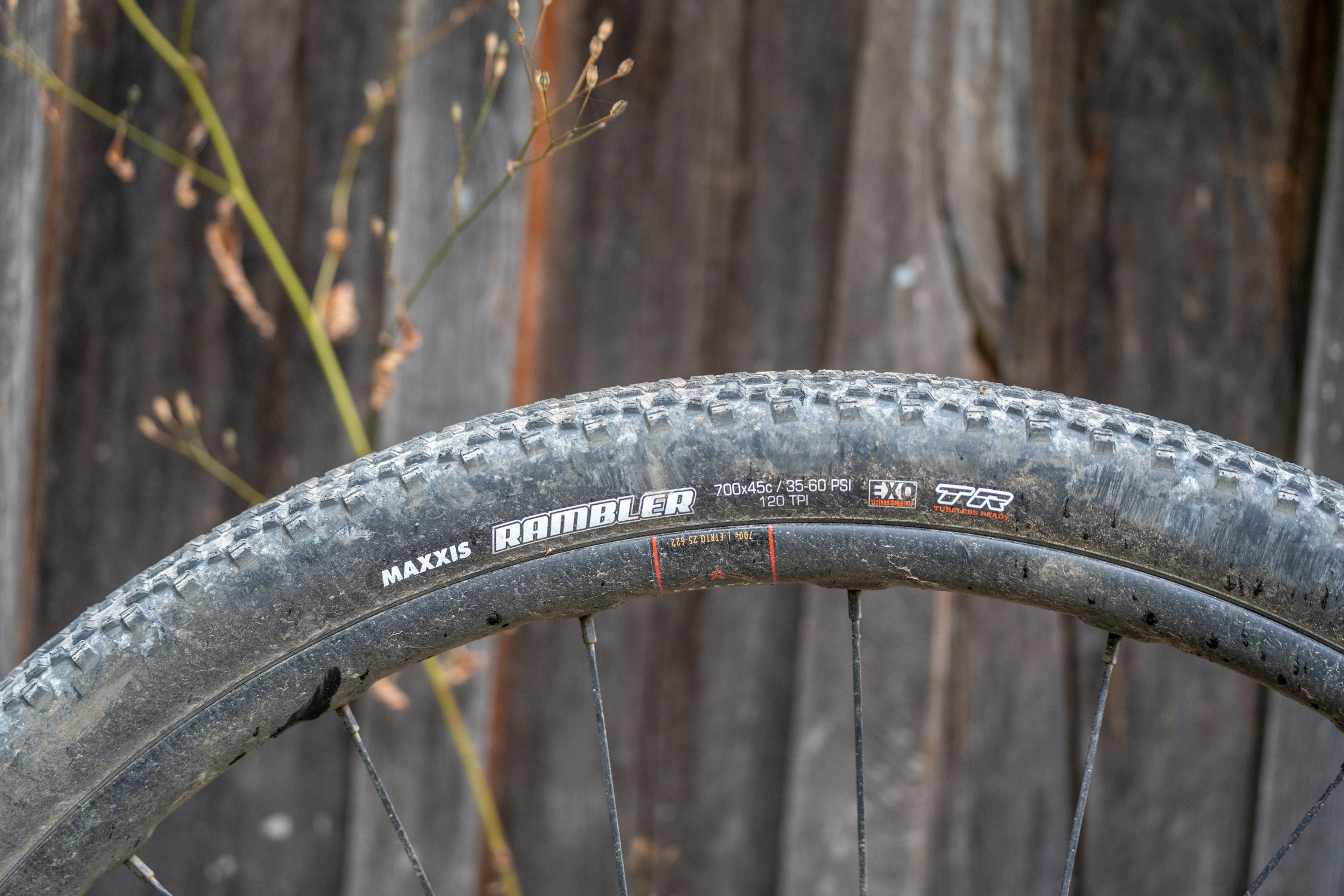

I'm impressed with how efficient the Maxxis Rambler is on pavement, yet made good traction on the loose dirt bits too.
While I might not have much context on how the Stigmata compares to other gravel bikes, I can say the Stigmata was a ton of fun. It feels like it's intended to be a curly bar bike for mountain bikers. While there are builds without the dropper post and suspension fork, I thought the damping up front was great, and the dropper post was welcome on the fun descents. I'm impressed with how efficient and snappy the Stigmata was on the road sections and fast on the gravel bits, all while being comfortable. My preconceived notions about gravel biking have been left in smoldering pieces; I very much want a Stigmata, with a dropper post, and a suspension fork. It's just such a fun and versatile bike. Also the Sea to Sky Trail is incredible. Maybe I should leave this as my only ever gravel ride, because between the trail and the Stigmata 4, I can't imagine gravel biking gets any better.
Sea to Sky Trail; Sinuous gravel through beautiful landscapes.
With rivers and mountains and trees.
Over bridges and through canyons. A work of art.
Age: 41
Height: 183 cm / 6'
Weight: 87 kg / 192 lbs
Ape Index: 1.055 / +10 cm
Inseam: 81 cm / 32"
Preferred Riding: Gravity Mountain Bike
Bar Width: 800 mm
Preferred Reach: 500 - 520 mm (but this is stack and head angle dependent)
